Dahua CCTV Packages by Property Type

A useful Dahua CCTV quote starts with the property, not with a random camera model. Use these examples as practical starting points, then adjust the camera count, lens, NVR and storage to the real site.

Package examples

Quick answer

Small homes and shops often start with 4 cameras and a 4-channel or 8-channel PoE NVR. Growing businesses, warehouses and farms usually deserve an 8-channel or 16-channel recorder path even if the first stage uses fewer cameras.

Dahua CCTV package sizing matrix for homes shops warehouses and farms
Use package examples as a sizing starting point. The right Dahua system still depends on entrances, lighting, storage expectations, app access and future expansion.

How to read these Dahua package examples

These are not rigid kits. They are quote starting points. A simple four-camera home may need a better recorder than expected if the owner wants longer retention. A small cafe may need fewer cameras than a warehouse, but the counter and entry views may be more evidence-critical. A farm may start with four cameras but need a much more careful network design than a suburban house.

The best Dahua package is the one that leaves the owner with useful footage later. That means enough camera views, sensible lens choices, enough recorder channels, realistic storage and a handover the owner can actually use.

Package examples

Property type Typical Dahua camera count Recorder path Why
Single-storey home 4 cameras: front door, driveway, side path, backyard. 4-channel PoE NVR if no expansion, 8-channel if future cameras are likely. Covers common approach points without overcomplicating the system.
Large home or townhouse 6 to 8 cameras: entry, driveway, garage, side paths, backyard, rear door. 8-channel PoE NVR, preferably with enough storage headroom. Most misses happen around side access, rear entry and garage views.
Shop or cafe 4 to 8 cameras: entry, counter, seating/customer area, stock, rear door, exterior approach. 8-channel PoE NVR with DMSS handover and alert planning. Evidence views at counter and entry matter more than a single wide overview.
Warehouse 8 to 16 cameras: roller doors, dispatch, office, aisles, yard and loading areas. 16-channel NVR where growth, storage and review workflow matter. Warehouses need planned coverage zones and recorder headroom.
Farm or remote site 4 to 12 cameras depending on sheds, gates, tanks, yards and detached buildings. 8 or 16-channel NVR, often with careful network and power planning. The network path can matter as much as the cameras.

What those packages look like in practice

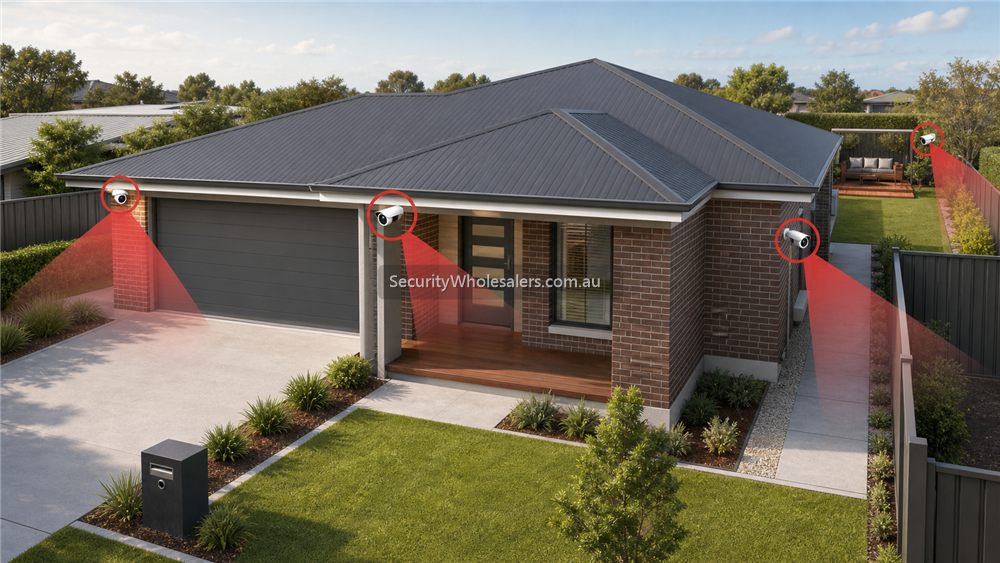

Dahua home CCTV layout example with cameras covering entry, driveway, side access and backyard

Home: 4 to 8 cameras

Start with entry, driveway, side access and rear coverage. Use an 8-channel NVR if the home may later add a garage, side gate or second-storey view.

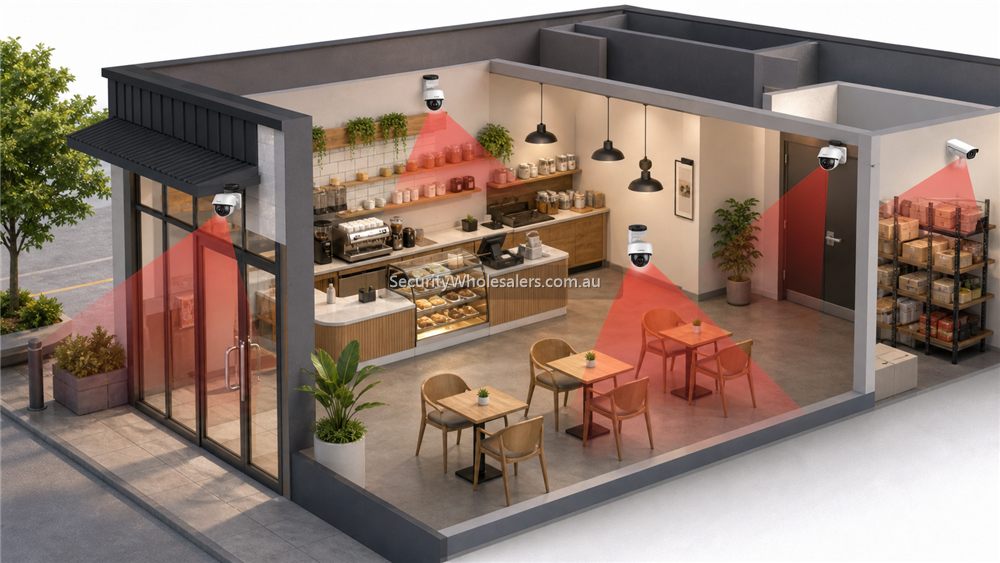

Dahua shop and cafe CCTV layout example with cameras covering entry, counter, seating and stock areas

Shop or cafe: 4 to 8 cameras

Prioritise entry and counter evidence, then add customer area, rear door and stock-room coverage. Test the DMSS handover with the owner before sign-off.

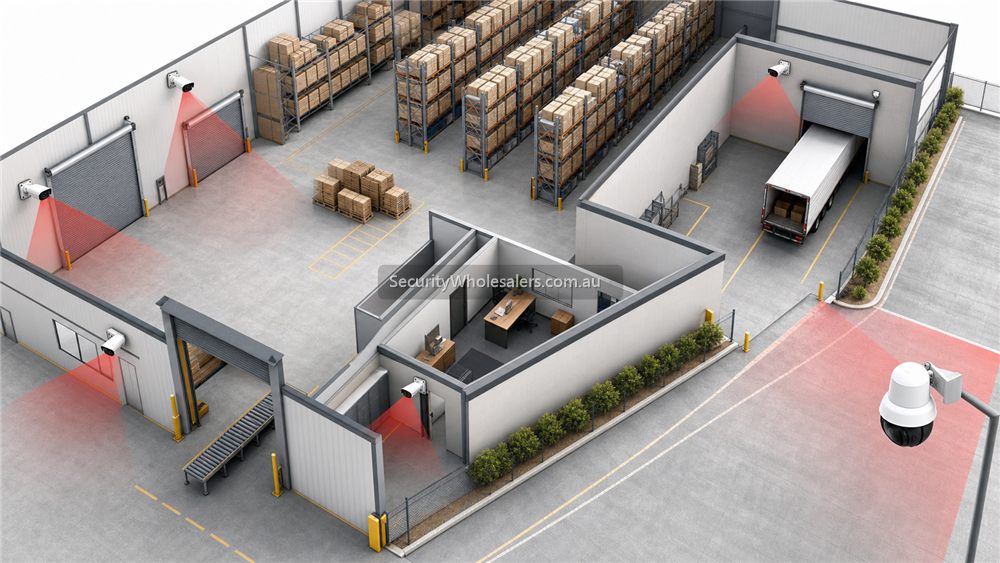

Dahua warehouse CCTV layout example with cameras covering dispatch, aisles, roller doors and yard areas

Warehouse: 8 to 16 cameras

Plan zones around roller doors, dispatch, aisles and yards. PTZ can help with overview, but fixed cameras still need to cover evidence points.

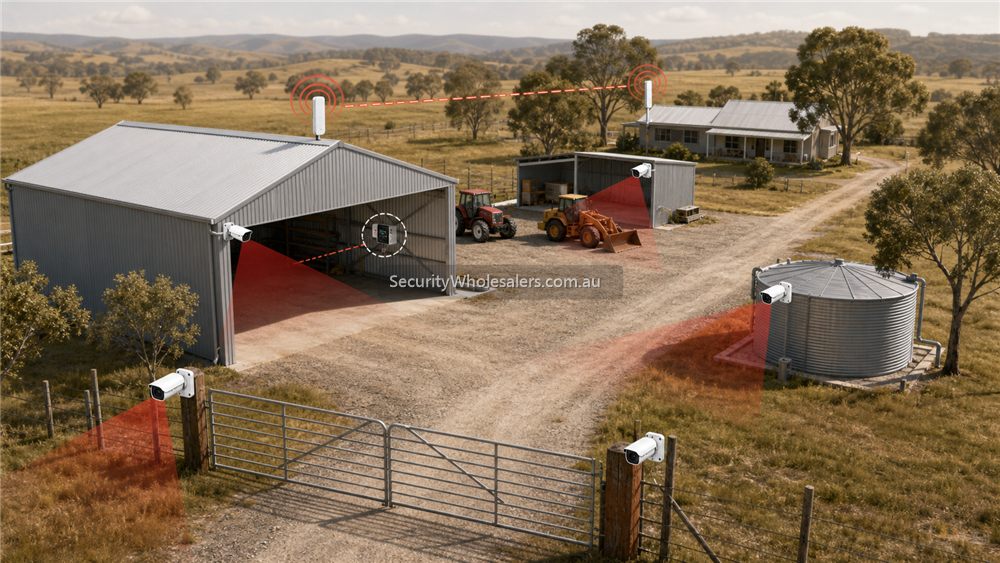

Dahua farm and remote site CCTV layout example with cameras at gate, shed, yard and remote buildings

Farm or remote site: staged design

Power, internet, wireless links and recorder location often decide the result. Treat cameras at gates, sheds, tanks and yards as a staged system, not one random kit.

Home CCTV layout example

Dahua home CCTV layout exampleFront doorDrivewaySide pathBackyardHouseRecorder inside, protected by UPS where possible
Start with the four evidence views most homes actually need, then expand only if the site has side gates, detached garages, rear lanes or higher-risk zones.

Dahua NVR and PoE layout example

Dahua NVR and PoE layout exampleCamera 1Camera 2PoE NVRchannels + HDD baysRouterinternet + DMSSDMSS usersMonitor / TV
For most Dahua packages, the recorder is the centre of the system. Size the NVR before filling every channel, and test DMSS access during handover.

SecurityWholesalers product paths

Dahua 6MP turret camera

6MP WizSense turret reference

A practical general camera path for entries, walkways and many small-business scenes.

Dahua Smart Dual Light turret

6MP Smart Dual Light reference

Useful where the site wants better low-light behaviour without jumping straight to deterrence everywhere.

Dahua NVR

8-channel Dahua NVR reference

A stronger small-business and larger-home recorder path than a basic filled-to-capacity 4-channel design.

Quote-ready package scenarios

Scenario Camera mix Recorder suggestion Upgrade trigger
Small single-storey home 4 fixed turrets covering entry, driveway, side and rear. 4-channel if final, 8-channel if there is any likely expansion. Add Smart Dual Light at driveway if colour detail at night matters.
Busy cafe or takeaway Entry, counter, dining/front, kitchen pass or stock, rear door and external approach. 8-channel PoE NVR with spare channel headroom. Add TiOC only for after-hours rear lane or exposed stock entry.
Small warehouse Roller doors, dispatch, office entry, internal aisle, rear cage and yard. 16-channel NVR where expansion, retention and search matter. Add PTZ only after fixed evidence views are already covered.
Farm with sheds and gate House/shed views, gate, tank/fuel area, machinery, yard and detached building. 8 or 16-channel path, depending on wireless links and staging. Upgrade network/power design before simply adding more cameras.

What a good Dahua package quote should include

  • Camera count by location, not just a total number.
  • Recorder channel count, PoE count and HDD bay/storage assumptions.
  • Which cameras are IR, Smart Dual Light, WizColor, TiOC or PTZ, and why.
  • Expected retention target, especially for businesses and warehouses.
  • App handover requirements, including who needs DMSS access.
  • Expansion headroom, because many buyers add cameras after living with the system.

When to size up

  • Choose an 8-channel NVR instead of 4-channel when there is any realistic chance of adding cameras later.
  • Choose 16-channel where the site has multiple entries, stock areas, yards, offices or detached buildings.
  • Add TiOC selectively where active deterrence is useful, not simply because it is available.
  • Add PTZ only where fixed cameras already cover evidence views and the site needs live overview or patrol support.

Storage and expansion planning by package type

Camera count is only half the package. Storage and expansion decide whether the system remains useful after the first month. A four-camera home might be happy with modest retention. A cafe may need to review counter disputes days later. A warehouse may need longer retention for stock, freight and insurance discussions. A farm may not check footage every day, so remote access and retention can matter more than the first camera price.

Package Storage thinking Expansion thinking
Home Set realistic retention for motion-heavy areas like driveway and street-facing views. Leave room for garage, side gate or rear-lane coverage if likely.
Shop/cafe Think about how long transaction or incident footage may need to be reviewed. Rear door, stock area and external approach are common later additions.
Warehouse Retention and review workflow should be scoped before recorder selection. Start with 16-channel thinking if the site may add aisles, docks or yard cameras.
Farm Retention matters when the owner is away or only checks footage after an issue. Network and power planning should allow staged remote buildings or gates.

When not to buy a pre-sized package

  • The site has detached buildings, long cable runs, wireless links or solar/4G requirements.
  • The business needs a specific retention period for insurance, compliance or internal process reasons.
  • The owner wants active deterrence, PTZ or low-light colour across selected areas.
  • The building has unusual lighting, glass, reflective surfaces or high mounting positions.
  • The buyer expects multiple users, remote management or regular clip export.

FAQ

  • Is a 4-camera Dahua CCTV system enough for a home?

    Often yes for a simple home, if the four cameras cover front door, driveway, side path and backyard. Larger homes often need 6 to 8.

  • Should a small business use a 4-channel or 8-channel NVR?

    Many small businesses are better served by an 8-channel recorder because it leaves room for rear doors, stock rooms, external views and future expansion.

  • How much storage should I choose?

    Storage depends on camera count, resolution, frame rate, compression, motion settings and retention goals. Decide retention before buying the NVR and hard drives.

Dahua buying scenarios that make the range easier

Small cafe or shop: 6 to 8 fixed cameras, an 8-channel or 16-channel NVR depending on growth, entry and counter evidence first, rear door second, then TiOC only where a warning response is acceptable after hours.

Small business warehouse: 10 to 16 cameras, 16-channel NVR, fixed evidence views at roller doors and dispatch, WizSense for efficient human/vehicle review, and PTZ only if someone benefits from live overview.

Farm or remote property: start with recorder placement, power, internet and wireless link planning. Dahua cameras can work well, but the design lives or dies on cabling, links, weather exposure and who will review footage remotely.

Higher-risk commercial site: use WizMind, PTZ, thermal or TiOC only where they solve a named operational problem. The best Dahua projects do not buy every premium feature everywhere; they assign each feature to a scene.

Dahua project checklist

  • Choose the NVR for final channel count and retention, not just the first camera stage.
  • Separate fixed evidence cameras from PTZ overview cameras.
  • Use TiOC where deterrence is useful and acceptable, not where neighbours or customers will hate it.
  • Use WizColor or Full-color where night colour matters and lighting supports the result.
  • Use thermal for detection or heat-risk monitoring, not as a normal camera upgrade.
  • Test DMSS live view, playback and account ownership at handover.

Dahua site-specific buying worksheet

A good Dahua CCTV Packages by Property Type recommendation should start with the real scene before selecting the Dahua branch. The buyer should be able to explain what the chosen camera or recorder proves, why it belongs in that position, and which feature would be unnecessary on this particular site.

Scenario Better design choice Buyer watch-out
Small site Protect the highest-risk doors and vehicle paths first Avoid filling the quote with features before evidence views are solved
Medium site Plan NVR channels, storage and user access for growth Do not fill every channel on day one
Complex site Document zones, permissions and support responsibilities Hardware without a workflow becomes hard to operate

Questions to ask before ordering

  • Which view must identify a person, vehicle or event, and which view is only for context?
  • What night behaviour is acceptable for this exact location?
  • Does the recorder support the final channel count, retention target and search workflow?
  • Who owns DMSS/app access and who can export footage after handover?
  • Which Dahua feature would be wasted on this site, and which one genuinely changes the outcome?

Dahua CCTV Packages by Property Type: practical depth notes

Dahua CCTV Packages by Property Type should help the buyer choose between Dahua branches without turning the page into a model-number maze. The practical order is scene first, then feature family, then recorder, then model.

For this page, the useful buying question is where camera count, recorder headroom and staged expansion matter. That question is more important than choosing the most impressive specification. A cheaper camera in the right place can beat a premium model mounted too high, pointed too wide or paired with the wrong recorder.

Real-world system sizing examples

Site type Practical recommendation Why it helps
Simple site Protect the main evidence point first, then add only the views that answer a likely incident question. The buyer avoids paying for coverage that looks broad but proves little.
Typical Australian small business Plan the camera, NVR, storage and app users together before model selection. The system is easier to review after theft, damage, staff disputes or after-hours movement.
More complex site Document zones, permissions, alert rules, cable paths and expansion before ordering. The install remains supportable when the site changes or another technician takes over.

Good example scenes for this decision include homes, rentals, small shops and budget-conscious sites. In each case, the final choice should explain what the view must prove, what happens at night, how footage will be found, and what the buyer should not expect the system to do.

Quote wording that is actually useful

A useful quote for Dahua CCTV Packages by Property Type should include a short reason for each camera or recorder choice. For example: this camera protects the rear door at face height, this recorder leaves four spare channels, this lens avoids wasting pixels on the sky, this alert is scheduled after hours only, or this user can view but not export footage. That sort of explanation gives the buyer confidence because it connects the hardware to the site.

The weak version of Dahua CCTV Packages by Property Type is a quote that sounds impressive but does not name the job. The strong version explains the exact view, the evidence standard, the recorder assumption and the handover test. For Dahua buyers, that plain explanation is often more valuable than another feature label because it shows how the system will actually be used after an incident.

Browse product paths after the design is clear

Dahua CCTV Packages by Property Type: final practical example

For Dahua CCTV Packages by Property Type, imagine the buyer asking what they will actually see after something happens at a shopfront, warehouse door, farm gate, office entry or rear service lane. The answer should be specific: which camera proves the approach, which camera proves the person or vehicle, how many days the recorder keeps, and who can open the app to export footage.

If the recommendation for Dahua CCTV Packages by Property Type cannot answer those questions, the buyer is still shopping by product name rather than buying a security outcome. The better recommendation keeps the design simple where the site is simple and adds stronger features only where they solve a named weakness.
