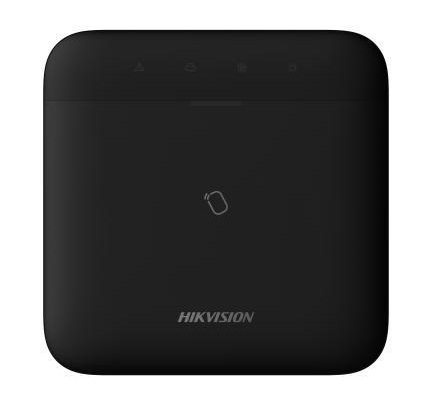

Hikvision AX PRO DS-PWA96-M-WB Wireless 4G Control Panel 433MHz
- TCP/IP, Wi-Fi, and 3/4G network
- New generation wireless protocol: Tri-X/Cam-X
- Long RF transmission distance
- Two-way communication with AES-128 encryption
- Connects up to 96 wireless zones/outputs (including 48 PIRCAMs), 48 wireless keyfobs, 4 repeaters, 6 sounders, 8 tag readers & keypads.
- Supports up to 48 network users, including 1 installer, 1 administrator, and 46 normal users
- Voice prompt
- Configuration via Web client, mobile client, and Convergence Cloud
- Hik-Connect and Hik-ProConnect configuration depends on the user access level
- Pushes alarm notification via messages or phone calls
- Views live videos from Hik-Connect
- Alarm video clips via emails and APP
- Supports LED indicator to indicates system status
- 4520 mAh lithium backup battery
- SIA-DC09 protocol, and supports both Contact ID and SIA data format
$440.00 inc GST +3 Year Warranty & Support
AX PRO is both conventional and revolutionary, with proven wireless stability, a wide range of world-class products, and ease-of-use for both installers and end users. Simple setup, powerful protection – whether it’s for a business-owner’s property or a home-owner’s loved ones – bringing peace of mind every day, all day.
Demo of how the system works
Unboxing and configuration video – Check it out before attempting to do it yourself
- TCP/IP, Wi-Fi, and 3/4G network
- New generation wireless protocol: Tri-X/Cam-X
- Long RF transmission distance
- Two-way communication with AES-128 encryption
- Connects up to 96 wireless zones/outputs (including 48 PIRCAMs), 48 wireless keyfobs, 4 repeaters, 6 sounders, 8 tag readers & keypads.
- Supports up to 48 network users, including 1 installer, 1 administrator, and 46 normal users
- Voice prompt
- Configuration via Web client, mobile client, and Convergence Cloud
- Hik-Connect and Hik-ProConnect configuration depends on the user access level
- Pushes alarm notification via messages or phone calls
- Views live videos from Hik-Connect
- Alarm video clips via emails and APP
- Supports LED indicator to indicates system status
- 4520 mAh lithium backup battery
- SIA-DC09 protocol, and supports both Contact ID and SIA data format
- Supports Hik-IP Receiver and Hik-IP Receiver Pro for ARC communication
- Software Features
- Tag 32
- Area 16
- Zones 64 (up to 48 PIRCAMs)
- Installer 1
- User 30
- Admin 1
- Voice Prompt Supported
- Loudspeaker Built In Supported
- Memory Log Stored 5000
- Programming Tools Hik-Connect/Hik-ProConnect/Web Portal/ IVMS4200/ Convergence Cloud
- Firmware Upgrade APP/Web Portal
- Arm Modes Away/Stay
- Automatic Arm/Disarm Timers Supported
- Forced Arming With Open Zones Supported
- Diagnostics Via The APP Or Web Supported
- ARC Protocol
- SIA DC09(SIA level 2, Contact ID), ISUP, ISAPI (SDK)
- Hik-IP Receiver & Hik-IP Receiver Pro (Sur-Gard & Ademco 685)
- Supports video verification and remote control
- User APP For Operating
- Supported
- Installer APP For ProgrammingSupported
- Web Server For Maintenance (Offline Configuration)Supported
- Hardware Features
- RS232 Output Supported
- SIM Slot Single
- RF Transmission
- RF Frequency 433Mhz
- Wireless SecurityFrequency Hoping 128 AES Encryption
- GPRS On Board Supported
- Electrical Characteristics
- Power Supply Built in power supply
- Battery Type Built in on board Battery Li
- Battery Life Span 12 hours
- Wireless Transmission
- Wired Network Supported
- Wi-Fi Standard Supported
- Display
- LEDs Status Arm/Disarm, Alarm, Tamper, Fault, Cloud, Power
- General
- Operation Temperature -10 °C to +55 °C
- Shell Material Plastic
- Dimension(WxHxD)170.0 mm (6.7″) x 170.0 (6.7″) mm x 38.6 mm (1.5″)
- 557.5 g(19.7 oz)
- ColorWhite
- Device Management
- Keyfob 32
- Wireless Sounder 4
- Keypad 8 (Including Tag reader)
- Wireless Repeater 2
- PIR Cam Supported
