Product SKU: Hikvision DS-PK1-LT-WB
Product Overview

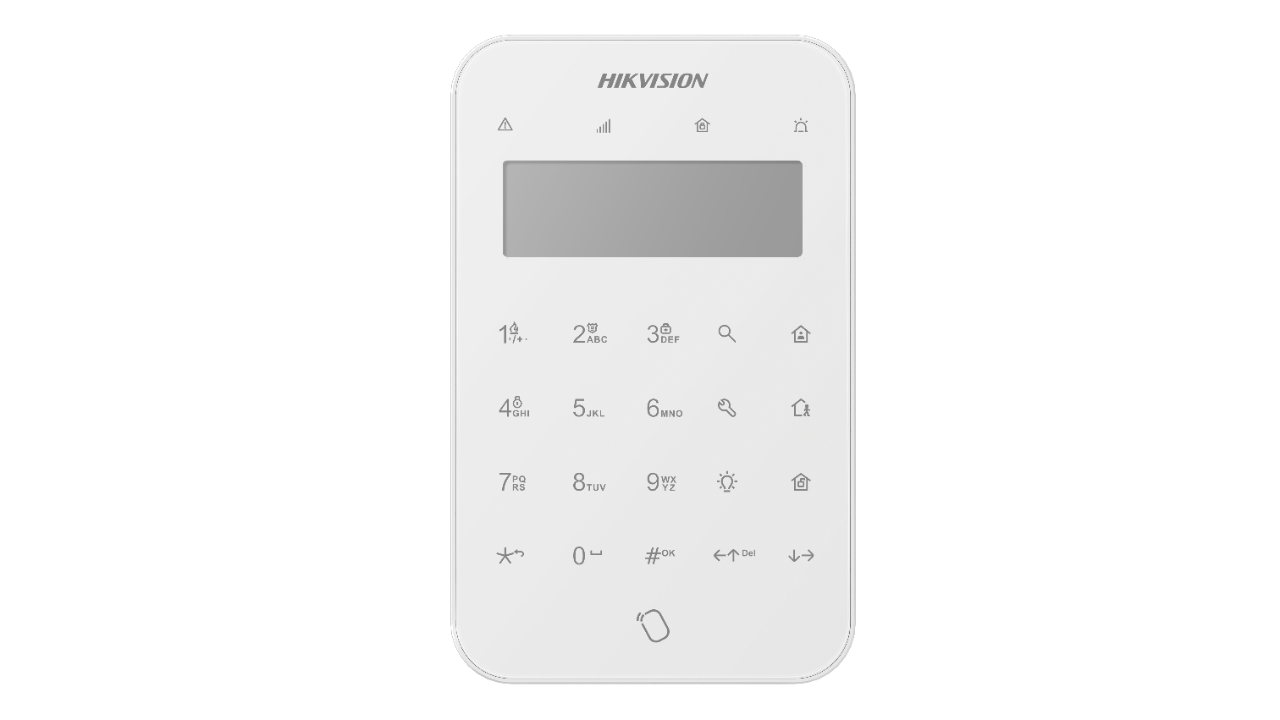

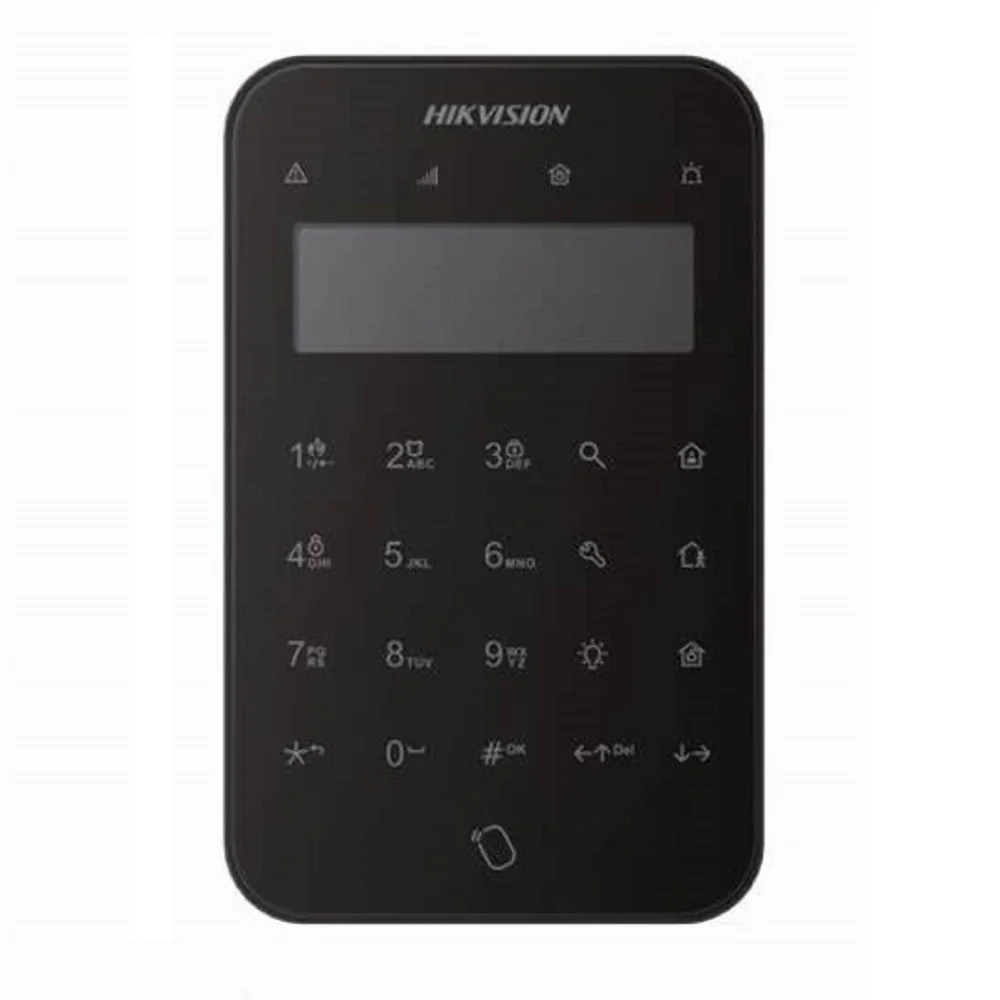

The Hikvision DS-PK1-LT-WB AX PRO Wireless Keypad is a wireless LCD keypad designed for compatible Hikvision AX PRO alarm systems. It provides convenient local control for arming, disarming, fault checking, relay control and emergency alarm functions, while the LCD screen and LED indicators help users view system status clearly. With Tri-X two-way wireless communication, 433MHz RF frequency, built-in tag reader, one-push arming support, tamper protection and battery-powered operation, it is well suited to homes, offices, retail sites, warehouses, garages and commercial premises where a wall-mounted wireless alarm keypad is required.
Key Capabilities
Wireless LCD Keypad Control
The DS-PK1-LT-WB provides local keypad control for compatible AX PRO systems, supporting everyday arming, disarming, fault checking and system operation.
LCD Screen and LED Status
The LCD screen and LED indicators display system status, faults, alarms, arming state and prompts, helping users operate the alarm system with more confidence.
Built-In Tag Reader
The integrated tag reader allows authorised users to operate supported alarm functions with compatible tags, making daily arming and disarming faster.
Tri-X Two-Way Wireless
Tri-X two-way wireless communication supports secure and reliable keypad communication with compatible AX PRO hubs.
Emergency Alarm Functions
Fire, Panic and Medical alarm key support gives users quick access to emergency alarm functions where configured in the compatible system.
Best For
- AX PRO Wireless Alarm Systems: Designed for compatible Hikvision AX PRO installations requiring local keypad control.
- Homes and Apartments: Suitable for entryways, garages, hallways and internal control points where users need quick alarm operation.
- Retail Stores: Practical for staff entrances, counters and back-of-house locations where daily arming and disarming is required.
- Offices and Clinics: Useful for reception areas, staff doors and internal access points in compatible wireless alarm systems.
- Wireless Alarm Retrofits: Best where a keypad needs to be added without running keypad wiring back to the alarm hub.
Why Choose the DS-PK1-LT-WB
The DS-PK1-LT-WB is a practical choice when a Hikvision AX PRO wireless alarm system needs a dedicated local keypad with an LCD screen and tag reader. It gives users a familiar way to arm, disarm, check faults, trigger emergency functions and operate supported system features without relying only on a mobile app. The wireless design makes it easier to position at entry points, staff areas or garages, while the LCD display helps show useful system prompts during operation. For alarm systems supplied through Security Wholesalers, this keypad should be selected after confirming AX PRO hub compatibility, colour preference, wireless range, tag requirements and mounting location.
Buyer Decision Tips
Buyer Tip: Choose the DS-PK1-LT-WB when you need a wireless LCD keypad with built-in tag reader for a compatible Hikvision AX PRO system. If the installation uses an AX Hybrid PRO hardwired controller, choose the compatible hardwired keypad instead.
Installation Tip: Confirm the hub model, wireless signal strength, keypad colour, mounting position, user permissions, tag enrolment, emergency key setup and battery access before installation.
Key Features & Technical Specifications
| Model |
DS-PK1-LT-WB |
| Product Type |
AX PRO wireless LCD keypad |
| Available Colour Options |
Black or White, depending on selected variant |
| System Compatibility |
Compatible Hikvision AX PRO wireless alarm systems |
| Primary Use |
Wireless local alarm control, arming, disarming, fault checking, emergency alarm functions and supported relay or system operations |
| Display |
LCD screen |
| LED Indicators |
Fault, enrolment/signal, arm, disarm and alarm indicators |
| Tag Reader |
Built-in tag reader |
| Numeric Keys |
0 to 9, * and # |
| Operation Functions |
Away arm, stay arm, disarm, area arming/disarming, fault query, relay output, settings and keypad lock/unlock where supported |
| One-Push Arming |
Supported when enabled on the compatible control panel |
| Emergency Alarm Keys |
Fire, Panic and Medical alarm support |
| System Fault Display |
Supported |
| System Status Display |
Supported |
| Buzzer |
Supported for operation prompts, delay tones and alarm indications |
| Tamper Protection |
Supported |
| Wireless Technology |
Tri-X two-way wireless communication |
| RF Frequency |
433MHz |
| RF Modulation |
2GFSK |
| Wireless Range |
Up to 800m in open area |
| Configuration |
System configuration through LCD screen and compatible control panel settings |
| Power Supply |
Four CR123 batteries |
| Typical Voltage |
3V |
| Power Consumption |
Quiescent current approx. 80μA; maximum current approx. 300mA |
| Battery Life |
More than 2 years standby time, depending on use and environment |
| Operating Temperature |
-10°C to 55°C |
| Operating Humidity |
10% to 90% |
| Installation Method |
Wall mounting |
| Dimensions |
174.63 × 109.62 × 25.25mm |
| Weight |
Approx. 348g with batteries; approx. 282g without batteries |
| Best Use |
Homes, retail stores, offices, garages, warehouses, clinics, commercial premises and Hikvision AX PRO wireless alarm systems |
Ideal Use Cases
Main Entry Alarm Control
Use the keypad near the main entry where authorised users need convenient arming and disarming when arriving or leaving.
Garage or Side Entry Access
Suitable for secondary entry points where a wireless keypad is easier to install than a wired keypad.
Retail Staff Entrances
Practical for staff doors, counters and back-of-house areas where users need alarm control with PINs or tags.
Office Alarm Systems
Useful for offices and clinics where multiple authorised users need a visible LCD keypad for daily alarm operation.
Wireless Alarm Retrofits
A good option where a compatible AX PRO system needs local keypad control without new keypad cabling.
Choosing the Right Model
- Choose this model if: You need a Hikvision AX PRO wireless LCD keypad with tag reader, 433MHz Tri-X communication, one-push arming support and wall-mounted installation.
- Choose a different keypad if: The installation uses a hardwired AX Hybrid PRO controller, requires a touchscreen keypad, needs a different frequency variant or requires a different keypad style for the selected alarm system.
- Check before ordering: Confirm AX PRO hub compatibility, wireless frequency, colour option, signal strength, keypad location, tag requirements, emergency key setup, area control needs and battery access.
FAQs
- What is the Hikvision DS-PK1-LT-WB used for?
The DS-PK1-LT-WB is used as a wireless LCD keypad for compatible Hikvision AX PRO alarm systems. It allows authorised users to arm, disarm, query faults, operate supported relays and trigger configured emergency alarm functions from a local keypad position.
- Does this keypad have an LCD screen?
Yes. The DS-PK1-LT-WB includes an LCD screen for system prompts, fault display and status information. It also includes LED indicators for key alarm states such as fault, arm, disarm and alarm.
- Does the DS-PK1-LT-WB have a tag reader?
Yes. The keypad has a built-in tag reader, allowing compatible tags to be used for supported operation. This can make arming and disarming quicker for authorised users in homes, offices and retail sites.
- Is this keypad wired or wireless?
The DS-PK1-LT-WB is wireless and uses Tri-X two-way wireless communication. It is designed for compatible AX PRO systems, while hardwired AX Hybrid PRO controllers require a compatible wired keypad.
- What frequency does the DS-PK1-LT-WB use?
The DS-PK1-LT-WB uses 433MHz wireless communication. The keypad frequency should match the AX PRO hub and regional system requirements before ordering or installation.
- How is the keypad powered?
The keypad is powered by four CR123 batteries and supports more than two years of standby battery life under suitable conditions. Battery life can vary depending on keypad use, signal strength, temperature and alarm activity. For systems supplied through Security Wholesalers, battery access should be considered during mounting.
- Can it trigger emergency alarms?
Yes. The DS-PK1-LT-WB supports Fire, Panic and Medical alarm functions when configured in the compatible AX PRO system. These functions should be programmed according to the site’s alarm response plan.
- What should be checked before installation?
Before installation, confirm the AX PRO hub model, 433MHz compatibility, wireless signal strength, mounting height, keypad colour, tag enrolment, user permissions, one-push arming setting, emergency key configuration, area control requirements and whether the keypad location is convenient for daily use.
Additional Information
DS-PK1-LT-WB_Datasheet_V1.0_202303
