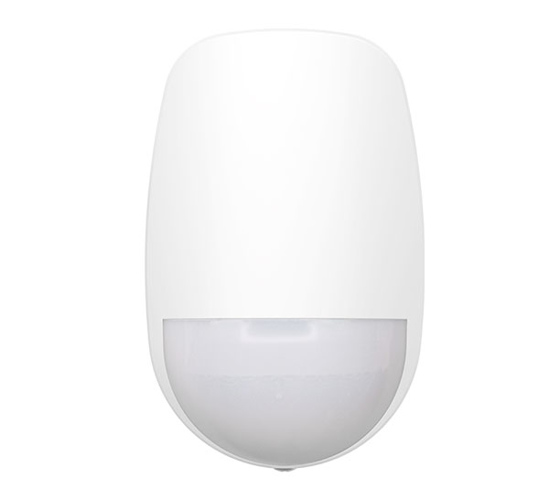

Hikvision AX PRO Series DS-PDD12P-EG2-WB Wireless Dual-Tech Detector


  • DS-PDD12P-EG2-WB is a fully supervised two-way wireless detector featuring motion and microwave detection,
    tamper protectionlow battery and supervision. It can operate for up to 5 years from two in-built batteies, and
    monitors the area within 12m radius, ignores animals up to 30kg while recognizing human
  • 3D optics including creep-zone protection, full coverage without dead angle
    • Detection Range 12m
    • Detection Angle 85.9°
  • 24G microwave to prevent wall penetration
  • Digital temperature compensation
  • Fully remote configurable through App
  • Multiple enrollment method and easy installation design
  • Easy replaceable battery with PCB protected
  • Frequency hopping against jamming for reliable transmission

DS-PDD12P-EG2-WB_Datasheet

$128.00 inc GST +3 Year Warranty & Support

ImageNamePriceBuy

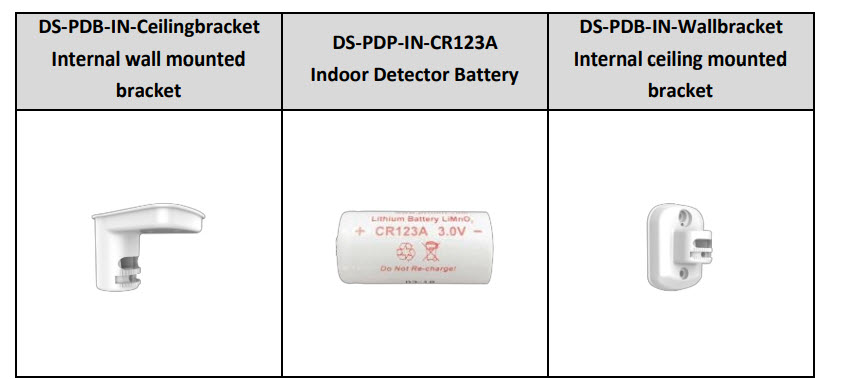

Hikvision AX PRO DS-PDB-IN-Wall bracket for PIR$6.00 inc GST +3 Year Warranty & Support
Hikvision AX PRO DS-PDB-IN-Ceiling bracket for PIR$6.00 inc GST +3 Year Warranty & Support
  • Detection Performance
  • Detection Method Passive Infrared;Microwave
  • Detection Range 12m
  • Detection Angle 85.9°
  • Detection Zones 52
  • Detectable Speed 0.3~2m/s
  • Sensitivity High;Auto;Pet
  • Pet Immunity up to 30Kg
  • White Light Filter 6500lux
  • Microwave Frequency 24GHz(24.15~24.25GHz)
  • Digital Temperature Compensation Support
  • Creep Zone Protection Support

Feature

  • Digital Processing Support
  • Sealed Optics Support
  • Tamper Protection Front;Rear
  • Environment Temperature Indicator Support
  • Signal Strength Indicator Support

Interface

  • Power Switch Power Up Enrolling
  • LED Indicator Green(PIR), Red(Microwave), Blue(Alarm)

Transmission

  • Transmission Technology Tri-X Wireless
  • Transmission Method Two-Way RF Wireless
  • Transmission Frequency 433MHz
  • Transmission Security AES-128 Encryption
  • Transmission Range(Free Space) 1.2Km
  • Frequency Hopping Support
  • Enrolling MethodPower up;Remote ID;QR Code

Electrical Characteristics

  • Standard Battery Life

    5 years in work status (being triggered 20 times per day)

Power Supply

  • Battery Powered
  • Battery TypeCR123A × 2
  • Typical Voltage3V

General

  • Operation Temperature-10 °C to 55 °C (14 °F to 131 °F)
  • Storage Temperature-20 °C to 60 °C (-4 °F to 140 °F)
  • Operation Humidity10% to 90%
  • Dimension(WxHxD) 65.5mm × 103mm × 48.5mm
  • 141g
  • Mounting Height 1.8 to 2.4m
  • Mounting Method Wall
  • Application Scenario Indoor
  • Bracket Optional Wall & Ceiling Accessory
