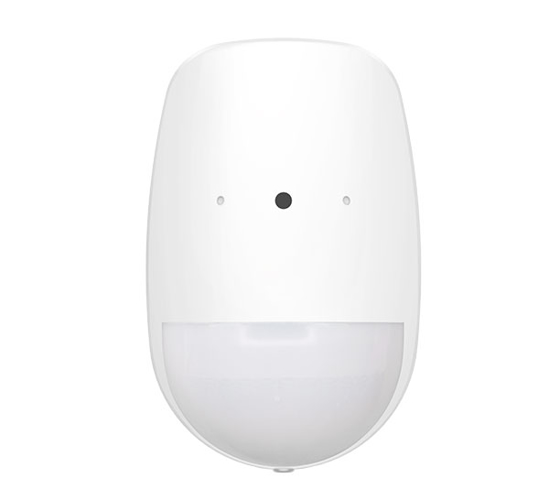

Hikvision AX PRO Series DS-PDPG12P-EG2-WB Wireless PIR-Glass Break Detector
- This is a dual purpose detector – both PIR & Glass Break Detection
- PIR Detection Range: 12m / 85.9°
- Glass Break Range: 8m / 120°
- Up to 30KG pet immunity
- Fully remote configurable through App
- Multiple enrollment method and easy installation design
- Easy replaceable battery with PCB protected
$86.00 $104.00 inc GST +3 Year Warranty & Support
| Image | Name | Price | Buy |
|---|---|---|---|

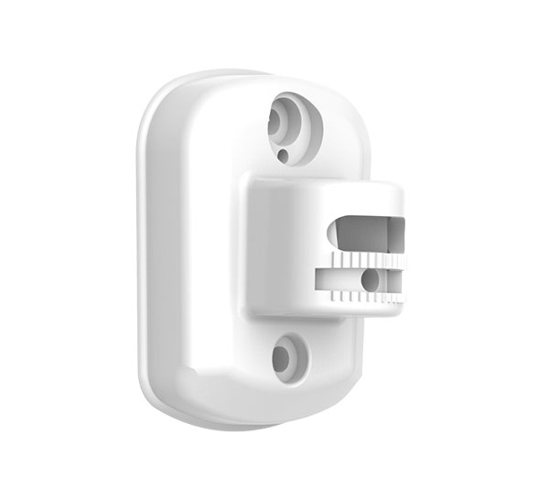

 | Hikvision AX PRO DS-PDB-IN-Wall bracket for PIR | $6.00 inc GST +3 Year Warranty & Support | |

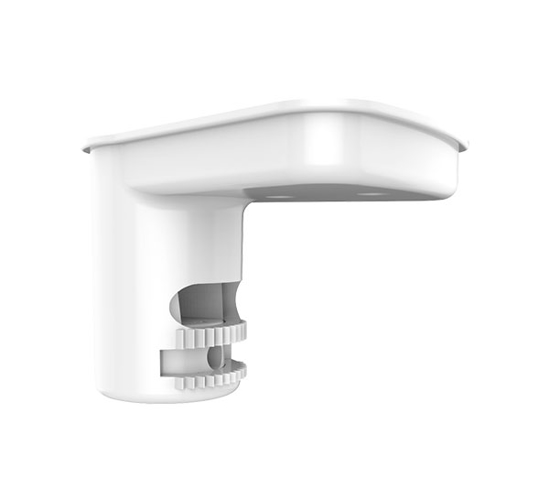

 | Hikvision AX PRO DS-PDB-IN-Ceiling bracket for PIR | $6.00 inc GST +3 Year Warranty & Support |
Detection Performance
- Detection Method Passive Infrared;Acoustic Sensor
- Detection Range 12m
- Detection Angle 85.9°
- Detection Zones 52
- Detectable Speed 0.3～2m/s
- Pet Immunity 30Kg
- White Light Filter 6500lux
- PIR Sensitivity Auto,High,Pet
- Glass Break Range 8m
- Glass Type Float;Plate;Tampered;Wired;Laminated Leaded;Double Glazing
- Glass Thickness 2.4mm to 6.4mm
- Glass Break Sensitivity 2m,4m,6m,8m
- Digital Temperature Compensation Support
- Glass Size 0.3m x 0.3m to 3m x 3m
- Creep Zone Protection Support
Feature
- Digital Processing Support
- Sealed Optics Support
- Tamper Protection Front;Rear
- Environment Temperature Indicator Support
- Signal Strength Indicator Support
Interface
- Power SwitchPower Up Enrolling
- LED IndicatorGreen(PIR),Red(BG),Blue(alarm)
Transmission
- Transmission Technology Tri-X Wireless
- Transmission Method Two-Way RF Wireless
- Transmission Frequency 433MHz
- Transmission Security AES-128 Encryption
- Transmission Range(Free Space ) 1Km
- Frequency Hopping Support
- Enrolling Method Power up;Remote ID;QR Code
Electrical Characteristics
- Standard Battery Life
4 years in work status (being triggered 20 times per day)
- Power Supply Battery Powered
- Battery Type CR123A × 2
- Typical Voltage 3V
General
- Operation Temperature -10 °C to 55 °C (14 °F to 131 °F)
- Storage Temperature -20 °C to 60 °C (-4 °F to 140 °F)
- Operation Humidity 10% to 90%
- Dimension(WxHxD) 65.5mm×103mm×48.5mm
- 134g
- Mounting Height 1.8 to 2.4m
- Mounting Method Wall
- Application Scenario Indoor
- BracketOptional Wall & Ceiling Accessory
