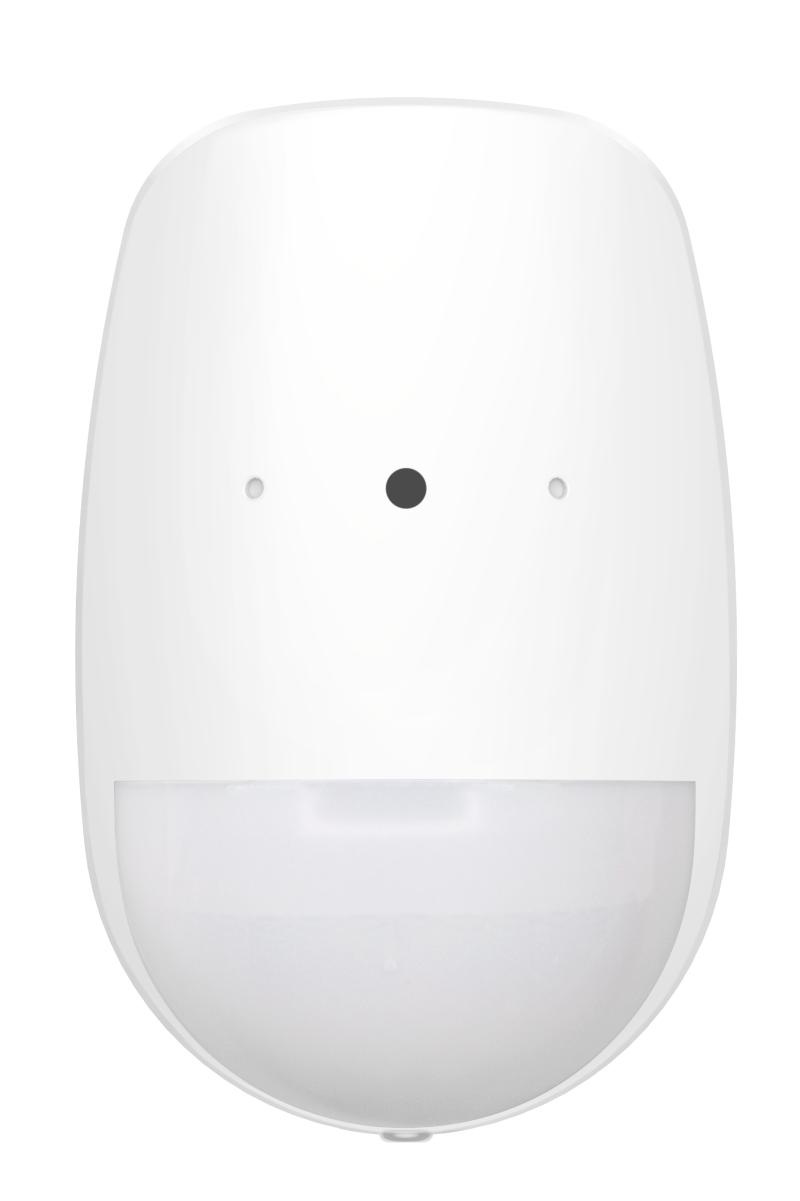

Hikvision DS-PDPG12P-EG2 Wired PIR-Glass Break Detector with 12m PIR Detection, 8m Glass Break Range, 30kg Pet Immunity

Product SKU: Hikvision DS-PDPG12P-EG2

Product Overview

The Hikvision DS-PDPG12P-EG2 Wired PIR-Glass Break Detector is a dual-function indoor intrusion detector designed for compatible wired alarm systems. It combines passive infrared motion detection with acoustic glass break detection, giving one device the ability to monitor both movement and glass break events within the protected area. With a 12m PIR detection range, 85.9° PIR angle, 8m glass break range, 120° glass break angle and up to 30kg pet immunity, it is well suited to homes, offices, retail stores, showrooms, clinics and commercial interiors where motion detection and window/glass protection are both required.

Key Capabilities

Best For

• Homes and Apartments: Suitable for indoor rooms where motion detection and glass break monitoring are both required.
• Retail Shopfronts: Useful for stores with glass windows or front display areas that need intrusion and glass break detection.
• Offices and Clinics: Practical for reception areas, consulting rooms, corridors and internal commercial spaces.
• Pet-Friendly Sites: A good fit where pets up to 30kg may remain inside while the alarm system is armed.
• Wired Alarm Installations: Best where a hardwired detector is preferred over wireless sensors for stable alarm zone integration.

Why Choose the DS-PDPG12P-EG2

The DS-PDPG12P-EG2 is a practical choice when a wired alarm system needs both motion detection and glass break monitoring from one indoor detector. Instead of installing separate PIR and acoustic sensors in the same area, this combined detector can help simplify the device layout while still supporting strong room protection. Its 12m PIR range, 8m glass break range, pet immunity, digital temperature compensation and sealed optics make it suitable for many residential and commercial interiors. For alarm projects supplied through Security Wholesalers, this detector should be selected after confirming the alarm panel wiring, EOL resistor requirements, glass type, mounting position and room layout.

Buyer Decision Tips

Key Features & Technical Specifications

Ideal Use Cases

Choosing the Right Model

• Choose this model if: You need a wired indoor detector with 12m PIR detection, 8m glass break detection, 30kg pet immunity, tamper protection and selectable EOL resistor support.
• Choose a different detector if: You need wireless AX PRO connectivity, outdoor detection, PIR-only detection, dedicated glass break detection only, curtain detection or camera verification.
• Check before ordering: Confirm alarm panel compatibility, EOL resistor values, power supply, mounting height, glass type, glass distance, room noise level, pet movement zones and detector placement.

FAQs

1. What is the Hikvision DS-PDPG12P-EG2 used for?
   The DS-PDPG12P-EG2 is used as a wired indoor PIR and glass break detector for compatible intrusion alarm systems. It can detect motion in the protected area and listen for glass break events from suitable glass panels.
2. What detection range does the PIR provide?
   The PIR section provides up to 12m detection range with an 85.9° detection angle. Correct mounting height, detector angle and room layout are important for reliable motion detection coverage.
3. How far can the glass break detector monitor?
   The glass break detector provides up to 8m range with a 120° detection angle. Final performance depends on glass type, glass thickness, mounting position, room acoustics, curtains, blinds and nearby noise sources.
4. Does this detector support pet immunity?
   Yes. The DS-PDPG12P-EG2 supports pet immunity up to 30kg when installed and configured correctly. Pet immunity can be affected by mounting height, furniture, stairs, pet movement paths and sensitivity settings.
5. Is this detector wired or wireless?
   The DS-PDPG12P-EG2 is a wired detector. It is designed for compatible wired intrusion alarm systems and should be connected according to the alarm panel’s power, alarm and tamper zone wiring requirements.
6. Can it be installed outdoors?
   No. The DS-PDPG12P-EG2 is designed for indoor application. For outdoor areas, choose a Hikvision detector specifically designed for external environments and the required detection method.
7. What glass types can it detect?
   The detector supports common glass types including float, plate, tempered, wired, laminated leaded and double glazing within supported thickness and size limits. For projects supplied through Security Wholesalers, the glass type and distance should be checked before installation.
8. What should be checked before installation?
   Before installation, confirm alarm panel compatibility, EOL resistor values, power supply, mounting height, detection direction, glass type, glass size, distance to glass, curtains or blinds, background noise, pet movement areas and whether optional wall or ceiling brackets are required.
