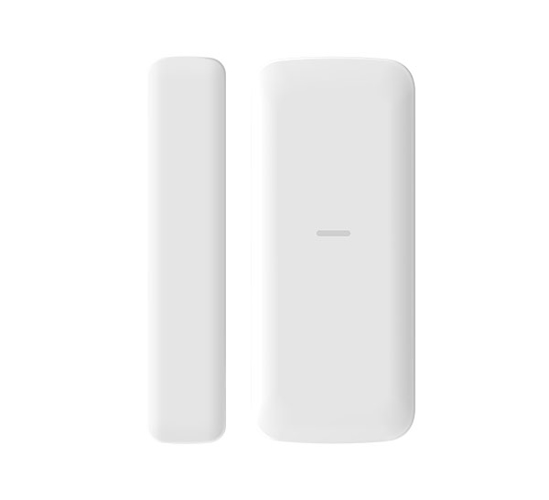

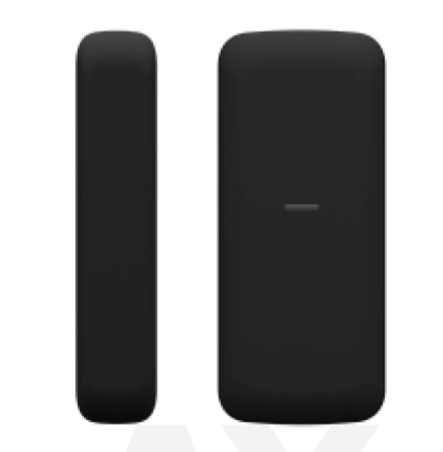

Hikvision AX PRO Series DS-PDMCS-EG2-WB Wireless Slim Magnetic Contact

Detection Performance

• Detection Method Opening Contact
• Detection Gap 52mm Max

Feature

• Digital Processing Support
• Tamper Protection Front;Rear
• Environment Temperature Indicator Support
• Signal Strength Indicator Support

Interface

• Alarm Input Normally Closed;Normally Open;Impulse Count
• Power Switch Power Up Enrolling
• LED Indicator Blue (Alarm)

Transmission

• Transmission Technology Tri-X Wireless
• Transmission Method Two-Way RF Wireless
• Transmission Frequency 433MHz
• Transmission Security AES-128 Encryption
• Transmission Range (Free Space)1.2Km
• Frequency Hopping Support
• Enrolling Method Power up;Remote ID;QR Code

Electrical Characteristics

• Standard Battery Life

  5 years in work status (being triggered 20 times per day)

• Power Supply Battery Powered
• Battery Type CR123A x 1
• Typical Voltage 3V

General

• Operation Temperature-10 °C to 55 °C (14 °F to 131 °F)
• Storage Temperature-20 °C to 60 °C (-4 °F to 140 °F)
• Operation Humidity10% to 90%

Dimension(WxHxD)

• 29mm × 69mm × 10mm
• 14mm × 69mm × 10mm

• 38g
• Application Scenario – Indoor
