Product SKU: HIKVISION-HYBRID-ALARM-BUNDLE
Product Overview
The Hikvision HIKVISION-HYBRID-ALARM-BUNDLE is an AX Hybrid Pro wired alarm package built around the DS-PHA64-LP(B) control panel for homes, offices, retail premises, warehouses and other small-to-medium security installations. The panel provides 8 on-board wired zones and supports expansion to 64 total alarm inputs, together with up to 32 separately controlled areas. This bundle adds a DS-PK1-LRT-HWB LCD keypad, three DS-PDP18-EG2(B) wired PIR detectors, a DS-PS1-B 105 dB siren with LED flash and a Zeal SA12V7 12V 7Ah AGM backup battery. Ethernet, 2.4 GHz Wi-Fi, Speed-X bus support, Hik-Connect integration and optional cellular communications give the system substantial expansion potential. The included PIR detectors provide up to 18 metres of indoor detection, while the wired siren provides audible and visual alarm indication for a complete core intrusion-alarm package.
System Capabilities
8 Zones Expandable to 64
The DS-PHA64-LP(B) provides eight on-board wired alarm zones and supports expansion to 64 total alarm inputs using compatible AX Hybrid Pro expansion hardware, giving the system substantial room to grow.
Up to 32 Areas
Support for up to 32 areas allows larger properties to be divided into independently controlled sections, which is useful for warehouses, offices, multi-tenant sites and properties with different operating zones.
Three 18 m PIR Detectors
Three DS-PDP18-EG2(B) wired PIR detectors provide up to 18 metres of indoor volumetric detection with an 85.9° detection angle, automatic sensitivity adjustment and selectable pet-immunity behaviour.
LCD Keypad & Tag Reader
The DS-PK1-LRT-HWB wired keypad provides an LCD interface, numeric and function keys, built-in tag reader, buzzer, two alarm inputs and one alarm output while communicating through the Speed-X bus.
105 dB Siren with LED Flash
The DS-PS1-B wired sounder produces up to 105 dB at 30 cm and includes LED flash indication. Sound and LED operation can be configured separately within a compatible wired alarm installation.
Network, Wi-Fi & Video Verification
The AX Hybrid Pro panel includes 10/100 Mbps Ethernet and 2.4 GHz Wi-Fi, supports Hik-Connect and Hik-ProConnect, and provides onboard video-verification capability with compatible Hikvision cameras and PIRCAM devices.
Best For
- Family homes: Start with three internal PIR zones while retaining capacity for door contacts, additional detectors and perimeter protection.
- Retail and offices: Divide different rooms, departments or operating areas into independently controlled alarm sections.
- Warehouses: The 64-zone expansion capability provides room for additional PIRs, contacts, sounders and other compatible devices across larger premises.
- New wired alarm installations: Includes the core panel, keypad, three PIRs, sounder/strobe and backup battery in one package.
- Expandable hybrid systems: Speed-X, optional wireless integration, optional cellular communications and video verification provide a pathway for future system growth.
Why Choose This Kit
The HIKVISION-HYBRID-ALARM-BUNDLE provides a stronger starting point than a basic fixed-zone alarm kit because the DS-PHA64-LP(B) can grow from eight on-board zones to 64 total alarm inputs and as many as 32 areas. Three 18 metre PIR detectors provide immediate internal protection, while the LCD keypad gives users a dedicated interface for arming, disarming and system status. The 105 dB sounder adds both audible and visual alarm indication, and the supplied 12V 7Ah AGM battery provides backup-power capability during mains interruption. Available through Security Wholesalers, this bundle is particularly suitable where professional wired detection is required today but future expansion, remote connectivity and optional hybrid devices also need to remain possible.

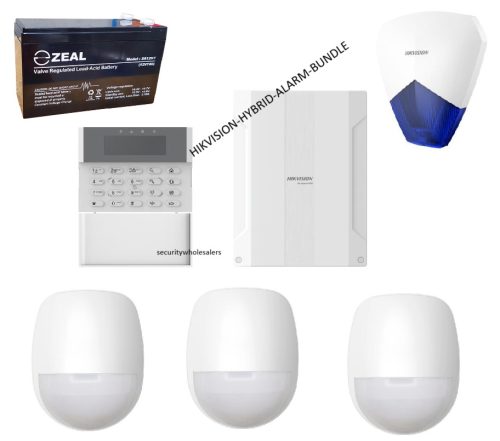

Package Inclusions
- 1 x Zeal SA12V7 12V 7Ah SLA AGM Battery – 12V, 7Ah, sealed AGM/VRLA construction, F1 terminals
- 3 x Hikvision DS-PDP18-EG2(B) Wired PIR Detectors – up to 18 m detection, 85.9° coverage, selectable sensitivity and pet immunity
- 1 x Hikvision DS-PS1-B Wired Sounder – 105 dB at 30 cm, LED flash indication, IP54
- 1 x Hikvision DS-PK1-LRT-HWB Wired LCD Keypad – LCD display, tag reader, Speed-X bus, 433 MHz RF support
- 1 x Hikvision DS-PHA64-LP(B) AX Hybrid Pro Control Panel – 8 on-board zones, expandable to 64 alarm inputs, up to 32 areas
- 1 x Power Supply Unit
Buyer Decision Tips
Buyer Tip: The panel starts with eight physical on-board zones. If the final installation requires more than eight wired detectors or contacts, include compatible AX Hybrid Pro input expansion hardware in the system design rather than assuming all 64 zones are physically present on the main panel.
Buyer Tip: The DS-PDP18-EG2(B) provides different pet-immunity performance according to sensitivity setting: approximately 5 kg in High, 10 kg in Auto and 15 kg in Low. Select the sensitivity around the room, mounting position and actual detection requirement rather than using the highest pet-immunity setting automatically.
Power Note: The supplied Zeal SA12V7 is a 12V 7Ah AGM backup battery, matching the battery class specified for the DS-PHA64-LP(B). Actual backup duration depends on the connected alarm load, system activity and battery condition.
Key Features & Technical Specifications
| Product |
AX Hybrid Pro wired/hybrid alarm bundle with panel, LCD keypad, 3 PIR detectors, sounder/strobe, 12V 7Ah battery and PSU. |
| Bundle SKU |
HIKVISION-HYBRID-ALARM-BUNDLE. |
| Control Panel |
DS-PHA64-LP(B) AX Hybrid Pro. |
| On-Board Zones |
8 wired zones. |
| Maximum Alarm Inputs |
64 total with compatible expansion. |
| Areas |
Up to 32. |
| Users |
1 installer, 1 administrator and up to 62 operators. |
| On-Board Outputs |
4 total – 2 relay outputs and 2 configurable I/O outputs. |
| Maximum Alarm Outputs |
Up to 64 with compatible expansion. |
| Sounder Output |
1 on-board wired sounder output. |
| Speed-X Bus |
1. |
| Wired PIRCAM Support |
Up to 8 compatible wired PIRCAM devices. |
| Onboard Video Verification |
4 video clips / compatible IP camera video verification. |
| Ethernet |
1 × RJ45 10/100 Mbps. |
| Wi-Fi |
2.4 GHz IEEE 802.11b/g/n. |
| Optional Communications |
Supports compatible PSTN, GPRS and 3G/4G communication options depending on installed modules. |
| Panel Programming |
Web, iVMS-4200, Hik-ProConnect and keypad. |
| Panel Power Interface |
100–240 VAC via on-board power transformer. |
| Panel Battery Type |
12V 7Ah lead-acid battery supported. |
| Published Battery Backup |
Up to 36 hours under Hikvision’s stated conditions; actual runtime varies with system load. |
| Included Backup Battery |
Zeal SA12V7 – 12V, 7Ah, SLA/VRLA/AGM, F1 terminal. |
| Battery Dimensions |
Approximately 151 × 65 × 96 mm; approximately 101 mm total height. |
| Keypad |
DS-PK1-LRT-HWB wired LCD keypad. |
| Keypad Features |
Built-in tag reader, buzzer, numeric and function keys, 2 alarm inputs, 1 alarm output and Speed-X bus communication. |
| Keypad RF Frequency |
433 MHz. |
| Keypad Power |
12 VDC from compatible AX Hybrid Pro panel. |
| PIR Detectors |
3 × DS-PDP18-EG2(B). |
| PIR Detection Range |
Up to 18 m. |
| PIR Detection Angle |
85.9°. |
| PIR Sensitivity |
High, Auto and Low. |
| PIR Pet Immunity |
High: 5 kg; Auto: 10 kg; Low: 15 kg. |
| PIR Mounting Height |
1.8 to 2.4 m. |
| PIR Power |
12 VDC standard, 9–16 VDC operating range, maximum 12 mA. |
| Wired Sounder |
DS-PS1-B. |
| Sound Pressure |
105 dB at 30 cm. |
| Siren Indication |
Audible alarm and LED flash, configurable separately. |
| Siren Protection |
IP54. |
| Siren Power |
8–16 VDC, maximum approximately 0.22 A. |
| Power Supply Unit |
Included according to the supplied bundle definition; separate PSU model and detailed specification were not provided. |
Ideal Use Cases
Family Homes
Use the three supplied PIRs for major internal areas, then add compatible contacts and detectors across the remaining zones.
Retail Premises
Protect sales floors, stockrooms, offices and entry points while retaining expansion capacity as the site grows.
Offices
Divide different office sections into separate areas and add additional detectors or access points as required.
Warehouses
The 64-zone capacity and Speed-X expansion architecture suit larger sites requiring many internal and perimeter detection points.
Future Hybrid Expansion
Add compatible wired expansion, wireless integration, communications modules and video verification as future security requirements develop.
Choosing the Right Kit
- Choose this bundle if: You need an 8-zone wired starting point with expansion to 64 zones, three 18 metre PIR detectors, an LCD keypad, wired siren/strobe and 12V 7Ah backup battery.
- Add zone expanders if: The finished installation requires more than the panel’s eight on-board wired zones.
- Add a communications module if: Cellular or another secondary alarm-reporting path is required in addition to Ethernet and Wi-Fi.
- Add additional sounders if: One DS-PS1-B will not provide sufficient alarm audibility or visual indication throughout the complete property.
FAQs
- What is included in the Hikvision HIKVISION-HYBRID-ALARM-BUNDLE?
The HIKVISION-HYBRID-ALARM-BUNDLE includes one DS-PHA64-LP(B) AX Hybrid Pro control panel, one DS-PK1-LRT-HWB wired LCD keypad, three DS-PDP18-EG2(B) wired PIR detectors, one DS-PS1-B wired sounder with LED flash, one Zeal SA12V7 12V 7Ah SLA AGM backup battery and one power supply unit as specified for the bundle. The supplied content does not identify a separate PSU model, so no PSU model number should be assumed.
- How many alarm zones does the DS-PHA64-LP(B) panel support?
The DS-PHA64-LP(B) provides 8 on-board wired zones and supports expansion to 64 total alarm inputs using compatible AX Hybrid Pro expansion devices. Hikvision also specifies up to 32 areas, allowing a larger installation to be divided into separately controlled sections. The panel includes 4 on-board outputs and can expand to additional wired or wireless outputs as the system grows.
- What detection range do the included DS-PDP18-EG2(B) PIR detectors provide?
Each DS-PDP18-EG2(B) wired PIR detector provides up to 18 metres of indoor detection with an 85.9° detection angle and a detectable speed range of approximately 0.3 to 2 m/s. Hikvision provides High, Auto and Low sensitivity settings with corresponding pet-immunity figures of 5 kg, 10 kg and 15 kg. Correct mounting at approximately 1.8 to 2.4 metres is important for the intended coverage.
- How loud is the included DS-PS1-B siren?
The included DS-PS1-B wired sounder is rated at 105 dB measured at 30 cm and combines an audible alarm with LED flash indication. Hikvision specifies 8 to 16 VDC operation, IP54 protection and an operating temperature range of -20°C to 60°C. The sound and LED indications can be configured separately when used with a compatible wired control panel.
- Does the bundle include backup battery power?
Yes. The bundle includes one Zeal SA12V7 12V 7Ah sealed lead acid AGM battery with F1 terminals. The DS-PHA64-LP(B) panel is specified for a 12V 7Ah lead-acid backup battery and Hikvision lists up to 36 hours of battery operation under its stated conditions. Actual standby time depends on the connected system load, alarm activity and battery condition.
- What does the DS-PK1-LRT-HWB keypad provide?
The DS-PK1-LRT-HWB is a wired LCD keypad for AX Hybrid Pro systems with numeric and function keys, a built-in tag reader, an on-board buzzer, two alarm inputs and one alarm output. It communicates through the Speed-X bus and supports 433 MHz RF functions for compatible devices. The keypad is powered from 12 VDC supplied by the compatible control panel.
- Can the AX Hybrid Pro panel support remote and app-based management?
Yes. The DS-PHA64-LP(B) supports Ethernet and 2.4 GHz Wi-Fi and can be programmed through supported Hikvision tools including web access, iVMS-4200 and Hik-ProConnect. The platform also supports Hik-Connect and alarm-receiving protocols. Optional cellular communication modules can be added where a secondary communications path is required, depending on the final system design.
- Who should choose the HIKVISION-HYBRID-ALARM-BUNDLE?
Choose this bundle when a home, office, shop, warehouse or other small-to-medium site needs a professional wired alarm foundation with 8 on-board zones, expansion to 64 zones, an LCD keypad, three 18 metre PIR detectors, a wired siren/strobe and a 12V 7Ah backup battery. When planning the system through Security Wholesalers, confirm any additional contacts, expanders, communication modules and extra sounders required before installation.
