Product Overview

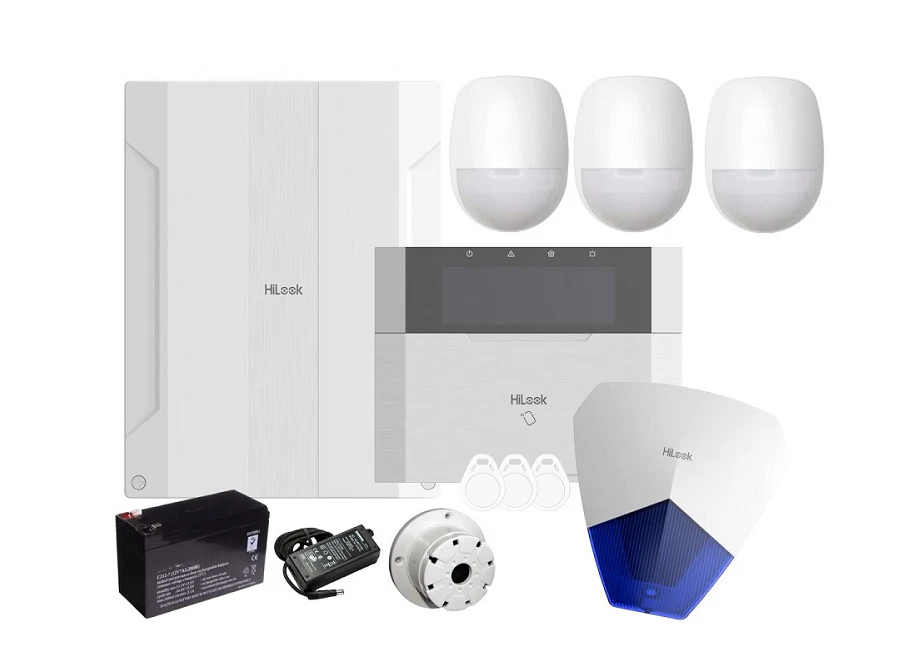

Built for installers and property owners who want a complete wired alarm system straight out of the box, the HiLook HA-ALARM-KIT1-Complete bundles everything needed to commission a fully operational intrusion detection system without sourcing components separately. At its core is the AX Hybrid Pro panel, which supports 8 on-board zones expandable to 48, giving this kit long-term flexibility beyond a basic residential fit-out. The package includes 3 PIR motion detectors, an LCD keypad with built-in RFID tag reader, 3 RFID tags, an internal Top Hat Piezo sounder, a dedicated power supply, sealed lead-acid battery backup, and an external sounder with LED flash. The hybrid panel architecture accepts both wired and optional wireless devices, while the built-in IP module supports remote monitoring and control through the HiLookVision or Hik-Connect apps. This makes the Complete kit a straightforward starting point for homes, small offices, and light commercial installations where a ready-to-install wired alarm package is the priority.
Key Capabilities
Expandable Hybrid Panel
The AX Hybrid Pro panel starts with 8 on-board zones and scales to 48 zones, allowing additional wired or optional wireless sensors to be added as the site grows. This removes the need to replace the panel when requirements change, making it a practical long-term investment.
Dual Sounder Output
The Complete kit includes both an internal Top Hat Piezo WP08 and an external HA-ALARM-SIREN1 sounder with LED flash. Having both internal and external audio alerts means occupants are notified immediately while the external siren provides an audible deterrent visible from the street.
Battery Backup Included
A sealed SA12V7 battery and dedicated HA-ALARM-POWER supply are included in this kit. Battery backup ensures the system continues operating during a mains power failure, which is a critical consideration for any property relying on continuous intrusion detection.
RFID Tag Arming
3 RFID tags are included for code-free arming and disarming at the LCD keypad. This suits households or businesses where multiple users need quick, convenient access without needing to enter a PIN each time, and the system supports up to 46 individual user codes for more detailed access management.
Remote App Monitoring
The built-in IP module connects the panel to the HiLookVision or Hik-Connect mobile apps, enabling remote arm, disarm, and event notifications. Optional GPRS/3G/4G communication modules can be added to provide a secondary communication path independent of the local network.
Best For
- Residential Installations: The 3 included PIR sensors cover key entry points and living zones, while RFID tags and the LCD keypad provide straightforward daily arming and disarming for household members.
- Small Offices and Retail Premises: Up to 46 user codes and zone expandability to 48 allow different staff members to be assigned individual access credentials across multiple secured areas.
- Installers Commissioning a Turn-Key System: All essential wired alarm components, including panel, detectors, keypad, sounders, power supply, and battery, arrive together, reducing procurement time and the risk of missing components on-site.
- Sites Needing Future Expansion: The 8-to-48-zone panel architecture suits properties where additional zones, sensors, or wireless devices may be added in stages as budget or requirements evolve.
Why Choose the HA-ALARM-KIT1-Complete
The HA-ALARM-KIT1-Complete takes the base HA-ALARM-KIT1 and adds the components that are most commonly sourced separately during installation: an extra PIR detector, internal piezo sounder, external siren with LED flash, dedicated power supply, and a sealed battery for backup. Purchasing these as a bundle removes the guesswork of compatibility and ensures the entire system is from the same product family. The AX Hybrid Pro panel’s 8 to 48 zone scalability means this kit is not limited to its initial configuration. Dual-path communication support, with built-in IP and optional cellular modules, separates this panel from basic single-path alarm controllers. With support for 46 user codes, tamper detection on components, and app-based remote control, the HA-ALARM-KIT1-Complete delivers a more complete starting point than buying the base kit alone. It is available at Security Wholesalers as part of the HiLook by Hikvision alarm range.
Package Inclusions
Buyer Decision Tips
Zone Planning Before Installation: The panel ships with 8 on-board zones. Before installing, map out every door, window, PIR zone, and auxiliary input you intend to connect now and in the future. If your site requires more than 8 zones immediately, additional zone expanders will be needed from the outset. Confirming zone count before cabling prevents wiring rework later.
Communication Path Selection: The panel includes a built-in IP (Ethernet) module for app connectivity and event reporting. If the installation site has unreliable or no fixed internet, consider adding an optional GPRS/3G/4G module as a secondary communication path. Relying on a single IP-only path means alarm notifications may not reach the end user during a router or internet outage.
Key Features & Technical Specifications
| Model |
HA-ALARM-KIT1-Complete |
| Panel Type |
AX Hybrid Pro wired alarm panel |
| On-Board Zones |
8 |
| Maximum Zones (Expanded) |
48 |
| Outputs |
4 on-board (2 relay, 2 I/O) |
| Keypad |
LCD display with built-in RFID tag reader |
| PIR Detectors Included |
3 x wired PIR motion detectors |
| RFID Tags Included |
3 |
| Internal Sounder |
Top Hat Piezo WP08 |
| External Siren |
HA-ALARM-SIREN1, 105dB with LED flash, IP54 rated |
| Power Supply |
HA-ALARM-POWER, 15V DC 2.5A |
| Battery Backup |
SA12V7 sealed lead-acid battery |
| Communication |
Built-in IP module; optional GPRS/3G/4G modules |
| User Codes |
Up to 46 |
| Mobile App |
HiLookVision / Hik-Connect |
| Operating Temperature |
-10°C to 40°C |
| Panel Dimensions |
261mm x 199mm x 86.4mm |
| Panel Weight |
997g |
Ideal Use Cases
Family Homes
3 PIR detectors cover main entry points and common areas, while RFID tags allow different family members to arm and disarm without needing separate codes. Battery backup maintains protection during power outages.
Small Retail Shops
The 46-user-code capacity suits a small team with shift-based access. The external siren with LED flash provides a visible deterrent on the shopfront, and remote app access lets the owner verify alarm events without attending the site.
Professional Offices
Individual user codes for staff combined with RFID tag arming at the entry keypad allow controlled after-hours access management. Zone expandability to 48 accommodates offices that may add meeting rooms or server areas to the system over time.
Light Commercial Warehouses
The hybrid panel’s zone expansion capacity and wired architecture suit larger floor areas where reliable cabled connections are preferred over wireless. The tamper detection feature alerts if any component is interfered with during or after installation.
Multi-Tenant Properties
Up to 46 user codes allow separate credentials to be assigned to individual tenants or contractors. The Hik-Connect app enables the property manager to monitor system status remotely without being physically present.
Choosing the Right Model
- Choose this model if: You want a fully bundled wired alarm kit that includes the panel, detectors, keypad, RFID tags, internal piezo, external siren, power supply, and battery in a single purchase, minimising component sourcing and compatibility risk.
- Choose a different model if: Your site requires more than 3 PIR detectors from the outset, as additional detectors will need to be purchased separately. If wireless-only detector coverage is a requirement, a wireless-first alarm platform may be more appropriate.
- Choose a different model if: The installation site has no fixed internet and you need cellular communication included out of the box, as the cellular module for this panel is an optional add-on and is not included in this kit.
FAQs
- What is the difference between the HA-ALARM-KIT1 and the HA-ALARM-KIT1-Complete?
The base HA-ALARM-KIT1 includes the AX Hybrid Pro panel, LCD keypad, 2 PIR detectors, and 3 RFID tags. The Complete version adds a third PIR detector, a Top Hat Piezo WP08 internal sounder, a dedicated power supply (HA-ALARM-POWER), a sealed SA12V7 battery, and an external HA-ALARM-SIREN1 sounder. These additions represent the components most commonly purchased alongside the base kit during a standard installation.
- How many zones can this panel support in total?
The AX Hybrid Pro panel in this kit ships with 8 on-board wired zones. Additional zone expanders can be connected to scale the system to a maximum of 48 zones. This makes the panel suitable for sites that may require additional door contacts, PIR detectors, or other wired zone inputs beyond the 3 PIRs included in this kit.
- Does the system work if the internet goes down?
The panel includes a built-in IP module for network-based communication and app connectivity. If the local network or internet connection fails, app notifications and remote access will be unavailable unless an optional GPRS/3G/4G communication module has been installed. The SA12V7 battery included in this kit provides backup power during a mains outage but does not replace a secondary communication path.
- Can the PIR detectors included in this kit be mounted on a ceiling or at an angle?
The HiLook PIR detectors in this kit are designed for wall mounting at a typical installation height. An optional HA-ALARM-BKT adjustable bracket is available separately and is compatible with the PIR sensors if ceiling mounting or an angled installation position is required for a specific room layout.
- How many users can be set up on this alarm system?
The AX Hybrid Pro panel supports up to 46 individual user codes. Each user can be assigned unique credentials, allowing access permissions to be managed independently. The 3 included RFID tags provide an additional method for arming and disarming at the keypad without entering a PIN, and further tags can be purchased and enrolled separately.
- Is this kit suitable for a professional installer or a competent DIY user?
The wired alarm components require knowledge of zone wiring, tamper loop connections, power supply connections, and panel programming. Professional installation is recommended for most sites. The HiLookVision and Hik-Connect apps, available through Security Wholesalers’ supported product range, simplify ongoing management once the system is commissioned and configured by a qualified installer.
Cabling Considerations
- Detector Zone Wiring: Use 4-core alarm cable for PIR detectors to carry both the zone loop and tamper loop wiring back to the panel. Do not share cores between multiple zone pairs.
- Siren Wiring: The external HA-ALARM-SIREN1 should be wired using 4-core alarm cable to carry the trigger and tamper connections. Keep siren cable runs as short as practically possible to reduce voltage drop on the sounder output.
- Panel Power Wiring: The HA-ALARM-POWER supply should be located close to the panel to minimise the low-voltage DC cable run. Use appropriate cable sizing for the 15V DC 2.5A supply current.
- Network Connection: Connect the panel to a router or network switch using a standard Cat5e or Cat6 Ethernet cable for IP-based app communication. Ensure the network port used assigns a stable IP address, either via DHCP reservation or static configuration, to maintain consistent remote access.
