Product SKU: HA-ALARM-KIT1
Product Overview
For homeowners and small business operators who want a structured wired alarm system without the complexity of specifying individual components separately, the HiLook HA-ALARM-KIT1 provides a practical starting point in a single bundle. Built around the AX Hybrid Pro panel, this kit includes an 8-zone wired alarm panel expandable to 48 zones, an LCD keypad with built-in RFID tag reader, 2 PIR motion detectors, and 3 RFID tags. The hybrid architecture means the panel accepts both wired sensors and optional wireless accessories, giving installers flexibility to extend the system beyond the included components as requirements change. Remote monitoring and arming is handled through the HiLookVision or Hik-Connect mobile apps via the built-in IP module. With support for up to 46 user codes, tamper detection on components, and optional GPRS/3G/4G communication modules, the HA-ALARM-KIT1 is suited to single-site residential installations and small commercial premises where a structured, scalable wired alarm is the priority.
Key Capabilities
Hybrid Wired and Wireless Architecture
The AX Hybrid Pro panel supports both hardwired zone inputs and optional wireless accessories on the same system. This lets installers run cable where practical and add wireless sensors in areas where cabling is difficult, without needing a separate panel for each.
8 Zones On-Board, Expandable to 48
The panel ships with 8 hardwired zones ready to use out of the box. As protection requirements grow, the system supports expansion to 48 zones, making it a viable long-term platform rather than a fixed-capacity starter unit.
Remote Monitoring via Mobile App
The built-in IP module connects the panel to the HiLookVision or Hik-Connect apps, allowing users to arm and disarm the system, receive alert notifications, and check system status remotely from a smartphone or tablet.
Up to 46 User Codes
With support for 46 individual user codes, the system suits households with multiple occupants or small businesses with staff who need their own arm and disarm credentials. Access can be managed per user without sharing a single code across everyone.
Tamper Detection Across Components
The system generates tamper alerts if the panel enclosure or connected components are interfered with or physically removed. This provides an additional layer of integrity monitoring beyond standard zone activity, reducing the risk of a sensor being bypassed undetected.
Best For
- Residential Installations: The included 2 PIR detectors and RFID tags cover a basic home layout, with the 8-zone panel providing enough inputs for door and window contacts added by the installer.
- Small Commercial Premises: Support for 46 user codes and zone expansion to 48 makes this suitable for small offices, retail shops, or light industrial units where multiple staff require individual access credentials.
- Installers Wanting a Scalable Starting Point: The hybrid panel allows the kit to be commissioned quickly with the included components and then extended over time with additional wired sensors or optional wireless accessories as needed.
- Sites with Existing Cable Infrastructure: The wired zone architecture takes advantage of pre-run cable in buildings where structured cabling is already in place, delivering stable and interference-resistant sensor communication.
Why Choose the HA-ALARM-KIT1
The HA-ALARM-KIT1 stands apart from simpler standalone alarm panels by pairing the AX Hybrid Pro panel with a keypad that includes a built-in RFID tag reader and wireless transceiver, something not always included in basic entry-level kits. The hybrid panel architecture means the system is not locked into a purely wired or purely wireless approach, giving installers the option to mix sensor types to suit the site. The 8-zone base expandable to 48 zones, combined with 4 on-board outputs (2 relay and 2 I/O), provides genuine room for system growth without requiring a panel replacement. Optional GPRS/3G/4G communication modules can be added for dual-path signalling where IP-only communication is insufficient. Available at Security Wholesalers, this kit is backed by a 3-year warranty and is a well-structured option for installers and owner-operators who want a wired intrusion system that can scale alongside their needs.

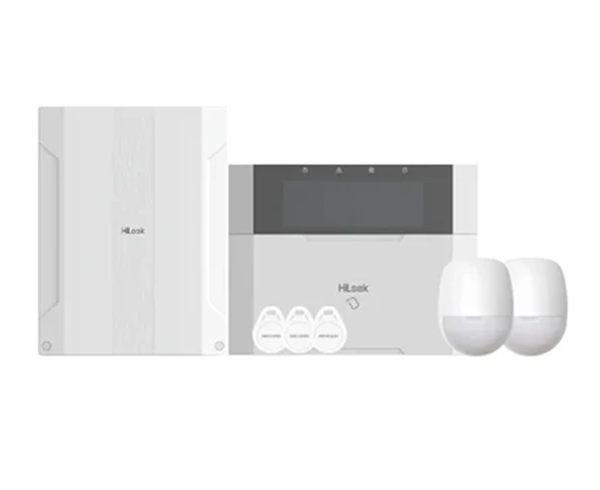

Package Inclusions
- 2 x PIR Motion Detectors
- 3 x RFID Tags
- 1 x LCD Keypad with built-in RFID tag reader
- 1 x AX Hybrid Pro Alarm Panel (8 zones on-board, expandable to 48 zones, 4 outputs)
Buyer Decision Tips
Expansion Planning: The HA-ALARM-KIT1 ships with 2 PIR detectors covering the most common entry points, but most residential installations will need additional door and window contacts to complete full perimeter coverage. Plan the total zone count before installation to confirm whether the 8 on-board zones are sufficient or whether zone expanders will be needed. Each expander adds to cabling and installation time, so mapping the site in advance avoids rework.
Communication Path: The panel includes a built-in IP module for app connectivity, but IP-only communication depends on the site having a stable internet connection. For monitored alarm applications or sites where network reliability is a concern, factor in the cost of an optional GPRS/3G/4G module to provide a secondary communication path. This is particularly relevant for commercial premises where alarm monitoring to a central station is a lease or insurance requirement.
Key Features & Technical Specifications
| Model |
HA-ALARM-KIT1 |
| Panel Type |
AX Hybrid Pro (wired and optional wireless) |
| On-Board Zones |
8 |
| Maximum Zones (Expanded) |
48 |
| On-Board Outputs |
4 (2 relay, 2 I/O) |
| User Codes Supported |
Up to 46 |
| Keypad |
Wired LCD keypad with built-in RFID tag reader and wireless transceiver |
| PIR Detectors Included |
2 |
| RFID Tags Included |
3 |
| Communication |
Built-in IP module; optional GPRS/3G/4G module for dual-path |
| Mobile App |
HiLookVision / Hik-Connect |
| Tamper Protection |
Yes – panel and component tamper alerts |
| Power Supply |
15V DC, 2.5A |
| Battery Backup |
Optional |
| Operating Temperature |
-10°C to 40°C |
| Panel Dimensions |
261 mm x 199 mm x 86.4 mm |
| Panel Weight |
997 g |
Ideal Use Cases
Family Home with Multiple Occupants
With support for up to 46 user codes and 3 RFID tags included, the HA-ALARM-KIT1 accommodates households where different family members need their own arming credentials. RFID tags allow quick disarm at the entry point without entering a code.
Small Office or Retail Shop
The 8 on-board zones cover common commercial layouts including entry doors, storeroom access, and open-area PIR coverage. Staff access management via individual user codes reduces the need to change a shared code when staff turnover occurs.
Properties Requiring Remote Monitoring
The built-in IP module and HiLookVision or Hik-Connect app integration allows the owner or property manager to receive alerts and arm or disarm the system remotely, making it practical for investment properties or sites not permanently occupied.
Staged Installations
The hybrid panel’s expandability to 48 zones makes this kit suitable for projects where the initial scope is limited but future expansion is anticipated. The installer can commission the kit components on day one and add sensors progressively without replacing the panel.
Buildings with Existing Cable Runs
The wired zone architecture takes full advantage of pre-run 4-core or 6-core alarm cable in buildings that have been previously fitted with conduit or trunking, delivering stable zone communication without the RF interference risks of a fully wireless system.
Choosing the Right Model
- Choose this model if: You need a structured wired alarm kit with an expandable hybrid panel, LCD keypad, and PIR sensors ready to install, and you want room to grow the system to 48 zones over time.
- Choose a different model if: Your site requires an external siren as part of the initial installation. This kit does not include a sounder. If you need a siren from the outset, consider the HA-ALARM-KIT1-Complete bundle or add a compatible external sounder separately at the time of purchase.
- Choose a different model if: Your application requires a fully wireless alarm system with no cabling. The AX Hybrid Pro panel in this kit is primarily a wired panel and while it supports optional wireless accessories, it is not a plug-and-play wireless-only solution.
FAQs
- Does the HA-ALARM-KIT1 include a siren or external sounder?
No. The HA-ALARM-KIT1 includes the alarm panel, keypad, 2 PIR detectors, and 3 RFID tags only. An external sounder is not included in this bundle. If an audible external alarm is required from the outset, the HA-ALARM-KIT1-Complete version includes sirens, or a compatible external sounder such as the HA-ALARM-SIREN1 can be added separately.
- Where should the panel be installed within the building?
The panel should be mounted in a secure, concealed location such as a locked utility room, cupboard, or ceiling space, away from the main entry point. This reduces the risk of an intruder reaching the panel before the entry delay expires. The keypad is installed separately at the entry point for user access, while the panel remains out of direct reach.
- Can the system be monitored by a central monitoring station?
The built-in IP module supports app-based monitoring via HiLookVision or Hik-Connect. For professional central station monitoring, compatibility depends on the monitoring provider and the communication protocols supported. Adding an optional GPRS/3G/4G module provides a secondary communication path, which is commonly required by monitoring companies for graded alarm signalling.
- How many PIR detectors and sensors can I add to the system beyond the included 2?
The panel supports up to 8 zones on-board, so up to 6 additional wired sensors can be connected alongside the 2 included PIR detectors before zone expansion is required. Using expansion modules, the system scales to a total of 48 zones, allowing a significantly larger sensor network to be built over time.
- What is the difference between the RFID tags and the user codes?
User codes are numeric PINs entered on the keypad to arm or disarm the system. RFID tags are physical proximity tokens that can be presented to the keypad’s built-in tag reader instead of entering a PIN. Both serve the same arm and disarm function, but RFID tags are faster at the entry point and do not require the user to remember a code. The 3 included RFID tags can be assigned to individual users.
- Is battery backup available for the HA-ALARM-KIT1 panel?
Battery backup is listed as optional for this panel. The panel operates on 15V DC at 2.5A and can be fitted with a backup battery to maintain operation during a mains power outage. A backup battery is not included in the kit and must be sourced separately. For any installation where continuous protection during power interruptions is required, a compatible backup battery should be factored into the installation plan. The HA-ALARM-KIT1 is part of the Security Wholesalers range, where accessories including compatible batteries can be sourced alongside this kit.
Cabling Considerations
- Zone Sensor Cable: Use 4-core or 6-core shielded alarm cable (typically 0.22mm2 or 0.5mm2 conductors) for connecting PIR detectors and door or window contacts to the panel zone inputs. Shielded cable reduces interference in environments with electrical noise.
- Keypad Cable: The wired LCD keypad connects to the panel via a dedicated data bus. Use 4-core alarm cable for the keypad run. Check the keypad installation guide for the specific wiring configuration required by the AX Hybrid Pro panel.
- Maximum Cable Run: Recommended maximum cable run lengths depend on cable gauge and the specific device. As a general guide, keep PIR detector runs under 100 metres using 0.5mm2 cable to maintain reliable tamper and zone signalling. Longer runs may require heavier gauge cable.
- Power Wiring: The panel requires a 15V DC, 2.5A power supply. Run a dedicated mains feed to the panel location. If battery backup is fitted, ensure the enclosure has sufficient space for the battery and that the power supply is rated to charge the battery while powering the panel simultaneously.
- Wiring Tips: Label all zone cables at both the panel and sensor ends before termination. Use a star topology from the panel to each zone sensor where possible, rather than looping sensors in series, to simplify fault isolation. Run alarm cable away from mains wiring to avoid induced interference on the data and sensor lines.
