Product Overview

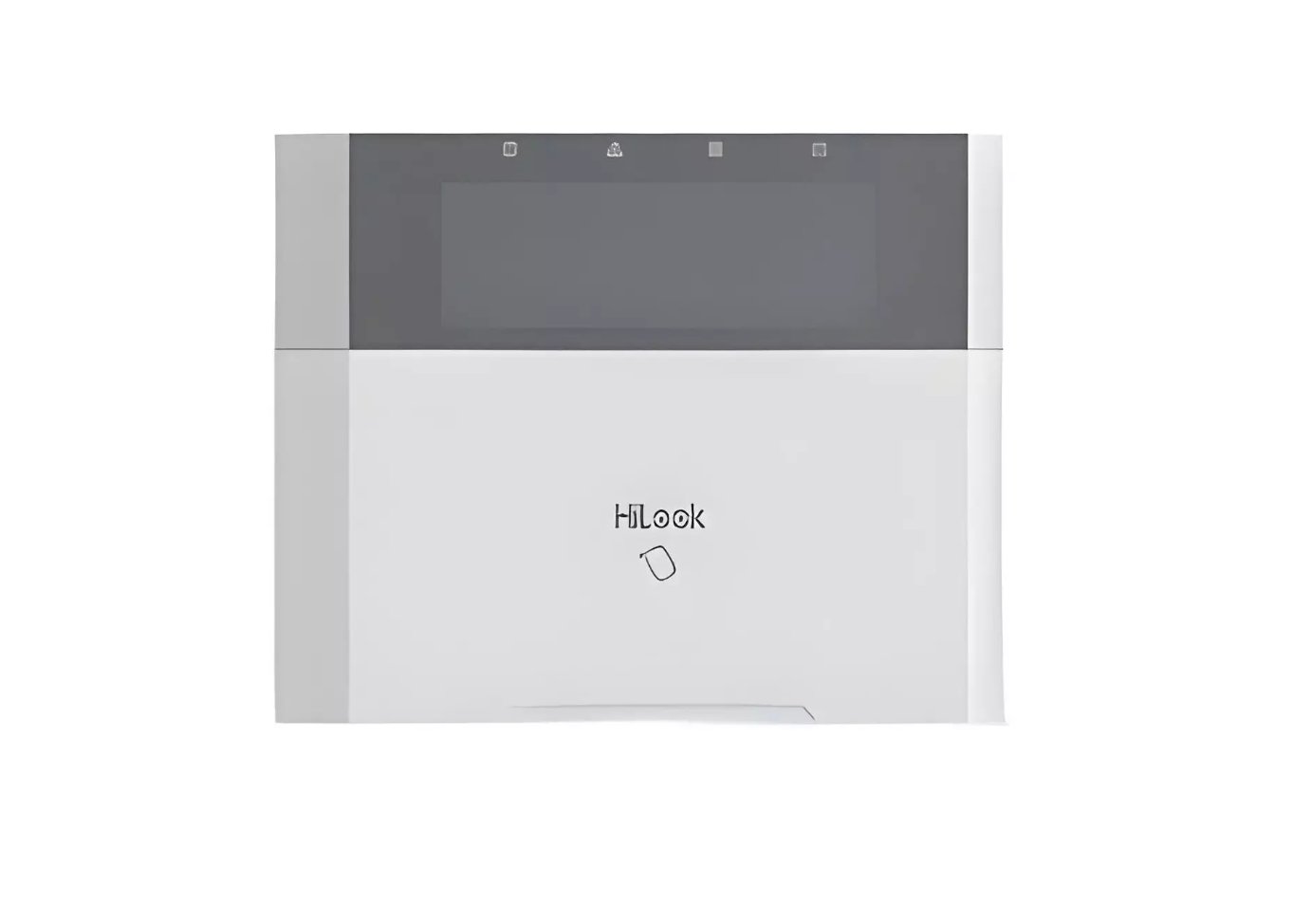

Designed specifically for the Hikvision AX Hybrid Pro alarm panel family, the HA-ALARM-KP-WB is a wired LCD keypad that adds wireless device management and proximity tag arming to compatible installations. It connects to the DS-PHA48-EP and DS-PHA64-LP panels via RS-485 using the Speed-X protocol, giving installers a clean and capable interface point at the entry or exit of any monitored zone. Featuring a built-in 433MHz wireless transceiver, the keypad can register and manage up to 64 keyfobs or proximity tags, allowing users to arm and disarm the system without entering a code. The LCD screen displays system status, time, and customisable company information, while dedicated keys for Fire, Panic, and Medical emergencies ensure fast response in critical situations. With 2 onboard alarm inputs, 1 alarm output, and a tamper switch, it suits residential, commercial, and light industrial alarm deployments.
Key Capabilities
Built-in 433MHz Wireless Transceiver
The integrated 433MHz transceiver allows the keypad to communicate directly with wireless keyfobs and proximity tags, eliminating the need for a separate wireless receiver module and reducing installation complexity on AX Hybrid Pro systems.
Proximity Tag Reader
Up to 64 keyfobs and proximity tags can be enrolled for one-touch arm and disarm operations. This is particularly useful in commercial and retail environments where staff require fast, code-free access without compromising system security.
LCD Display with Status Information
The backlit LCD screen shows real-time system status, time, and configurable company information. Combined with 4 colour-coded LED indicators for Power, Fault, Armed, and Alarm states, users get clear visual feedback at a glance.
Emergency Function Keys
Dedicated keys for Fire, Panic, and Medical emergencies allow occupants to trigger priority alerts directly from the keypad. This is essential for healthcare sites, aged care facilities, and any premises with occupant safety obligations.
Onboard Inputs, Output, and Tamper Switch
With 2 alarm inputs and 1 alarm output built in, the keypad can interface with local zone devices or auxiliary equipment. The tamper switch triggers an alert if the keypad housing is opened or forcibly removed from its mounting surface.
Best For
- AX Hybrid Pro Installations: Built exclusively for the DS-PHA48-EP and DS-PHA64-LP panels, making it the correct keypad choice when expanding or commissioning these specific alarm systems.
- Sites Requiring Tag-Based Arming: The built-in tag reader supports up to 64 credentials, ideal for offices, retail stores, or facilities where staff need hands-free arming without memorising PIN codes.
- Hybrid Wired and Wireless Systems: The integrated 433MHz transceiver adds wireless device support without requiring a separate module, streamlining panel configuration on hybrid alarm systems.
- Commercial and Healthcare Environments: Dedicated Fire, Panic, and Medical emergency keys make it appropriate for premises where rapid occupant-triggered alerts are a requirement.
Why Choose the HA-ALARM-KP-WB
The HA-ALARM-KP-WB consolidates functions that would otherwise require separate hardware into a single wired keypad. The built-in 433MHz transceiver means the panel does not need a dedicated wireless receiver for keyfob and tag operations, and support for up to 64 enrolled credentials covers most small to medium site requirements. The RS-485 Speed-X bus connection keeps wiring straightforward, while the tamper switch, emergency keys, and colour-coded LED indicators add layers of functionality that basic numeric keypads lack. Operating across -10°C to 55°C with up to 90% humidity tolerance means it handles plant rooms, warehouses, and non-climate-controlled entry points without issue. For integrators specifying accessories for AX Hybrid Pro deployments, the HA-ALARM-KP-WB is available through Security Wholesalers as a purpose-matched keypad that avoids the need for additional wireless modules or separate tag readers.
Buyer Decision Tips
Panel Compatibility Check: The HA-ALARM-KP-WB is designed to work with the Hikvision AX Hybrid Pro panels DS-PHA48-EP and DS-PHA64-LP. Before ordering, confirm which panel is installed on-site. This keypad communicates via the RS-485 Speed-X protocol specific to these panels and is not a universal alarm keypad.
Keyfob and Tag Capacity: The keypad supports up to 64 keyfobs and proximity tags across the system. If your site requires a higher credential count, factor this ceiling into your system design before commissioning multiple keypads or enrolling large user groups.
Key Features & Technical Specifications
| Model |
HA-ALARM-KP-WB |
| Compatible Panels |
DS-PHA48-EP, DS-PHA64-LP (Hikvision AX Hybrid Pro) |
| Display |
LCD screen showing system status, time, and configurable company information |
| Built-in Wireless Transceiver |
433MHz |
| Tag/Keyfob Support |
Up to 64 keyfobs or proximity tags |
| Function Keys |
8 dedicated function keys including Fire, Panic, and Medical |
| One-Touch Arm |
Supported (arm without entering a password) |
| LED Indicators |
Power (Green), Fault (Orange), Armed (Blue), Alarm (Red) |
| Alarm Inputs |
2 onboard alarm inputs |
| Alarm Outputs |
1 alarm output |
| Communication Bus |
RS-485, Speed-X protocol |
| Tamper Protection |
Tamper switch triggers alert on opening or removal |
| Power Supply |
12VDC |
| Current Consumption |
72mA typical, 150mA maximum |
| Operating Temperature |
-10°C to 55°C |
| Humidity |
Up to 90% (non-condensing) |
Ideal Use Cases
Residential Entry Points
Homeowners can arm and disarm the AX Hybrid Pro system using a keyfob or proximity tag rather than entering a PIN code, which is practical for households with children or frequent entry and exit at the front door.
Office Reception and Staff Entry
The tag reader supports up to 64 credentials, allowing each staff member their own tag for controlled arm and disarm operations without sharing a system PIN. The LCD display provides immediate status confirmation at the entry point.
Retail Stores
Retail sites benefit from fast, tag-based opening and closing procedures. The visible LED indicators and LCD confirm system status for staff before leaving, reducing the risk of inadvertently leaving a zone unarmed.
Healthcare and Aged Care
The dedicated Medical and Panic emergency keys allow staff or residents to trigger priority alerts immediately from the keypad without navigating menus. This makes the HA-ALARM-KP-WB appropriate where rapid emergency escalation is a site requirement.
Warehouses and Light Industrial Sites
The keypad’s operating temperature range of -10°C to 55°C and humidity tolerance up to 90% make it suitable for non-climate-controlled environments such as warehouse entries, plant rooms, or loading dock access points connected to an AX Hybrid Pro panel.
Choosing the Right Model
- Choose this model if: You are installing or expanding a Hikvision AX Hybrid Pro alarm system (DS-PHA48-EP or DS-PHA64-LP) and need a keypad that includes a built-in 433MHz wireless transceiver and proximity tag reader without purchasing a separate wireless module.
- Choose a different model if: Your site uses a different alarm panel brand or series – this keypad communicates via the Speed-X RS-485 protocol specific to the AX Hybrid Pro range and will not function as a general-purpose alarm keypad on other systems.
- Choose a different model if: Your installation requires more than 64 keyfob or tag credentials, or if you need a keypad without wireless capability where a simpler wired-only interface would suffice at a lower cost.
FAQs
- Which alarm panels is the HA-ALARM-KP-WB compatible with?
The HA-ALARM-KP-WB is designed specifically for the Hikvision AX Hybrid Pro panels – the DS-PHA48-EP and DS-PHA64-LP. It communicates via the RS-485 Speed-X protocol used by these panels. It is not compatible with other Hikvision alarm series or third-party panels.
- Does the HA-ALARM-KP-WB replace a separate wireless receiver on the AX Hybrid Pro?
Yes. Because the keypad has a built-in 433MHz transceiver, it can communicate directly with compatible wireless keyfobs and proximity tags. This removes the need for a dedicated wireless receiver module at the panel, which simplifies the installation and reduces the number of components required in the cabinet.
- How many keyfobs or tags can be enrolled with this keypad?
The system supports up to 64 keyfobs or proximity tags for arm and disarm operations. This covers most residential and small to medium commercial deployments. If your site has a larger user base, consider this ceiling when planning credential allocation across multiple users.
- Can users arm the system without entering a PIN code?
Yes. The HA-ALARM-KP-WB supports one-touch arming, which allows the system to be armed without entering a password. Disarming with a proximity tag or keyfob also removes the need for PIN entry, which speeds up entry and exit routines for regular users.
- What emergency functions are available directly from the keypad?
The keypad includes dedicated keys for Fire, Panic, and Medical emergencies. These allow occupants to trigger priority alarms immediately without navigating the system menu. This feature is particularly relevant for healthcare facilities, aged care, and any site with occupant safety obligations. The HA-ALARM-KP-WB is supplied through Security Wholesalers for installations where this functionality is a specification requirement.
- What does the tamper switch do and where does it trigger?
The built-in tamper switch generates an alert if the keypad housing is opened or if the unit is forcibly removed from its mounting surface. This tamper signal is reported back to the AX Hybrid Pro panel, ensuring any physical interference with the keypad is logged and can trigger a response from the monitoring station or on-site personnel.
Cabling Considerations
- Cable Type: Use shielded 4-core cable for the RS-485 data connection between the keypad and the AX Hybrid Pro panel. A dedicated 2-core power cable or combined multi-core run is suitable for the 12VDC supply.
- RS-485 Bus Length: Follow Hikvision’s AX Hybrid Pro installation guidelines for maximum RS-485 bus run lengths. As a general guide, RS-485 supports runs up to approximately 1200m under correct conditions, but panel documentation should be the reference for this specific system.
- Power Supply: The keypad operates at 12VDC with a typical draw of 72mA and a maximum of 150mA. Ensure the panel’s auxiliary power output or a local PSU can supply adequate current, particularly when multiple keypads are installed on the same run.
- Wiring Tips: Terminate the RS-485 bus correctly at the last device on the run to prevent signal reflections. Keep the data cable away from mains wiring to minimise interference. Label each keypad connection at the panel to simplify future servicing.
