Commercial

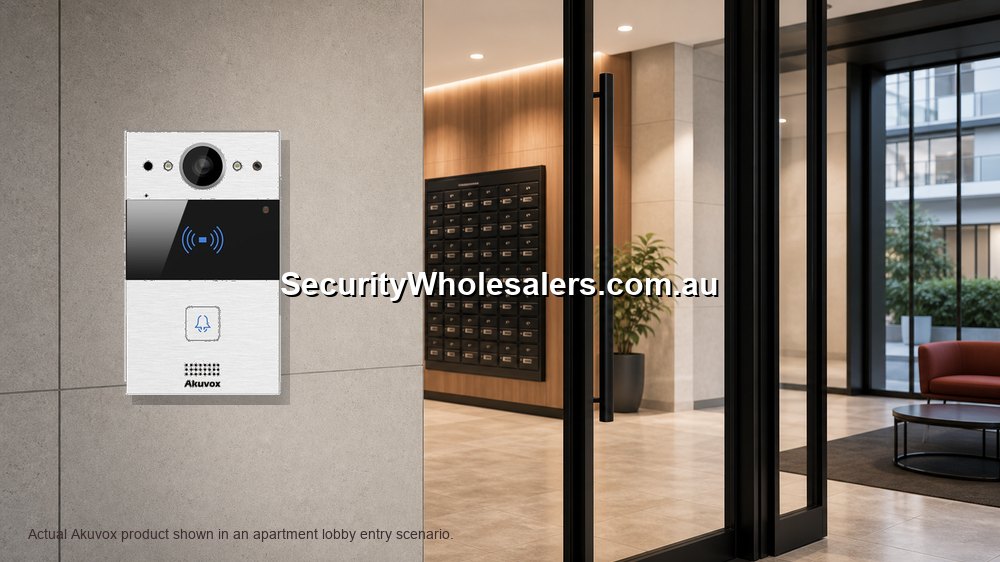

Akuvox for Strata and Body Corporate Buildings
Akuvox intercoms
How to plan an Akuvox intercom system
Treat the project as a small access-entry system, not just a screen beside a door. The buyer is really choosing how visitors call in, how residents or staff answer, how the door or gate releases, how users are managed, and how the system will be supported after installation.
A useful Akuvox design starts with the physical entry. A front gate, apartment lobby, warehouse staff door and small office reception may all use the same brand, but they do not need the same hardware. The best product is the one that fits the cable path, entry hardware, user workflow and future expansion.
Pre-purchase specification questions
Start with the site story: is this a new build, a retrofit, a gate, a single home, a small business or a multi-tenant building? Then decide whether the site needs an indoor monitor, mobile app answering, keypad or credential access, and a door or gate release.
The next layer is cabling. New Cat6 or structured cabling usually points toward an IP or PoE path. Existing intercom cable may point toward 2-wire, but only after the cable condition and topology have been checked. The wrong cabling assumption is one of the fastest ways to turn a good product into a frustrating install.
Common specification mistakes
The first mistake is buying a door station before deciding how people will answer calls. If the site needs a fixed answer point, choose the monitor path early. If it relies on mobile phones, confirm internet, accounts, app permissions and handover.
The second mistake is treating door release as an accessory. Electric strikes, maglocks and gates behave differently. The release circuit may need a separate power supply or controller, and safety or egress requirements can matter on commercial doors.
The third mistake is choosing only for today. If a site may add a second door, another monitor, more tenants, or access control later, it is worth planning the system structure before ordering the first box.
What strata buyers care about
Strata and body corporate buyers usually care about disruption, resident access, support, future changes and total project risk. They do not just want a model number; they want a system that can be managed after the installer leaves.
That means the quote should explain cabling assumptions, resident onboarding, admin ownership, lock release and what happens if a resident changes phone.
Committee-friendly decision process
Start by listing the existing problem: failed handsets, poor visitor calls, no app access, broken release, tenant turnover or an obsolete lobby panel. Then decide whether the building is retrofit-led or ready for new cabling.
A committee should avoid vague quotes that simply say "new intercom". The better quote states door station type, monitor/app path, cable path, resident count, release method and handover.
Handover and support
A strata system should not depend on one resident remembering the password. Use a proper management/admin path and document how new residents are added.
Support articles should be linked after purchase so the building manager knows where to start with app users, cloud binding and release troubleshooting.
What an Akuvox apartment system usually requires
| Layer | Hardware or setup required | Why it matters |
|---|---|---|
| Lobby or shared entry | Door station matched to the number of units: multi-button for small sites, directory-style planning for larger or changing tenant lists. | The visitor experience must be obvious. A visitor should know who they are calling without needing instructions taped to the wall. |
| Resident answering | Indoor monitors, app users, or a mixed monitor/app strategy per dwelling. | Some buildings want fixed monitors in each unit. Others prefer app-led calling. Many need a staged approach because residents have different expectations. |
| 2-wire retrofit hardware | 2-wire door station/monitor path plus suitable 2-wire distribution or converter hardware where the old cabling supports it. | This can reduce disruption, but only if the cable condition, topology and distance are suitable. |
| IP/new-cable hardware | Cat6 cabling, PoE/network switching where appropriate, IP door station and monitor/app configuration. | This is cleaner for renovations and new builds, and usually easier to support long term. |
| Door release | Electric strike, maglock or gate/door controller trigger with suitable power and egress planning. | The system is not complete until the shared door releases safely and consistently. |
| Management and support | Admin ownership, resident naming standard, move-in/move-out process and support articles linked after handover. | Apartment systems fail operationally when nobody knows who controls users or how to remove an old resident. |
How apartment configuration works in plain English
The installer or administrator normally creates the site or building structure first, then adds the entry device, then creates the resident or unit call destinations. Each unit should have a clear label, and each resident should be given their own app/user access rather than sharing a generic login.
For monitor-based buildings, the door station needs to call the right monitor or group of monitors. For app-based buildings, the door station needs to call the correct resident account or group. For mixed buildings, the call path should be documented so support can understand why Unit 3 rings a monitor, while Unit 4 rings app users.
A good handover includes an admin owner, a resident list, a process for adding and removing residents, release testing at the lobby door, and a simple support path for phones that stop ringing.
Apartment configuration checklist
| Configuration item | What should be documented | Common mistake to avoid |
|---|---|---|
| Building and unit names | Use sensible unit labels such as Unit 1, Unit 2 or tenancy names that match the directory shown to visitors. | Using installer shorthand that residents and future support staff cannot understand. |
| Call destinations | Record whether each unit rings an indoor monitor, app user, multiple app users or a mixed group. | Assuming every dwelling wants the same answering method. |
| Admin ownership | Give the building manager, strata manager or nominated owner a documented admin path. | Leaving control tied only to the installer or to one resident phone. |
| Resident onboarding | Create a repeatable process for inviting a resident, testing their call, and explaining remote unlock. | Handing over without testing on the resident phone. |
| Resident offboarding | Document how to remove a resident or tenant when they move out. | Letting old residents keep app access because nobody owns the user list. |
| Release testing | Test the shared door or gate from the lobby panel, monitor and app path where applicable. | Testing video only and discovering later that the door release is unreliable. |
Apartment quote examples
| Building type | Likely design direction | Why |
|---|---|---|
| 4 to 8 unit older block | Assess 2-wire retrofit first; consider multi-button calling if unit count is stable. | Small buildings often benefit from simple visitor calling and lower disruption. |
| Small mixed-use building | Door station with tenant/unit call destinations, app or monitor strategy per tenancy, and manager-owned admin account. | Commercial tenants change, so user management matters as much as the panel. |
| Renovated apartment lobby | New IP cabling where practical, cleaner door station placement, documented release hardware and resident onboarding. | If the lobby is already being renovated, new cabling may be a better long-term investment than forcing the old cable to remain. |
| Strata building with high resident turnover | Avoid shared logins; use named users, documented offboarding and a management-controlled account. | The building needs to remain manageable after people move out. |
Premium door station options
| Product direction | Where it fits | Buyer note |
|---|---|---|
| S535 facial recognition SIP door phone | Higher-end homes, office entries and shared buildings where a more capable entry terminal is required. | Best considered when face recognition, a stronger visitor interface and modular expansion are part of the brief. |
| E18C 7-inch face recognition door phone | Premium lobbies, controlled doors and commercial entries that need a larger visitor interface. | Good for sites where the intercom is a visible front-of-house device, not just a hidden call button. |
| X912K video door phone with physical keypad | Gates, staff entries and commercial sites where a tactile keypad is important. | Useful when visitors or staff need a clear physical code-entry experience rather than relying only on app or touch-screen workflows. |
Premium indoor monitor choices
| Monitor path | Where it fits | Buyer note |
|---|---|---|
| X937A 15.6-inch smart indoor surveillance and intercom monitor | High-end residences, concierge-style desks, executive offices and sites that want a large control-point display. | This is the premium monitor path where screen size and presentation matter. Check wall space, power/network path and user expectations before choosing it. |
| S567G 10-inch Android indoor monitor | Homes, apartments and offices that want a larger modern screen without going to a very large display. | A strong middle-to-premium option when the monitor will be used often and should feel like part of the building, not an afterthought. |
Accessibility and hearing assistance
The S532 induction loop module is worth discussing on apartment, strata and public-facing commercial entries where hearing assistance may matter. It is not a cosmetic upgrade; it is a practical accessibility consideration for residents or visitors who use compatible hearing aids.
For body corporate or commercial projects, raise accessibility early rather than treating it as an optional add-on after the door station has already been chosen.
When to add access control rather than another intercom
The A05C smart IP access control terminal is useful where the site needs controlled staff, resident or back-of-house entry rather than visitor calling. In many projects, the right design is a door station for visitors and a separate access terminal for authorised users.
This matters for offices, warehouses, apartments and shared entries because regular users should not need to call themselves in every day. Separate access control can make the system cleaner and more professional.
Example Akuvox apartment system packages
These are practical starting points for quoting, not fixed kits. The final design still depends on cabling, whether each apartment wants a monitor or app-only calling, the release hardware at the lobby door, and whether the building needs access control for residents.
| Building example | Suggested hardware path | Network and switching | Why this design makes sense |
|---|---|---|---|
| 6-apartment walk-up with one lobby door | Akuvox S535 facial recognition SIP door phone or Akuvox E18C 7-inch face recognition door phone at the lobby, plus 6 x Akuvox S567G 10-inch Android indoor monitor where each unit wants a fixed screen. Use app users as an add-on, not a substitute, if residents still expect a wall monitor. | Allow at least 7 network endpoints before headroom: 1 door station plus 6 monitors. For a simple unmanaged path, consider TP-Link TL-DS110GMP 8-port PoE switch only if the port count and PoE budget suit the final device mix. For more headroom or a tidier rack, step up to TP-Link TL-DS1018GMP 16-port PoE switch. For a managed network, consider Ruijie RG-NBS3300-8MG2XS-P managed PoE switch. | Six units is small enough to keep the design simple, but still large enough that port count, user naming, resident turnover and admin ownership matter. A 16-port switch is often the cleaner choice if CCTV, access control or future monitors may be added. |
| 6-apartment retrofit where old intercom cable may be reused | Akuvox R20A-2 and C313W-2 2-wire kit path as the starting point, then scale the 2-wire design with suitable Akuvox 2-wire infrastructure such as Akuvox NS-2 2-wire IP network switch and Akuvox NC-2 2-wire IP network converter where required by the final topology. | Do not assume a standard PoE switch solves the apartment side if the system is being designed around 2-wire retrofit. The network side may still need a switch, but the riser/apartment cabling needs the correct Akuvox 2-wire architecture. | This is the lower-disruption path when cable condition is suitable. It should be chosen only after checking cable quality, topology, old handset positions, door release wiring and whether the old system used star, daisy-chain or mixed cabling. |
| 10 to 12 apartment building with monitors in each unit | Akuvox S535 or Akuvox E18C at the entry, 10 to 12 x Akuvox S567G 10-inch monitors or a mixed S567G/app strategy, plus Akuvox S532 induction loop module if accessibility is part of the brief. | Use a 16-port PoE switch as the minimum practical direction for a new IP design, such as TP-Link TL-DS1018GMP 16-port PoE switch. For managed switching, use a Ruijie managed PoE option such as Ruijie RG-NBS3300-16MG4XS-HP where VLANs, monitoring or a more professional network handover are required. | A 12-unit building quickly outgrows the "just add a switch" mindset. The quote should include spare ports, user management, release testing, admin ownership and a resident onboarding process. |
| Apartment building with resident access control | Use an Akuvox door station for visitor calling, then add Akuvox A05C smart IP access control terminal at staff, garage, bin-room or resident-only doors where calling is not required. | Switching depends on door count and whether CCTV shares the network. A managed Ruijie PoE switch is usually easier to justify where multiple access points, cameras, intercoms and access terminals share infrastructure. | Visitor intercom and resident/staff access are different workflows. Separating them often creates a more professional system than forcing every user through the lobby intercom. |
What a 6-apartment quote should include
For a new IP design, a realistic 6-apartment quote should list the lobby door station, six indoor monitors if monitors are required, the PoE switch, any wall brackets or mounting accessories, the door release hardware, the release power supply if required, internet/network assumptions, app-user setup and resident handover.
The quote should also state what is not included. Common exclusions are electrician labour, cabling through apartments, door hardware modification, maglock/strike upgrades, fire or egress compliance work, and network configuration beyond the intercom scope.
How configuration works for the 6-apartment example
Create the building first, then name each unit consistently, for example Unit 1 through Unit 6. Pair each unit with its indoor monitor, then add resident app users only after the core door-station-to-monitor call path has been tested.
Test the lobby button or directory call to each unit, two-way audio, video, door release, app notification and remote unlock. Handover should include an admin owner, a resident change process and a written note explaining how old residents are removed.
Fast selector
| If the site looks like this | Start with this Akuvox path | Reason |
|---|---|---|
| Existing intercom cable and disruption is a concern | 2-wire retrofit assessment | May save labour where cable is suitable. |
| New build or easy cable route | IP or PoE intercom path | Cleaner long-term network foundation. |
| Front gate or driveway entry | Gate intercom with app/monitor and gate trigger plan | Gate release, weather and visitor position need planning. |
| Apartment or shared building | Multi-tenant plan with resident onboarding | User management matters as much as the panel. |
| Office, clinic or warehouse | Door station, monitor and controlled release path | Staff roles and after-hours answering need structure. |
Recommended SecurityWholesalers Akuvox product paths
Akuvox R20BX5 multi-button door phone
Useful for: small multi-tenant or multi-department sites where separate call buttons are easier than a directory.
Check first: tenant count, labelling, future expansion and whether a directory-style device would be cleaner.
Akuvox R20A-2 and C313W-2 2-wire kit
Useful for: retrofit homes, townhouses and small shared entries where existing 2-wire cable may be reused.
Check first: the old cable condition, topology, release hardware and whether the job needs more than one monitor.
Akuvox NS-2 2-wire IP network switch
Useful for: planned 2-wire retrofit layouts where Akuvox 2-wire devices need the correct system infrastructure.
Check first: the final topology, device count and whether the old cable is suitable.
Akuvox NC-2 2-wire IP network converter
Useful for: 2-wire retrofit paths that need conversion between the retrofit cable layer and the IP side.
Check first: whether the converter is part of the correct Akuvox design for that site.
Akuvox S535 facial recognition SIP door phone
Useful for: premium residential, office and shared-entry projects that need a more capable door station with face recognition and modular expansion potential.
Check first: privacy expectations, mounting height, lighting, access policy and whether face recognition is appropriate for the site.
Akuvox E18C 7-inch SIP face recognition door phone
Useful for: premium doors and lobbies where a larger screen, face recognition and a stronger visitor interface are useful.
Check first: lighting, weather exposure, privacy policy, credential method and release wiring.
Akuvox X937A 15.6-inch smart indoor surveillance and intercom monitor
Useful for: high-end homes, concierge desks, executive offices and sites that want a large premium indoor intercom display.
Check first: wall space, power/network path, user expectations and whether the monitor is acting as a main control point.
Akuvox S567G white 10-inch Android indoor monitor
Useful for: homes, apartments and offices that want a larger modern indoor monitor without stepping into a very large command-screen style display.
Check first: mounting location, user interface expectations, network/power path and whether multiple monitors are required.
Akuvox S532 induction loop module
Useful for: accessibility-aware apartment, strata, public-facing and commercial entries where hearing assistance should be considered.
Check first: whether the building has accessibility obligations or resident needs that make an induction loop valuable.
Akuvox A05C smart IP access control terminal
Useful for: staff entries, back-of-house doors, offices and commercial sites that need access control rather than visitor intercom calling.
Check first: credential policy, door hardware, power supply, egress requirements and whether it should sit alongside a separate visitor intercom.
Real quote scenarios
| Scenario | Practical Akuvox design | Why this makes sense |
|---|---|---|
| Small apartment block with shared entry | Door station or multi-button/directory path, monitor or app strategy per dwelling, clear resident onboarding and a documented management account. | The technical design and resident handover are equally important. |
What the finished system should specify
Before ordering, the buyer should be able to point to the entry location, the door station style, the cable path, the answering method, the release method and the handover plan. If any of those items are missing, the devices may still arrive, but the finished system may not match the way the site actually works.
For a home, specify who answers when someone presses the door station, whether the indoor monitor is the main answer point, whether family members receive app calls, and what happens if internet is down. For a business, specify reception, after-hours users, staff access and who can change app users later. For strata, specify resident onboarding, offboarding and management ownership.
Practical commissioning checks
Commissioning should be more than powering the devices and seeing a picture. Press the physical call button, confirm the monitor rings, confirm every intended app user receives a live call, test two-way audio, test video, test the release several times, and confirm the door or gate behaves the right way after the release.
The installer should also check naming. Door station names, monitor names and app-user names should make sense to the owner. A support person should be able to look at the site later and understand which device belongs to the front gate, lobby, staff door or reception entrance.
Where low-cost choices create risk
The cheapest Akuvox path is not always the lowest-risk path. A cheaper door station can become expensive if it is installed in the wrong location, if Wi-Fi is unreliable, if the release circuit needs redesigning, or if the site later discovers it needed a monitor, keypad, second door station or multi-user support.
The opposite is also true: not every site needs the biggest system. A small office, clinic or home may be better served by a clean compact system with excellent handover than by an overbuilt system nobody understands. The real value is fit, not headline specification.
What to photograph or document before ordering
For retrofit jobs, photograph the existing door station, handset, cable terminations, power supply, lock hardware and any visible control equipment. For gate jobs, photograph the gate controller area, post or pillar, cable route and visitor stopping position. For apartment jobs, photograph the lobby panel, old handsets, riser or distribution areas where accessible, and the release hardware.
Those photos help turn a vague product enquiry into a proper recommendation. They also reduce the chance that a good Akuvox product is blamed for a site condition that should have been identified earlier.
Handover standard
A strong handover gives the owner confidence. The buyer should know the admin owner, the end-user accounts, the app used, the monitor location, how remote unlock is intended to work, and where to start if a phone stops ringing. For businesses and strata, the handover should also explain how users are added or removed.
This is especially important with Akuvox because the system is often chosen for app calling and smart entry. Those benefits only stay useful when account ownership and user management are clean.
Installer and buyer checklist
- Confirm whether the site is retrofit, new cable, gate, apartment, home or business.
- Write down who answers calls: indoor monitor, mobile app users, reception desk, managers or residents.
- Confirm the door or gate release hardware before promising unlock behaviour.
- Check internet and network reliability when app calling is important.
- Decide who owns admin access and who receives end-user accounts.
- Document camera angle, mounting height, power, cabling, lock release and final test results.
Akuvox for Strata and Body Corporate Buildings FAQs
-
What should a strata committee ask before choosing Akuvox?
Ask how the system will call each resident, whether existing cabling can be reused, who owns admin access, how residents are added or removed, and how the shared door release will be tested.
-
Should a strata building use monitors or app calling?
It depends on the building. Monitors give a fixed answer point, while app calling reduces in-unit hardware. Many buildings need a mixed or staged approach based on budget, resident expectations and cabling.
-
Is Akuvox a good intercom brand?
Akuvox is a strong option when the buyer wants a modern IP or 2-wire intercom with app calling, indoor monitors and flexible entry workflows. The best result still depends on choosing the correct cabling path, door station, monitor and release hardware.
-
Is Akuvox better than a basic video doorbell?
For many installed security projects, yes. Akuvox is more of an intercom and access-entry platform, while a basic consumer doorbell is usually a simpler notification device. Akuvox is usually the better path for gates, offices, shared entries, indoor monitors and proper release wiring.
-
Does Akuvox need internet?
Local calling between a door station and indoor monitor may be designed differently from app calling. Mobile app answering and remote unlock normally need a reliable internet path and correct cloud or user setup.
-
Can Akuvox unlock a gate or door?
Yes, but the release path must be designed correctly. The intercom, relay, lock, gate controller, power supply and egress requirements all need to match.
-
Can Akuvox replace an old 2-wire intercom?
Often it can, where the old cable and topology are suitable. The existing cable should be inspected rather than assumed, especially on apartment, townhouse and long-run retrofit jobs.
