Product Overview
For properties needing a straightforward 8MP IP surveillance system without the complexity of custom design, this HiLook 6-camera kit pairs 6 x IPC-T383H-MU Pro Series turret cameras with the NVR-108MH-C/8P 8-channel PoE NVR in a single ready-to-install package. Each turret camera captures 3840 x 2160 resolution footage through a 2.8mm fixed lens, with 30m EXIR night vision, 120dB true WDR for high-contrast scenes, and IP67 outdoor weatherproofing. Featuring AcuSense technology, the cameras classify motion events as human or vehicle, reducing nuisance alerts from animals, foliage, or passing lights. A built-in microphone on each camera adds audio context to recordings without extra hardware. The included NVR provides 8 plug-and-play PoE ports, 80Mbps input bandwidth, 4K HDMI output, and a single HDD bay. Hard drive storage is selected separately to suit the recording duration required.
Key Capabilities

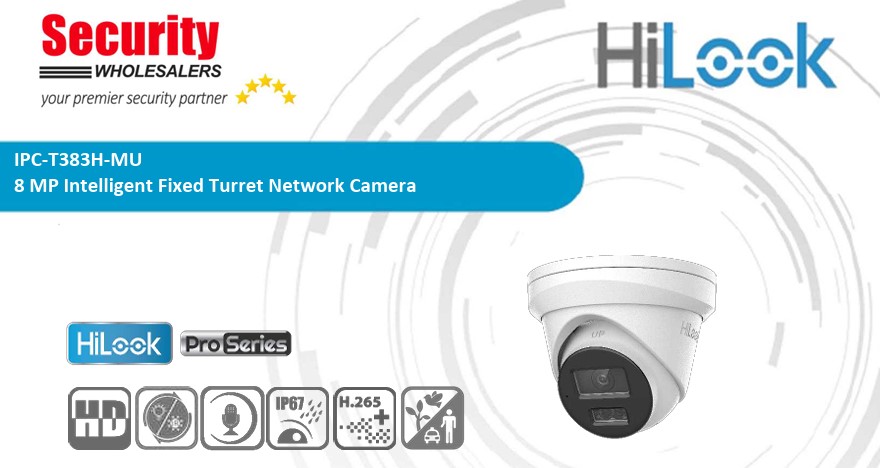

8MP Ultra HD Resolution
Each IPC-T383H-MU captures 3840 x 2160 footage, providing the image detail needed to read number plates, identify faces, or zoom into a recorded frame without the pixelation that limits lower-resolution cameras in post-incident review.
AcuSense Human and Vehicle Detection
AcuSense AI classifies motion as human or vehicle rather than triggering on every movement. This means alerts sent to mobile devices and the NVR are tied to genuine activity, reducing the time spent reviewing irrelevant footage across all 6 camera feeds.
30m EXIR Night Vision
The 30m infrared range covers driveways, entry points, and outdoor areas in complete darkness. The EXIR LED design provides even illumination without the overexposed centre hotspots common with standard IR arrays, maintaining usable image quality across the full frame.
8-Port Plug-and-Play PoE
The NVR-108MH-C/8P has 8 built-in PoE ports that power and connect cameras over a single Cat5e or Cat6 cable. No separate PoE switch or injector is needed, keeping the installation clean and reducing the number of components that need to be managed long-term.
H.265+ Compression
H.265+ encoding reduces file sizes significantly compared to H.264, which directly extends the number of days stored on the same HDD capacity. For a 6-camera 8MP system, this compression difference has a meaningful impact on storage costs and recording continuity.
Built-In Microphone on Every Camera
Each IPC-T383H-MU has a built-in microphone that records ambient audio alongside video. This adds useful context to incidents, such as raised voices or breaking glass, without requiring external audio devices or additional wiring at each camera location.
Best For
- Residential Properties with Multiple Entry Points: The 2.8mm wide-angle fixed lens on each IPC-T383H-MU covers frontages, side gates, garages, and rear access points across a 6-camera layout without requiring lens adjustment during installation.
- Small to Medium Businesses: Retail shopfronts, office premises, and small warehouses that need 8MP coverage across multiple zones benefit from the pre-matched camera-to-NVR configuration, avoiding compatibility decisions at the point of purchase.
- Installations Prioritising Reduced Alert Fatigue: Sites where motion notifications need to be actionable rather than constant will benefit from AcuSense human and vehicle classification filtering out environmental triggers.
- PoE Cat-Cable Runs Already in Place: Where Cat5e or Cat6 cabling already exists or is being newly run, the plug-and-play PoE NVR eliminates the need for additional power infrastructure at each camera location.
Why Choose the IPC-T383H-MU + NVR-108MH-C/8P Kit
This kit is distinguished from entry-level 2MP and 4MP systems by the combination of 8MP resolution and AcuSense AI in a pre-matched, plug-and-play configuration. A basic kit at lower resolution may cover the same number of cameras but cannot deliver the image detail required for post-incident identification or the event-based alert accuracy that AcuSense provides. The built-in microphone on each IPC-T383H-MU is a feature not found on many cameras at this price tier, adding audio recording to all 6 positions without extra hardware. The NVR-108MH-C/8P supports H.265+ decoding across all 8 ports, 4K HDMI output for a connected monitor, and mobile viewing via the Hik-Connect app. With 2 remaining PoE ports after the 6 cameras are connected, there is room to expand without replacing the NVR. Available through Security Wholesalers, this kit suits buyers who want a complete 8MP AcuSense system without sourcing components separately.
Package Inclusions
Buyer Decision Tips
Storage Planning: No hard drive is included with this kit. The NVR-108MH-C/8P has a single SATA HDD bay. At 8MP with H.265+ compression across 6 cameras recording continuously, a 4TB surveillance-grade drive typically provides several days of footage, while 6TB to 8TB extends this further. Select a WD Purple or Seagate SkyHawk surveillance-rated drive, as standard desktop drives are not designed for the continuous write cycles of an NVR environment.
Lens Coverage at 2.8mm: The fixed 2.8mm lens on each IPC-T383H-MU provides a wide field of view, which suits open areas, room coverage, and entry points where proximity to the subject is practical. For covering narrow corridors, long driveways from a distance, or car parks where cameras are mounted high and far from the subject, a longer focal length lens would be a better fit. If your installation requires a different focal length, consider individual camera selection rather than this fixed-lens kit.
Key Features & Technical Specifications
| Camera Model |
HiLook IPC-T383H-MU |
| Camera Quantity |
6 cameras included |
| Resolution |
8MP (3840 x 2160) |
| Lens |
2.8mm fixed |
| IR Night Vision Range |
30m EXIR |
| Wide Dynamic Range |
120dB True WDR |
| AI Detection |
AcuSense – Human and Vehicle Classification |
| Audio |
Built-in microphone (audio recording) |
| Camera Weatherproofing |
IP67 |
| Camera Power |
PoE (single cable for power and data) |
| NVR Model |
HiLook NVR-108MH-C/8P |
| NVR Channels |
8 channels |
| PoE Ports |
8 x plug-and-play PoE ports |
| NVR Input Bandwidth |
80Mbps |
| NVR Video Output |
4K HDMI, VGA |
| NVR Decoding |
H.265+/H.265/H.264+/H.264 |
| NVR Live View |
Up to 4-channel at 1080p |
| HDD Bay |
1 x SATA (no HDD included) |
Ideal Use Cases
Residential Home Coverage
A 6-camera layout at 8MP with 2.8mm wide-angle lenses suits homes with multiple access points including front door, driveway, side gates, and rear yard. AcuSense reduces after-hours false alerts from pets and wind-moved foliage.
Retail Shopfronts and Office Premises
The IPC-T383H-MU turret housing mounts discreetly on eaves, soffits, and wall brackets around a commercial tenancy. IP67 rating protects cameras mounted at shopfront entries exposed to weather, while 8MP detail supports post-incident review.
Small Warehouses and Storage Facilities
The combination of 8MP resolution and AcuSense vehicle detection makes this kit practical for warehouses where monitoring loading dock entries and vehicle movement is a priority alongside general internal coverage.
New Build Installations with Cat Cabling
Where Cat5e or Cat6 is being run during construction or renovation, the plug-and-play PoE ports on the NVR-108MH-C/8P eliminate the need for any additional switching hardware. 2 ports remain available for future camera additions.
Sites Requiring Audio-Enabled Recording
Each IPC-T383H-MU includes a built-in microphone, making this kit suited to reception areas, access points, or outdoor zones where ambient audio context adds value to incident recordings without requiring additional microphone hardware.
Choosing the Right Model
- Choose this kit if: You need a pre-matched 6-camera 8MP AcuSense system with plug-and-play PoE, where the 2.8mm wide-angle field of view suits the intended camera positions and you want built-in microphone recording at every location without sourcing cameras and an NVR separately.
- Choose a different model if: Your installation requires cameras covering subjects at greater distances, such as long driveways viewed from a high mounting point or car parks monitored from across the lot. A kit with varifocal lenses or a longer fixed focal length would provide more usable image detail in those scenarios. Similarly, if more than 8 cameras are needed from the outset, a higher-channel NVR with a larger HDD bay count would better suit the system design.
FAQs
- Does this kit include a hard drive?
No. The NVR-108MH-C/8P has a single SATA HDD bay but ships without a hard drive installed. A compatible surveillance-grade drive such as a WD Purple or Seagate SkyHawk needs to be added separately. Options are listed on this page. Surveillance drives are recommended over standard desktop drives due to the demands of continuous 24/7 recording.
- Can I connect the cameras to an existing NVR rather than the one included in this kit?
The IPC-T383H-MU cameras are standard ONVIF-compatible IP cameras and can connect to other NVRs that support 8MP resolution and H.265+ decoding. However, AcuSense smart detection and event-based features work most reliably when paired with a HiLook or Hikvision NVR that natively supports AcuSense event types. Using a third-party NVR may limit access to AI filtering and classification.
- What cable type is needed to connect each camera to the NVR?
Each IPC-T383H-MU connects to the NVR-108MH-C/8P using a single Cat5e or Cat6 cable carrying both data and PoE power. No separate power cable or PoE injector is required at the camera end. Standard maximum PoE cable run length is 100 metres per segment using quality Cat5e or Cat6 cable.
- What does AcuSense actually do on these cameras?
AcuSense is an AI-based classification engine built into the IPC-T383H-MU. When motion is detected, it analyses the moving object and determines whether it is a human or a vehicle. Alerts triggered by animals, insects, rain, or foliage movement are filtered out. This reduces the number of notifications and the volume of footage that needs to be reviewed, which is particularly useful across a 6-camera system.
- How many days of footage will this kit store?
Recording duration depends on the HDD size selected, the number of cameras actively recording, motion-triggered versus continuous recording settings, and the H.265+ compression level. As a general guide, a 4TB drive in a 6-camera 8MP system recording continuously with H.265+ will store several days of footage. Choosing a 6TB or 8TB drive extends this significantly. Using motion-triggered recording rather than continuous can extend storage duration further.
- Can I view the cameras remotely on a mobile device?
Yes. The NVR-108MH-C/8P supports remote viewing through the Hik-Connect mobile application, which is compatible with both iOS and Android. The NVR connects to the network via its onboard LAN port. Remote access configuration is handled through the NVR’s interface and the Hik-Connect platform. Available through Security Wholesalers, this kit comes set up for Hik-Connect integration out of the box.
- Can I add more cameras to this system later?
Yes, with some limitations. The NVR-108MH-C/8P has 8 PoE ports total, and this kit uses 6 of them, leaving 2 available for additional cameras. Once all 8 ports are in use, no further PoE cameras can be added to this NVR without switching to a higher-channel recorder. The NVR does not support external PoE switch expansion to add cameras beyond its 8-channel limit.
Cabling Considerations
- Cable Type: Cat5e minimum, Cat6 recommended for all camera runs. A single cable per camera carries both PoE power and network data to the NVR.
- Maximum Cable Run: 100 metres per camera run from NVR PoE port to camera. Runs exceeding this distance will require a mid-span PoE extender.
- PoE Considerations: The NVR-108MH-C/8P supplies PoE directly from its 8 built-in ports. No external PoE switch or injector is required. All 6 cameras in this kit are powered directly by the NVR over the Cat cable.
- Wiring Tips: Run cables through conduit where exposed to weather or physical damage. Terminate with RJ45 connectors rated for outdoor use where cables exit at the camera end. Ensure cable entries into camera housings are sealed to maintain IP67 weatherproofing integrity.
