Product SKU: KIT-IPCT363H-6CAM-8CHNVR

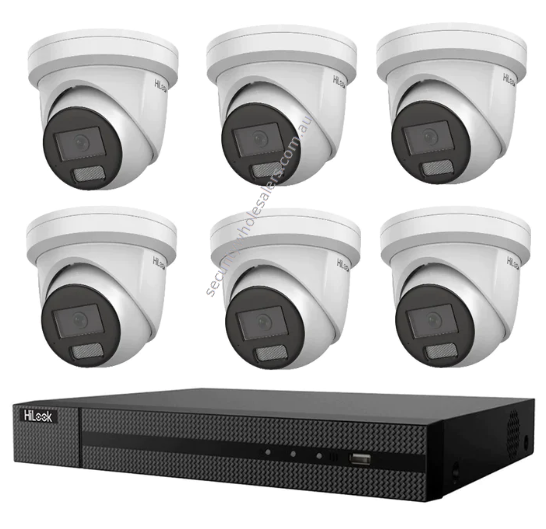

Product Overview
Planning a 6-camera installation across a residential or small commercial property, this HiLook Pro Series kit brings together 6 IPC-T363H-MU 6MP fixed turret cameras and the NVR-108MH-C/8P 8-channel PoE NVR in a single plug-and-play package. Each turret camera captures 3200 x 1800 resolution footage and features hybrid IR and white light illumination out to 30 metres, producing colour imagery at night without relying on permanent floodlighting. Equipped with smart human and vehicle detection, the cameras filter out motion from foliage, animals, and passing headlights, keeping event logs focused on activity that actually matters. Built with IP67-rated weatherproof housings and a built-in microphone in every unit, they suit eave, soffit, and wall positions across driveways, entries, yards, and shopfronts. The included NVR supports all 8 PoE ports for direct camera connection, delivers 4K HDMI output for onsite monitoring, and records with H.265+ compression to reduce storage demands. A hard drive is not included and is selected separately.
Key Capabilities
6MP Resolution Per Camera
Each IPC-T363H-MU records at 3200 x 1800, providing enough detail to read number plates at close range and identify individuals at driveways, entries, and shopfronts without relying on digital zoom during playback review.
Hybrid IR and Colour Night Imaging
The cameras combine infrared and white light illumination, switching intelligently to deliver colour footage at night across a 30-metre range. This means external areas remain clearly visible after dark without permanent floodlighting being required at each camera position.
Smart Human and Vehicle Detection
On-camera analytics classify motion events as human or vehicle targets, filtering out irrelevant triggers. This reduces notification fatigue and makes reviewing recorded footage faster by surfacing only the events most likely to be relevant to an incident.
Built-In Microphone on Every Camera
Each turret camera includes a built-in microphone, enabling audio to be recorded alongside video. This provides valuable situational context during incident review and eliminates the need for separate audio input devices across the 6-camera installation.
8-Port PoE NVR with Plug-and-Play Setup
The NVR-108MH-C/8P powers and connects all 6 cameras over a single Cat6 run per camera using its 8 built-in PoE ports. No separate power supplies or injectors are needed at each camera location, simplifying installation across eaves, walls, and outdoor mounting points.
H.265+ Compression and 4K HDMI Output
H.265+ encoding reduces the file size of 6MP recordings significantly compared to older codecs, lowering the capacity required from your chosen hard drive. The NVR also outputs at 4K via HDMI, supporting sharp onsite playback on a compatible monitor or TV.
Best For
- Full Residential Perimeter Coverage: 6 turret cameras provide enough positions to cover the front driveway, side gates, rear yard, and entry points of a typical home, with IP67 weatherproofing suited to all outdoor mounting locations.
- Small Business Shopfront and Carpark Monitoring: The 6MP resolution and 30-metre hybrid night illumination suit retail shopfronts, car parks, and outdoor areas where identification detail is needed after dark.
- Installers Wanting a Pre-Matched System: The IPC-T363H-MU cameras are confirmed compatible with the NVR-108MH-C/8P, removing compatibility guesswork and simplifying commissioning on residential and light commercial jobs.
- Properties Needing Selective Event Alerts: Smart human and vehicle detection means push notifications and event logs are not cluttered by moving branches, insects at night, or passing vehicle headlights on nearby roads.
Why Choose the HiLook IPC-T363H-MU 6-Camera Kit
Where a basic 2MP or 4MP kit captures video, the IPC-T363H-MU delivers 6MP at 3200 x 1800 per camera, giving each camera the resolution to identify faces and number plates at typical driveway distances without needing to crop and enlarge during playback. Unlike kits with standard IR-only cameras, the hybrid light system in each IPC-T363H-MU produces colour footage at night, which is directly useful for distinguishing clothing colours, vehicle colours, and other details that monochrome IR images cannot capture. The built-in microphone in all 6 cameras adds audio context to every recording position without additional accessories. The NVR-108MH-C/8P is pre-matched to the cameras for plug-and-play recognition, supports up to 8 cameras for future expansion, and keeps cabling straightforward by combining power and data over a single Cat6 run per position. This kit is available through Security Wholesalers and ships without a hard drive, allowing you to select the appropriate storage capacity for your recording requirements.
Package Inclusions
Buyer Decision Tips
Hard Drive Sizing: The NVR-108MH-C/8P has a single SATA slot. With 6 cameras recording at 6MP, H.265+ compression reduces file sizes considerably, but storage consumption is still higher than a comparable 2MP system. For continuous 24/7 recording across all 6 cameras, a 4TB surveillance-grade HDD is a practical starting point. For longer retention periods or motion-triggered-only recording, a 6TB or larger drive is worth considering. Only one HDD can be installed in this NVR, so select appropriately before installation to avoid disruption later.
Lens Selection for Each Camera Position: The IPC-T363H-MU is available with either a 2.8mm lens (119-degree horizontal field of view) or a 4mm lens (96-degree horizontal field of view). The 2.8mm suits wider zones such as back yards, shop floors, and open driveways where broad coverage is the priority. The 4mm narrows the view for positions such as gates, alleyways, and entry corridors where you need greater detail at a specific distance. If ordering multiple cameras, consider specifying different lens options per position rather than using the same focal length across the full installation.
Key Features & Technical Specifications
| Camera Model |
HiLook IPC-T363H-MU |
| NVR Model |
HiLook NVR-108MH-C/8P |
| Camera Resolution |
6MP (3200 x 1800) |
| Image Sensor |
1/2.7-inch Progressive Scan CMOS |
| Lens Options |
2.8mm Fixed (119-degree horizontal FOV) or 4.0mm Fixed (96-degree horizontal FOV) |
| Night Vision Range |
Up to 30 metres (Hybrid IR and White Light) |
| Minimum Illumination |
0.003 Lux @ F1.6, AGC ON / 0 Lux with IR |
| Audio |
Built-in microphone per camera |
| Smart Detection |
Human and vehicle target classification |
| Day/Night Mode |
IR cut filter |
| Shutter Speed |
1/3 s to 1/100,000 s |
| Ingress Protection |
IP67 (cameras) |
| Compression |
H.265+ / H.264+ |
| NVR Channels |
8 channels (6 cameras included, 2 ports available for expansion) |
| NVR PoE Ports |
8 x built-in PoE ports |
| NVR HDMI Output |
4K HDMI |
| NVR Storage |
1 x SATA slot (HDD not included) |
| DORI Distance (2.8mm) |
Detect 76m / Identify 7m |
| DORI Distance (4.0mm) |
Detect 115m / Identify 11m |
Ideal Use Cases
Residential Full Perimeter
6 turret cameras are enough to cover a front driveway, side access gates, rear yard, and main entry on most residential properties. IP67 housings handle all outdoor mounting locations, and the hybrid night illumination keeps colour footage available after dark without additional lighting infrastructure.
Retail Shopfronts and Carparks
The 6MP resolution at 3200 x 1800 provides enough detail to identify individuals at shopfront entrances, point-of-sale areas, and outdoor carparks. Smart human and vehicle detection reduces false event triggers in high-traffic retail environments where incidental movement is constant throughout operating hours.
Small Warehouse and Yard Monitoring
Colour night imaging from the hybrid light system makes vehicle colours and clothing detail visible in poorly lit loading areas and outdoor yards. The built-in microphone on each camera also captures audio context in areas where verbal confrontations or equipment incidents may occur.
Strata and Apartment Common Areas
Entry foyers, basement carparks, bin enclosures, and lift lobbies in strata buildings benefit from the 6MP detail and audio recording capability of the IPC-T363H-MU cameras, while the 8-channel NVR centralises all footage for straightforward review by building managers or security personnel.
Childcare and Education Facilities
The low-profile turret housing and IP67 weather rating allow the IPC-T363H-MU to be mounted across indoor and covered outdoor areas at childcare centres and schools. Smart detection helps administrators review footage efficiently by surfacing person-related events without manually scrubbing through hours of static recordings.
Choosing the Right Model
- Choose this kit if: You need a pre-matched 6-camera, 8-channel PoE system with 6MP resolution, colour night capability, smart human and vehicle detection, and a built-in microphone at every camera position, and you want to add your own hard drive to match your preferred storage capacity.
- Choose a different kit if: You need more than 8 camera positions, as the NVR-108MH-C/8P has a maximum of 8 channels and a single SATA bay. A higher-channel NVR kit would be more suitable for larger properties or multi-building installations requiring more coverage points or extended local storage.
- Choose a different kit if: Your installation requires longer night vision range beyond 30 metres. Bullet-style cameras with extended IR are better suited to long driveways, fence lines, or open carparks where subject distance from the camera regularly exceeds 30 metres.
FAQs
- Does this kit include a hard drive?
No. The NVR-108MH-C/8P ships without a hard drive. The NVR has a single SATA bay that accepts standard 3.5-inch surveillance-grade HDDs. You can select a compatible drive separately from the options listed on this page. A 4TB surveillance HDD is a common starting point for 6-camera installations using H.265+ compression with motion-triggered recording.
- How do the cameras connect to the NVR?
Each IPC-T363H-MU connects to the NVR-108MH-C/8P via a single Cat5e or Cat6 cable run. The NVR’s built-in PoE ports supply both power and data over that single cable, so no separate power adapters or PoE injectors are needed at each camera mounting position. The NVR auto-detects compatible HiLook cameras when connected.
- Can I choose different lens options for individual cameras in the kit?
The IPC-T363H-MU is available in either 2.8mm (119-degree horizontal FOV) or 4.0mm (96-degree horizontal FOV). If you need a mix of focal lengths across your 6 camera positions, contact the store before ordering to discuss whether mixed lens configurations can be arranged for your installation.
- What does the hybrid IR and colour night mode actually do differently from standard IR cameras?
Standard IR cameras produce black-and-white footage after dark. The IPC-T363H-MU uses a combination of infrared and white light LEDs and switches to white light illumination when needed, producing full-colour footage at night up to 30 metres. This means clothing colours, vehicle paint colours, and other chromatic details are captured rather than washed out in monochrome.
- How does the smart detection reduce false alerts?
The on-camera processing in each IPC-T363H-MU classifies detected motion as either a human or vehicle target before triggering an event. Motion from wind-blown plants, rain, insects, or ambient light changes is largely filtered out. Only events classified as human or vehicle generate push notifications or event log entries, making it practical to monitor alert notifications in real time rather than ignoring them.
- Can the NVR support additional cameras beyond the 6 included in this kit?
Yes. The NVR-108MH-C/8P has 8 PoE ports and supports up to 8 IP cameras. With 6 cameras included in this kit, 2 PoE ports remain available for future expansion with compatible HiLook or Hikvision IP cameras, up to the 8-channel limit of the recorder.
- Is remote viewing supported, and what app is used?
The NVR-108MH-C/8P supports remote access via mobile app, allowing live view and playback review from a smartphone or tablet. Connectivity is typically set up through the HiLook or Hik-Connect app. Remote access requires the NVR to be connected to your network router and an internet connection to be present at the installation site. This kit is part of the Security Wholesalers range and documentation is available via the datasheet link below to assist with remote setup.
Cabling Considerations
- Cable Type: Cat5e or Cat6 is recommended for all camera runs. Cat6 is preferred for longer runs or installations in environments with potential for electrical interference.
- Maximum Cable Run: Standard PoE over Cat5e or Cat6 supports up to 100 metres per camera run from the NVR. Runs exceeding this distance will require a PoE extender or a mid-span switch.
- PoE Considerations: The NVR-108MH-C/8P powers all cameras directly through its 8 built-in PoE ports. No separate power supplies are required at each camera location, provided cable runs remain within the 100-metre limit.
- Wiring Tips: Run Cat6 cable inside conduit or through wall cavities where possible to protect against UV degradation and physical damage at outdoor mounting positions. Leave a service loop of approximately 300mm at each camera mounting point to allow repositioning or replacement without cutting back the cable.
