Product Overview

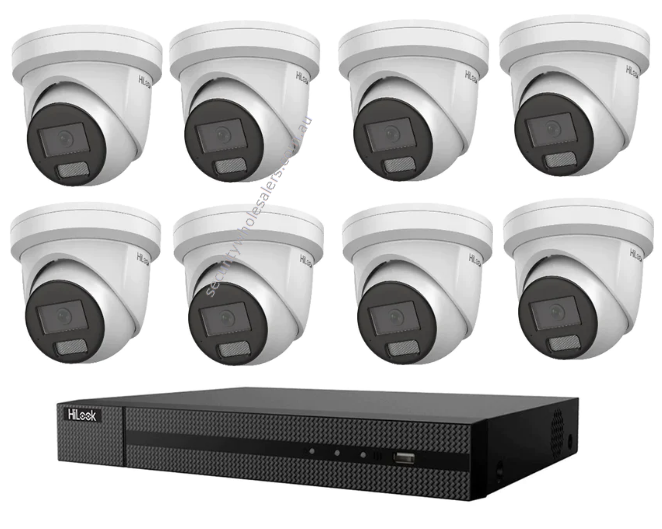

Built around 8 HiLook IPC-T363H-MU turret cameras and the HiLook NVR-108MH-C/8P, this 6MP AcuSense kit is designed for homes, small businesses, and commercial sites that need full-property coverage with intelligent motion filtering and colour night vision across every camera position. Each IPC-T363H-MU delivers 6MP resolution at 3200 x 1800, AcuSense human and vehicle detection, hybrid light support combining IR and white light out to 30m, and a built-in microphone for audio capture alongside video. The turret housing suits eave, soffit, and wall mounting, making it straightforward to position cameras at entrances, along driveways, in car parks, or across retail floors. The NVR-108MH-C/8P brings 8 PoE ports for a single-cable-per-camera install, 80Mbps inbound bandwidth, H.265+ compression to reduce storage consumption, 4K HDMI and VGA output, and mobile viewing via app. No hard drive is included, so storage capacity can be matched to your retention requirements at the time of purchase.
Key Capabilities
6MP AcuSense Resolution
Each IPC-T363H-MU captures footage at 3200 x 1800, providing enough detail to distinguish individuals and read vehicle registration plates across driveways, entries, and open floor areas. AcuSense analytics separate human and vehicle movement from pets, foliage, and other non-relevant triggers.
Hybrid Light Night Imaging
The cameras combine IR illumination with white light support to produce colour video at night when motion is detected. This means night-time footage retains colour detail useful for identifying clothing, vehicles, and environmental context, rather than defaulting to monochrome IR only.
30m Night Vision Range
IR range of up to 30m covers typical residential driveways, shopfronts, and yard approaches without requiring supplementary lighting. Combined with a minimum illumination of 0.003 Lux at F1.6, the cameras maintain usable imagery in near-dark conditions before the IR activates.
8-Port PoE – Single Cable Install
The NVR-108MH-C/8P powers and connects all 8 cameras over a single Cat5e or Cat6 run per camera. No separate power adapters are needed at each camera position, which simplifies installation across multi-level homes, offices, or retail fit-outs with cable runs back to a central cabinet.
Built-In Microphone on Every Camera
Each IPC-T363H-MU includes a built-in microphone, recording audio alongside video across all 8 camera positions. This supports incident review and verification without retrofitting external audio devices, and is particularly useful for retail, reception, and entry monitoring.
H.265+ Compression and 4K NVR Output
H.265+ encoding across the NVR reduces file sizes significantly compared to H.264, stretching the usable life of any hard drive added to the system. The NVR also outputs at 4K resolution over HDMI, allowing footage review on a large monitor without visible degradation when zooming into recorded frames.
Best For
- Full-Property Residential Coverage: 8 cameras with IP67 weatherproofing and 30m IR are sufficient to cover front entry, rear yard, side gates, driveway, and garage simultaneously on most residential properties.
- Retail and Office Environments: AcuSense human detection reduces unnecessary alert notifications in busy environments, making the system more useful during and after business hours without constant false triggers from passing vehicles or animals.
- Sites Requiring Audio Evidence: The built-in microphone on each IPC-T363H-MU captures ambient audio alongside video, supporting incident documentation in areas such as receptions, shopfronts, and service counters.
- Installers Consolidating to a Single PoE Switch: The NVR-108MH-C/8P removes the need for a separate PoE switch, keeping the install clean and reducing the number of network devices in the security cabinet on small to mid-sized jobs.
Why Choose the HiLook IPC-T363H-MU / NVR-108MH-C/8P Kit
This kit combines the IPC-T363H-MU’s AcuSense detection with hybrid light colour night vision at a camera count that covers an entire site in a single purchase. A basic 6MP camera without AcuSense will still record at the same resolution, but it cannot differentiate humans and vehicles from other motion sources, which leads to far more irrelevant alerts over time. The hybrid light system provides colour footage at night without requiring permanent white light to be on continuously, unlike full-colour-only cameras that depend on ambient or supplementary lighting. The NVR-108MH-C/8P supports 80Mbps total inbound bandwidth, which accommodates all 8 cameras recording at full 6MP resolution simultaneously without frame rate compromise. H.265+ compression makes that bandwidth practical for everyday hard drive sizes. The kit is available through Security Wholesalers and is supplied without a hard drive, giving buyers the flexibility to choose storage capacity based on their required retention period.
Package Inclusions
- 8 x HiLook IPC-T363H-MU AcuSense 6MP Turret Camera – 6MP AcuSense Outdoor Turret Camera (30m IR, Hybrid Light Colour Night, Built-In Mic, IP67)
- 1 x HiLook NVR-108MH-C/8P – 8CH PoE NVR (8 PoE Ports, 4K HDMI Output, H.265+, No HDD Included)
- This kit does not include a hard drive. Please scroll down and add a compatible HDD to your order if required.
Buyer Decision Tips
Lens Selection – 2.8mm vs 4mm: The IPC-T363H-MU is available in 2.8mm (119 degree horizontal field of view) and 4mm (96 degree horizontal field of view) fixed lens options. Choose 2.8mm for wide indoor spaces, hallways, open yards, and corners where broad coverage matters more than reach. Choose 4mm for driveways, walkways, entrances, and any position where a tighter frame and greater subject detail at range is more important than coverage width. For a mixed 8-camera install, consider splitting your order between both focal lengths based on each camera position.
Storage Planning – No HDD Included: The NVR-108MH-C/8P accepts 1 SATA hard drive. With 8 cameras recording continuously at 6MP using H.265+ compression, a 4TB surveillance-grade drive typically provides several days of continuous footage depending on scene activity. If you require longer retention, a larger drive (6TB, 8TB, or 10TB) should be selected at checkout. Only surveillance-rated drives such as WD Purple or Seagate Skyhawk are recommended for 24/7 write operation inside an NVR.
Key Features & Technical Specifications
| Camera Model |
HiLook IPC-T363H-MU |
| NVR Model |
HiLook NVR-108MH-C/8P |
| Camera Count |
8 cameras included |
| Camera Resolution |
6MP (3200 x 1800) |
| Image Sensor |
1/2.7″ Progressive Scan CMOS |
| Lens Options |
2.8mm Fixed (119° horizontal) or 4.0mm Fixed (96° horizontal) |
| Night Vision Range |
Up to 30m (IR and white light hybrid) |
| Minimum Illumination |
0.003 Lux @ F1.6, AGC ON; 0 Lux with IR |
| Smart Detection |
AcuSense human and vehicle classification |
| Audio |
Built-in microphone on each camera |
| Weatherproofing |
IP67 |
| Shutter Speed |
1/3s to 1/100,000s |
| Video Compression |
H.265+ / H.264+ |
| NVR Channels |
8 channels |
| PoE Ports |
8 x PoE ports (built into NVR) |
| NVR Bandwidth |
80Mbps incoming |
| NVR Output |
4K HDMI and VGA |
| Storage |
1 x SATA bay (no HDD included) |
| Remote Viewing |
Mobile app supported |
| DORI Distance (2.8mm) |
Detect 76m / Identify 7m |
| DORI Distance (4.0mm) |
Detect 115m / Identify 11m |
Ideal Use Cases
Residential Full-Property Install
8 IP67-rated turret cameras are enough to cover all major approach points on a typical home, including front entry, driveway, side access, and rear yard. The hybrid light system captures colour footage at night across all positions without permanent floodlighting.
Retail Shopfront and Interior
AcuSense filters human and vehicle activity from other motion triggers, making after-hours alerts more actionable in retail environments. Built-in microphones across all cameras support incident documentation at service areas and entry points.
Office Building and Reception Coverage
The turret housing mounts cleanly on ceilings, eaves, and walls in office environments. With 8 channels managed from a single NVR with 4K HDMI output, the system suits a dedicated security monitor display at a reception or security desk.
Car Parks and External Access Points
The 4mm lens option with a 115m detect distance and AcuSense vehicle classification makes this kit useful for monitoring car park entries, boom gate areas, and external access roads where vehicle activity is the primary monitoring target.
Small to Mid-Scale Commercial Sites
The NVR-108MH-C/8P’s 8-port PoE configuration supports up to 8 cameras from a single network device, keeping the equipment footprint compact and the installation clean across warehouses, workshops, medical suites, and mixed-use commercial tenancies.
Choosing the Right Model
- Choose this kit if: You need to cover 8 camera positions in a single purchase with 6MP resolution, AcuSense human and vehicle detection, hybrid light colour night vision, and built-in audio on every camera, all connected through a single 8-port PoE NVR without a separate switch.
- Choose a different model if: You need more than 8 camera positions, require motorised zoom or varifocal lenses to adjust framing after installation, or need a kit that includes a pre-installed hard drive as part of the bundle rather than adding storage separately.
- Consider the lens choice carefully: The IPC-T363H-MU is a fixed-lens camera. The field of view cannot be adjusted after installation, so lens selection (2.8mm vs 4mm) must be matched to each camera position before purchase. Mixed lens orders are possible by purchasing individual cameras separately.
FAQs
- Does this kit come with a hard drive?
No. The NVR-108MH-C/8P included in this kit has 1 SATA bay but is supplied without a hard drive. You will need to add a compatible surveillance-grade hard drive (WD Purple or Seagate Skyhawk recommended) to enable local recording. Compatible drives are listed in the product page scroll-down section.
- What lens options are available for the IPC-T363H-MU cameras?
The IPC-T363H-MU is available in 2.8mm and 4.0mm fixed lens variants. The 2.8mm provides a 119 degree horizontal field of view, suitable for open areas and corners. The 4.0mm provides a 96 degree horizontal field of view with greater subject detail at distance, suited to driveways, entries, and focused corridors. Both have a 30m night vision range.
- What does AcuSense detection actually do in day-to-day use?
AcuSense uses on-camera processing to classify detected motion as either a human or a vehicle, and filters out other triggers such as animals, insects, tree movement, and lighting changes. This means the NVR and any connected mobile app will generate event alerts only when a person or vehicle enters the scene, reducing the volume of irrelevant notifications considerably compared to basic motion detection.
- How does the hybrid light system work at night?
Each IPC-T363H-MU uses a combination of IR LEDs and white light LEDs. In low-light conditions, the camera primarily uses IR illumination for standard monochrome night vision. When motion is detected, the white light component can activate to produce full-colour footage. This differs from full-colour cameras that require constant supplementary lighting to maintain colour at night.
- Can all 8 cameras record simultaneously at full 6MP resolution?
Yes. The NVR-108MH-C/8P supports 80Mbps total incoming bandwidth, which is sufficient to accommodate all 8 IPC-T363H-MU cameras recording simultaneously at full 6MP resolution using H.265+ compression without frame rate reduction.
- Is the built-in microphone on the IPC-T363H-MU suitable for recording conversations?
The microphone captures ambient audio in the immediate vicinity of the camera and is designed to record background sound and nearby speech for incident review purposes. It is not intended for directed recording of distant or quiet conversations. Audio is stored alongside video on the NVR. Note that local laws regarding audio recording in certain environments should be reviewed before deployment, available through Security Wholesalers for guidance on appropriate placement.
- Can I wall-mount the IPC-T363H-MU cameras, or are they ceiling-only?
The IPC-T363H-MU turret housing supports both ceiling and wall mounting. For direct wall installation, an optional junction box or wall mount bracket (such as the Hikvision DS-1273ZJ-130-TRL) improves cable management and positions the camera angle correctly for the mounting surface. These accessories are listed separately on the product page.
Product Video Samples
Additional Information
Product SKU: KIT-IPCT363H-6CAM-8CHNVR
