This kit consists of the most commonly ordered items (to make it easier for you)

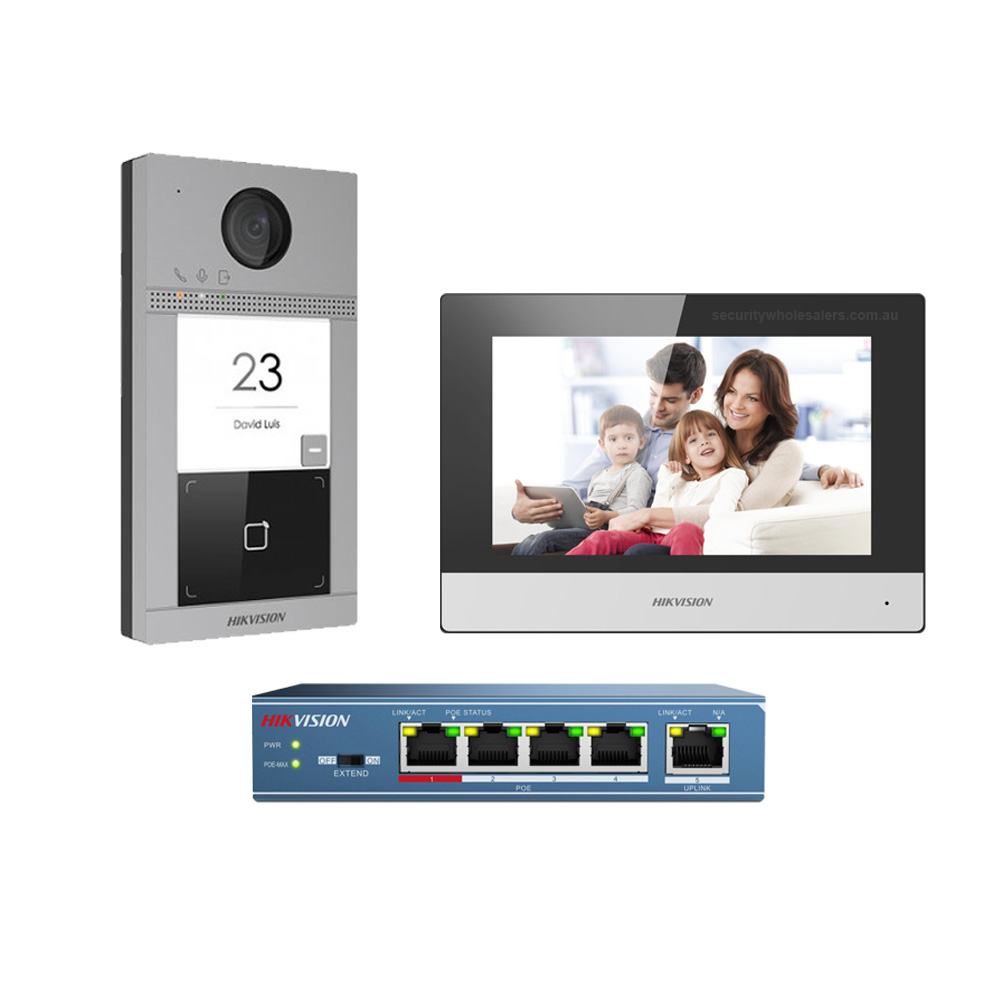

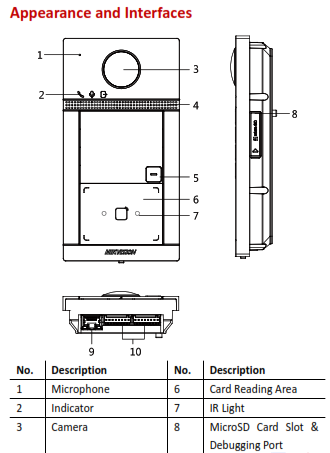

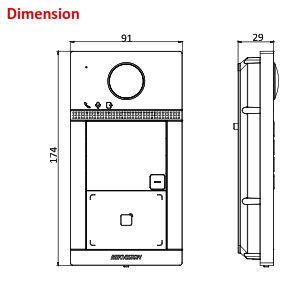

1 x Hikvision DS-KV8113-WME1 Gen2 Intercom 1 Button ‘Villa’ Door Station
1 x Hikvision DS-3E0105P-E 4 Port Unmanaged PoE Switch
1 x Hikvision DS-KH6320-TE1 Gen2 Video Intercom 7-Inch Touch Screen Indoor Room Station
Optional additional Mifare cards
> ethernet cable from Door Station to Poe Switch
> ethernet cable from the monitor to Poe Switch
> ethernet cable Poe Switch to the modem (if you wish to set up remote communication)
If you need to open/ control 1-2 door / gate strikes, run 4 core cabling from the door station to the respective strikes. These strikes need to be powered separately, ie. the door station will not be able to power these strikes.
|Hikvision DS-3E0105P-E 4 Port Unmanaged PoE Switch, 1*100M Uplink, 802.3af/at, 58W||$80.00 inc GST +3 Year Warranty & Support|
|Hikvision DS-KH6320-TE1 Gen2 Video Intercom 7-Inch Touch Screen Indoor Room Station||$246.00 inc GST +3 Year Warranty & Support|
|Hikvision DS-3E0310HP-E 8 Port Fast Ethernet Unmanaged POE Switch|| |
|Hikvision DS-KABV8113-RS 2nd Gen Shroud to suit DS-KV8x13-WME1 Series (for Surface mount)||$37.20 inc GST +3 Year Warranty & Support|
|Hikvision Gen2 DS-KD8003-IME1 Video Intercom Module Door Station (Surface Mount)||$332.72 inc GST +3 Year Warranty & Support|
|Hikvision Gen2 DS-KD8003-IME1/Flush Video Intercom Module Door Station (Flush Mount)||$338.40 inc GST +3 Year Warranty & Support|
|Hikvision DS-KABV8113-RS 2nd Gen Shroud to suit DS-KV8x13-WME1 Series (for Flush mount)||$37.20 inc GST +3 Year Warranty & Support|
Hikvision Australia’s website has firmware updates for available IP cameras.
Use the search bar to try and find your product. Firmware updates are usually available on the product page.
IF YOU BOUGHT EQUIPMENT FROM US:
You will need to contact us if you can’t find your camera listed or if you require firmware for your NVR / DVR.
You will need to also provide the full serial number of the device as well as your current firmware.
This is to ensure upgrades are done properly. In some instances middlle firmware is required before upgrading to the latest version.
We do not recommend doing intercom firmware upgrades. Please check with us if there is any doubt.
If you didn’t buy equipment from us, please contact the people who you bought the equipment from.
This is a comprehensive guide with lots of videos providing guidance for setting up Hikvision IP Intercoms.
> ethernet cable from every Door Station to Poe Switch
> ethernet cable from every indoor Monitor to Poe Switch
> ethernet cable from Poe Switch to the modem (if you wish to set up remote communication)
Need to unlock a gate?
If you need to open/ control 1-2 door / gate strikes, run 4 core cabling from the Intercom Door Station to the respective strikes. These strikes need to be powered separately, ie. the door station will not be able to power these strikes.
GEN 2 Guides
Watch the below video to get cracking.
ONE DOOR STATION AND ONE MONITOR – in case the first video was too fast. Set up is quick and easy and doesn’t use IVMS4200.
INTRODUCTION VIDEO + HOT TIPS
OR ONE DOOR STATION AND ONE MONITOR IVMS4200 Method:
If you need the indoor monitor to connect through wifi instead of data cable – https://www.youtube.com/watch?v=TklIto_nVh8
How to add more monitors (requires a PC running IVMS4200)
How to add keypad:
How to add maglock?
How to add exit button?
How to add more door stations:
THE MOST USEFUL GUIDES FROM HIKVISION
Probably the most useful guide ever *** CLICK HERE ***
How to setup – guide from Pipl Systems – https://pipl.systems/setup-tutorial-hikvision-2nd-modular-intercom-system/
Add a second monitor – https://www.youtube.com/watch?v=-11RJ1S-8Xg
GEN 1 Guides
Please click to download.
How to configure a Hikvision Villa Intercom System
Most common system – 1 door station – 1 monitor:
System with 1 door station, 1 main room and multiple sub room stations
System with multiple door stations
Some helpful hints
HIK CONNECT Only Master room stations should be added to Hik-Connect. Issues may occur if a Sub station is added. The app can be found on the iOS and Android app stores.
- Get the IP Address of the door station via HIkvision SADP tool
2. Download Hikvision IVMS4200 – https://www.hikvision.com/en/support/download/software/ivms4200-series/ (just download the first / basic one)
3. Add the device to IVMS4200 using the IP address – ensure you choose Synchronise time. Click Add
This tech guide from Hikvision helps you configure a Hikvision apartment intercom system.
SADP stands for search active device protocol, it’s Hikvision’s free and simple utility for searching Hikvision products (including IP cameras and DVRs/NVRs) in the local network.
Its commonly used for:
- resetting password
- Finding out what firmware is currently used
- changing IP addresses
Hikvision CCTV cameras can be added to an indoor station thus allowing remote viewing directly from the indoor station for added security.
A typical Hikvision room station can have up to 16 cameras viewable – one at a time.
For a guide as to how to set this up, please see attached:
Gen2 Intercom instructions below:
Step 1- Get SADP tool to get the IP address of the NVR.
Step 2 – use IVMS4200, add the room station to IVMS. Then add as per screenshot below:
Otherwise via Intercom monitor:
Settings > 2 Icons on right (Configuration) > 3rd icon (device management) , Click on + sign and enter IP address. Port 554. username / password is the details of the camera.
These tech notes should assist you with this requirement.
In an Intercom system with 2 or more indoor stations, each station can dial or call between each other by using the following dialing format.
To call the Main indoor station from any indoor station you would dial 0-0
To call the first indoor extension from any indoor station, included the main indoor station, you would dial 0-1
Please refer to page 5 of the user manual.
Page 8 onwards may also help https://www.hikvision.com/content/dam/hikvision/products/S000000001/S000000083/S000000129/S000000131/OFR002104/M000001550/User_Manual/UD20209B_Baseline_Video-Intercom-Module-Door-Station_User-Manual_V2.2.3.PDF
Most residential customers would use the Green and Blue cable
The Power would depend on the electric strike (to be powered separately). Further, the strike also has NO and NC setting. So, the strike has to also be on NO setting
For commerical sites, some of them may use NC, so in that case, we still use electric strike but use the pink, NC cable to connect to it
It is possible to add cameras to the HIkvision IP intercom system. Follow the steps below:
