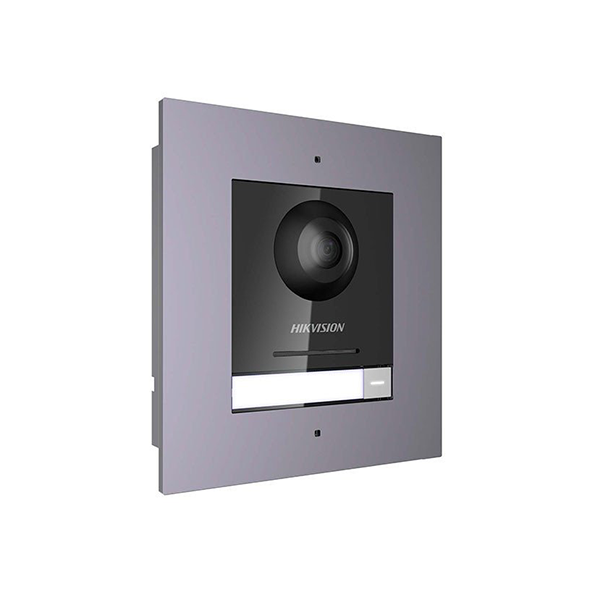

Hikvision Gen2 DS-KD8003-IME1/Flush Video Intercom Module Door Station (Flush Mount)
Hikvision Gen2 DS-KD8003-IME1/Flush Video Intercom Module Door Station (Flush Mount) - Image 2
, ,

Hikvision Gen2 DS-KD8003-IME1/Flush Video Intercom Module Door Station (Flush Mount)

Hikvision DS-KD8003-IME1/Flush Mount Door Station is supplied complete with a Flush Mount housing, typically used for Villa System.

$301.00 inc GST +3 Year Warranty & Support

Hikvision DS-KD8003-IME1/Flush Mount Door Station is supplied complete with a Flush Mount housing, typically used for Villa System.

The video intercom module door station can realize functions such as video intercom.

Features Include

  • 2MP HD video intercom function
  • Access control function
  • Fisheye camera with IR supplement light
  • Tampering alarm and door magnetic alarm supported
  • Supports sub-modules’ access (max.8)
  • Noise suppression and echo cancellation
  • Easy to extend

Connects with an additional Door Station and Room Stations via a standard PoE Switch (48V)

System Parameters
Operation System: Embedded Linux Operation System
Operation method: Physical Button
Processor: Embedded MCU Processor
Camera Parameters
Field of view: 180° (Horizontal), 96°(Vertical)
Audio Parameters
Audio Input: Built-in Omnidirectional Microphone
Audio Output: Built-in Loudspeaker(More than 85dB within 20 cm)
Audio Compression Standard: G.711 U
Audio Compression Rate: 64 Kbps
Audio Quality: Noise Suppression and Echo Cancellation
Video Parameters
WDR: Supported
DNR: Supported
BLC: Supported
Camera: Low Illumination 2 MP HD IR Camera
Video Compression Standard: H.264
Resolution: Main Stream: 1920 × 1080 Sub Stream：720 × 480
Anti-flicker frequency: 50 Hz, 60 Hz
Network Parameters
Network Protocol: TCP/IP, RTSP
Ethernet: 10/100 Mbps Self-Adaptive Ethernet
Light Supplement
Light Supplement Mode: IR Supplement
Alarm Parameters
Tampering alarm: 1
Device Interfaces
Debug: 1
Module-connecting: 1
Relay Output: 2(30V, 1A)
I/O Input: 4
General
Installation: Flush Mounting, Surface Mounting
Power Supply: IEEE802.3af standard PoE, 12 VDC/1A
Power Consumption: ≤10 W
Physical button: 1
Working Humidity: 10% to 95%
Working Temperature: -40° C to +60° C (-40° F to 140° F)
IP Protection Level: IP65
Dimensions(L × W × H): 98mm × 99.8mm × 43.9mm(3.86″× 3.93″ ×1.73″)
