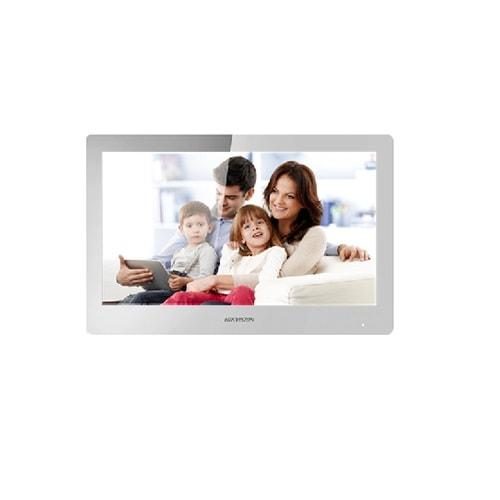

Hikvision Gen2 DS-KH8520-WTE1 Video Intercom 10-Inch Touch Screen Indoor Room Station

Hikvision DS-KH8520-WTE1 Gen2 10 Inch Video Intercom Room Station with WiFi.

10-inch Colorful TFT LCD, display resolution: 1024 * 600;10/100Mbps Ethernet, Wi-Fi 802.11b/g/n;standard PoE / 12 VDC.TF card, max 32G.

Key Feature

• New UI V2.0: User friendly design
• 10-inch colorful touch screen with resolution 1024 × 600
• Standard PoE
• Stores messages and capture pictures in the TF card (Sold seperately)
• Remote unlocking via the client Software or the mobile client App.
• Views live videos of door station and linked cameras
• Supports wireless network

$470.00 $541.00 inc GST +3 Year Warranty & Support

Hikvision DS-KH8520-WTE1 Gen2 10 Inch Video Intercom Room Station with WiFi.

10-inch Colorful TFT LCD, display resolution: 1024 * 600;10/100Mbps Ethernet, Wi-Fi 802.11b/g/n;standard PoE / 12 VDC.TF card, max 32G.

Key Feature

• New UI V2.0: User friendly design
• 10-inch colorful touch screen with resolution 1024 × 600
• Standard PoE
• Stores messages and capture pictures in the TF card (Sold seperately)
• Remote unlocking via the client Software or the mobile client App.
• Views live videos of door station and linked cameras
• Supports wireless network

System Parameters
Operation System: Embedded Linux Operation System
Flash: 32MB
Memory: 128MB


Display Parameters
Display Screen: 10.1-inch colorful TFT LCD
Display Resolution: 1024 × 600
Operation Method: Capacitive touch screen


Audio Parameters
Audio Input: Built-in Omnidirectional Microphone
Audio Output: Built-in Loudspeaker
Audio Compression Standard: G.711 U
Audio Compression Rate: 64 Kbps
Audio Quality: Noise Suppression and Echo Cancellation


Network Parameters
Wired network: 10/100 Mbps self-adaptive network
Wireless network: Wi-Fi 802.11b/g/n
Network Protocol: TCP/IP, SIP, RTSP
Network interface: 1 RJ-45 10/100 Mbps self-adaptive


Device Interfaces
Relay Output: 2
Alarm Input: 8-ch alarm inputs
RS-485: 1
TF Card (micro SD card): Max to 32 G, SD 2.0 or lower version


General
Power Supply: IEEE802.3af standard PoE, 12 VDC/1A
Power Consumption: ≤6W
Working Humidity: 10% to 90%
Working Temperature: -10° C to + 55° C (14° F to 131° F)
Dimensions(L × W × H): 254 mm × 166 mm × 14.7 mm (10.0″ ×6.5″ × 0.58″)
