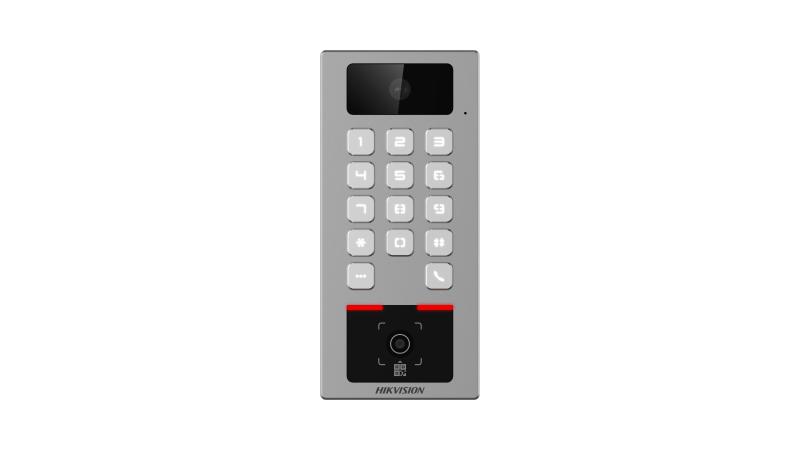

Hikvision DS-K1T502DBWX-CQR Face Recognition Terminal with QR Code & WiFi
The Hikvision DS-K1T502DBWX-CQR is a Pro Series facial recognition access control terminal featuring QR code scanning, card authentication, PIN access, and WiFi connectivity. Designed for modern commercial environments, it provides fast, secure, and contactless entry control with flexible credential options including face, Mifare card, QR code, and password.
The DS-K1T502DBWX-CQR is part of Hikvision’s Pro Series access control lineup, combining facial recognition, QR code access, and traditional card/PIN authentication in a compact terminal.
This model is ideal for:
Office buildings
Warehouses
Gyms & clubs
Schools & childcare
Commercial tenancies
Apartment common areas
With multiple authentication methods, it provides flexibility for staff, visitors, and temporary access credentials.
Authentication Methods
This terminal supports:
Face recognition (contactless access)
QR code scanning (dynamic or static codes)
Mifare card access
PIN/password entry
Multi-factor authentication combinations
Perfect for environments where both permanent staff and temporary visitors require controlled access.
Connectivity & Integration
TCP/IP (RJ45)
WiFi connectivity
Wiegand output for integration with controllers
Door relay output (direct lock control)
Alarm input/output support
Compatible with Hikvision access control platforms
Suitable for standalone operation or integration into larger Hikvision access control systems.
Technical Highlights
High-resolution touch screen
Fast face comparison algorithm
Built-in QR code scanner
13.56 MHz Mifare card reader
Indoor installation design
Compact and modern appearance
Wall-mount installation
Typical Installation Scenarios
✔ Main office entry doors ✔ Warehouse internal access points ✔ Staff-only areas ✔ Shared workspace facilities ✔ School administration buildings
For higher security applications, this terminal can be paired with electric strikes, magnetic locks, or integrated with central access control software.
Why Choose the DS-K1T502DBWX-CQR?
Multi-credential flexibility (Face + QR + Card + PIN)
Ideal for hybrid staff/visitor access
WiFi reduces cabling requirements
Pro Series reliability
Suitable for modern contactless access environments
Frequently Asked Questions
Does this unit support QR code access?
Yes. It has a built-in QR code scanner suitable for static or dynamic QR credentials.
Can it operate over WiFi?
Yes, the DS-K1T502DBWX-CQR supports WiFi connectivity as well as wired TCP/IP.
Does it support Mifare cards?
Yes, it includes a 13.56 MHz Mifare card reader.
Can it control a door directly?
Yes. It includes relay outputs for direct electric strike or magnetic lock control.
Is this suitable for outdoor installation?
This model is primarily designed for indoor installation. For outdoor use, a weatherproof enclosure may be required.
Can it integrate with Hikvision software?
Yes. It supports integration via Hikvision platforms using ISAPI/SDK.
