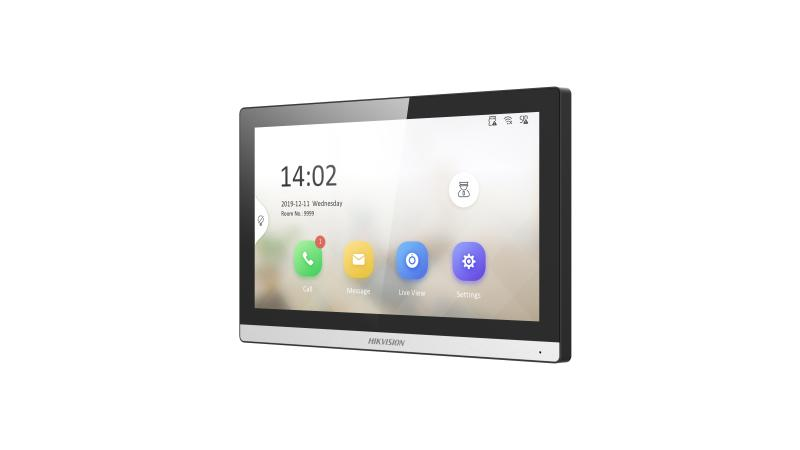

Hikvision DS-KH6350-WTE1 Gen2 IP-Based 7 inch Indoor Intercom Station Wifi


  • 7-inch TFT touch screen with 1024 × 600 resolution
  • Convenient Hik-Connect APP Mobile Control
  • Receive calls, open the door and live view remotely
  • Easy to use without PC
  • Easy wizard for quick set up
  • Configure the whole system on one touch screen
  • Live view of the door station and cameras in public areas
  • Support voice messages when no response from the indoor station
  • Receive alarms by linkage with a alarm system and notify the center to handle in time
  • Elevator access control
  • Key difference between this and the DS-KH6320-WTE1 is the thinner bezel on this model

DS-KH6350-WTE1-Network-Indoor-Station_Datasheet

Latest firmware

$266.00 inc GST +3 Year Warranty & Support

Video demo of this product

System Parameters

  • Operation SystemLinux
  • ROM32 MB
  • RAM128 MB
  • ProcessorEmbeded high performance processor

Display Parameters

  • Screen Size7-inch
  • Operation MethodCapacitive touch screen
  • TypeColorful TFT
  • Resolution1024 × 600

Video Parameters

  • Lens/
  • Resolution/
  • FOV/
  • Wide Dynamic Range (WDR)/
  • Video Compression Standard/
  • Focal Length/

Audio Parameters

  • Audio Input 1 built-in omnidirectional microphone
  • Audio Compression StandardG.711U, G.711A
  • Audio Output1 built-in loudspeaker
  • Audio Compression Bitrate64 Kbps
  • Audio QualityNoise suppression and echo cancellation
  • Volume AdjustmentAdjustable

Capacity

  • Message Capacity

    TF card inserted: 200 captured pictures, 200 alarm records

    Without TF card: 2 MB RAM for picture storage; The storage number is decided by the picture size, 200 alarm records

  • Notice Capacity 200
  • Linked Indoor Extensions Capacity16
  • Linked Doorphone Capacity17

Network Parameters

  • Network ProtocolTCP/IP, SIP, RTSP
  • Wi-Fi2.4 GHz, IEEE802.11b, IEEE802.11g, IEEE802.11n
  • Bluetooth/
  • 3G/4G/
  • Zigbee/

Device Interfaces

  • Alarm Input8
  • Network Interface1 RJ-45 10/100 Mbps self-adaptive
  • TAMPER/
  • RS-4851 RS-485 (Half duplex)
  • USB/
  • TF CardSupport TF card, up to 128 G
  • Alarm Output2
  • Lock Control2 relays, Max. 30 VDC 0.3 A

General

  • Button/
  • InstallationWall mounting, table mounting
  • Indicator/
  • Weight

    Net weight: 355 g (0.8 lb)

    Gross weight: 683 g (1.5 lb)

  • Protective Level/
  • Working Temperature-10 °C to 50 °C (14 °F to 122 °F)
  • Working Humidity10% to 90% (no-condensing)
  • Dimension (W × H × D)175 mm × 113.5 mm × 21 mm (6.9″ × 4.5″ × 0.83″)
  • Battery/
  • Application EnvironmentIndoor
  • Power Consumption≤ 5 W
  • LanguageEnglish, Russian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese (Brazil), Spanish, Hebrew, Romanian, Turkish, Estonian, Danish, Swedish, Norwegian, Finnish, Vietnamese, Croatian, Slovenian, Serbian, Arabic, Portuguese (Portugal), Lithuanian, Uzbek, Kazakh, Mongolian, Ukrainian
