Product Overview

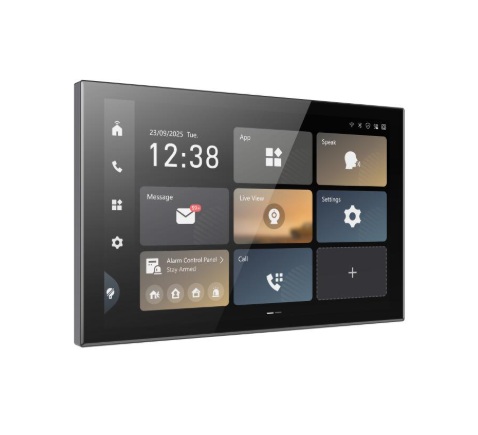

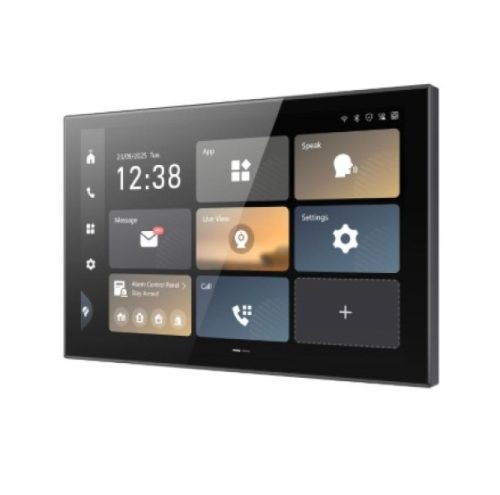

For residential buildings and commercial environments that demand a polished, high-performance intercom interface, the Hikvision DS-KH9570-WTE1/S delivers a 10.1-inch IPS capacitive touchscreen running Android 14, purpose-built for wall-mounted installation at reception desks, apartment living areas, or dedicated security stations. Featuring a Super HD display at 1920 x 1200 resolution, the DS-KH9570-WTE1/S provides crisp, detailed video from linked door stations and network cameras. Equipped with 4 GB RAM and 8 GB onboard storage, it handles concurrent app tasks, event logging, and interface management without sluggishness. Built with dual microphones and dual loudspeakers with noise suppression and echo cancellation, it supports clear two-way audio and video communication with visitors or connected devices. It also supports up to 17 linked doorphones, 16 network cameras, and 15 indoor extensions, making it well suited to larger multi-unit or multi-entry installations where a single indoor station must coordinate across an entire site.
Key Capabilities
10.1-Inch Super HD Touch Display
The IPS capacitive panel at 1920 x 1200 resolution gives occupants a large, clear view of visitors and live camera feeds. The responsive touch interface reduces the learning curve for residents and staff interacting with the station daily.
Android 14 with 4 GB RAM and 8 GB Storage
Running the latest Android platform on capable hardware means the station handles intercom functions, Android-based applications, and system management simultaneously without lag. The 8 GB ROM provides storage for event records, captured images, and app data.
Two-Way Audio with Noise Suppression
Dual built-in microphones and dual loudspeakers with noise suppression and echo cancellation allow clear, real-time voice communication with door stations and visitors. Conversations remain intelligible in noisy lobby or open-plan environments.
Wi-Fi 6 and Wired Ethernet Connectivity
Support for Wi-Fi 6 on both 2.4 GHz and 5 GHz bands, alongside a wired RJ-45 Ethernet port, gives installers flexibility to choose the most reliable connection method for each installation environment.
Large Device Linking Capacity
With support for up to 17 doorphones, 16 network cameras, and 15 indoor extensions, this station can serve as the central management point for complex multi-entry or multi-floor installations without requiring additional control hardware.
On-Device Event and Record Storage
The station logs captured pictures, alarm events, unlock records, and tamper alerts locally for security review. This provides an accessible audit trail directly from the touchscreen without relying solely on server-side storage.
Best For
- Multi-Entry Residential Buildings: The capacity for 17 linked doorphones makes this station practical for apartment complexes or gated communities with multiple entry points managed from a single indoor terminal.
- Commercial Reception and Security Desks: The 10.1-inch Super HD display and unified view of up to 16 network cameras give reception staff a clear, consolidated interface for managing visitor access and live monitoring.
- Installations Requiring Wi-Fi 6: Sites where running dedicated Ethernet cabling to the indoor station is impractical benefit from the built-in Wi-Fi 6 support without sacrificing network throughput.
- Android App Integration: Environments where occupants or security staff need to run third-party Android-based monitoring or management applications alongside intercom functions on the same device.
Why Choose the DS-KH9570-WTE1/S
The DS-KH9570-WTE1/S occupies a distinct position in the Hikvision Ultra Series indoor station range. Most basic indoor stations offer a small display and limited device linking. This model provides a 10.1-inch IPS panel at 1920 x 1200, a full Android 14 environment with 4 GB RAM, and the capacity to link 17 doorphones, 16 cameras, and 15 indoor extensions from a single unit. The combination of dual-band Wi-Fi 6 and Ethernet means installers are not restricted to one connectivity method, which matters in retrofit projects where cable routing is difficult. The built-in dual microphone and dual speaker arrangement with noise suppression means audio quality holds up in open or noisy spaces rather than requiring a quiet room to communicate clearly. Available through Security Wholesalers, the DS-KH9570-WTE1/S is suited to projects where a standard 7-inch station would leave occupants managing too many separate interfaces.
Buyer Decision Tips
Compatibility Check: The DS-KH9570-WTE1/S is designed to operate within a Hikvision IP intercom ecosystem. Before specifying this station, confirm that your door stations, NVR or intercom server, and any planned network cameras are Hikvision IP intercom-compatible. Mixing this station with analogue door entry hardware or non-Hikvision intercom controllers will require additional verification of protocol support.
Network Bandwidth Planning: With up to 16 live camera feeds and simultaneous intercom calls possible, ensure the local network segment serving this station has sufficient bandwidth. For installations relying on Wi-Fi 6, position the access point to provide a strong 5 GHz signal at the station location to avoid dropped video frames during peak usage.
Key Features & Technical Specifications
| Model |
DS-KH9570-WTE1/S |
| Series |
Hikvision Ultra Series IP Video Intercom |
| Display Size |
10.1 inches |
| Display Type |
IPS capacitive touchscreen |
| Display Resolution |
1920 x 1200 (Super HD) |
| Operating System |
Android 14 |
| RAM |
4 GB |
| Onboard Storage |
8 GB ROM |
| Built-in Audio |
Dual microphones and dual loudspeakers with noise suppression and echo cancellation |
| Wireless Connectivity |
Wi-Fi 6, 2.4 GHz and 5 GHz dual-band |
| Wired Network |
Ethernet RJ-45 |
| Linked Doorphones (max) |
17 |
| Linked Network Cameras (max) |
16 |
| Linked Indoor Extensions (max) |
15 |
| Event Records |
Captured images, alarm logs, unlock records, tamper events |
| Product Type |
IP Video Intercom Indoor Station |
Ideal Use Cases
Apartment and Unit Complexes
With support for up to 17 linked doorphones, individual units can connect to multiple building entries. Residents manage visitor calls and door release directly from the wall-mounted 10.1-inch touchscreen inside their apartment.
Commercial Reception Counters
Reception staff benefit from the large Super HD display to identify visitors clearly from door station camera feeds and manage access across up to 16 linked network cameras without switching between separate systems.
Multi-Floor Office Buildings
Up to 15 linked indoor extensions allow a networked intercom setup across floors or departments. The Android 14 platform enables each station to run unified management software for coordinated access control across the building.
Retrofit Installations with Limited Cabling
Buildings where running dedicated Ethernet to each indoor station is not feasible can take advantage of Wi-Fi 6 dual-band connectivity, maintaining network performance without requiring new cable infrastructure through finished walls.
Security Monitoring Stations
The combination of 16 linked camera feeds, on-device event logging of unlock records and alarm events, and a high-resolution display makes the DS-KH9570-WTE1/S a practical standalone monitoring point in guard rooms or security offices.
Choosing the Right Model
- Choose this model if: You need a large-format 10.1-inch touchscreen indoor station running Android 14 with the capacity to link 17 doorphones, 16 cameras, and 15 indoor extensions, particularly where Wi-Fi 6 connectivity is required to avoid additional cabling.
- Choose a different model if: Your installation requires only a single door entry point with minimal camera linking. A smaller 7-inch indoor station would occupy less wall space and may represent a more proportionate choice for a single-entry home or small office with a simple one-to-one intercom setup.
- Choose a different model if: Your project involves an analogue or non-IP intercom infrastructure. This station is designed for IP-based intercom ecosystems and is not suited to legacy analogue door entry systems without a compatible conversion interface.
FAQs
- How many door stations can the DS-KH9570-WTE1/S link to simultaneously?
The DS-KH9570-WTE1/S supports linking with up to 17 doorphones within a compatible Hikvision IP intercom system. This makes it suitable for multi-entry buildings where a single indoor station needs to receive calls and manage access across several entry points.
- Does the 10.1-inch display require any special wall mounting hardware?
The DS-KH9570-WTE1/S is designed for wall-mounted installation. Specific mounting bracket requirements and cut-out dimensions are detailed in the product datasheet. It is recommended to review the datasheet before roughing in any back-box or conduit to ensure the wall preparation suits the station’s mounting footprint.
- Can the station display live feeds from security cameras that are not Hikvision door stations?
The station supports linking with up to 16 network cameras within the Hikvision intercom system framework. Compatibility with third-party IP cameras depends on protocol support within the specific Hikvision intercom software version in use. It is advisable to confirm camera compatibility with your system integrator before specifying non-Hikvision cameras.
- What audio hardware is built into the DS-KH9570-WTE1/S and does it support two-way communication?
The station includes dual built-in microphones and dual loudspeakers with noise suppression and echo cancellation. This hardware combination enables real-time two-way audio and video communication with linked door stations and visitors directly from the touchscreen, without requiring external speakers or microphones.
- Is Wi-Fi the only wireless option, or does the station support other wireless protocols?
Based on the confirmed specifications, the DS-KH9570-WTE1/S supports Wi-Fi 6 on both 2.4 GHz and 5 GHz bands alongside a wired Ethernet RJ-45 port. No other wireless protocols are confirmed in the available product data. For the most current wireless specification detail, refer to the official datasheet available through Security Wholesalers.
- What event records does the station store locally and how are they accessed?
The station logs captured pictures, alarm events, unlock records, and tamper events in its 8 GB onboard storage. These records are accessible directly from the touchscreen interface, providing an on-device audit trail without requiring a separate server or network storage device for basic review purposes.
- Can Android applications be installed on the DS-KH9570-WTE1/S beyond the built-in intercom software?
The station runs Android 14 with 4 GB RAM and 8 GB ROM, which technically supports Android application installation. However, whether third-party app installation is enabled or restricted in the specific firmware configuration deployed on this Ultra Series model should be confirmed with the system integrator or by reviewing the applicable Hikvision firmware release notes.
Cabling Considerations
- Cable Type: Cat 5e or Cat 6 unshielded twisted pair is recommended for the wired Ethernet connection to the DS-KH9570-WTE1/S. Use shielded cable in environments with significant electrical interference such as plant rooms or industrial areas.
- Maximum Cable Run: Standard Ethernet maximum of 100 metres per segment applies for the RJ-45 connection. Runs beyond this distance require a network switch or extender at the intermediate point.
- PoE Considerations: Confirm the power input requirements of the DS-KH9570-WTE1/S from the datasheet. If the station is powered over Ethernet, ensure the supplying switch or injector supports the required PoE class for a 10.1-inch indoor station with active display and Wi-Fi 6 hardware.
- Wiring Tips: Where Wi-Fi 6 is used instead of Ethernet, position the nearest Wi-Fi 6 access point to provide unobstructed 5 GHz coverage to the station location. Avoid installing the station behind thick concrete or reinforced walls without first confirming signal strength at the intended mounting position, as video intercom traffic is sensitive to latency and packet loss on congested or weak wireless connections.
