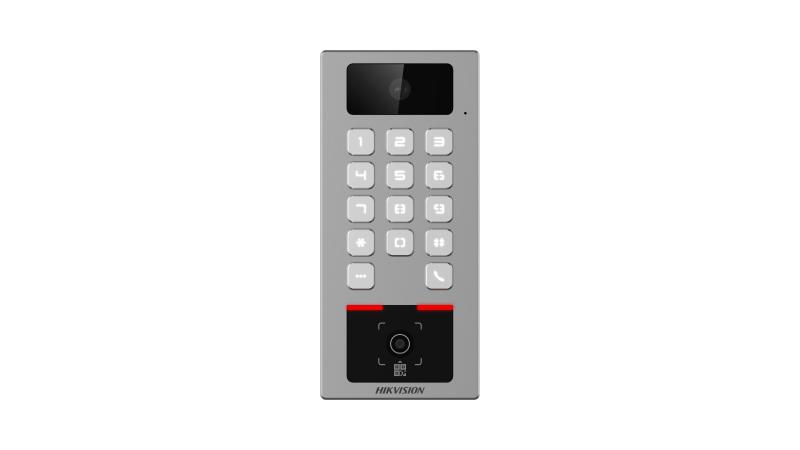

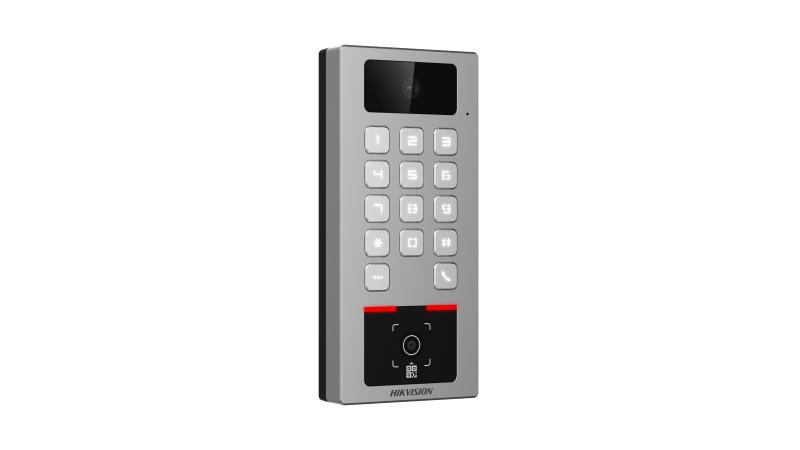

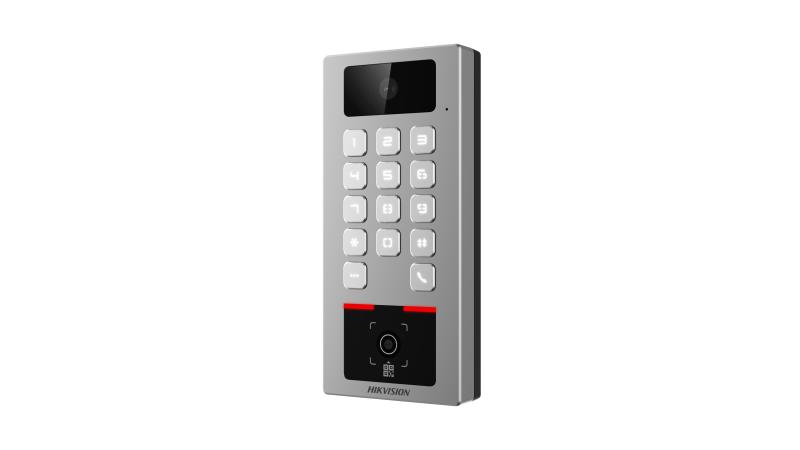

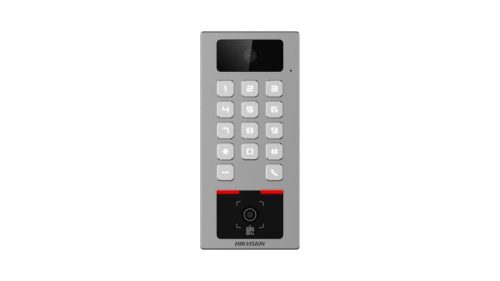

The Hikvision DS-K1T502DBWX-CQRE1 is an all-in-one Pro Series access control and video intercom terminal designed for commercial entrances, offices, apartment buildings, warehouses and secured gates.
Users can gain access using M1 or DESFire cards, a PIN code, QR code or Bluetooth-enabled smartphone. The integrated call button, 2MP camera, microphone and speaker allow visitors to make video calls to a management centre, compatible Hikvision indoor station, nominated indoor station or the Hik-Connect mobile app.
The terminal includes a built-in access controller and two lock-control relays, allowing it to manage up to two doors. When powered using 802.3at PoE, it can also provide a 12VDC, 1A output for a compatible electric lock, helping simplify installation. Alternatively, the terminal can be powered using a 12 to 24VDC power supply.
Wired Ethernet, 2.4GHz Wi-Fi and Bluetooth connectivity provide flexible network and mobile-access options. RS-485 and Wiegand interfaces allow integration with compatible external card readers, access controllers and elevator-control systems. SIP support also enables integration with selected third-party intercom and PBX platforms.
Constructed with a durable zinc-alloy housing, the DS-K1T502DBWX-CQRE1 carries an IP65 weather-resistance rating and an IK09 impact-resistance rating, making it suitable for protected indoor or outdoor entry points.
Key features:
- Integrated access control and video intercom terminal
- Built-in 2MP camera with approximately 110° horizontal field of view
- Built-in microphone and speaker for two-way communication
- Supports M1 cards, DESFire cards, PIN codes and QR codes
- Bluetooth smartphone door unlocking
- Hik-Connect app support for remote calling and door control
- Integrated physical keypad and call button
- Two lock-control relays for controlling up to two doors
- 12VDC, 1A lock power output when suitably powered by PoE
- 10/100 Mbps Ethernet connection
- 2.4GHz 802.11b/g/n Wi-Fi
- 802.3at PoE or 12 to 24VDC power input
- RS-485 interface for compatible readers and elevator integration
- Wiegand interface for connection to an external controller
- Two alarm inputs and one alarm output
- Door-contact and exit-button inputs
- microSD card slot
- SIP intercom support
- Tamper protection
- Durable zinc-alloy construction
- IP65 weather-resistant and IK09 impact-resistant housing
- Operating temperature from -40°C to 65°C
Please note: this model is a card, PIN, QR code and Bluetooth access terminal. The built-in camera is intended for video intercom functionality and does not provide facial-recognition authentication. Specifications verified against the Hikvision Australia product page.
