Product Overview

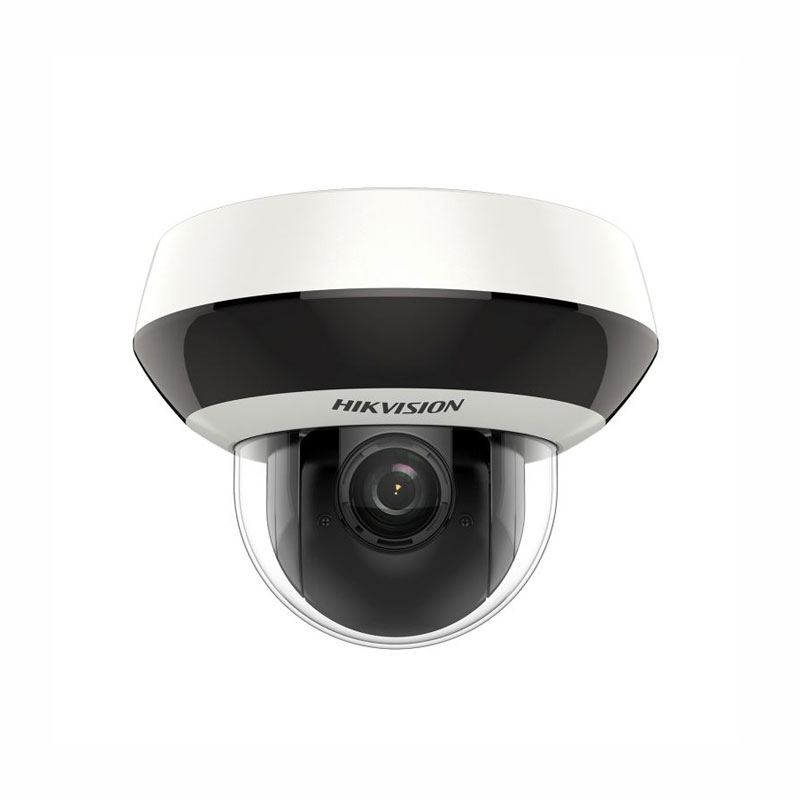

The Hikvision DS-2DE2A404IW-DE3 is a compact 4 MP mini PTZ camera designed to deliver flexible, high-precision outdoor surveillance. The DS-2DE2A404IW-DE3 features 4× optical zoom, 2560 × 1440 resolution, 120 dB true WDR and up to 20 m IR illumination, making it suitable for both wide-area monitoring and detailed long-range inspection. Its IK10 and IP66 housing ensures durability in exposed or high-risk environments, while H.265+ compression reduces bandwidth and storage requirements. With PoE or 12 VDC power options and advanced PTZ functionality, this camera provides a reliable solution for commercial, industrial and residential surveillance applications.
Why Choose the DS-2DE2A404IW-DE3
The DS-2DE2A404IW-DE3 is ideal for projects requiring strong PTZ performance without the size and cost of a full-size PTZ dome. Its 4× optical zoom enables users to view distant subjects clearly while still maintaining a broad situational overview. The high-performance 4 MP sensor, 120 dB WDR and advanced image algorithms ensure clarity in mixed lighting conditions, and the IR system supports dependable night-time coverage. With vandal and weather protection, intelligent imaging features, streamlined PoE installation and silent, smooth movement, this compact PTZ offers significant value for installers and end users seeking flexible and reliable monitoring.
Key Capabilities
4 MP High-Clarity Imaging
Powered by a 1/3″ progressive scan CMOS sensor, the DS-2DE2A404IW-DE3 delivers crisp 2560 × 1440 video that supports clear identification of people and vehicles. The high resolution ensures important details are captured accurately, making it suitable for applications requiring precise monitoring and evidence-grade footage.
4× Optical Zoom PTZ
The 2.8–12 mm motorised lens allows users to quickly zoom from a wide overview to a focused telephoto view. Optical zoom preserves full image quality regardless of zoom level, supporting surveillance tasks such as event tracking, entry point monitoring or long-distance inspections without loss of clarity.
20 m Infrared Night Vision
With integrated IR LEDs, the camera maintains visibility in complete darkness up to approximately 20 metres. The IR technology ensures clear night-time images and helps maintain situational awareness across low-light outdoor environments such as car parks, pathways and building exteriors.
120 dB True WDR & Advanced Processing
The camera performs strongly in scenes with heavy backlighting, reflections or extreme contrast. True WDR, 3D DNR, HLC and regional exposure optimise image clarity, enabling accurate monitoring in challenging lighting scenarios such as shopfront windows or bright outdoor environments.
Rugged Outdoor Construction
Built with IK10 impact resistance and an IP66 weather rating, the DS-2DE2A404IW-DE3 withstands rain, dust, vandalism and harsh outdoor conditions. This makes it a dependable PTZ option for exposed or high-risk sites where durability and long-term reliability are essential.
Efficient H.265+ Compression
The camera’s H.265+ codec significantly reduces storage and bandwidth requirements without compromising image quality. This offers improved remote streaming performance and lowers the long-term recording costs for NVR-based or cloud-based systems.
Key Features
-
4 MP QHD resolution: Delivers crisp, detailed video suitable for both general monitoring and close-range identification. The 2560 × 1440 resolution captures finer detail than standard 1080p cameras, improving the overall evidence quality and making it easier to detect important visual information.
-
4× optical + 16× digital zoom: Provides the ability to quickly switch from wide-angle coverage to focused inspection. Optical zoom maintains full image clarity, making the camera highly effective for tracking moving subjects or monitoring distant access points without distortion.
-
120 dB true WDR: Enhances visibility in environments with bright backlight or varied illumination. This ensures more consistent image quality across different lighting conditions, such as indoor–outdoor transitions, carparks or entrances facing direct sunlight.
-
Up to 20 m IR illumination: The built-in infrared LEDs provide dependable night vision, offering clear detail even in complete darkness. The IR system ensures consistent surveillance after sunset and improves security coverage for outdoor installations.
-
Full PTZ functionality: Includes pan, tilt, zoom, preset tours, patterns and patrol functions. These allow operators to automate scanning routines or respond manually to live events, improving site awareness and proactive security management.
-
H.265+/H.265/H.264+ support: Ensures broad compatibility with modern NVRs while delivering strong compression efficiency. This reduces recording storage costs and supports smoother remote viewing over constrained network connections.
-
PoE and 12 VDC power options: Flexible installation options make the camera suitable for both professional and retrofit environments. PoE simplifies installation by providing power and data over a single cable.
-
IK10 & IP66 protection: Provides strong impact and weather resistance, making the camera ideal for high-traffic, exposed or vandal-prone outdoor locations where reliability is critical.
Specifications Summary
| Feature |
Specification |
| Resolution |
4 MP (2560 × 1440) |
| Sensor |
1/3″ Progressive Scan CMOS |
| Lens / Zoom |
2.8–12 mm, 4× optical; 16× digital |
| Field of View |
97°–31° (H), 52°–18° (V), 115°–36° (D) |
| IR Illumination |
Up to 20 m |
| WDR |
120 dB True WDR |
| Min. Illumination |
Colour: 0.005 Lux; B/W: 0.001 Lux; 0 Lux with IR |
| Power |
12 VDC ±10% or PoE (802.3af) |
| Weather Rating |
IP66 |
| Vandal Rating |
IK10 |
| Video Compression |
H.265+, H.265, H.264+, H.264, MJPEG |
Ideal Use Cases
- Car parks and driveways – Utilise 4× zoom for identifying vehicles, reading number plates at closer ranges and monitoring general vehicle flow.
- Retail centres and shopfronts – Track persons of interest and monitor foot traffic using PTZ movement and preset patrols.
- Schools and campuses – Excellent for courtyards, open walkways and external building areas requiring flexible observation.
- Industrial sites – Monitor large factory spaces with the ability to zoom into distant machinery, equipment or gates.
- Public spaces – Its IK10 and IP66 ratings make it suitable for vandal-prone and weather-exposed environments.
Understanding the 4× Optical Zoom System
A PTZ camera uses optical zoom to change magnification without degrading video quality. The DS-2DE2A404IW-DE3 provides a 4× optical zoom range (2.8–12 mm), enabling operators to shift from a wide-angle overview to a narrow telephoto perspective while preserving full resolution. This precision is valuable for live tracking, inspection of distant subjects, quick event response and flexible security oversight across larger outdoor areas.
| Zoom Level |
Approx. Field of View |
Best For |
| Wide (2.8 mm) |
97° Horizontal |
General awareness, car parks, building fronts |
| Telephoto (12 mm) |
31° Horizontal |
Tracking events, entrances, gates and long-range observation |
FAQs
- How far can the DS-2DE2A404IW-DE3 see at night?
The camera includes high-efficiency infrared LEDs that provide clear visibility up to approximately 20 metres in complete darkness. This enables reliable monitoring of outdoor areas such as driveways, building perimeters or walkways after sunset, ensuring consistent performance regardless of lighting conditions.
- Does the DS-2DE2A404IW-DE3 support PoE power?
Yes. The camera supports IEEE 802.3af Power over Ethernet (PoE), allowing installers to supply power and network connectivity using a single cable. This simplifies installation and reduces the need for additional electrical wiring. Traditional 12 VDC power input is also supported for flexible deployment.
- Is the camera suitable for harsh or exposed outdoor locations?
Absolutely. The DS-2DE2A404IW-DE3 is engineered for demanding Australian conditions with an IP66 weather rating and IK10 vandal-resistant housing. It withstands rain, dust, heat, impacts and attempted tampering, making it reliable for public areas, commercial sites and high-risk outdoor environments.
Additional Information
DS-2DE2A404IW-DE3S6-C_Datasheet
Compatible Wall Mount Bracket – DS-1294ZJ-PT
-
Hikvision mini PTZ comparison
| Feature |
DS-2DE2A404IWG1-E |
DS-2DE2A404IW-DE3(S6) |
| Product generation |
Newer AcuSense model |
Older-generation model |
| Resolution |
4MP, 2560 × 1440 |
4MP, 2560 × 1440 |
| Optical zoom |
4×, 2.8–12mm |
4×, 2.8–12mm |
| Night vision |
20m IR |
20m IR |
| Low-light technology |
Powered-by-DarkFighter |
Powered-by-DarkFighter |
| AI classification |
Human and vehicle classification |
No AcuSense human/vehicle filtering |
| Smart events |
Line crossing, intrusion, region entry and exit |
Face detection, line crossing, intrusion, object removal, unattended baggage and other legacy analytics |
| Built-in microphone |
Yes |
Yes |
| Built-in speaker |
Yes, two-way audio |
No built-in speaker |
| Audible warning |
Yes |
External audio output only |
| Memory card |
Up to 512GB |
Up to 256GB |
| PTZ movement |
355° pan, 90° tilt |
355° pan, 90° tilt |
| Maximum PTZ speed |
50° per second |
100° per second |
| Presets |
300 |
300 |
| Patrol scanning |
Supported |
More limited preset-based operation |
| Weather/vandal rating |
IP66 and IK10 |
IP66 and IK10 |
| Power |
PoE or 12VDC |
PoE or 12VDC |
|
|
|
