Product Overview

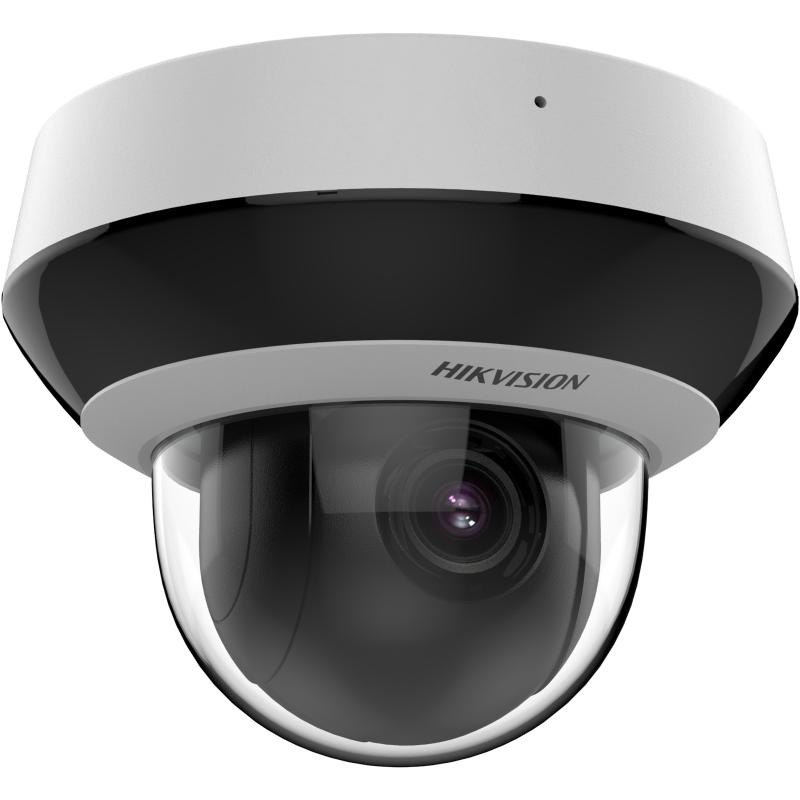

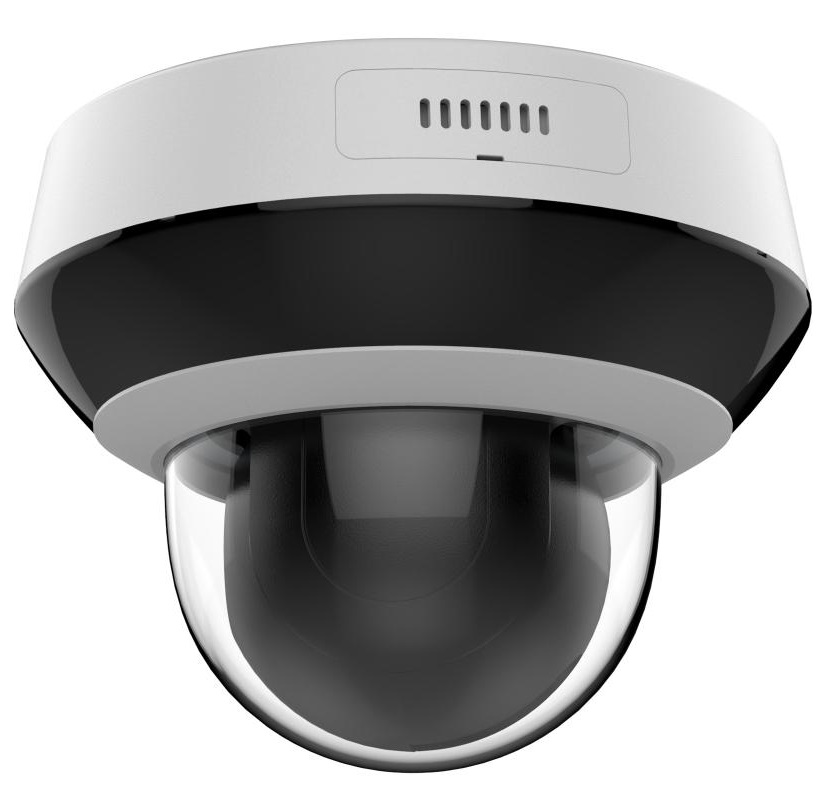

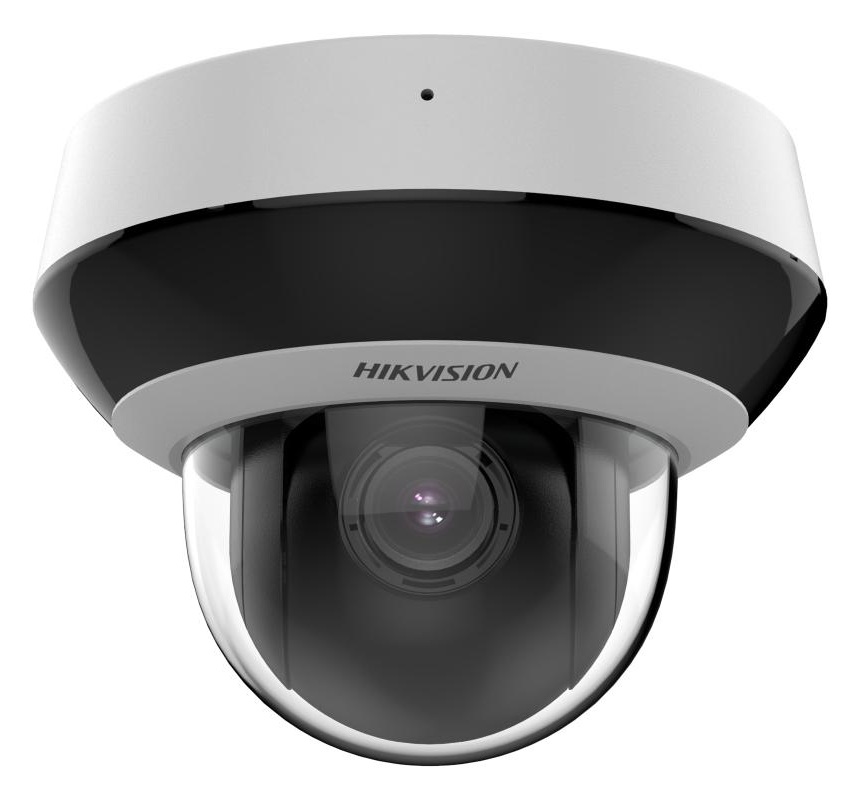

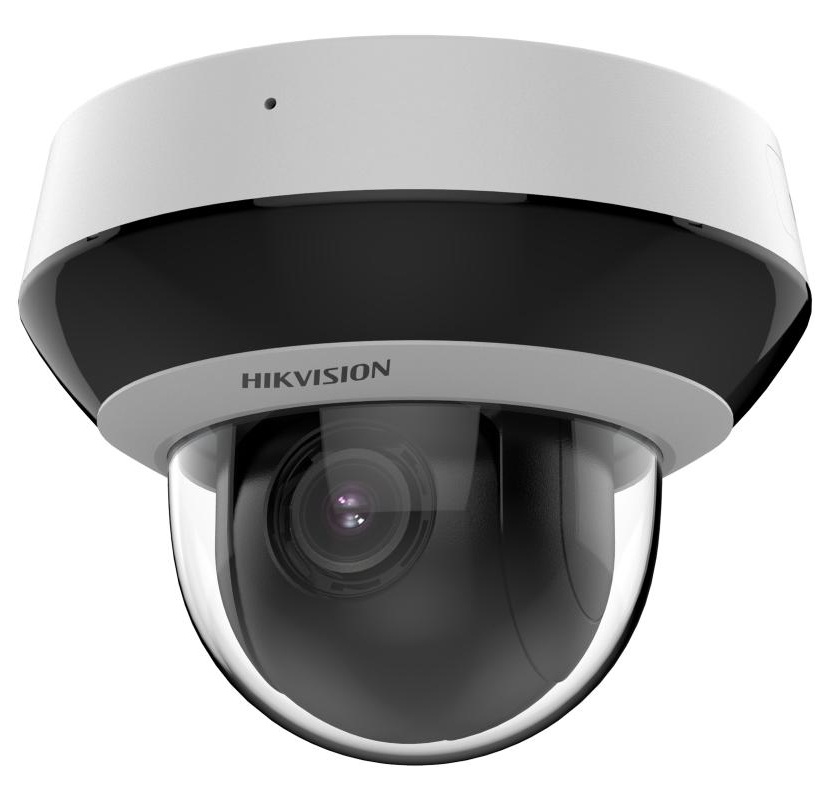

Compact outdoor PTZ coverage is where the DS-2DE2A404IWG1-E is most useful. This mini PTZ camera from Hikvision delivers 4MP resolution with a 2.8-12mm motorised varifocal lens providing 4x optical zoom, allowing operators to shift between a wide 99.4-degree view and a tighter 32.8-degree framing without changing the camera position. Featuring AcuSense human and vehicle classification, Powered-by-DarkFighter low-light performance, and 120dB WDR, it handles challenging lighting conditions at entrances, shopfronts, driveways, and small car parks. Built-in IR illumination reaches up to 20m, supporting night-time monitoring at shorter outdoor distances. With 355-degree pan and 90-degree tilt travel, up to 300 preset positions, IP66 weather resistance, and IK10 vandal resistance, the DS-2DE2A404IWG1-E is suited to compact outdoor positions where a single adjustable camera needs to cover more than one viewing angle.
Key Capabilities
Pan, Tilt and Zoom Control
With 355-degree pan, 90-degree tilt, and 4x optical zoom, the DS-2DE2A404IWG1-E can reposition its view remotely to cover driveways, entrances, yards, and loading areas from a single mounting point – reducing the number of fixed cameras needed in compact outdoor positions.
4x Optical Zoom
The motorised 2.8-12mm varifocal lens provides true optical zoom, allowing operators to close in on people, vehicles, or entry activity without the image degradation associated with digital zoom alone. At 12mm, the horizontal field of view narrows to 32.8 degrees for targeted detail.
AcuSense Human and Vehicle Classification
Deep learning-based AcuSense detection filters events by human and vehicle movement, reducing alert noise caused by animals, shadows, foliage, or general environmental motion. This makes PTZ event-triggered monitoring more practical in outdoor positions with background movement.
Powered-by-DarkFighter Low-Light Performance
DarkFighter technology improves colour image usability in low ambient light conditions, supporting more informative footage around after-hours entrances, courtyards, and paths before switching to IR mode. The camera reaches 0.005 lux colour and 0.001 lux monochrome minimum illumination.
Two-Way Audio
Built-in microphone and speaker allow real-time two-way audio communication through the camera when configured correctly. This adds a verbal response layer to remote monitoring at entrances, gates, and public-facing outdoor positions, subject to local recording and privacy requirements.
IP66 and IK10 Protection
IP66 dust and water resistance combined with IK10 impact resistance make the camera suitable for outdoor and public-facing installations exposed to weather or incidental contact. Both ratings are confirmed and relevant when mounting in exposed or accessible outdoor locations.
Best For
- Driveways and Gated Entrances: Pan and tilt movement combined with 4x optical zoom allows the camera to follow approaching vehicles, check entry activity, and reposition between approach path and gate without a fixed camera at each angle.
- Small Car Parks and Courtyards: A single DS-2DE2A404IWG1-E can sweep across a compact car park or courtyard using preset positions and patrol paths, covering more ground than a fixed camera from the same mount point.
- Retail and Commercial Shopfronts: The AcuSense human and vehicle classification makes the camera useful at shopfronts and loading areas where after-hours alerts need to filter out environmental triggers and focus on relevant outdoor movement.
- Sites Requiring Remote Audio Response: The confirmed built-in microphone and speaker make this camera appropriate for positions where an operator may need to issue a verbal warning or communicate with a visitor remotely through the camera feed.
Why Choose the DS-2DE2A404IWG1-E
Where a fixed outdoor camera provides one static view, the DS-2DE2A404IWG1-E offers pan, tilt, and 4x optical zoom from the same mounting point – allowing the installation to adapt to different monitoring needs without repositioning hardware. The 4MP sensor resolves detail at 2560 x 1440, and DarkFighter low-light performance extends useful colour imaging into low-ambient scenes before IR takes over at 20m range. AcuSense classification adds filtering that a basic motion-detection camera cannot provide, making event alerts from outdoor positions significantly more actionable. The 120dB WDR rating helps maintain exposure across high-contrast scenes such as backlit entrances and roller doors. Up to 300 preset positions support structured patrol routines across multiple viewing angles. The DS-2DE2A404IWG1-E is available through Security Wholesalers for professional surveillance installations requiring a compact outdoor PTZ with smart detection and two-way audio.
Buyer Decision Tips
Coverage Planning: Because a PTZ camera only looks in one direction at any moment, it should not replace fixed cameras at positions where continuous uninterrupted coverage is required. The DS-2DE2A404IWG1-E works best where flexible operator-controlled or preset-driven viewing is more valuable than constant wide-angle coverage. For critical entry points and corridors, pair it with fixed cameras to eliminate blind spots during PTZ movement.
IR Range and Mounting Height: The 20m IR range is suited to shorter outdoor distances such as driveways, small yards, and immediate perimeter areas. At greater distances or taller mounting heights, the IR illumination may not reach the subject adequately when the lens is zoomed in. Confirm the expected working distance and mounting position before specifying this camera for longer-range outdoor approaches.
Key Features & Technical Specifications
| Model |
DS-2DE2A404IWG1-E |
| Product Type |
Mini Outdoor AcuSense PTZ Network Camera |
| Resolution |
4MP, 2560 x 1440 |
| Image Sensor |
1/2.8″ Progressive Scan CMOS |
| Lens |
2.8-12mm motorised varifocal |
| Optical Zoom |
4x |
| Digital Zoom |
16x |
| Horizontal Field of View |
99.4° (wide) to 32.8° (telephoto) |
| Low-Light Technology |
Powered-by-DarkFighter |
| Minimum Illumination |
0.005 lux colour, 0.001 lux monochrome, 0 lux with IR |
| IR Range |
Up to 20m at 850nm |
| Wide Dynamic Range |
120dB WDR |
| Smart Detection |
AcuSense human and vehicle classification |
| Pan Range / Speed |
0° to 355°, configurable 0.1° to 50°/s, preset speed 50°/s |
| Tilt Range / Speed |
0° to 90°, configurable 0.1° to 50°/s, preset speed 50°/s |
| Preset Positions |
300 |
| Audio |
Built-in microphone and speaker, two-way audio supported |
| Video Compression |
H.265+, H.265, H.264+, H.264 |
| Local Storage |
microSD card slot, up to 512GB |
| Power |
PoE or 12VDC |
| Network Interface |
RJ45 10/100M Ethernet |
| Weather Protection |
IP66 |
| Vandal Resistance |
IK10 |
| Operating Temperature |
-20°C to 60°C |
Ideal Use Cases
Driveway and Gate Monitoring
The 355-degree pan range and 4x optical zoom allow the DS-2DE2A404IWG1-E to follow vehicle movement along a driveway approach, check gate activity, then return to a wide overview position using a saved preset – from a single camera mount.
Retail Shopfronts and Loading Areas
AcuSense human and vehicle classification helps filter after-hours alerts to relevant movement at loading doors and shopfronts, while the two-way audio allows staff or security operators to respond verbally without requiring a separate intercom.
School Courtyards and Building Entries
A compact PTZ at a school entry or courtyard can cover multiple approach angles using patrol paths and presets. IP66 and IK10 protection suit the outdoor and semi-public exposure typical of school building perimeters.
Warehouse and Industrial Yard Entries
The motorised zoom and pan-tilt movement make the camera practical at roller doors, yard gates, and vehicle movement areas where an operator may need to zoom in on a specific activity or reposition coverage without physically accessing the camera.
Small Car Parks with Patrol Monitoring
With up to 300 preset positions and configurable patrol paths, the DS-2DE2A404IWG1-E can cycle through multiple viewing angles across a small car park, providing broader coverage than a fixed camera while keeping installation to a single cabling run.
Choosing the Right Model
- Choose this model if: You need a compact outdoor PTZ with AcuSense smart detection, 4x optical zoom, two-way audio, and IP66/IK10 protection at a position where adjustable viewing is more valuable than a single fixed angle.
- Choose a different model if: You need continuous uninterrupted wide-angle coverage of a fixed zone, such as a till area or a building corner that must always be recorded without movement gaps. A fixed-lens turret or bullet camera with a wider field of view would be more appropriate for that function.
- Choose a different model if: Your site requires long-range IR beyond 20m, such as extended perimeter fence lines or deep car parks. A full-size PTZ or long-range bullet camera with a higher-power IR illuminator would suit those distances better.
- Choose a different model if: Your project does not require PTZ movement and the installation budget is a primary factor. A fixed 4MP outdoor camera with a similar AcuSense feature set would deliver static coverage at a lower unit cost from the same mounting point.
FAQs
- How far can the DS-2DE2A404IWG1-E pan and tilt?
The camera supports 355-degree pan travel and 90-degree tilt travel. Pan and tilt speed is configurable from 0.1 to 50 degrees per second, with a preset recall speed of 50 degrees per second. Up to 300 individual preset positions can be saved for automated patrol paths or operator-triggered repositioning.
- Is the 20m IR range sufficient for outdoor use?
The 20m IR range is suited to shorter outdoor distances including driveways, small yards, covered entry points, and immediate perimeter areas. For longer approaches or elevated mounting heights where the camera is zoomed in, the IR may not reach the subject with adequate intensity. Confirm the working distance and mounting height against this specification before installation.
- Does the DS-2DE2A404IWG1-E record locally without a recorder?
Yes, the camera includes a built-in microSD card slot supporting cards up to 512GB, allowing local edge recording without a separate NVR. This is useful for standalone installations or as a backup recording path alongside network recording. The microSD slot must be enabled and configured through the camera’s network interface.
- What does AcuSense detection do differently from standard motion detection?
Standard motion detection triggers on any change in pixel values, including wind-moved foliage, rain, insects, and vehicle headlight reflections. AcuSense uses deep learning to classify detected objects as human or vehicle before generating an alert. This reduces the volume of irrelevant notifications from outdoor positions where environmental motion is common, making after-hours alerting more practical.
- Does this camera support two-way audio out of the box?
Yes. The DS-2DE2A404IWG1-E includes a confirmed built-in microphone and built-in speaker, allowing real-time two-way voice communication when configured through a compatible NVR, VMS, or the Hik-Connect app. Audio recording and communication through surveillance cameras must comply with applicable Australian state and territory privacy legislation.
- Can the DS-2DE2A404IWG1-E be powered by PoE alone?
Yes, the camera supports Power over Ethernet, allowing a single Cat5e or Cat6 cable to supply both power and network connectivity. This simplifies installation by eliminating a local 12VDC power supply at the camera location. Confirm that the PoE switch or injector used meets the power budget required for this model before deployment.
- Where can I purchase the DS-2DE2A404IWG1-E with technical support?
The DS-2DE2A404IWG1-E is part of the Security Wholesalers range, supplied for professional surveillance installers and integrators. Security Wholesalers offers access to Hikvision technical documentation including the product datasheet, which covers full specification details, wiring diagrams, and installation notes for this model.
