Product Overview

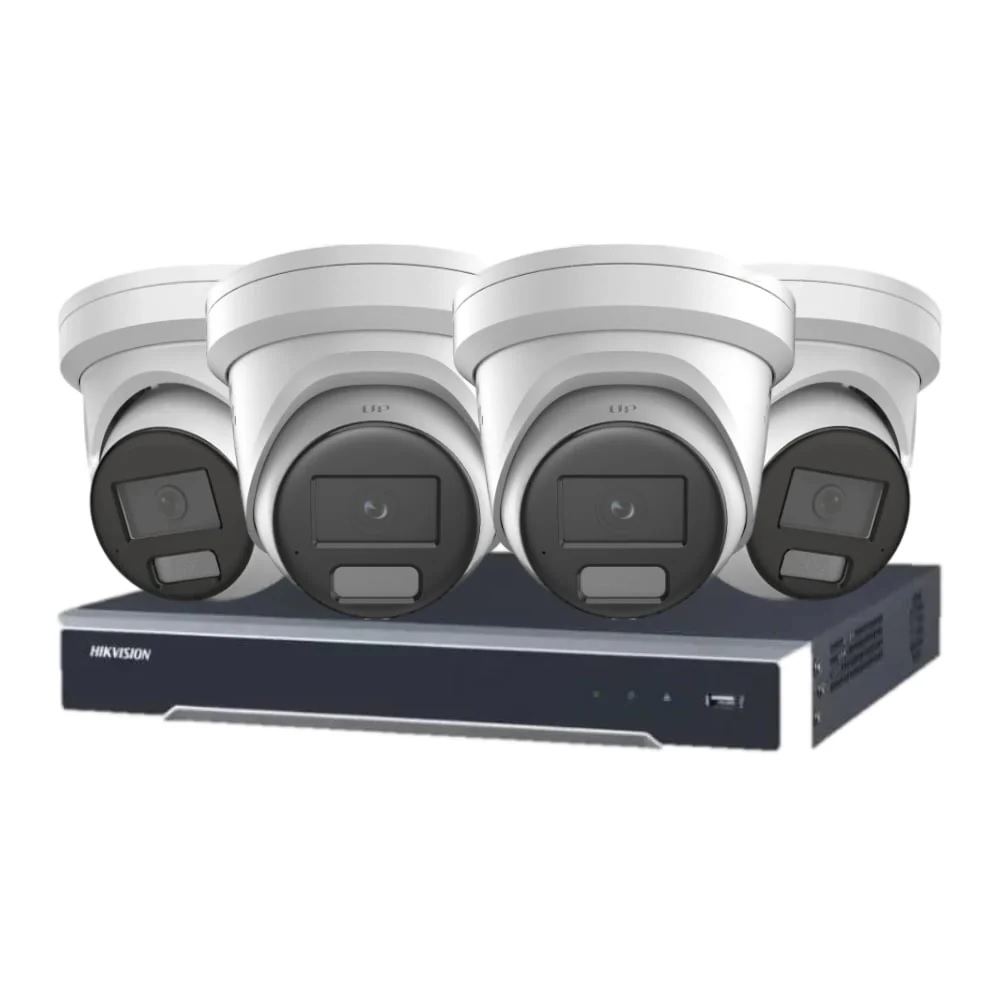

Combining active deterrence with full-colour night imaging across 4 mounting points, this Hikvision 6MP ColorVu kit pairs four DS-2CD2367G2H-LISU-SL turret cameras with a DS-7604NI-I1/4P 4-channel PoE NVR for a complete plug-and-play installation. Each camera carries a built-in strobe light, speaker, and microphone, enabling two-way audio and real-time warning responses without additional hardware. Smart Hybrid Light technology delivers vivid colour footage after dark using either white light or IR, while AcuSense deep learning filters alerts to confirmed human and vehicle movement. With 130 dB WDR, IP67 weatherproofing, and a wide 2.8mm fixed lens covering approximately 108 degrees, the cameras suit eave, soffit, and wall positions at driveways, shopfronts, and entry points. The NVR supports 4K HDMI and VGA output and connects all 4 cameras over a single Cat6 run per channel. No HDD is included.
Key Capabilities
Active Deterrence with Strobe and Speaker
Each DS-2CD2367G2H-LISU-SL camera includes a built-in strobe light and audible siren that can be triggered on motion detection. This allows the system to respond to intrusions at driveways, entries, or yard perimeters without requiring a separate alarm panel.
Two-Way Audio on Every Camera
With both a built-in microphone and speaker confirmed in each camera, operators can speak directly to people on site through the live feed. This is particularly useful at shopfronts, gates, and delivery areas where verbal communication is needed without a dedicated intercom.
Smart Hybrid Light ColorVu Imaging
The camera switches between IR and white light based on scene conditions, producing full-colour footage at night up to 30m. A minimum illumination of 0.0005 Lux ensures detail is retained even in near-total darkness, making colour identification of clothing and vehicles practical rather than theoretical.
AcuSense Human and Vehicle Detection
Deep learning algorithms on each camera classify moving objects as human or vehicle, sending targeted alerts rather than reacting to foliage, insects, or passing headlights. This keeps notifications meaningful for small business owners and home users monitoring their own footage remotely.
PoE Plug-and-Play via 4-Channel NVR
The DS-7604NI-I1/4P powers and connects all 4 cameras over a single Cat6 cable per channel, eliminating separate power supplies at each mounting position. Remote access via Hik-Connect and 4K HDMI output means setup time and ongoing monitoring are both kept practical for small site installations.
130 dB WDR and IP67 Weather Protection
Wide dynamic range handles scenes with bright sunlight and deep shadow in the same frame, such as a driveway entry or shopfront glass. IP67-rated housings on each turret camera resist dust ingress and sustained rain exposure, making outdoor eave or wall mounting appropriate across Australian conditions.
Best For
- Small Business Entries and Shopfronts: Two-way audio and strobe deterrence allow staff to interact with or warn visitors at doors and windows without leaving a counter or back office.
- Residential Driveways and Yard Perimeters: The 2.8mm wide-angle lens and IP67 turret housing suit eave and soffit mounting at corners, gates, and carport entries where full-colour night coverage is needed.
- Sites Where False Alert Fatigue Is a Problem: AcuSense human and vehicle classification on all 4 cameras means push notifications only fire on relevant detections, reducing unnecessary app alerts overnight.
- First-Time IP System Installations: The PoE NVR eliminates the need for separate power injectors or baluns, letting an installer or confident DIY buyer run a single Cat6 cable from each camera position back to one central recorder.
Why Choose the Hikvision 6MP 4CH ColorVu CCTV Kit
The DS-2CD2367G2H-LISU-SL cameras in this kit go beyond standard ColorVu turrets by adding an integrated strobe, siren, and two-way audio on every channel. A passive colour camera records what happens; this system can interrupt it. The 6MP sensor at 3200 x 1800 resolution provides meaningful detail at the DORI recognise distance of 16m and observe distance of 32m, which matters when reviewing footage of faces or number plates near a vehicle. The DS-7604NI-I1/4P NVR handles up to 4 channels at full 6MP throughput with H.265+ compression, keeping storage requirements lower than older H.264 systems. This kit is available through Security Wholesalers and is supplied without an HDD, giving buyers the flexibility to select storage capacity based on recording duration needs and site retention requirements. Note: buyers placing an order may receive the current production model DS-2CD2367G3-LIS2UY/SL as stock is updated.
Package Inclusions
Buyer Decision Tips
HDD Sizing: The DS-7604NI-I1/4P supports a single internal HDD bay. At 6MP with H.265+ compression recording continuously across 4 cameras, a 4TB surveillance-grade drive typically provides around 14 to 20 days of retention depending on scene complexity and frame rate settings. If your site requires 30 days or more, consider an 8TB drive at the time of purchase rather than replacing storage later.
Strobe and Audio Trigger Configuration: The active deterrence features on the DS-2CD2367G2H-LISU-SL cameras are configurable through the NVR interface or Hik-Connect. By default they may not be active on all motion events. Plan to configure detection zones and response actions during commissioning to ensure the strobe and speaker trigger only on AcuSense-confirmed human or vehicle detections, not general motion, to avoid nuisance activations at busy sites.
Key Features & Technical Specifications
| Camera Model |
DS-2CD2367G2H-LISU-SL |
| NVR Model |
DS-7604NI-I1/4P |
| Resolution |
6MP (3200 x 1800) |
| Image Sensor |
1/2.7″ Progressive Scan CMOS |
| Lens |
2.8mm fixed, approx. 108 degree horizontal FOV |
| Minimum Illumination |
0.0005 Lux @ F1.0, AGC ON |
| Night Vision Range |
Up to 30m (IR and white light) |
| Smart Hybrid Light |
Automatic switching between IR and white light based on scene conditions |
| WDR |
130 dB |
| Active Deterrence |
Built-in strobe light and audible siren |
| Audio |
Built-in microphone and speaker (two-way audio) |
| Video Compression |
H.265+, H.265, H.264+, H.264 |
| Ingress Protection |
IP67 |
| DORI Distances |
Detect: 80m / Observe: 32m / Recognise: 16m / Identify: 8m |
| Shutter Speed |
1/100,000s to 1s |
| NVR Channels |
4-channel PoE |
| NVR Video Output |
4K HDMI and VGA |
| Storage |
No HDD included – single internal bay |
Ideal Use Cases
Retail Shopfronts and Car Parks
The 130 dB WDR handles the high-contrast lighting typical of glass shopfronts and open car parks during daylight, while full-colour night imaging from the Smart Hybrid Light maintains colour detail after trading hours when most incidents occur.
Residential Properties with Gated Driveways
IP67-rated turret cameras mounted under eaves or on gate posts provide AcuSense-filtered alerts when a person or vehicle enters the property after hours. The strobe and speaker can be configured to trigger automatically, removing the need for a monitored alarm service.
Warehouses and Stockrooms with After-Hours Risk
Coverage across 4 internal or perimeter positions with two-way audio means a remote operator can challenge someone entering a restricted area in real time through the camera, supported by the strobe as a visible warning indicator.
Childcare Centres and Schools
The wide 108-degree field of view from the 2.8mm lens covers play areas and corridors without blind spots at typical ceiling heights. AcuSense filtering ensures that only human movement generates alerts, keeping notifications relevant during unoccupied periods.
Small Office and Medical Practice Perimeters
A 4-channel PoE kit is sized appropriately for a standard small commercial tenancy where 4 camera positions cover front entry, rear exit, car park, and a reception or internal corridor. The single NVR with 4K HDMI output connects directly to a monitor at a reception desk for staff monitoring.
Choosing the Right Model
- Choose this kit if: You need active deterrence with strobe and audio response built into every camera on a 4-channel PoE system, and your site has 4 or fewer positions requiring full-colour night coverage at up to 30m range.
- Choose a different kit if: Your site has more than 4 camera positions – this NVR has no expansion capacity beyond 4 channels, so a higher-channel recorder with additional cameras would be required. Alternatively, if your mounting positions are exposed to direct impact risk such as a public car park column or industrial loading dock, a bullet-style housing with more robust physical protection may be more appropriate than a turret form factor.
FAQs
- Does this kit include a hard drive?
No. The DS-7604NI-I1/4P NVR is supplied without a hard drive. The NVR has a single internal HDD bay supporting surveillance-grade drives. You will need to select and add a compatible HDD separately before the system can begin recording to local storage. WD Purple and Seagate Skyhawk drives are the recommended options for continuous recording use.
- Do the cameras actually support two-way audio or do I need an external microphone?
Two-way audio is supported out of the box. Each DS-2CD2367G2H-LISU-SL camera has both a built-in microphone and a built-in speaker confirmed in the hardware. No external microphone or speaker is required. You can listen to audio at each camera position and speak back through the NVR interface or via the Hik-Connect mobile app.
- How does the strobe and siren trigger, and can I control when it activates?
The strobe light and audible siren on each camera are triggered through the camera’s event detection settings, which are configured via the NVR menu or directly through the camera’s web interface. You can set them to activate on AcuSense-confirmed human or vehicle detections, on schedule, or manually via Hik-Connect. Configuring detection zones limits activations to specific areas within the frame, reducing unwanted triggers from public footpaths or adjacent traffic.
- What is the night vision range and will I get colour footage in complete darkness?
The cameras provide up to 30m of illumination using either IR or white light depending on the Smart Hybrid Light mode selected. In white light mode, full-colour footage is produced at night up to 30m. The minimum illumination rating of 0.0005 Lux at F1.0 means the sensor retains usable detail in near-total darkness before the supplemental lighting takes effect. In standard IR mode, footage is monochrome but extends to the same 30m range.
- Can I mount these cameras outdoors on an exposed eave or wall?
Yes. The IP67 rating on the DS-2CD2367G2H-LISU-SL turret cameras confirms full dust ingress protection and resistance to sustained water exposure from any direction. This makes them suitable for eave, soffit, and direct wall mounting in outdoor Australian conditions including rain and high-humidity environments. Optional junction boxes and wall brackets are available separately to assist with cable management and angled mounting.
- Is this kit available at Security Wholesalers and will I receive the model listed?
This kit is available at Security Wholesalers. Due to product lifecycle updates, buyers placing an order may receive the current production model DS-2CD2367G3-LIS2UY/SL in place of the DS-2CD2367G2H-LISU-SL as stock transitions to the newer generation. The replacement model shares the same active deterrence, ColorVu, and AcuSense feature set.
- What cabling do I need to connect the cameras to the NVR?
Each camera connects to the DS-7604NI-I1/4P using a single Cat6 cable run, which carries both data and power over PoE. No separate power cabling is required at the camera end. Standard PoE cable runs up to 100m per channel are supported. Pre-made Cat6 patch leads in various lengths are available separately if you need to connect cameras over shorter fixed distances.
Cabling Considerations
- Cable Type: Cat6 UTP or FTP is recommended for all camera runs to the DS-7604NI-I1/4P NVR. Cat5e is the minimum acceptable standard but Cat6 provides better headroom for 6MP data throughput and PoE stability over longer runs.
- Maximum Cable Run: Up to 100m per channel from NVR PoE port to camera. Runs exceeding 80m should be tested prior to finalising installation to confirm stable PoE delivery.
- PoE Considerations: The DS-7604NI-I1/4P provides onboard PoE across all 4 ports. No external PoE switch or power injector is required. Ensure total PoE budget across all connected cameras does not exceed the NVR’s specified PoE power output.
- Wiring Tips: Run cables through conduit or wall cavities before terminating connectors where possible, particularly for outdoor runs exposed to UV or moisture. Terminate all connectors with a Cat6-rated RJ45 plug and test continuity before mounting cameras permanently. Pre-made Cat6 patch leads are suitable for short internal runs between patch panels and the NVR.
Product Video Samples
Additional Information
Product SKU: KIT-4×DS-2CD2367G2H-LISU-SL + DS-7604NI-I1-4P
