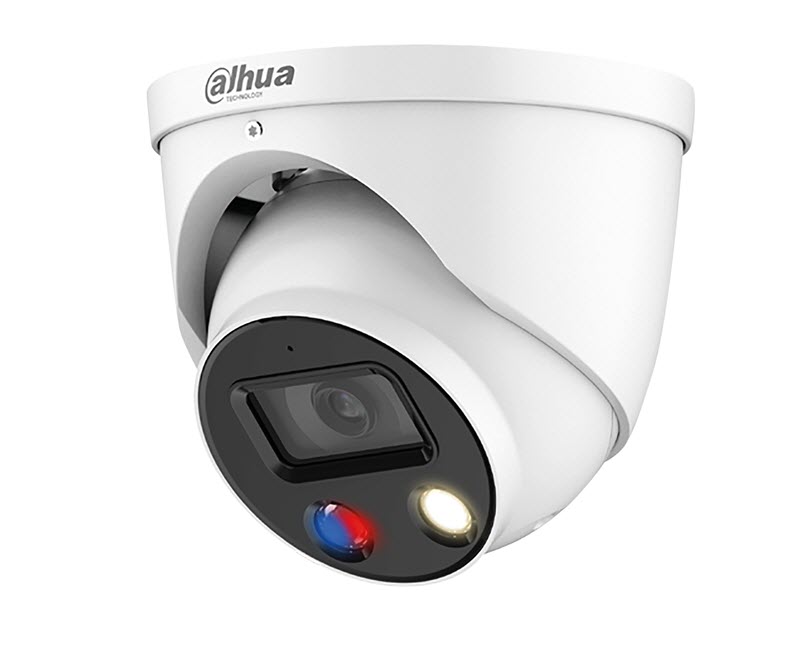

Dahua TIOC 1.0 DH-IPC-HDW3549HP-AS-PV 5MP AI Active Deterrence Full color Starlight IP Turret Fixed 2.8mm, Built-in Mic & Speaker NO INFRARED

Name: Dahua TIOC 1.0 DH-IPC-HDW3549HP-AS-PV 5MP AI Active Deterrence Full color Starlight IP Turret Fixed 2.8mm, Built-in Mic &amp; Speaker NO INFRARED
Brand: Dahua
SKU: DH-IPC-HDW3549H-AS-PV
Price: 275.00 AUD
Availability: InStock

5 Megapixel cameras | Built-in Mic & Speaker | 2.8mm fixed lens | Smart Motion Detection Plus

Dahua network camera supports intelligent functions, such as perimeter protection and smart motion detection. It has full-color technology, which provides a better image effect in the condition of low illuminance. LIGHT STAYS ON ALL NIGHT (TIOC 1.0). NO INFRARED

Product Features:

5MP, 1/2.7” CMOS image sensor, low illuminance, high image definition
H.265 codec, high compression rate, low bit rate
Built-in warm illuminator, and the max. illumination distance: 30 m
ROI, SMART H.264+/H.265+, flexible coding, applicable to various bandwidth and storage environments
Intelligent detection: Intrusion, tripwire
Supports one-tap disarming. You can disarm the events of alarm output, sending email, audio, and light in the configured period
12V DC/PoE power supply
IP67 protection
SMD Plus
Red and blue flashlight alarm

DHIPCHDW3549HPASPV datasheet

Dahua Eyeball Network Camera_QSG_V1.0.0

$275.00 inc GST +3 Year Warranty & Support

Description
Specifications

Product Features:

> 5MP, 1/2.7” CMOS image sensor, low illuminance, high image definition

> Outputs max. 5MP (2592 × 1944) @20 fps, and supports 4MP (2688 × 1520) @25/30 fps

> H.265 codec, high compression rate, low bit rate

> Built-in warm illuminator, and the max. illumination distance: 30 m

> ROI, SMART H.264+/H.265+, flexible coding, applicable to various bandwidth and storage environments

> Rotation mode, WDR, 3D DNR, HLC, BLC, digital watermarking, applicable to various monitoring scenes

> Intelligent detection: Intrusion, tripwire (support the classification and accurate detection of vehicle and human)

> Abnormality detection: Motion detection, video tampering, scene changing, audio detection, no SD card, SD card full, SD card error, network disconnection, IP conflict, illegal access, and voltage detection.

> Supports sound and light alarm linkage. When an alarm is triggered, the camera links sound alarm and light flashing.

> Supports one-tap disarming. You can disarm the events of alarm output, sending email, audio, and light in the configured period.

> Alarm: 1 in, 1 out; audio: 1 in, 1 out; supports max. 256 G Micro SD card, built-in Mic and spearker

> 12V DC/PoE power supply

> IP67 protection

> SMD Plus

> Red and blue flashlight alarm

SKU: DH-IPC-HDW3549H-AS-PV Categories: 5MP AI Active & Starlight Eyeballs, CCTV Surveillance, Dahua, Dahua CCTV Cameras and Kits & Packages, Dahua Eyeball Cameras, Dahua Full Colour Cameras, Dahua IP Cameras, Dahua Pro AI Cameras & Recorders, Dahua TIOC 1.0, Dahua TIOC Security Cameras Suppliers, Dahua WizSense Cameras Tag: Hikvision

Specifications

Camera

Image Sensor

1/2.7”5Megapixel progressive CMOS

Max. Resolution

2592 (H) × 1944 (V)

ROM

128 MB

RAM

512 MB

Scanning System

Progressive

Electronic Shutter Speed

Auto/Manual 1/3 s–1/100,000 s

Min. Illumination

0.003 Lux @ F1.0

S/N Ratio

> 56 dB

Illumination Distance

30 m (98.4 ft)

Illuminator On/Off Control

Auto/Manual

Illuminator Number

1 (Warm light)

Pan/Tilt/Rotation Range

Pan: 0°–360°
Tilt: 0°–78°
Rotation: 0°–360°

Lens

Lens Type

Fixed-focal

Mount Type

M12

Focal Length

2.8 mm; 3.6 mm

Max. Aperture

F1.0

Field of View

2.8 mm: Horizontal 103° × Vertical 53° × Diagonal 122°
3.6 mm: Horizontal 81° × Vertical 43° × Diagonal 95°

Iris Type

Fixed

Close Focus Distance

2.8 mm: 1.2 m (3.9 ft)
3.6 mm: 2.1 m (6.9 ft)

DORI Distance

Lens

Detect

Observe

Recognize

Identify

2.8 mm

67.4 m

(221.1 ft)

27 m

(88.6 ft)

13.5 m

(44.3 ft)

6.7 m

(22.0 ft)

3.6 mm

80.0 m

(262.5 ft)

32.0 m

(105.0 ft)

16.0 m

(52.5 ft)

8.0 m

(26.2 ft)

Professional, intelligent

IVS (Perimeter Protection)

Tripwire; intrusion (support the classification and accurate detection of vehicle and human)

Intelligent Search

Work together with Smart NVR to perform refine intelligent search, event extraction and merging to event videos.

Video

Video Compression

H.265; H.264; H.264H; H.264B; MJPEG (only supported by the sub stream)

Smart Codec

Smart H.265+/Smart H.264+

Video Frame Rate

Main stream: 2592 × 1944 @1-20 fps
2688 × 1520 @1-25/30 fps
Sub stream: 704 × 576 @1-25 fps/704 × 480 @ 1-20fps
Third stream: 1920 × 1080 @1-25/30 fps

Stream Capability

3 streams

Resolution

5M (2592 × 1944); 4M (2688 × 1520); 4M (2560 × 1440); 3M (2304 × 1296); 1080p (1920 × 1080); 1.3M (1280 × 960); 720p (1280 × 720); D1 (704 × 576/704 × 480); VGA (640 × 480); CIF (354 × 288/354 × 240)

Bit Rate Control

CBR/VBR

Video Bit Rate

H.264: 32 kbps–8192 kbps
H.265: 12 kbps–8192 kbps

Day/Night

Color/B/W

BLC

Yes

HLC

Yes

WDR

120 dB

Scene Self-adaptation (SSA)

Yes

White Balance

Auto/natural/street lamp/outdoor/manual/regional custom

Gain Control

Auto/Manual

Noise Reduction

3D NR

Motion Detection

OFF/ON (4 areas)

Region of Interest (RoI)

Yes (4 areas)

Smart Illumination

Yes

Image Rotation

0°/90°/180°/270° (Support with 1080p resolution and lower)

Mirror

Yes

Privacy Masking

4 areas

Audio

Built-in MIC

Yes

Audio Compression

PCM; G.711a; G.711Mu; G.726; G.723

Alarm

Alarm Event

No SD card; SD card full; SD card error; network disconnection; IP conflict; illegal access; motion detection; video tampering; tripwire; intrusion; scene changing; audio detection; voltage detection; external alarm; SMD; safety exception; light alarm; sound alarm (11 built-in sounds and custom voices importing)

Network

RJ-45 (10/100 Base-T)

SDK and API

Yes

Protocol

IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; SAMBA; PPPoE; SNMP

Cyber Security

Video encryption; firmware encryption; configuration encryption; Digest; WSSE; account lockout; security logs; IP/MAC filtering; generation and importing of X.509 certification; syslog; HTTPS; 802.1x; trusted boot; trusted execution; trusted upgrade

Interoperability

ONVIF (Profile S/Profile G/Profile T); CGI; Milestone; Genetec; P2P

User/Host

20 (Total bandwidth: 80 M)

Storage

FTP; SFTP; Micro SD card (support max. 256 G);NAS

Browser

IE: IE8 and later
Chrome
Firefox
Safari: Safari 12 and later

Management Software

Smart PSS; DSS; DMSS

Mobile Phone

IOS; Android

Certification

CE-LVD: EN62368-1
CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU
FCC: 47 CFR FCC Part 15, Subpart B

Port

Audio Input

1 channel (RCA port)

Audio Output

1 channel (RCA port)

Alarm Input

1 channel in: 5mA 3V–5V DC

Alarm Output

1 channel out: 300mA 12V DC

Power

Power Supply

12V DC/PoE (802.3af)

Power Consumption

Basic power consumption: 2.5W (12V DC); 3.0W (PoE)
Max. power consumption (WDR + H.265 + red and blue lights flashing alternately + warm light + sound alarm): 7.3W (12V DC); 8.0W (PoE)

Environment

Operating Conditions

–40°C to +60°C (–40°F to +140°F)/Less than 95% RH

Strorage Conditions

–40°C to +60°C (–40°F to +140°F)

Protection Grade

IP67

Structure

Casing

Metal

Dimensions

Φ122.0 mm × 110.9 mm (Φ4.8″ × 4.4″)

Net Weight

754 g (1.7 lb)

Gross Weight

915 g (2.0 lb)
