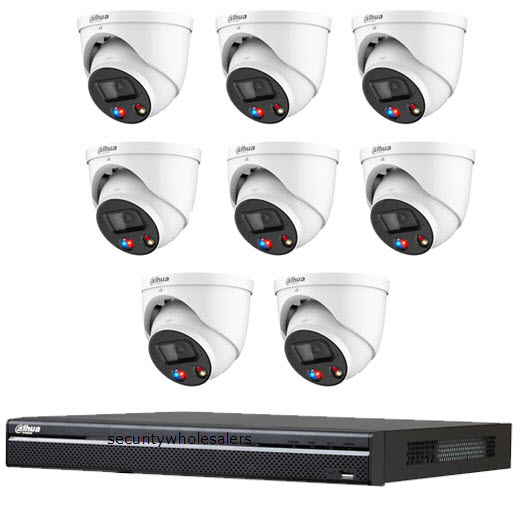

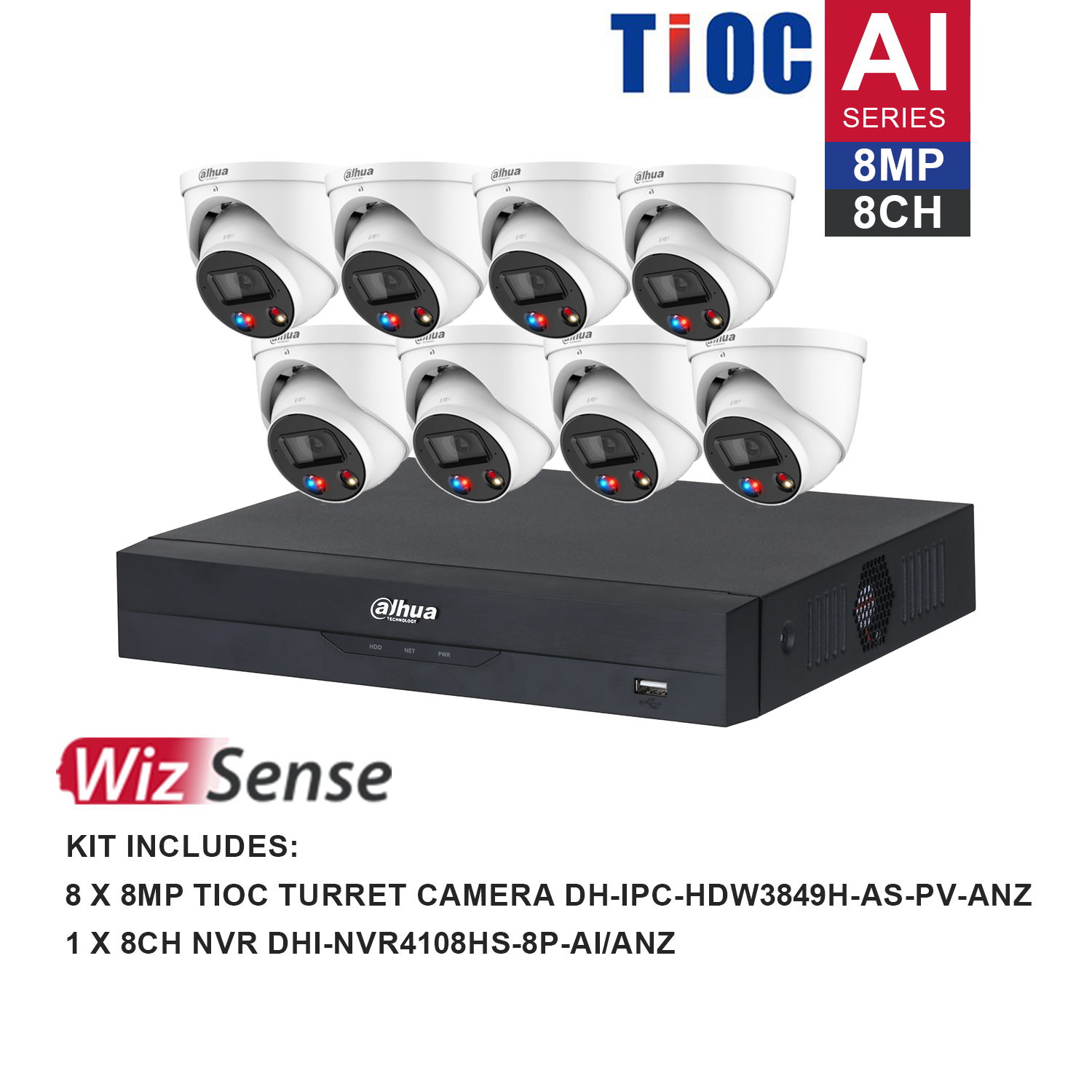

This 8-camera Dahua TIOC 3.0 turret kit delivers powerful AI-driven surveillance with full-colour starlight imaging and active deterrence built into every camera. Each 8MP turret features a built-in microphone, speaker, and red/blue strobe lights to detect and deter intruders in real time. Smart Motion Detection 4.0 filters out false alarms by accurately classifying human and vehicle targets, making it ideal for both residential and commercial applications. The kit pairs seamlessly with the 8-channel WizSense NVR for intelligent recording and remote mobile access.
Combining active deterrence with full-colour starlight imaging across 8 cameras, this Dahua TiOC 3.0 kit is built for properties that need more than passive recording. Each DH-IPC-HDW3849H-AS-PV-ANZ-S2 turret camera delivers 8MP resolution with dual illuminators that switch intelligently between IR and warm white light depending on motion activity. When a human or vehicle target is detected, red and blue strobe lights and a built-in 110dB speaker activate immediately to discourage intrusion before any incident escalates. Smart Motion Detection 4.0 keeps the false alarm rate under 2% by classifying only genuine human and vehicle movements. The 8-channel WizSense NVR ties all 8 cameras together over built-in PoE ports with centralised playback, custom perimeter zones, and remote mobile access. This kit ships without a hard drive installed, so storage capacity can be matched to your retention requirements at purchase.
Key Capabilities
Full Colour Starlight Technology
Dual IR and warm white illuminators work together to produce vivid colour footage around the clock. In Smart mode, the camera operates on IR only during quiet periods and switches to warm white light the moment a target is detected, delivering useful colour detail in near-total darkness without unnecessary light pollution.
Active Deterrence: Strobe and Audio Alert
Red and blue flashing strobes are visible in low visibility conditions including fog and rain. The 110dB speaker can output a wailing siren, pre-recorded voice message, or customisable audio file the instant a detection event is triggered, responding to threats in real time rather than simply logging them.
SMD 4.0 AI Motion Filtering
Smart Motion Detection 4.0 distinguishes humans and vehicles from animals, foliage, headlights, and insects, keeping the false alarm rate under 2%. This means push notifications and alarm events are almost exclusively tied to genuine intrusion activity, reducing alert fatigue significantly for homeowners and monitoring operators alike.
Two-Way Audio via Built-in Mic and Speaker
Every camera in this kit includes both a built-in microphone and a built-in speaker, enabling real-time two-way communication through the NVR interface or Dahua mobile app. Operators can speak directly to individuals on-site, verify alarm events remotely, or issue verbal warnings to trespassers without requiring a separate intercom device.
Custom Perimeter Protection Zones
Tripwire and intrusion detection zones can be drawn directly through the WizSense NVR interface for each camera independently. Defining specific boundaries such as a driveway entry or rear gate means the system triggers classified alerts only when humans or vehicles cross those boundaries, not for general scene activity.
8-Channel WizSense NVR with Built-in PoE
The DHI-NVR4108HS-8P-AI/ANZ NVR supports up to 16MP recording and provides 8 integrated PoE ports, powering all cameras from a single device without separate injectors or switches. Centralised playback, intelligent event search, and remote access via the Dahua mobile app are all managed from one interface.
Best For
Residential Properties with Multiple Exposure Points: Homes on larger blocks or corner allotments can cover all entries, side gates, backyards, and garages with 8 cameras providing full-colour night coverage and active deterrence strobes.
Small to Medium Commercial Sites: Retail stores, small offices, and showrooms requiring AI-filtered after-hours alerts, configurable perimeter zones, and remote monitoring across up to 8 camera positions.
Construction and Industrial Yards: Sites where after-hours theft and vandalism are ongoing risks benefit from visible strobe deterrence and a loud speaker alarm that activates on detection rather than simply capturing footage of an incident in progress.
Car Parks and Driveways: Vehicle classification via SMD 4.0 combined with tripwire zone alerts enables accurate tracking of after-hours vehicle access, with strobe and audio responses triggering automatically on crossing a defined boundary.
Sites Requiring Remote Alarm Verification: Properties where operators need to confirm intrusion events via two-way audio before escalating to security patrols or police, avoiding unnecessary call-outs and reducing response costs.
Why Choose the Dahua 8 x 8MP TiOC 3.0 SMD 4.0 Active Deterrence Turret Kit
Standard IP camera kits document what happens. This kit is built to intervene before it happens. The DH-IPC-HDW3849H-AS-PV-ANZ-S2 cameras bring together 8MP full-colour imaging, red and blue deterrence strobes, a 110dB speaker, and AI-powered SMD 4.0 filtering into a single turret housing at each camera position. Where basic kits generate constant notifications from passing vehicles and animals, SMD 4.0 keeps genuine alert events to human and vehicle classifications only, with a false alarm rate under 2%. The included DHI-NVR4108HS-8P-AI/ANZ WizSense NVR consolidates all 8 cameras on built-in PoE ports and supports custom perimeter protection zones, intelligent event search, and remote app access from anywhere. With 8 cameras each covering up to 30 metres at night via dual illuminators, coverage across a full property perimeter is achievable without gap positions. This kit is available through Security Wholesalers and ships ready to install once a compatible surveillance hard drive is added.
NO HDD Installed – a compatible surveillance-rated hard drive must be purchased separately
Buyer Decision Tips
Buyer Tip: This kit does not include a hard drive. For 8 cameras recording continuously at 8MP, a 4TB surveillance HDD will store approximately 7 to 10 days of footage depending on motion detection settings and compression. If your site requires longer retention for insurance, compliance, or incident review purposes, a 6TB or 8TB surveillance-rated drive (WD Purple or Seagate Skyhawk) is recommended. Compatible options are available to add directly on this product page.
Buyer Tip: Each camera is fitted with a 2.8mm fixed lens, which provides a wide field of view well suited to close-range coverage such as doorways, driveways, and open areas up to approximately 10 to 15 metres. For positions that require monitoring longer distances, such as an extended fence line or deep car park, a narrower fixed lens or dedicated long-range camera would be more appropriate for those specific mounting points. Consider your longest required sightline before finalising camera placement.
Key Features & Technical Specifications
Camera Model
DH-IPC-HDW3849H-AS-PV-ANZ-S2
NVR Model
DHI-NVR4108HS-8P-AI/ANZ WizSense
Number of Cameras in Kit
8
Camera Resolution
8MP
Camera Type
Turret (Eyeball)
TiOC Version
TiOC 3.0 (TIOC Advanced 2.0 with SMD 4.0)
Lens
2.8mm fixed
Illumination
Dual – IR and warm white LED, up to 30m range
Smart Illumination Modes
Smart (default – switches to white light on detection), IR only, White light only
Full Colour Night Vision
Yes – Full Colour Starlight technology
Active Deterrence
Red and blue strobe lights + built-in speaker (up to 110dB); wailing siren, recorded voice, customisable audio
Built-in Microphone
Yes
Two-Way Audio
Yes (IPC supported)
AI Motion Detection
SMD 4.0 – human and vehicle classification; false alarm rate under 2%
Perimeter Protection
Tripwire and intrusion detection with custom zones configured via NVR
NVR Channels
8 channels
NVR PoE Ports
8 x PoE ports (built-in)
Maximum NVR Recording Resolution
Up to 16MP
Remote Access
Yes – via Dahua mobile app
Hard Drive
Not included – must be purchased separately
Ideal Use Cases
Large Residential Properties
8 cameras with full-colour 30m illumination and active deterrence strobes provide complete perimeter coverage for homes on large blocks, covering front entry, side access gates, backyard, and garage from a single NVR with all cameras on built-in PoE.
Retail Stores and Shopfronts
Position cameras at entry and exit points, stockrooms, and aisles. SMD 4.0 ensures after-hours push notifications are triggered only by human movement, helping store owners and monitoring services respond to genuine events without alert overload from passing traffic or insects.
Construction and Industrial Sites
After-hours theft and vandalism are a consistent risk on construction sites. The visible strobe lights and 110dB speaker alarm activate on human detection, providing an immediate deterrent response at locations where equipment and materials are left unattended overnight.
Car Parks and Access Driveways
Vehicle classification through SMD 4.0 and configurable tripwire zones allow accurate detection of after-hours vehicle access across defined entry points. Strobe and audio deterrence activates automatically the moment an unauthorised vehicle crosses a boundary set in the NVR.
Warehouses and Storage Facilities
Distribute 8 cameras across loading docks, roller doors, and internal storage zones. Perimeter protection can be scheduled to activate only during out-of-hours windows, avoiding nuisance alerts during business operations while maintaining full after-hours intrusion detection.
Childcare Centres and Schools
Full perimeter coverage with two-way audio capability at each camera position allows staff to communicate with individuals at entry points directly. After-hours intrusion detection with real-time mobile push notifications supports duty of care obligations for unoccupied premises overnight.
Choosing the Right Model
Choose this model if: You need a complete ready-to-install 8-camera system with active deterrence strobes and speaker, full-colour night vision, two-way audio, SMD 4.0 AI filtering, and an 8-channel PoE NVR all pre-matched from the same manufacturer.
Choose a different model if: Your site requires coverage at only 4 or fewer positions, or active deterrence features such as strobe lights and speaker alarms are not a priority. In that scenario, a standard WizSense turret kit without TiOC would cover the same number of channels at a lower cost per camera.
FAQs
Does this kit include a hard drive? No. The NVR is supplied without any HDD installed. You will need to add a compatible surveillance-rated hard drive at the time of purchase. WD Purple and Seagate Skyhawk drives in 2TB, 3TB, 4TB, 6TB, and 8TB capacities can be selected directly on this product page to suit your required footage retention period.
What does TiOC 3.0 actually mean in practice? TiOC stands for Three-in-One Camera, combining full-colour 24/7 monitoring, AI-driven motion detection, and active deterrence hardware into a single turret housing. Where a standard camera passively records footage, a TiOC camera responds to a confirmed human or vehicle detection by activating strobe lights and a speaker alarm at that moment, rather than after an incident has already concluded.
How does SMD 4.0 keep false alarm rates low? Smart Motion Detection 4.0 uses on-camera AI processing to classify detected objects as human, vehicle, or non-target. Movements caused by animals, insects, blowing vegetation, and passing headlights are filtered out before any alarm event is generated. The result is a false alarm rate under 2% for target classifications, meaning the notifications you receive correspond almost exclusively to genuine intrusion activity.
Can I speak through the camera to someone on my property? Yes. Each camera includes both a built-in microphone and a built-in speaker, which enables real-time two-way audio communication through the Dahua mobile app or the NVR. You can listen to what is happening at the camera location and speak back immediately, making it practical for verifying alarm events remotely or issuing a verbal warning to anyone on site.
How far can each camera see at night? Each DH-IPC-HDW3849H-AS-PV-ANZ-S2 camera is fitted with dual IR and warm white LED illuminators rated to 30 metres. In Smart Illumination mode, the camera runs on IR only during quiet periods and switches to warm white light when a target is detected, producing full-colour night footage at that range. IR-only and white-light-only modes can also be configured per camera through the NVR.
Does the NVR support remote viewing on a smartphone? Yes. The DHI-NVR4108HS-8P-AI/ANZ WizSense NVR supports remote access via the Dahua mobile app. From the app you can view live footage from all 8 cameras, review recorded events, receive push notifications for classified motion alerts, and manage deterrence responses from any location with an internet connection.
Can I restrict which areas each camera monitors for alerts? Yes. The WizSense NVR allows custom perimeter protection zones to be configured for each camera independently. You can draw virtual tripwire lines and intrusion detection regions covering specific areas such as a driveway, gate entry, or rear yard boundary. Only movements crossing those defined zones by a human or vehicle target will trigger a classified alarm event.
Where can I buy this kit and is Australian support available? This kit is part of the Security Wholesalers range, supplied with local Australian warranty and technical support. The kit is sold without a hard drive so you can select the storage capacity that fits your recording retention requirements at the time of purchase. Compatible HDD options are listed directly on the product page.
Cabling Considerations
Cable Type: Cat6 Ethernet cable is recommended for all camera runs to ensure reliable PoE power delivery and full data throughput at 8MP resolution. Cat5e is the minimum acceptable standard, but Cat6 is preferred for any new installation to allow for future upgrades.
Maximum Cable Run: Each camera must be within 100 metres of the NVR PoE port via a single continuous cable run. Runs exceeding this distance without a PoE extender or intermediate switch will result in insufficient power delivery and potential signal instability.
PoE Considerations: All 8 cameras receive power directly from the NVR’s 8 built-in PoE ports, so no separate power supply is required at each camera location. Confirm that total simultaneous PoE draw across all 8 connected cameras does not exceed the NVR’s rated PoE power budget.
Wiring Tips: Route all cable runs through walls, ceilings, or conduit before mounting cameras to keep cabling concealed and protected. For any outdoor runs exposed to weather, use outdoor-rated shielded Cat6 (FTP or STP) to prevent moisture ingress and electrical interference. Label both ends of each cable run during installation to simplify future fault-finding and maintenance.
Tripwire; intrusion (Support the classification and accurate detection of vehicle and human)
SMD 3.0
Less false alarm, longer detection distance
Intelligent Search
Work together with Smart NVR to perform refine intelligent search, event extraction and merging to event videos.
Video
Video Compression
H.265; H.264; H.264H; H.264B; MJPEG (Only supported by the sub stream)
Smart Codec
Smart H.265+; Smart H.264+
AI Coding
AI H.265; AI H.264
Video Frame Rate
Main stream: 3840 × 2160@(1 fps–30 fps)
Sub stream: 704 × 576@(1 fps–25 fps)/704 × 480@(1 fps–30 fps)
Third stream: 1920 × 1080@(1 fps–30 fps)
*The values above are the max. frame rates of each stream; for multiple streams, the values will be subjected to the total encoding capacity.
All Dahua IP cameras and recording devices (NVRs/DVRs) are covered by a
3-year back-to-base manufacturer warranty.
Note: Disk drives are limited to a 3-year warranty.
