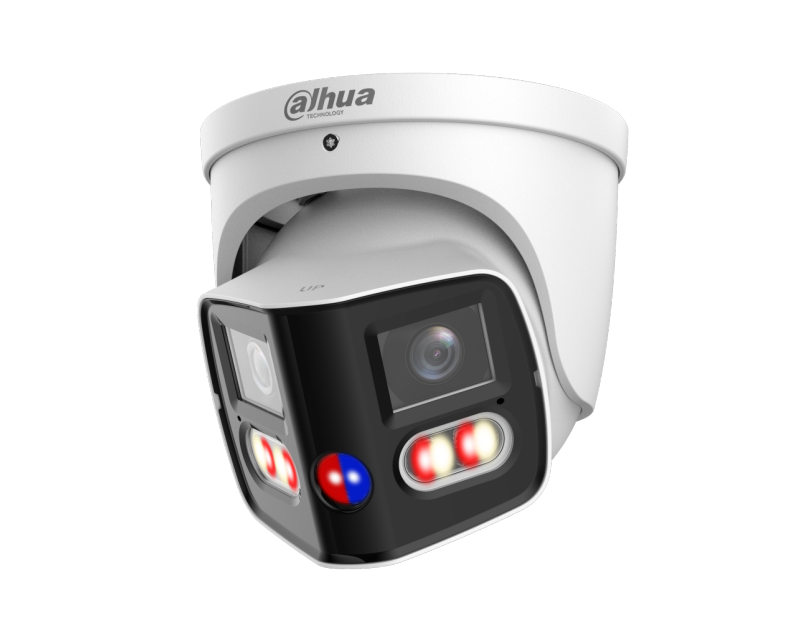

Dahua IPC-PDW31259-A180-AS-PV-ANZ-S2 12MP 180° TiOC Duo Panoramic WizSense Eyeball Network Camera with Active Deterrence

$495.00$571.00
SAVE $76.00FREE DELIVERYWARRANTY GUARANTEED
SW ADVANTAGE✓ Trade-Price Verified✓ Priority Tech Support✓ Dedicated After-Sales Support✓ Easy Returns & Warranty

The Dahua IPC-PDW31259-A180-AS-PV-ANZ-S2 is a premium 180° panoramic TiOC network camera combining two 6MP sensors to deliver a seamlessly stitched 12MP ultra-wide image at up to 20 fps. It features Smart Dual Light illumination up to 30 metres, SMD 4.0 human and vehicle detection, AcuPick intelligent search, electronic target tracking, built-in dual microphones and speakers, two-way audio, and active deterrence using red and blue warning lights and configurable alarm sounds. Its durable metal housing, PoE+ support and IP67 weather protection make it suitable for demanding residential and commercial surveillance applications.

$495.00 $571.00 inc GST +3 Year Warranty & Support

The Dahua IPC-PDW31259-A180-AS-PV-ANZ-S2 is an advanced 12MP TiOC Duo panoramic network camera engineered to monitor wide areas with fewer cameras and fewer blind spots. Using two 6MP image sensors and dual 2.8mm fixed lenses, the camera produces a seamlessly stitched 5000 × 2500 panoramic image with an exceptionally wide 180° horizontal and 78° vertical field of view.

This wide-area coverage makes the camera ideal for building frontages, driveways, loading areas, warehouses, retail premises, schools, commercial facilities, car parks and other locations where a conventional single-lens camera may not provide sufficient coverage. By replacing multiple standard cameras in suitable applications, it can help simplify installation, reduce cabling and provide operators with a more natural overview of the monitored area.

Detailed 12MP Panoramic Imaging

The camera outputs a maximum 12MP resolution of 5000 × 2500 at up to 20 frames per second. Its large F1.0 aperture and sensitive 1/2.5-inch CMOS imaging system are designed to capture detailed footage across challenging lighting conditions.

A 120dB Wide Dynamic Range helps preserve detail when bright and dark areas appear in the same scene, such as entrances, loading bays and areas facing direct sunlight. Additional image-processing features include 3D digital noise reduction, backlight compensation, highlight compensation, defog, scene self-adaptation and configurable regions of interest.

Smart Dual Light with 30-Metre Range

Dahua Smart Dual Light technology combines infrared and warm-white illumination in the same camera. Both illumination modes provide a maximum range of approximately 30 metres.

The camera can operate using discreet infrared illumination during normal night-time monitoring and activate its warm lights when an intelligent event occurs. This allows the camera to capture useful full-colour evidence when a person or vehicle enters a monitored area while limiting unnecessary continuous white-light operation.

WizSense AI Detection

The IPC-PDW31259-A180-AS-PV-ANZ-S2 incorporates Dahua WizSense artificial intelligence to provide more accurate event detection and reduce unwanted alerts.

SMD 4.0 can distinguish people and motor vehicles from other movement, helping to filter out false alarms caused by animals, moving vegetation, rain and changes in lighting. Its intelligent perimeter-protection functions include:

  • Intrusion detection
  • Tripwire detection
  • Stay detection
  • Loitering detection
  • Human and vehicle classification
  • Full-image face detection
  • Motion and scene-change detection
  • Audio abnormality detection

The camera also supports electronic PTZ functionality, allowing it to enlarge and track targets associated with intelligent alarm events within the panoramic image.

AcuPick Intelligent Search

When used with a compatible Dahua AcuPick recorder, the camera can assist operators in quickly locating people, animals and motor vehicles within live or recorded footage. This can substantially reduce the time required to review recordings after an incident compared with manually searching through hours of video.

Smart Search support also enables compatible Dahua NVRs to refine intelligent event searches and merge related event footage for more efficient playback and investigation.

Active Deterrence

Rather than only recording an incident, the camera can actively warn an intruder that they have been detected. Its TiOC active-deterrence functions include flashing red and blue warning lights, built-in speakers and configurable audible alarms.

The warning-light duration and flashing frequency can be adjusted to suit the installation. The camera includes multiple alarm sounds and also supports imported custom audio messages, allowing site-specific warnings to be played when an intelligent event is triggered.

Two-Way Audio

Built-in dual microphones capture sound around the camera, while the integrated speakers support audible warnings and two-way communication. When configured with a compatible Dahua recorder or platform, an authorised user can listen and speak through the camera using supported software or the DMSS mobile application.

The camera also provides separate audio input and output connections for integration with compatible external audio equipment.

Flexible Recording and Integration

Efficient H.265, Smart H.265+ and AI-based compression technologies help reduce bandwidth and storage consumption while maintaining image quality. The camera supports three video streams, allowing separate settings to be used for recording, live viewing and remote access.

Recordings can be stored on a compatible Dahua network video recorder, network-attached storage device, FTP server or a locally installed microSD card with a capacity of up to 512GB.

ONVIF Profile S, G, T and M support provides broader integration with compatible third-party video-management and recording systems. For the full range of intelligent functions, active deterrence and AcuPick capabilities, pairing the camera with a compatible Dahua WizSense or WizMind NVR is recommended.

Built for Outdoor Installation

The camera has a robust metal enclosure with an IP67 weather-resistant rating, protecting it against dust and water ingress. It is designed to operate in temperatures ranging from -40°C to +60°C, making it suitable for a broad range of Australian indoor and outdoor environments.

Power can be supplied through 12V DC or PoE+, allowing video, audio, data and power to be carried over a single compatible network cable.

Key Features

  • Two 6MP sensors producing one stitched 12MP panoramic image
  • Maximum resolution of 5000 × 2500 at 20 fps
  • Ultra-wide 180° horizontal and 78° vertical viewing angle
  • Dual 2.8mm fixed lenses
  • Large F1.0 aperture for improved low-light imaging
  • Smart Dual Light with infrared and warm light up to 30 metres
  • SMD 4.0 human and motor-vehicle classification
  • Intrusion, tripwire, stay and loitering detection
  • Full-image face detection
  • Electronic PTZ target enlargement and tracking
  • AcuPick intelligent search with compatible Dahua equipment
  • Red and blue active-deterrence warning lights
  • Built-in dual microphones and speakers
  • Configurable alarm sounds and custom audio warnings
  • Two-way audio capability
  • 120dB Wide Dynamic Range
  • H.265, Smart H.265+ and AI video compression
  • Three configurable video streams
  • MicroSD recording support up to 512GB
  • One alarm input and one alarm output
  • One external audio input and one audio output
  • ONVIF compatibility
  • 12V DC or PoE+ power
  • Durable metal construction
  • IP67 dust and weather protection
  • Operating temperature from -40°C to +60°C

SKU: DH-IPC-PDW31259-A180-AS-PV Categories: , , , , , , , , , , , Tag:

Specifications

Camera
Image Sensor 1/2.8″ CMOS
Max. Resolution 3840 (H) × 2160 (V)
ROM 128 MB
RAM 512 MB
Scanning System Progressive
Electronic Shutter Speed Auto/Manual 1/3 s–1/100,000 s
Min. Illumination 0.004 lux@F1.0 (Color, 30 IRE)
0.0004 lux@F1.0 (B/W, 30 IRE)
0 lux (illuminator on)
S/N Ratio ﹥ 56 dB
Illumination Distance 30 m (98.43 ft) (IR)
30 m (98.43 ft) (warm light)
Illuminator On/Off Control Auto; manual
Illuminator Number 1 (IR LED)
1 (warm light)
Pan/Tilt/Rotation Range Pan: 0°–360°
Tilt: 0°–78°
Rotation: 0°–360°
Lens
Lens Type Fixed-focal
Mount Type M12
Focal Length 2.8 mm; 3.6 mm
Field of View 2.8 mm: Horizontal: 106°× Vertical: 55°× Diagonal: 125°
3.6 mm: Horizontal: 85°× Vertical: 45°× Diagonal: 100°
Iris Type Fixed
Close Focus Distance 2.8 mm: 2.0 m (6.56 ft)
3.6 mm: 2.8 m (6.23 ft)
DORI Distance Lens Detect Observe Recognize Identify
2.8 mm 91.0 m (298.56 ft) 36.4 m

( 119.42 ft)

 18.2 m

(59.71 ft)

 9.1 m

(29.86 ft)
3.6 mm 107.6 m (353.02 ft) 43.0 m

( 141.08 ft)

 21.5 m

(70.54 ft)

 10.8 m

(35.43 ft)
Professional, intelligent
IVS (Perimeter Protection) Tripwire; intrusion (Support the classification and accurate detection of vehicle and human)
SMD 3.0 Less false alarm, longer detection distance
Intelligent Search Work together with Smart NVR to perform refine intelligent search, event extraction and merging to event videos.
Video
Video Compression H.265; H.264; H.264H; H.264B; MJPEG (Only supported by the sub stream)
Smart Codec Smart H.265+; Smart H.264+
AI Coding AI H.265; AI H.264
Video Frame Rate Main stream: 3840 × 2160@(1 fps–30 fps)
Sub stream: 704 × 576@(1 fps–25 fps)/704 × 480@(1 fps–30 fps)
Third stream: 1920 × 1080@(1 fps–30 fps)
*The values above are the max. frame rates of each stream; for multiple streams, the values will be subjected to the total encoding capacity.
Stream Capability 3 streams
Resolution 8M (3840 × 2160); 6M (3072 × 2048); 5M (3072 × 1728/2592 × 1944); 4M (2688 × 1520); 3M (2048 × 1536/2304 × 1296); 1080p (1920 × 1080); 1.3M (1280 × 960); 720p (1280 × 720); D1 (704 × 576/704 × 480); VGA (640 × 480); CIF (352 × 288/352 × 240)
Bit Rate Control CBR/VBR
Video Bit Rate H.264: 3 kbps–20480 kbps
H.265: 3 kbps–20480 kbps
Day/Night Auto (ICR)/Color/B/W
BLC Yes
HLC Yes
WDR 120 dB
Scene Self-adaptation Yes
White Balance Auto; natural; street lamp; outdoor; manual; regional custom
Gain Control Auto; manual
Noise Reduction 3D NR
Motion Detection OFF/ON (4 areas)
Region of Interest (RoI) Yes (4 areas)
Smart Illumination Yes
Defog Yes
Image Rotation 0°/90°/180°/270° (Support 90°/270° with 2688 × 1520 resolution and lower)
Mirror Yes
Privacy Masking 8 areas
Audio
Built-in MIC Yes
Audio Compression PCM; G.711a; G.711Mu; G.726; G.723
Alarm
Alarm Event No SD card; SD card full; SD card error; network disconnection; IP conflict; illegal access; motion detection; video tampering; tripwire; intrusion; scene changing; audio detection; voltage detection; external alarm; SMD; security exception
Network
Network RJ-45 (10/100 Base-T)
SDK and API Yes
Cyber Security Video encryption; firmware encryption; configuration encryption; Digest; WSSE; account lockout; security logs; IP/MAC filtering; generation and importing of X.509 certification; syslog; HTTPS; 802.1x; trusted boot; trusted execution; trusted upgrade
Protocol IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP ; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; SAMBA; PPPoE; SNMP
Interoperability ONVIF (Profile S/Profile G/Profile T); CGI; P2P; Milestone
User/Host 20 (Total bandwidth: 72 M)
Storage FTP; SFTP; Micro SD card (Support max. 256 G); NAS
Browser IE: IE8/9/11
Chrome
Firefox
Management Software Smart PSS; DSS; DMSS
Mobile Phone iOS; Android
Certification
Certification CE-LVD: EN 62368-1;

CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU;

FCC: 47 CFR FCC Part 15, Subpart B;

UL/CUL:UL62368-1 & CAN/CSA C22.2 No. 62368-1-14
Port
Audio Input 1 channel (RCA port)
Audio Output 1 channel (RCA port)
Alarm Input 1 channel in: 5 mA 3V–5 VDC
Alarm Output 1 channel out: 300 mA 12 VDC
Power
Power Supply 12 VDC/PoE (802.3af)
Power Consumption Basic: 2.9 W (12 VDC); 5.0 W (PoE)
Max. (H.265+main stream/IR intensity+warm light on): 7.8 W (12 VDC) 9.6 W (PoE)
Environment
Operating Conditions –40 °C to +60 °C (–40 °F to +140 °F)/Less than 95% RH
Storage Conditions –40 °C to +60 °C (–40 °F to +140 °F)
Protection Grade IP67
Structure
Casing Metal
Dimensions 110.9 mm × Φ122.0 mm (4.4″ × Φ4.8″)
Net Weight 745 g (163.1 lb)
Gross Weight 915 g (200.6 lb)
