Product SKU: DH-PFB305W
Product Overview

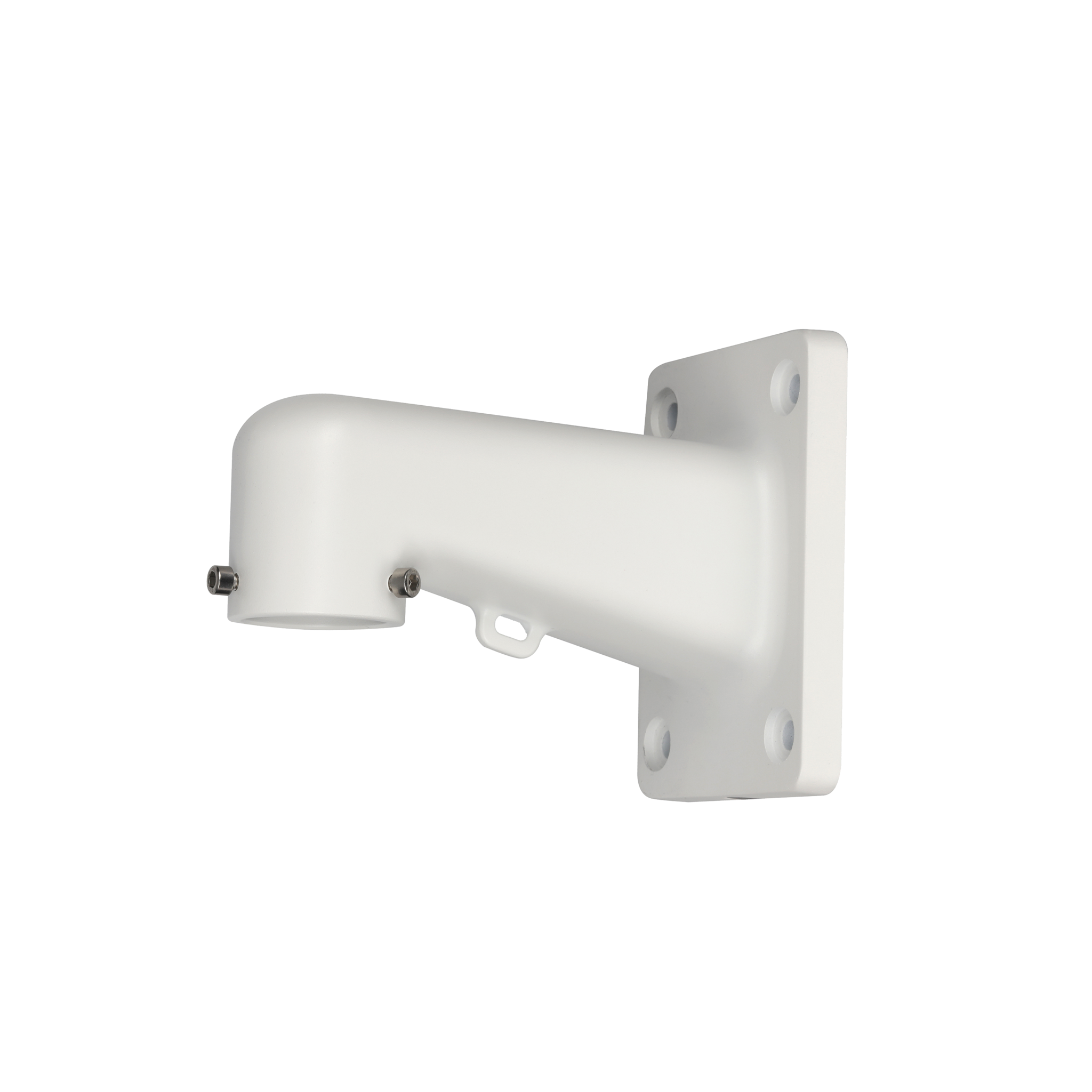

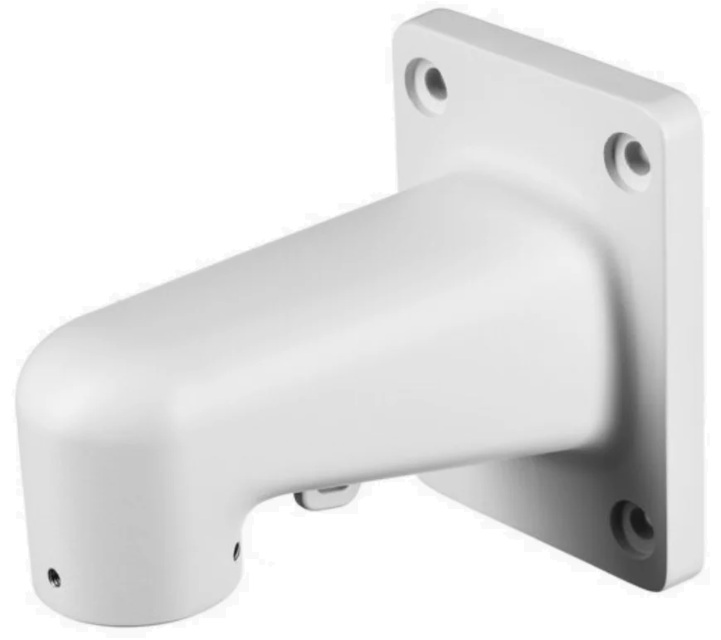

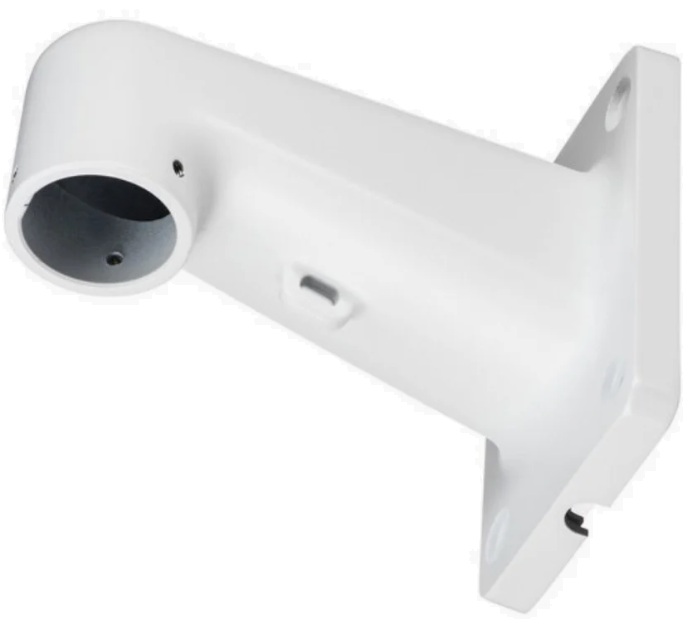

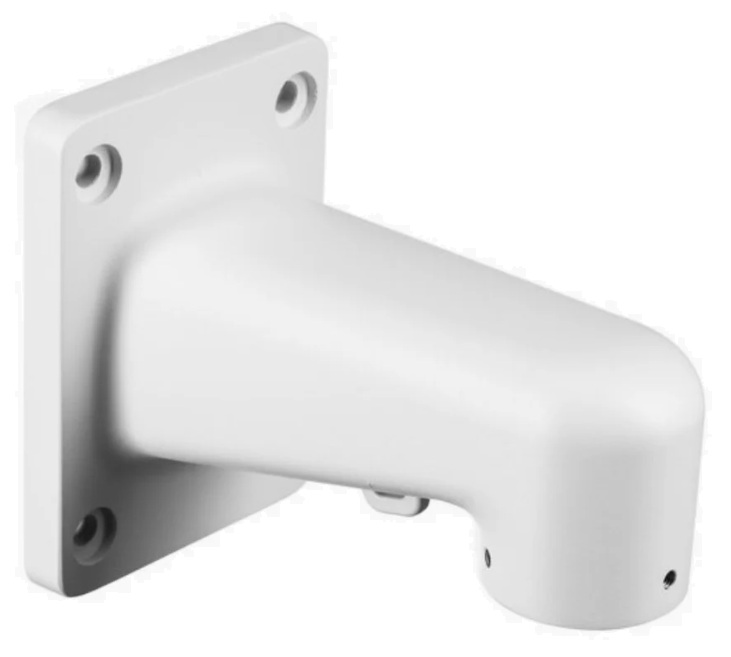

The Dahua DH-PFB305W is a white aluminium wall-mount bracket designed to position compatible Dahua camera assemblies away from the mounting surface while providing a clean, integrated installation. Its 200mm projection creates clearance for supported dome or PTZ mounting arrangements, and the attached safety-rope hook provides a dedicated tether point during installation and servicing. The bracket has a specified load-bearing capacity of 5kg and is listed for use with the DH-PFA106, DH-PFA120, DH-PFA150 and DH-PFA151 mounting adapters. Measuring 200 × 160 × 115mm and weighing 0.87kg, it suits walls where a stable, purpose-designed camera mounting arm is required. The aluminium construction supports a broad operating range from −40°C to +60°C, while the supplied package includes the wall-mount bracket, three M6 screws and one wrench.
Key Capabilities
Purpose-Built Wall Mounting
The bracket projects the compatible camera assembly approximately 200mm from the wall, providing practical clearance for supported dome and PTZ-style mounting arrangements.
5kg Load Capacity
The specified 5kg load rating supports a range of compatible camera and adapter combinations, provided the total finished assembly remains within the stated limit.
Attached Safety-Rope Hook
An integrated hook provides a secure attachment point for a suitable safety tether during installation or maintenance. The safety rope itself is not listed as a standard inclusion.
Compatible Adapter Support
Dahua lists the DH-PFA106, DH-PFA120, DH-PFA150 and DH-PFA151 as applicable adapter models, allowing the bracket to support several correctly matched camera configurations.
Aluminium Construction
The white aluminium body provides a durable, professional-looking mounting solution while keeping the bracket weight to 0.87kg.
Best For
- Dome and PTZ Camera Installations: Provides wall clearance for compatible camera assemblies using one of the listed Dahua adapters.
- Building Perimeters: Positions supported cameras away from the wall for clearer downward and outward coverage.
- Commercial Entrances: Creates a neat mounting arrangement above doors, loading areas and access points.
- Serviceable Camera Mounts: The integrated safety-rope hook assists with securing a compatible camera during installation and maintenance.
Why Choose the DH-PFB305W
The DH-PFB305W provides a more secure and professional mounting arrangement than adapting a general-purpose wall arm to suit a surveillance camera. Its dimensions, applicable adapters and load rating are clearly defined, helping installers plan the complete camera assembly before drilling or fixing the bracket. The 200mm projection creates useful clearance from the wall, while the aluminium body keeps the bracket manageable during installation. An attached safety-rope hook also provides a practical tether point when handling a compatible camera at height. Offered through Security Wholesalers, this bracket is best selected after confirming the exact camera, Dahua adapter, finished assembly weight, wall structure and required mounting hardware.
Buyer Decision Tips
Compatibility Tip: The bracket does not connect directly to every Dahua camera. Confirm that the selected camera works with the DH-PFA106, DH-PFA120, DH-PFA150 or DH-PFA151 adapter and that the complete assembly remains below 5kg.
Installation Tip: The package lists three M6 screws and one wrench but does not list wall anchors or a safety rope. Select suitable wall fixings and a compatible tether separately where the installation requires them.
Key Features & Technical Specifications
| Model |
DH-PFB305W |
| Product Type |
Wall-mount camera bracket |
| Material |
Aluminium |
| Colour |
White |
| Dimensions |
200 × 160 × 115mm |
| Weight |
0.87kg |
| Load Capacity |
Up to 5.0kg |
| Safety Provision |
Attached safety-rope hook |
| Applicable Adapters |
DH-PFA106, DH-PFA120, DH-PFA150 and DH-PFA151 |
| Operating Temperature |
−40°C to +60°C |
| Operating Humidity |
Less than 90% relative humidity |
| Package Contents |
1 × wall-mount bracket, 3 × M6 screws and 1 × wrench |
Ideal Use Cases
Building Walls
Provides a stable projecting arm for a compatible camera and adapter assembly mounted to a vertical surface.
Entrances and Exits
Positions supported cameras away from the facade for improved coverage around doorways and access areas.
Car Parks
Suitable for compatible camera assemblies monitoring vehicle approaches, pedestrian areas and parking boundaries.
Warehouses
Creates wall clearance for cameras overlooking loading docks, yards and external operational areas.
High-Mount Installations
The attached hook provides a practical tether point when a suitable safety rope is used during installation or servicing.
Choosing the Right Model
- Choose this bracket if: The selected camera uses a compatible listed adapter, the complete assembly weighs no more than 5kg and a 200mm wall projection is suitable.
- Choose a different bracket if: The camera requires another adapter family, exceeds the load rating or needs ceiling, pole or corner mounting.
- Confirm wall fixings if: The mounting surface is masonry, concrete, steel or another material requiring site-specific anchors that are not listed in the package contents.
FAQs
- What cameras can be mounted with the Dahua DH-PFB305W?
The DH-PFB305W is a wall-mount bracket rather than a camera-specific mounting plate. Dahua lists the DH-PFA106, DH-PFA120, DH-PFA150 and DH-PFA151 as applicable adapter models. The final camera combination must use one of those supported adapters and remain within the bracket’s 5kg load rating. Confirm the camera, adapter, fasteners and mounting arrangement together before installation.
- What is the maximum load capacity of the DH-PFB305W?
The DH-PFB305W has a specified load-bearing capacity of 5.0kg. This limit must cover the complete mounted assembly, including the camera, compatible adapter and any attached installation components. Do not select the bracket using camera weight alone. Allow a practical safety margin and ensure the wall structure and fixing method can support the finished assembly in its installed position.
- Does the DH-PFB305W include a safety rope?
The bracket has an attached safety-rope hook, but the package information does not list a safety rope as an included item. Where the camera installation requires a safety tether, select a suitable rope separately and attach it according to the camera and installation requirements. The hook provides a secure attachment point but does not replace correct wall fixing or load assessment.
- What are the dimensions and weight of the DH-PFB305W?
The DH-PFB305W measures 200 × 160 × 115mm and weighs 0.87kg. Its wall plate is 160mm high and 115mm wide, while the bracket projects approximately 200mm from the mounting surface. These measurements should be checked against the available wall space, camera clearance, cable route and nearby obstructions before drilling or positioning the bracket.
- Can the DH-PFB305W be installed outdoors?
The datasheet specifies an operating range of −40°C to +60°C and less than 90% relative humidity, but it does not provide an IP weatherproof rating for the bracket. Outdoor suitability therefore depends on the complete camera, adapter, fasteners, wall surface and corrosion-management plan. The aluminium construction is practical for security installations, but all mounting points and cable entries still need appropriate protection.
- What is included with the DH-PFB305W wall-mount bracket?
The listed package contains one wall-mount bracket, three M6 screws and one wrench. Wall anchors, a safety rope, compatible camera adapters and camera mounting hardware are not separately listed as inclusions. Check the wall construction and the selected DH-PFA adapter before installation so the correct anchors, tools and additional hardware are available on site.
- What should be checked before ordering the DH-PFB305W?
Confirm the camera model, compatible DH-PFA106, DH-PFA120, DH-PFA150 or DH-PFA151 adapter, total assembly weight, wall structure, required fixings and available clearance before ordering. The finished load must not exceed 5kg. Security Wholesalers can help confirm whether the bracket and adapter combination suits the planned Dahua camera installation without relying on appearance alone.
