Product SKU: DH-AC-PFA109
Product Overview

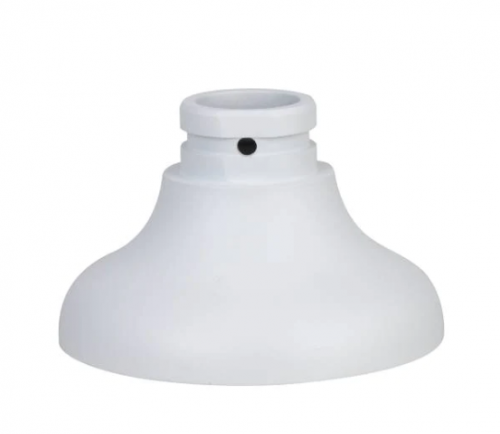

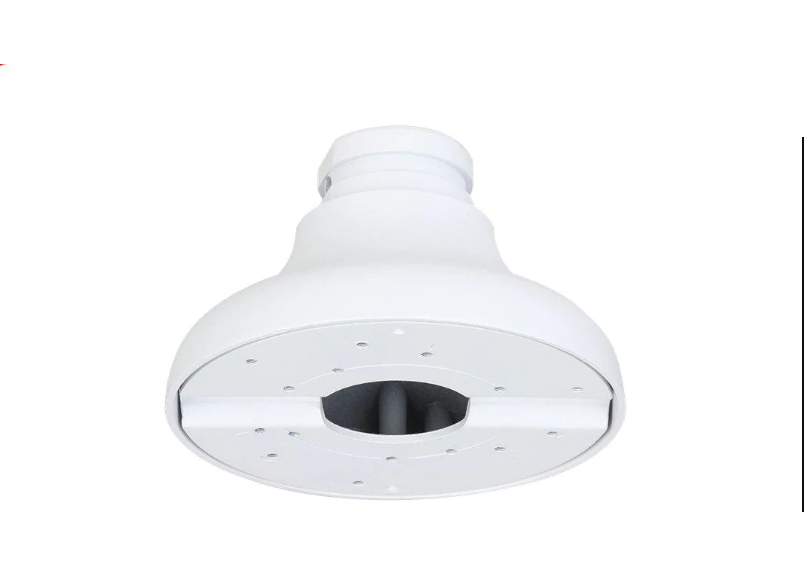

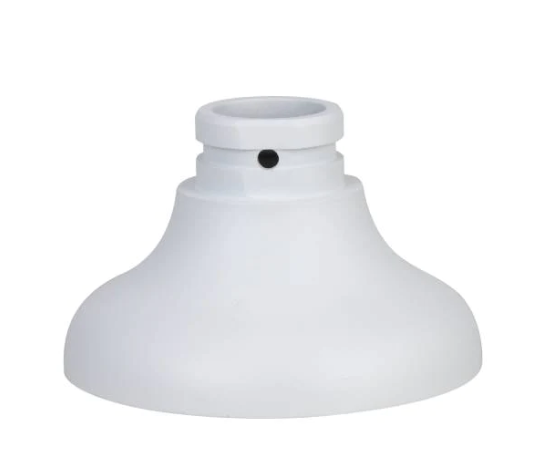

The Dahua DH-AC-PFA109 mount adapter, officially specified as model DH-PFA109, is designed to connect selected Dahua mini dome, dome and turret-style cameras to compatible wall-mount or ceiling-mount bracket assemblies. Its aluminium-alloy construction provides a rigid mechanical interface where the camera cannot attach directly to the chosen bracket, helping create a cleaner and more securely matched installation. The adapter measures 134.1 × 134.1 × 83.5mm, weighs 0.3kg and supports a listed load of up to 1kg. It operates from -40°C to +60°C at relative humidity below 90%, allowing use across a broad range of properly designed indoor and outdoor camera installations. The PFA109 is a passive mounting accessory only and does not include a camera, wall bracket, ceiling bracket, junction box or weatherproof cable enclosure. Exact camera and bracket compatibility must be confirmed through Dahua’s current accessory-selection information.
Key Capabilities
Compatible Camera Mounting Interface
The adapter creates a purpose-built connection between specifically matched Dahua cameras and selected mounting brackets. This avoids relying on improvised plates or generic adapters that may not match the camera’s mounting-hole pattern.
Aluminium-Alloy Construction
The white aluminium-alloy body provides a rigid mounting interface while keeping the adapter’s own weight to 0.3kg. Its neutral finish is designed to integrate neatly with compatible white Dahua camera and bracket assemblies.
1kg Load-Bearing Capacity
The PFA109 supports a listed load of up to 1kg. The camera and any components carried by the adapter must remain within this limit and within the lowest load rating of the complete mounting assembly.
Broad Operating Range
The adapter is specified for temperatures from -40°C to +60°C and relative humidity below 90%. Final environmental suitability still depends on the camera, bracket, fasteners, cable sealing and exposure conditions.
Best For
- Mini Dome Camera Mounting: Connects specifically compatible compact dome cameras to selected wall or ceiling brackets.
- Turret and Eyeball Installations: Supports matched camera models where an intermediate adapter is required for the bracket assembly.
- Commercial Buildings: Helps create neat wall-mounted or suspended camera installations in shops, offices and public facilities.
- Warehouses and Industrial Sites: Provides a rigid adapter for compatible cameras installed on selected overhead or wall brackets.
- Purpose-Matched Dahua Mounting Systems: Suits projects where the complete camera, adapter and bracket combination has been confirmed before installation.
Why Choose the DH-PFA109
The DH-PFA109 provides a cleaner and more predictable mounting solution than attempting to adapt a compatible Dahua camera to a bracket using generic plates or improvised fixings. Its aluminium-alloy body, 1kg load rating and purpose-designed dimensions create a stable connection between selected mini dome, dome or turret-style cameras and their approved wall or ceiling brackets. The white finish also helps the assembled mount retain a consistent professional appearance. Available through Security Wholesalers, the PFA109 should be selected from the exact camera model rather than camera shape alone. Similar-looking cameras can use different mounting patterns, and the adapter does not include the supporting bracket, weatherproof junction box or cable-management components required for a complete installation.
Buyer Decision Tips
Compatibility Tip: Do not select this adapter solely because the camera is described as a mini dome or turret. Confirm the complete camera model and the intended wall or ceiling bracket through the current Dahua Camera Accessories Selection information.
Installation Tip: The PFA109 is not a dedicated junction box and has no separate IP rating. Use the camera’s approved cable enclosure or another specified weatherproof connection method where plugs and cable joints require protection.
Key Features & Technical Specifications
| Product Type |
Camera mount adapter for specifically compatible Dahua cameras and mounting brackets. |
| Product SKU |
DH-AC-PFA109. |
| Official Model |
DH-PFA109. |
| Primary Function |
Provides a mechanical connection between selected cameras and compatible wall-mount or ceiling-mount brackets. |
| Material |
Aluminium alloy. |
| Colour |
White. |
| Dimensions |
134.1 × 134.1 × 83.5mm. |
| Product Weight |
0.3kg. |
| Load-Bearing Capacity |
Up to 1.0kg. |
| Operating Temperature |
-40°C to +60°C. |
| Operating Humidity |
Less than 90% relative humidity. |
| Applicable Cameras |
Specific camera models listed in Dahua’s current Camera Accessories Selection information. |
| Installation Use |
Compatible wall-mount and ceiling-mount camera assemblies. |
| Weather Rating |
No separate IP rating specified for the adapter. |
| Electrical Components |
None; passive mechanical accessory. |
| Included Product |
One DH-PFA109 mount adapter. |
| Items Not Confirmed as Included |
Camera, wall bracket, ceiling bracket, junction box, pole adapter and installation fasteners. |
Ideal Use Cases
Wall-Mounted Dome Cameras
Connect a specifically compatible dome camera to its approved Dahua wall-mount bracket.
Suspended Camera Mounts
Create the required interface between selected cameras and compatible ceiling-mount assemblies.
Retail and Office Installations
Maintain a tidy, professionally matched appearance across visible indoor camera mounting points.
Warehouse Camera Mounting
Adapt compatible cameras to approved wall or ceiling brackets around loading and storage areas.
Choosing the Right Model
- Choose this model if: The exact camera and mounting bracket specify the DH-PFA109 as part of the approved accessory combination.
- Choose a junction box if: The main requirement is enclosed cable storage or weatherproof connector protection rather than bracket adaptation.
- Choose another adapter if: The camera does not appear in the applicable accessory-selection information or uses a different mounting pattern.
- Check the load rating if: The camera or equipment carried by the adapter approaches or exceeds 1kg.
- Assess the environment if: The installation is coastal, chemical, highly corrosive or exposed to severe vibration.
FAQs
- What is the Dahua DH-PFA109 used for?
The DH-PFA109 is an aluminium mount adapter used to connect specifically compatible Dahua mini dome, dome or turret-style cameras to selected wall-mount and ceiling-mount bracket assemblies. It provides a stable mechanical interface where the camera cannot attach directly to the chosen bracket. The adapter is passive and does not contain cabling, electronics, a junction box or weatherproof connections.
- Does the PFA109 fit every Dahua mini dome or turret camera?
No. Dahua specifies that applicable cameras must be confirmed through its current Camera Accessories Selection information. Camera shape, mounting-hole pattern and weight can vary between product generations, even when two cameras look similar. The exact camera model and the complete wall or ceiling bracket arrangement should therefore be checked before the adapter is ordered or installed.
- How much weight can the DH-PFA109 support?
The DH-PFA109 has a listed load-bearing capacity of 1.0kg. The camera and any components carried by the adapter must remain within that limit, and the complete installation must also comply with the lowest load rating among the wall bracket, ceiling bracket, adapter, fasteners and supporting structure. Dynamic loads, vibration and mounting-surface condition should also be considered.
- What are the dimensions and weight of the PFA109?
The adapter measures 134.1 × 134.1 × 83.5mm and has a listed weight of 0.3kg. These dimensions should be included when calculating the finished camera projection or suspension from the mounting surface. Clearance should also be allowed for camera adjustment, cable routing, connector protection and future servicing around the completed bracket assembly.
- Can the PFA109 be used outdoors?
The official specification lists an operating range of -40°C to +60°C and relative humidity below 90%, but it does not provide a separate IP or corrosion-resistance rating for the adapter. Outdoor suitability depends on the complete camera-and-bracket assembly, correct cable sealing and the installation environment. Coastal, chemical or highly corrosive locations may require additional assessment or a differently rated mounting solution.
- Does the DH-PFA109 include a wall or ceiling bracket?
No. The DH-PFA109 is the mount adapter only. A compatible camera, wall bracket, ceiling bracket, pole adapter, junction box, fasteners and other installation parts are not identified as included. The required components vary by camera model and mounting method, so the complete accessory chain should be selected before installation rather than assuming the adapter can be used by itself.
- Is the PFA109 a junction box for cable connections?
No. The PFA109 is a mechanical mount adapter, not a dedicated junction box or electrical enclosure. It helps connect a compatible camera to selected mounting brackets, but installers should not assume it provides sealed cable storage or weatherproof connector protection. Use the camera’s specified junction box or another approved cable-management method when connections need to be enclosed and protected.
- What should I confirm before ordering the DH-AC-PFA109?
Confirm the exact camera model, required wall or ceiling bracket, mounting orientation, combined supported weight and installation environment. The camera must appear in the applicable accessory-selection information and remain within the adapter’s 1kg load rating. When ordering through Security Wholesalers, provide the full camera model and proposed bracket so the complete mounting combination can be checked before installation.
Additional Information
Dahua DH-PFA109 Datasheet
