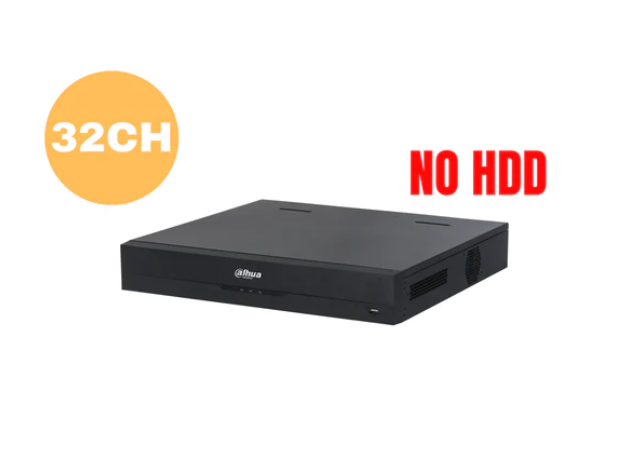

Dahua DHI-NVR5432-16P-AI/ANZ 32 Channel Wizsense AI NVR – no HDD included

Product SKU: DHI-NVR5432-16P-AI/ANZ

Product Overview

The Dahua DHI-NVR5432-16P-AI/ANZ is a 32-channel WizSense network video recorder designed for warehouses, retail premises, schools, offices and multi-building sites that require broader camera coverage and substantial recording storage. Sixteen integrated PoE ports allow compatible cameras to connect directly, while the remaining channels can be added through suitable network switching. Four SATA bays provide more storage flexibility than smaller one-bay or two-bay recorders, making this model useful when retention time is a major buying consideration. The NVR supports IP camera resolutions up to 32MP and provides up to 384Mbps incoming, recording and outgoing bandwidth when recorder-side AI is disabled. Face analysis, perimeter protection and SMD Plus support more focused event review, while dual HDMI and VGA outputs, ePoE, eSATA and extensive alarm connections suit professional CCTV installations.

Key Capabilities

Best For

• Warehouses and Distribution Centres: Supports loading docks, vehicle entrances, internal aisles, stock areas and building perimeters through one recording platform.
• Retail and Commercial Sites: Provides capacity for shopfronts, sales floors, storerooms, loading areas, offices and car parks.
• Schools and Healthcare Facilities: Human and vehicle filtering can assist authorised event review across entrances, pathways and shared spaces.
• Multi-Building Properties: Thirty-two channels allow cameras from several buildings or operational areas to be managed centrally.
• Longer-Retention CCTV Systems: Four HDD bays and an eSATA interface provide more storage flexibility than a typical two-bay recorder.

Why Choose the DHI-NVR5432-16P-AI/ANZ

The DHI-NVR5432-16P-AI/ANZ is a practical step up from a 16-channel or two-bay recorder when a site needs more camera capacity and longer recording retention. Its 32 recording channels allow broader coverage, while four SATA bays provide more flexibility for storage planning. Sixteen built-in PoE ports simplify the first stage of installation, and additional network cameras can be connected through suitable external switching. Recorder-side SMD Plus, perimeter protection and face functions provide useful event filtering without requiring every camera to perform all analytics itself. Available through Security Wholesalers, this model is well suited to established commercial systems that prioritise channel capacity, storage expansion, alarm integration and multi-monitor viewing over newer specialised target-search features.

Buyer Decision Tips

Key Features & Technical Specifications

Ideal Use Cases

Choosing the Right Model

• Choose this model if: You need up to 32 IP camera channels, 16 built-in PoE ports, four HDD bays and recorder-side WizSense analytics.
• Choose a 16-channel recorder if: The system will remain below 16 cameras and the additional channels are unlikely to be used.
• Choose a model with more PoE ports if: More than 16 cameras must connect directly without external PoE switches.
• Choose an AcuPick-capable recorder if: Rapid person or vehicle target searching is an essential system requirement.
• Choose a higher-storage platform if: More than four internal drives or storage redundancy is required.

FAQs

1. How many cameras can connect to the DHI-NVR5432-16P-AI/ANZ?
   The DHI-NVR5432-16P-AI/ANZ supports 32 IP camera channels and includes 16 integrated PoE ports. Up to 16 compatible cameras can connect directly to the built-in PoE switch, while additional cameras require suitable network switching. This distinction matters when planning a 32-camera system because the recorder provides 32 recording channels but does not contain 32 physical PoE connections.
2. Does the DHI-NVR5432-16P-AI/ANZ include hard drives?
   No. NO HDD INCLUDED. The recorder provides four SATA bays, with each compatible surveillance hard drive supporting up to 16TB under the stated operating conditions. Buyers purchasing through Security Wholesalers should select storage separately and calculate the required retention from camera count, resolution, frame rate, bitrate, compression and recording schedule rather than choosing capacity only from the recorder’s maximum physical limit.
3. What AI functions can this 32-channel NVR perform itself?
   AI by Recorder supports face detection and face recognition on up to two channels, perimeter protection on up to four channels and SMD Plus on up to eight channels. SMD Plus applies secondary filtering for people and motor vehicles to reduce less relevant alarms caused by leaves, rain and lighting changes. These functions share processing resources, so the intended combination should be planned before commissioning.
4. Does the DHI-NVR5432-16P-AI/ANZ support AcuPick?
   AcuPick is not listed among the confirmed functions for the DHI-NVR5432-16P-AI/ANZ. Its recorder-side intelligence covers face detection, face recognition, perimeter protection and SMD Plus, while compatible cameras can provide metadata, ANPR, stereo analysis, heat maps and people counting. Choose a recorder with explicitly confirmed AcuPick support when rapid person or vehicle target searching is essential to the project.
5. What resolution and bandwidth does the DHI-NVR5432-16P-AI/ANZ support?
   The recorder accepts compatible IP cameras with resolutions up to 32MP. With recorder-side AI disabled, it provides up to 384Mbps incoming, 384Mbps recording and 384Mbps outgoing bandwidth; with AI enabled, each limit reduces to 200Mbps. The camera mix should be planned around resolution, frame rate, bitrate, live-view layouts and playback requirements because multiple high-resolution streams can consume decoding and network capacity quickly.
6. How much PoE power is available across the 16 built-in ports?
   The 16 built-in PoE ports share a 130W output budget, with up to 25.5W available from one port. Ports 1–8 also support Dahua ePoE. Add the maximum power consumption of every connected camera, including infrared, white light, heaters and PTZ movement, to confirm that the completed system remains within budget, particularly when several higher-load cameras are used.
7. What display and playback options are available?
   The NVR provides two HDMI outputs and two VGA outputs, supports separate HDMI video sources and offers 4K local display. Main-screen layouts extend to 36 windows, while simultaneous playback supports up to 16 channels. This means all 32 cameras can be recorded, but local playback and decoding capacity still need to be considered when several high-resolution channels are reviewed at the same time.
8. Is the DHI-NVR5432-16P-AI/ANZ suitable for commercial CCTV systems?
   Yes. The DHI-NVR5432-16P-AI/ANZ suits warehouses, retail sites, schools, offices, healthcare facilities and multi-building properties requiring up to 32 IP camera channels, four HDD bays and AI-assisted event review. Its 16 PoE ports, 384Mbps bandwidth, dual HDMI and VGA outputs, extensive alarm interfaces and eSATA support provide more storage and integration flexibility than a smaller two-bay recorder.
