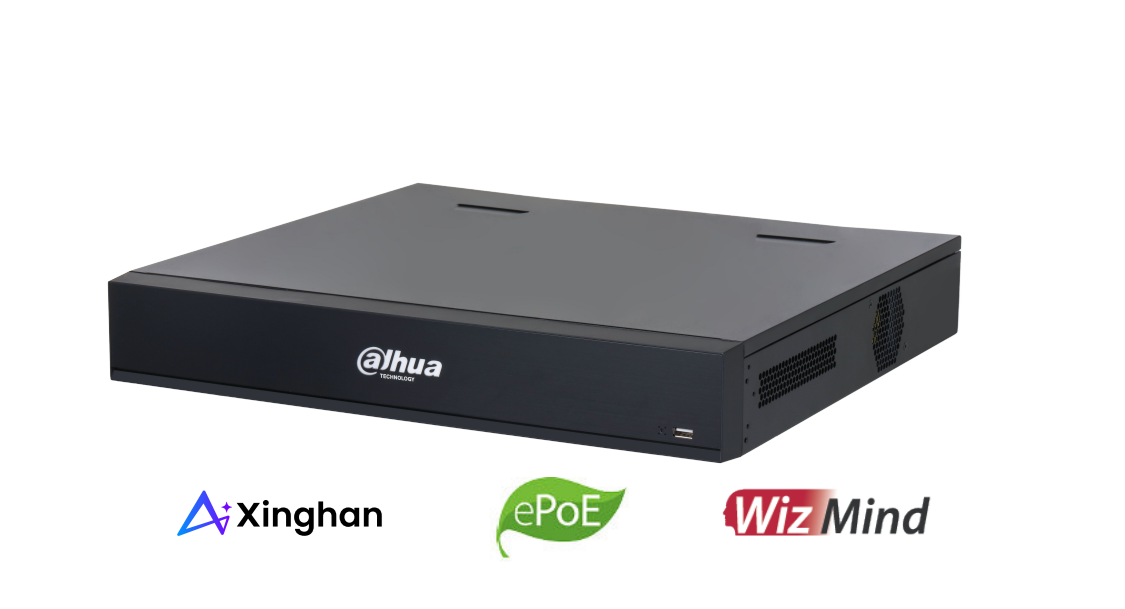

Dahua DHI-NVR5432-16HP-AI/ANZ-PRO 32CH WizMind 16× PoE & Advanced AI Search Network Video Recorder

Product SKU: DHI-NVR5432-16HP-AI/ANZ-PRO

The Dahua DHI-NVR5432-16HP-AI/ANZ-PRO is a 32-channel WizMind network video recorder designed for commercial sites that need substantial camera capacity, high-power PoE connectivity and detailed AI-assisted investigation. Sixteen integrated PoE ports provide direct connections for compatible cameras, while additional channels can be added through suitable network switching. Four SATA bays give installers more flexibility when planning longer retention or higher-bitrate recording across large camera systems. The NVR supports IP cameras up to 32MP, 8K HDMI output and up to 512Mbps incoming and recording bandwidth when recorder-side AI is disabled. Xinghan Large-Scale AI Models support AcuPick, WizSeek, face analysis, metadata extraction, perimeter protection and text-defined alarming. ePoE, eSATA, iSCSI, N+M clustering and extensive alarm interfaces make this model well suited to warehouses, retail sites, schools, healthcare facilities and multi-building properties.

Key Capabilities

Best For

• Warehouses and Distribution Centres: Supports loading docks, vehicle entrances, internal aisles, stock areas and building perimeters through one recording platform.
• Retail and Commercial Sites: AcuPick, WizSeek and metadata functions help investigate activity across shopfronts, sales floors, storerooms and car parks.
• Schools and Healthcare Facilities: Face, perimeter and target-search functions support authorised monitoring of entrances, pathways and shared spaces.
• Multi-Building Properties: Thirty-two channels allow cameras from several structures or operational areas to be managed centrally.
• Longer-Retention CCTV Systems: Four HDD bays, eSATA and iSCSI provide more storage flexibility than a typical two-bay recorder.

Why Choose the DHI-NVR5432-16HP-AI/ANZ-PRO

The DHI-NVR5432-16HP-AI/ANZ-PRO is a practical step up from a standard 32-channel recorder when a project needs stronger analytics, more PoE power and greater storage flexibility. Its four SATA bays and 200W PoE budget support demanding commercial installations, while 512Mbps incoming and recording bandwidth provides substantial headroom for detailed camera streams. AcuPick and WizSeek improve the way operators search footage, and the Xinghan AI platform adds face analysis, metadata and perimeter protection for more structured investigations. Available through Security Wholesalers, this model suits established sites that prioritise advanced event review, 8K local display and professional alarm or storage integration.

Buyer Decision Tips

Key Features & Technical Specifications

Channel Count	Supports 32 IP camera channels.
PoE Ports	16 × 10/100Mbps IEEE 802.3af/at ports; ports 1–8 support ePoE.
PoE Power Budget	200W total, with up to 25.5W available from one port.
Camera Resolution	Supports compatible IP cameras up to 32MP.
Network Bandwidth	AI disabled: 512Mbps incoming, 512Mbps recording and 384Mbps outgoing; AI enabled: 200Mbps for each.
Decoding Capacity	AI disabled: up to 20 × 4MP or 32 × 1080p at 30fps; AI enabled: up to 12 × 4MP or 24 × 1080p at 30fps.
AcuPick	8 recorder-side channels with Xinghan models enabled or 16 channels with the models disabled; camera-side support on all channels.
WizSeek	Full-channel support with compatible AcuPick cameras or up to 8 channels through recorder-side AcuPick on standard cameras.
Perimeter Protection	16 recorder-side channels with Xinghan models enabled or 32 channels with the models disabled.
Face Analysis	8 channels with Xinghan models enabled or 16 channels with the models disabled; up to 20 databases and 200,000 face images.
SMD Plus	Unavailable by Recorder with Xinghan models enabled; supports 32 recorder-side channels when the models are disabled.
Video Metadata	8 recorder-side channels with Xinghan models enabled or 16 channels with the models disabled, with 23 extracted attributes.

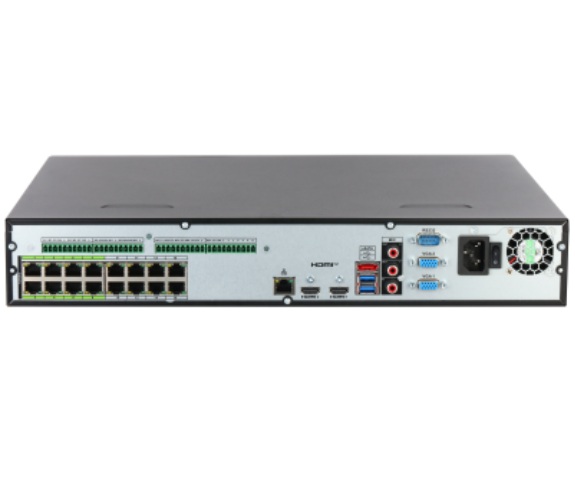

Video Outputs	2 HDMI outputs up to 7680 × 4320 and 2 VGA outputs up to 1920 × 1080.
Display Layouts	Main screen supports up to 36 windows; secondary screen supports up to 16 windows.
HDD Bays	4 SATA bays supporting compatible hard drives up to 20TB per disk, subject to operating temperature.
External Storage	1 eSATA interface, iSCSI and disk-group support.
Compression and Playback	Smart H.265+, H.265, Smart H.264+, H.264 and MJPEG with up to 16-channel playback.
Audio and Alarm Interfaces	1 RCA audio input, 2 RCA audio outputs, 16 alarm inputs and 6 alarm outputs.
Network and System Functions	Gigabit Ethernet, ONVIF Profiles T/S/G, N+M clustering, iSCSI, EPTZ and one-click arming or disarming.
Power, Size and Environment	100–240V AC; less than 18W without HDDs; 440.0 × 411.4 × 76.0mm; 4.62kg; -10°C to +55°C.

Ideal Use Cases

Choosing the Right Model

• Choose this model if: You need up to 32 IP camera channels, 16 high-power PoE ports, four HDD bays, AcuPick, WizSeek and 8K output.
• Choose a standard WizSense recorder if: Basic human and vehicle filtering is sufficient and the additional Xinghan analytics are unnecessary.
• Choose a model with more PoE ports if: More than 16 cameras must connect directly without external PoE switches.
• Choose a larger storage platform if: More than four internal drives or storage redundancy is required.
• Check the AI operating mode if: The project requires both Xinghan model-based analysis and recorder-side SMD Plus, as these modes cannot operate together.

FAQs

1. How many cameras can connect to the DHI-NVR5432-16HP-AI/ANZ-PRO?
   The DHI-NVR5432-16HP-AI/ANZ-PRO supports 32 IP camera channels and includes 16 integrated PoE ports. Up to 16 compatible cameras can connect directly to the recorder, while additional cameras require suitable external network switching. This distinction matters when planning a full 32-camera system because the recorder provides 32 recording channels but does not contain 32 physical PoE connections.
2. What makes the DHI-NVR5432-16HP-AI/ANZ-PRO different from a standard 32-channel NVR?
   The main differences are its 200W PoE budget, four HDD bays, 512Mbps incoming and recording bandwidth, 8K output and broader WizMind analytics. Xinghan Large-Scale AI Models support AcuPick, WizSeek, face analysis, metadata and text-defined alarming. This combination is better suited to commercial systems that need substantial storage, higher-power cameras and faster target searching than a basic recorder designed mainly for recording and playback.
3. How do AcuPick and WizSeek help with recorded footage?
   AcuPick helps operators locate relevant people or vehicles within recorded video, while WizSeek supports natural-language target searching in compatible configurations. Recorder-side AcuPick supports eight channels with Xinghan Large-Scale AI Models enabled or 16 channels when the models are disabled. Compatible AcuPick cameras can provide full-channel WizSeek, while search results still depend on camera position, target visibility and correct analytics configuration.
4. Which AI functions can the recorder perform itself?
   AI by Recorder includes face detection, face recognition, human and vehicle metadata, perimeter protection, SMD Plus, AcuPick, WizSeek and text-defined alarming. With Xinghan Large-Scale AI Models enabled, face analysis, metadata and AcuPick support up to eight channels, while perimeter protection supports 16 channels. Disabling the models increases selected functions, including perimeter protection, to broader channel counts.
5. Can SMD Plus operate while the Xinghan Large-Scale AI Models are enabled?
   No. Recorder-side SMD Plus is unavailable while the Xinghan Large-Scale AI Models are enabled. When those models are disabled, SMD Plus can operate on up to 32 channels and apply secondary filtering for people and motor vehicles. Camera-side SMD remains available across supported channels when compatible cameras provide the function, so the required analytics mode should be chosen before commissioning.
6. Does the DHI-NVR5432-16HP-AI/ANZ-PRO include hard drives?
   The product information confirms four SATA bays but does not confirm pre-installed hard drives. Each compatible disk supports up to 20TB under the stated operating conditions. Buyers purchasing through Security Wholesalers should confirm the selected storage configuration and calculate retention from camera count, resolution, frame rate, bitrate, compression and recording schedule rather than choosing capacity only from the recorder’s maximum physical limit.
7. What resolution, bandwidth and display output does this NVR support?
   The recorder accepts compatible IP cameras up to 32MP. With recorder-side AI disabled, it provides up to 512Mbps incoming, 512Mbps recording and 384Mbps outgoing bandwidth; with AI enabled, each limit becomes 200Mbps. Two HDMI outputs support resolutions up to 7680 × 4320, while two VGA outputs support up to 1920 × 1080 for flexible local monitoring.
8. Is the DHI-NVR5432-16HP-AI/ANZ-PRO suitable for commercial CCTV systems?
   Yes. The recorder suits warehouses, retail sites, offices, schools, healthcare facilities and multi-building properties requiring up to 32 IP camera channels, four HDD bays and advanced target searching. Its 16 PoE ports, 200W PoE budget, 8K output, extensive alarm interfaces, ePoE, eSATA, iSCSI and N+M clustering provide more storage and integration flexibility than an entry-level NVR.
