Product SKU: IPC2B16SE-ADF28KMC-WP-I1-BK
Product Overview

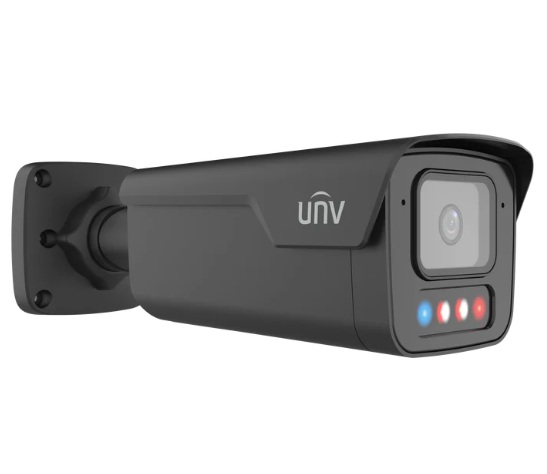

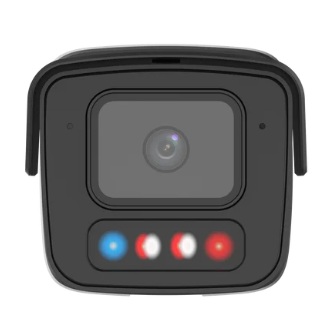

The Uniview IPC2B16SE-ADF28KMC-WP-I1-BK 6MP TriGuard OwlView Plus Black Bullet Camera with Active Deterrence, 2.8mm Lens and 40m Dual Light is a professional network camera designed for detailed, full-colour surveillance across commercial, residential and industrial sites. It captures up to 3072 × 2048 resolution at 30fps using a large 1/1.8-inch CMOS sensor and F1.0 aperture lens. ColorHunter with Wise-ISP technology supports 24-hour colour imaging, while Smart IR and warm white light each provide illumination up to 40m. With Tri-Guard active deterrence, intelligent human, vehicle and non-motor vehicle classification, built-in dual microphones, a built-in speaker, two-way audio, people counting, alarm I/O, audio I/O, MicroSD storage up to 512GB, PoE, IP67, IK10 and NEMA 4X protection, the IPC2B16SE-ADF28KMC-WP-I1-BK suits entrances, warehouses, retail sites, schools, offices, car parks and perimeter-facing CCTV applications.
Key Capabilities
6MP OwlView Plus Imaging
Captures detailed 3072 × 2048 video at up to 30fps using a large 1/1.8-inch CMOS sensor.
ColorHunter Full-Colour Imaging
ColorHunter with Wise-ISP technology and an F1.0 lens supports clear colour footage in very low-light environments.
Tri-Guard Active Deterrence
Intelligent detection, warm light and built-in speaker functions can provide visible and audible warnings at the camera location.
40m Dual Illumination
Smart IR and warm white light each provide an illumination range of up to 40m.
Two-Way Audio
Built-in dual microphones and speaker support audio recording, live listening and two-way communication.
Rugged Black Bullet Housing
IP67, IK10 and NEMA 4X protection suit exposed, weather-affected and vandal-prone installations.
Best For
- Perimeter Monitoring: The bullet design and 40m dual illumination suit fences, driveways, yards and long building approaches.
- Active Deterrence Security: Suitable for locations where warm light and audible warnings can help discourage unwanted behaviour.
- Retail and Shopfronts: Full-colour imaging, people counting and intelligent target filtering support security and operational monitoring.
- Warehouses and Logistics: Smart intrusion prevention, longer illumination and rugged protection suit loading docks, stock areas and vehicle approaches.
- Black-Finish Installations: The black housing suits dark façades, warehouses, fences and modern commercial architecture.
Why Choose the IPC2B16SE-ADF28KMC-WP-I1-BK
Choose the Uniview IPC2B16SE-ADF28KMC-WP-I1-BK when the installation needs a black 6MP bullet camera with full-colour low-light imaging, active deterrence and intelligent target classification. Its large 1/1.8-inch sensor, F1.0 lens, ColorHunter technology and 130dB true WDR help produce useful footage in dark or strongly backlit scenes. Smart IR and warm white light each reach up to 40m, providing more illumination range than the equivalent short-range turret models. Built-in dual microphones, a built-in speaker, alarm I/O and audio I/O support flexible warning and communication workflows. This model, supplied by Security Wholesalers, is a strong option for commercial sites requiring directional coverage, smart event filtering and durable outdoor protection.
Buyer Decision Tips
Buyer Tip: Choose this model when you need a black 6MP ColorHunter bullet camera with active deterrence, two-way audio, intelligent target filtering and 40m IR plus warm light.
Buyer Tip: Confirm the 2.8mm viewing angle, mounting direction, light warning suitability, audio policy, PoE compatibility, MicroSD requirements and alarm wiring before installation.
Key Features & Technical Specifications
| Product Type |
6MP OwlView Plus Tri-Guard fixed dual-light bullet network camera. |
| Model |
IPC2B16SE-ADF28KMC-WP-I1-BK. |
| Brand |
Uniview. |
| Series |
OwlView Plus with Tri-Guard 3.0 and ColorHunter technology. |
| Camera Style |
Fixed-lens bullet network camera. |
| Colour |
Black. |
| Image Sensor |
1/1.8-inch CMOS sensor. |
| Maximum Resolution |
6MP, 3072 × 2048. |
| Maximum Frame Rate |
Up to 30fps at 6MP. |
| Additional Resolutions |
4MP, 3MP and 1080p recording options at up to 30/25fps. |
| Video Compression |
Ultra 265, H.265, H.264 and MJPEG. |
| Lens Type |
Fixed lens. |
| Focal Length |
2.8mm. |
| Maximum Aperture |
F1.0. |
| Low-Light Technology |
ColorHunter with Wise-ISP technology. |
| Infrared Range |
Smart IR up to 40m. |
| Warm Light Range |
Warm white light up to 40m. |
| Supplemental Light |
Dual-light illumination with infrared and warm white light. |
| Wide Dynamic Range |
130dB true WDR. |
| Image Enhancement |
ASM, digital noise reduction, strong-light handling and smart scene optimisation. |
| Corridor Mode |
Supports 9:16 corridor mode. |
| Smart Intrusion Prevention |
Cross-line, intrusion, enter-area and leave-area detection. |
| Target Classification |
Human, motor vehicle and non-motor vehicle classification with false-alarm filtering. |
| Smart Colour Retrieval |
Smart intrusion prevention with colour retrieval support. |
| People Counting |
Supports people flow counting and crowd density monitoring. |
| Built-In Microphone |
Built-in dual microphones. |
| Built-In Speaker |
Supported. |
| Two-Way Audio |
Supported. |
| Audio Input / Output |
1 audio input and 1 audio output. |
| Alarm Input / Output |
1 alarm input and 1 alarm output. |
| Edge Storage |
MicroSD card support up to 512GB. |
| Network Interface |
RJ45 Ethernet network interface. |
| Power Supply |
PoE supported. |
| Protection |
IP67, IK10 and NEMA 4X. |
| Construction |
Black vandal-resistant bullet housing. |
| Camera Included |
Camera only; NVR, PoE switch, network cabling, MicroSD card and mounting accessories are supplied separately unless included in a separate kit. |
Ideal Use Cases
Driveways and Perimeters
The directional bullet design and 40m dual illumination suit driveways, fences and boundary approaches.
Warehouse Loading Areas
Suitable for loading docks, roller doors, vehicle lanes and stock areas requiring smart event filtering.
Retail and Shopfronts
Full-colour footage, people counting and active deterrence suit entrances and customer-facing areas.
Schools and Offices
Two-way audio, smart detection and detailed 6MP video suit external entries and controlled access areas.
After-Hours Deterrence
Warm light, speaker warnings and intelligent intrusion events help discourage unwanted activity.
Black-Finish Architecture
The black housing suits dark façades, fences, warehouses and modern commercial building finishes.
Choosing the Right Model
- Choose this model if: You need a black 6MP ColorHunter bullet camera with active deterrence, two-way audio, 40m dual light and smart target classification.
- Choose the 2.8mm lens for: Wide coverage of entrances, driveways, loading areas, shopfronts and broad perimeter zones.
- Choose a motorised model if: The installation requires adjustable framing or a tighter view of a more distant subject.
- Check deterrence suitability: Confirm warm light use, speaker volume, audio recording requirements and local privacy rules before enabling active warning functions.
- Check system compatibility: Confirm PoE support, NVR resolution, intelligent event compatibility, MicroSD capacity, alarm wiring and mounting accessory requirements.
FAQs
- What is the Uniview IPC2B16SE-ADF28KMC-WP-I1-BK used for?
The Uniview IPC2B16SE-ADF28KMC-WP-I1-BK is used for professional indoor and outdoor CCTV monitoring where full-colour low-light imaging, active deterrence, intelligent detection and directional bullet-style coverage are required. It suits driveways, entrances, warehouses, retail stores, offices, schools, car parks and perimeter areas.
- What resolution does this camera record?
The camera records up to 6MP resolution at 3072 × 2048 and up to 30fps. It also supports lower-resolution streams, including 4MP, 3MP and 1080p, for flexible recording, live viewing and bandwidth management.
- How far does the dual light reach?
The camera provides Smart IR illumination up to 40m and warm white light up to 40m. Actual night visibility depends on the target size, installation angle, surrounding surfaces and environmental conditions.
- Does this model provide full-colour night monitoring?
Yes. ColorHunter with Wise-ISP technology, a large 1/1.8-inch sensor and an F1.0 lens help maintain colour footage in very low light. Warm white illumination can provide additional colour-supporting light when required.
- Does the camera include active deterrence?
Yes. Tri-Guard active deterrence combines intelligent target detection with warm light and built-in speaker functions. These features can provide visible and audible warnings when configured with supported intrusion events.
- Does it support two-way audio?
Yes. The camera includes built-in dual microphones and a built-in speaker, together with separate audio input and output connections. This supports audio recording, live listening and two-way communication through compatible systems.
- Is this camera suitable for outdoor use?
Yes. The IPC2B16SE-ADF28KMC-WP-I1-BK has IP67 weather protection, IK10 vandal resistance and NEMA 4X protection. It is suitable for exposed outdoor locations when correctly mounted, sealed and connected using weather-resistant installation practices.
- What should I check before buying the IPC2B16SE-ADF28KMC-WP-I1-BK?
Before buying, confirm the 2.8mm viewing angle, required coverage distance, black finish, light and speaker suitability, audio policy, PoE support, NVR compatibility, MicroSD requirements and mounting location. Security Wholesalers can supply this Uniview camera for compatible CCTV systems.
Additional Information
Uniview_IPC2B16SE-ADF28KMC-WP-I1-BK_Datasheet
