Product Overview

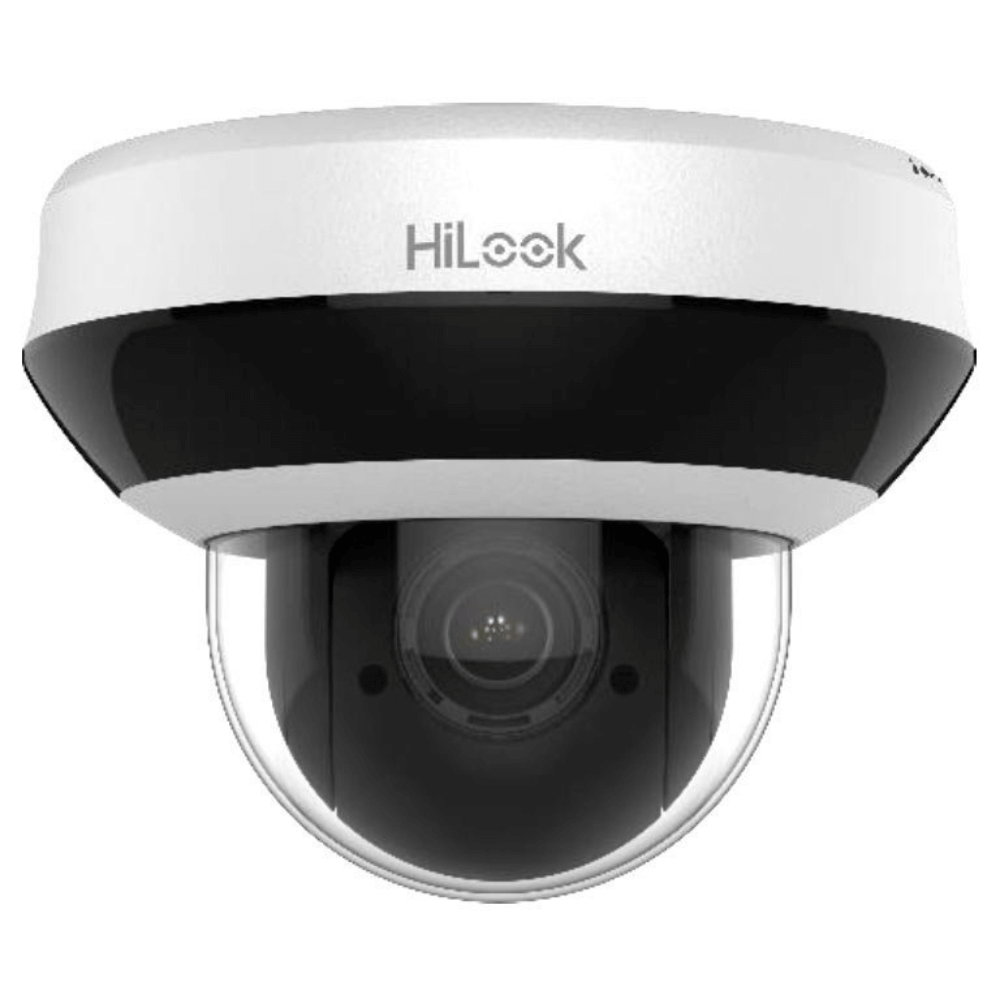

Combining pan, tilt and zoom control in a compact 2-inch speed dome housing, the HiLook PTZ-N2404I-DE3 is built for installations where flexible directional coverage is needed without the bulk of a full-size PTZ unit. Featuring 4x optical zoom and DarkFighter-powered 20m enhanced IR, it delivers active scene control alongside reliable low-light performance in a form factor suited to entrances, small commercial areas and sheltered outdoor positions. Equipped with 120dB true WDR, it handles scenes with strong backlighting, such as doorways and lobbies where exterior light can wash out standard cameras. Built with H.265+ compression, it reduces bandwidth and storage demands during continuous recording. It also includes IP66 weather resistance and IK10 vandal protection, making it appropriate for exposed locations where environmental durability is a practical requirement. This makes it suitable for small business monitoring, access points and indoor or semi-sheltered outdoor positions where a fixed camera would limit scene flexibility.
Key Capabilities
4x Optical Zoom with Pan and Tilt
Full pan, tilt and 4x optical zoom control lets operators reframe and zoom in on activity without physically repositioning the camera, providing flexible coverage from a single mounting point at an entrance or open area.
DarkFighter IR Night Vision
Powered by DarkFighter technology, the 20m enhanced IR provides consistent night-time visibility in low-light or unlit environments, maintaining clear imaging across the camera’s field of view after dark.
120dB True WDR
120dB true Wide Dynamic Range balances bright and dark areas within the same frame, which is particularly useful at building entrances where outdoor daylight creates strong contrast against shaded interior views.
4MP Resolution
4 megapixel resolution delivers detailed footage at each zoom position, supporting clearer capture of faces, licence plates and scene details when the camera is aimed and zoomed toward a specific area of interest.
IP66 and IK10 Dual Protection
IP66 dust and water resistance combined with IK10 impact resistance means the PTZ-N2404I-DE3 handles outdoor exposure and high-contact locations where vandalism or accidental contact is a realistic concern.
Best For
- Entrance and Access Point Monitoring: The combination of pan, tilt, 4x optical zoom and 120dB WDR makes this camera well matched to building entrances where scene framing needs to be adjusted and backlighting is a regular challenge.
- Small Commercial Areas with Variable Coverage Needs: Retail counters, reception areas and compact open spaces benefit from the ability to redirect coverage without a fixed field of view, giving operators control over what the camera focuses on.
- Sheltered Outdoor Positions: The compact 2-inch form factor and IP66 rating make it practical for under-eave, verandah or covered outdoor mounting where a full-size PTZ unit would be physically oversized.
- Low-Light Monitoring Locations: DarkFighter IR and 20m night-time range support consistent visibility after dark in car parks, covered walkways or poorly lit outdoor areas where fixed IR cameras may lack the ability to reframe as conditions change.
Why Choose the PTZ-N2404I-DE3
The PTZ-N2404I-DE3 occupies a specific position in the HiLook camera range: it is a proper network speed dome with full pan, tilt and optical zoom in a 2-inch compact housing, rather than a motorised varifocal camera that only adjusts lens angle during setup. This matters for operators who need to actively redirect coverage in response to events or adjust zoom level remotely. The DarkFighter IR engine distinguishes it from standard IR speed domes at this size, supporting low-light performance that a basic IR dome at the same price point cannot match. The 120dB WDR rating is genuinely high for a mini PTZ, making it a practical choice for backlit scenes rather than a workaround solution. H.265+ compression is included as standard, which reduces ongoing storage costs across larger installations. Available through Security Wholesalers, the PTZ-N2404I-DE3 suits installers who need a compact, IP66 and IK10-rated PTZ that provides real operational flexibility rather than a fixed-angle alternative.
Buyer Tip: The PTZ-N2404I-DE3 is a 2-inch mini speed dome, which means its 4x optical zoom and 20m IR range are optimised for short to medium-range coverage rather than long-distance monitoring across large open areas. If the installation requires zoom reach beyond 4x or IR coverage beyond 20m, a larger PTZ unit with a longer IR rating and higher zoom ratio will be a better fit. For compact entrance, lobby or sheltered outdoor positions where flexible framing is the primary need, the 2-inch form factor is an advantage rather than a limitation.
Key Features & Technical Specifications
| Model |
HiLook PTZ-N2404I-DE3 |
| Resolution |
4MP |
| Camera Type |
Network IP Speed Dome (Mini PTZ) |
| Form Factor |
2-inch |
| Optical Zoom |
4x optical zoom |
| IR Technology |
DarkFighter Enhanced IR |
| IR Range |
Up to 20m |
| Wide Dynamic Range |
120dB True WDR |
| Video Compression |
H.265+ |
| Ingress Protection |
IP66 |
| Vandal Rating |
IK10 |
| Network Interface |
IP Network camera |
| Brand |
HiLook (by Hikvision) |
Ideal Use Cases
Building Entrances and Lobbies
120dB WDR handles the strong backlight common at entry points, while pan and tilt control allows the operator to follow activity across the doorway or lobby without relying on multiple fixed cameras.
Retail Counters and Shop Floors
4MP resolution combined with 4x optical zoom lets staff or security operators zoom in on transaction areas or shelf sections without needing a separate close-up camera installed at each position.
Covered Car Parks and Walkways
DarkFighter IR and 20m night-time range support consistent monitoring in partially lit covered areas, while the IK10 vandal rating provides durability against contact in areas with regular foot traffic.
Sheltered Outdoor Eave and Wall Positions
The compact 2-inch housing and IP66 rating make the PTZ-N2404I-DE3 a practical fit for under-eave or covered outdoor mounting positions where a larger PTZ unit would be physically oversized for the space.
Small Business Perimeter Access Points
H.265+ compression keeps recording costs manageable for small business NVR setups, while active PTZ control means a single camera at a gate or side access point can cover a wider arc than any fixed-lens alternative.
Choosing the Right Model
- Choose this model if: You need a compact IP speed dome with full pan, tilt and 4x optical zoom, DarkFighter IR for reliable low-light performance, and dual IP66 and IK10 protection in a 2-inch form factor suited to entrances, small commercial spaces or sheltered outdoor mounting.
- Choose a different model if: The installation requires IR coverage beyond 20m, optical zoom greater than 4x, or long-range outdoor monitoring across a large yard or open perimeter. A full-size PTZ with a higher zoom ratio and longer IR specification will be better matched to those requirements.
- Choose a different model if: A fixed wide-angle view is sufficient for the location and no active PTZ control is needed. A fixed-lens turret or dome camera at the same resolution will typically deliver a wider field of view and lower overall cost for set-and-forget coverage.
FAQs

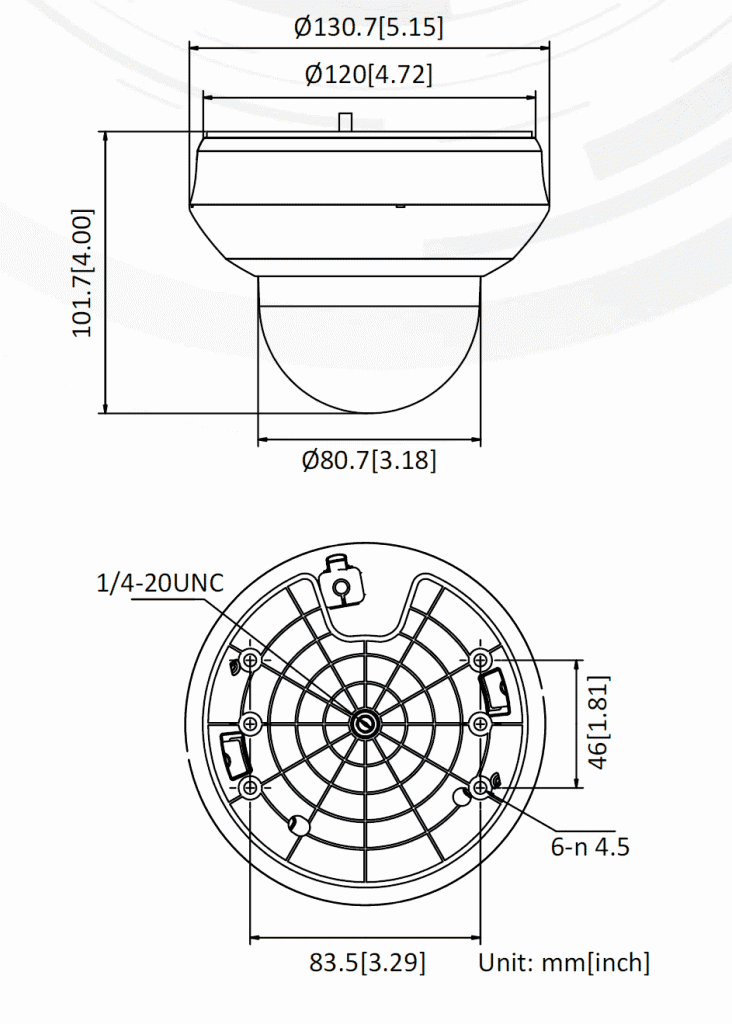

- What does the 2-inch form factor mean for installation?
The 2-inch designation refers to the compact size of the speed dome housing. It is noticeably smaller than standard or full-size PTZ units, making it easier to install in ceiling-mounted, under-eave or wall-bracket positions where a larger PTZ would be physically unsuitable or visually intrusive. The compact size does not remove pan, tilt or zoom functionality, though it does limit the zoom range to 4x and IR coverage to 20m.
- Is the PTZ-N2404I-DE3 suitable for outdoor mounting?
Yes. The camera carries an IP66 rating, which means it is fully protected against dust ingress and water jets from any direction. Combined with IK10 vandal resistance, it is appropriate for exposed outdoor positions including wall-mounted and under-eave locations. It should be positioned to avoid direct and prolonged submersion, which IP66 does not cover.
- How does DarkFighter IR differ from standard IR?
DarkFighter is Hikvision’s low-light imaging technology, applied here to the HiLook PTZ-N2404I-DE3 to improve sensitivity and clarity in low-illumination conditions before and beyond the IR activation threshold. In practical terms, this means the camera maintains more usable detail in dimly lit environments compared with cameras using standard IR without DarkFighter processing, though the IR range remains 20m.
- Does the camera support H.265+ compression?
Yes. H.265+ is confirmed for the PTZ-N2404I-DE3. This compression format reduces the bit rate and file size of recorded footage compared with H.264, which lowers the storage space required on a connected NVR and reduces the bandwidth used on the network. To take full advantage of H.265+, the recording device must also support H.265+ decoding.
- What WDR rating does the PTZ-N2404I-DE3 have, and why does it matter at entrances?
The camera includes 120dB true Wide Dynamic Range. At building entrances, the sensor regularly faces a bright outdoor background behind a subject standing in a shaded doorway. Standard cameras struggle to expose both correctly. At 120dB, the PTZ-N2404I-DE3 processes the difference between the bright and dark areas within a single frame, producing a more balanced image that retains usable detail in both the subject and the background.
- Where can I find the datasheet and technical documentation for the PTZ-N2404I-DE3?
The official datasheet is available through Security Wholesalers on the product page. A direct link to the PDF is included in the Additional Information section below. It covers full technical specifications, dimensions and mounting details for the PTZ-N2404I-DE3.
