Product Overview
Covering larger homes, commercial premises and multi-entry business sites, this HiLook 10-camera AcuSense kit bundles 10 x IPC-T262H-MU turret cameras with the HiLook NVR-216MH-C-16P 16-channel PoE recorder into a single, scalable surveillance system. Each camera delivers 6MP resolution with a 2.8mm fixed lens, 30m IR night vision and 120dB Wide Dynamic Range, providing usable detail across driveways, entry points, car parks and perimeter fencing in challenging light conditions. Equipped with AcuSense deep-learning classification, the system separates human and vehicle movement from general motion, reducing event noise across 10 camera zones simultaneously. Built with H.265+ compression to keep storage requirements in check and IP67 weatherproofing for outdoor durability, this kit connects each camera directly to the NVR over a single Cat5e or Cat6 run, with 16 PoE ports handling power and data together. It is well suited to sites where running separate power cabling is impractical and where a clean, single-recorder system architecture is preferred.
Key Capabilities
AcuSense Human and Vehicle Detection
All 10 cameras use deep-learning classification to distinguish humans and vehicles from animals, foliage and other movement triggers. Across a 10-camera site, this keeps alert volume manageable and ensures recorded events are tied to meaningful activity rather than background noise.
16-Channel PoE Architecture
The NVR-216MH-C-16P provides 16 PoE ports, powering and connecting cameras over a single Cat5e or Cat6 cable per channel. With 10 cameras in use, 6 ports remain available for future expansion without requiring a separate PoE switch or additional power supplies at camera locations.
6MP Resolution with 120dB WDR
Each IPC-T262H-MU captures at 6MP, providing enough detail to identify faces and number plates at typical entry-point distances. The 120dB Wide Dynamic Range handles scenes with bright sunlight and deep shadow simultaneously, including garage entrances, shopfronts and gate lines.
30m IR Night Vision
Built-in EXIR LEDs provide up to 30m of infrared illumination per camera. This range is suited to driveways, walkways and building perimeters where subjects approach from a predictable direction, maintaining usable monochrome footage in complete darkness without additional lighting infrastructure.
H.265+ Compression Across All Channels
H.265+ encoding reduces storage consumption significantly compared to older H.264 systems. Running 10 x 6MP cameras continuously, this compression efficiency is important for managing HDD lifespan and determining the right storage size, as it can extend recording duration by up to 50% over standard H.265.
4K HDMI Output and Mobile Viewing
The NVR-216MH-C-16P outputs up to 4K resolution over HDMI, supporting a high-resolution monitor for on-site review. Mobile app access lets owners and managers check live and recorded footage remotely, making this system suitable for sites where permanent on-site monitoring is not always possible.
Best For
- Large Residential Properties: Homes with multiple entry points, long driveways and outbuildings benefit from 10 x 6MP turret cameras covering all zones from a single 16-channel NVR.
- Small to Medium Commercial Sites: Shopfronts, warehouses and office buildings needing consistent outdoor coverage across several walls or building faces, with smarter alerting via AcuSense classification.
- Sites Requiring Scalable Expansion: With 16 PoE ports and only 10 cameras in use, the system has 6 spare channels ready for additional cameras as coverage requirements grow, without replacing the recorder.
- Installers Deploying PoE Cat-Cable Runs: The plug-and-play PoE architecture eliminates separate power wiring at each camera point, streamlining installation labour across a 10-camera site.
Why Choose the HiLook IPC-T262H-MU 10-Camera AcuSense Kit
This kit brings together confirmed hardware that works from day one as a matched system. The IPC-T262H-MU cameras are purpose-built for outdoor turret mounting, with IP67 weatherproofing and a low-profile housing suited to eaves, soffits and exterior walls. The AcuSense detection engine runs at camera level, not just on the recorder, which means classification happens before footage reaches the NVR and alert triggers are more consistent. Running 10 cameras at 6MP with H.265+ compression through a single 160Mbps NVR keeps the system within bandwidth limits without sacrificing frame rate. A simpler kit with fewer megapixels or no AI classification would require manual review of far more footage to identify relevant events. Available at Security Wholesalers, this kit is sized for sites that need genuine multi-zone coverage now, with capacity already built in for future expansion.
Package Inclusions
Buyer Decision Tips
Storage Planning: Running 10 x 6MP cameras at standard frame rates with H.265+ compression, a 4TB surveillance HDD provides approximately 10 to 14 days of continuous recording depending on motion activity and quality settings. A 6TB or 8TB drive extends this meaningfully for sites where longer retention is required. The NVR-216MH-C-16P supports a single HDD bay, so choose the largest capacity drive that fits your retention requirement from the outset, as adding more drives is not possible on this recorder model.
Cable Run Planning: Each IPC-T262H-MU camera is PoE-powered and connects to the NVR over a single Cat5e or Cat6 cable. The maximum recommended PoE run from the NVR to each camera is 100 metres. For installations where cameras are spread across a larger site, plan cable routes before purchase and confirm each run stays within this distance. If any camera position exceeds 100 metres, a PoE extender or intermediate switch will be required and should be budgeted separately.
Key Features & Technical Specifications

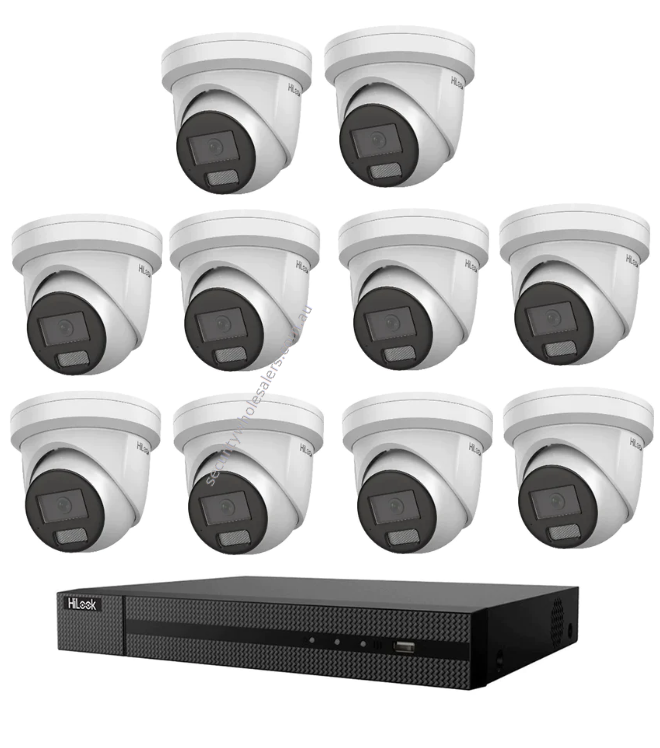

| Kit Configuration |
10 x IPC-T262H-MU cameras + 1 x NVR-216MH-C-16P |
| Camera Resolution |
6MP (3072 x 2048) |
| Lens Type |
2.8mm fixed lens |
| IR Night Vision Range |
Up to 30m (EXIR) |
| Wide Dynamic Range |
120dB True WDR |
| AI Detection |
AcuSense human and vehicle classification |
| Audio |
Built-in microphone (audio input) |
| Video Compression |
H.265+ / H.265 / H.264+ / H.264 |
| Camera Weatherproofing |
IP67 |
| Camera Housing |
Outdoor turret (eyeball) |
| NVR Channels |
16 channels |
| NVR PoE Ports |
16 x PoE (plug and play) |
| NVR Bandwidth |
160Mbps incoming |
| NVR Video Output |
HDMI (4K) and VGA |
| NVR Storage |
1 x HDD bay (no HDD included) |
| Remote Viewing |
Mobile app supported |
Ideal Use Cases
Large Residential Properties
Homes with multiple entry points, a double garage, side gates and rear yard access typically require 8 to 12 camera positions. This kit covers all standard zones with 10 x 6MP turret cameras, delivering usable image detail at each point via the 2.8mm lens and 30m IR.
Retail and Shopfront Premises
Shops needing coverage across a main entrance, loading area, car park and staff entry benefit from AcuSense classification on all 10 channels, which keeps alert volume focused on customer and delivery activity rather than general background movement or passing traffic.
Small Warehouses and Yards
Outdoor turret cameras with IP67 weatherproofing and 30m IR are suited to wall-mounting on warehouse exteriors, roller door surrounds and yard perimeters. The PoE connection simplifies installation in locations where AC power at each camera point would be disruptive to existing infrastructure.
Strata and Apartment Complexes
Multi-unit residential sites with shared carparks, lobby entries, bin areas and lift lobbies often need 8 to 12 cameras to achieve full perimeter coverage. The 16-channel NVR handles the full kit with spare capacity for additional cameras covering internal corridors or lobby areas.
Childcare Centres and Schools
External perimeter coverage at education facilities typically requires cameras at multiple gates, car drop-off zones and building corners. AcuSense detection identifies pedestrian activity accurately in these high-foot-traffic environments, and the built-in microphone on each IPC-T262H-MU supports audio capture for incident documentation.
Choosing the Right Model
- Choose this kit if: You need 10 outdoor turret cameras with AcuSense AI detection, 6MP resolution and PoE connectivity managed from a single 16-channel recorder, with room to add up to 6 more cameras later without replacing the NVR.
- Choose a different kit if: Your site needs full-colour night vision rather than infrared, as these cameras use IR illumination only and do not include colour night imaging. A kit with full-colour or warm-light turret cameras would be more appropriate where colour detail after dark is a priority.
- Choose a different kit if: You require varifocal lenses on any camera position, for example to cover a long driveway or a car park aisle where a 2.8mm field of view would be too wide and detail at distance would be insufficient. Fixed-lens 2.8mm cameras are suited to close-to-medium range coverage.
FAQs
- Does this kit include a hard drive?
No. The NVR-216MH-C-16P has a single HDD bay but no drive is supplied with the kit. A surveillance-grade hard drive (such as WD Purple or Seagate Skyhawk) must be purchased separately. For 10 x 6MP cameras recording continuously with H.265+ compression, a 4TB drive typically covers 10 to 14 days. A 6TB or 8TB drive is recommended for longer retention requirements.
- How does AcuSense work across all 10 cameras in this kit?
AcuSense is a deep-learning classification feature built into each IPC-T262H-MU camera. Each camera analyses its own image feed and categorises motion events as human, vehicle or other. This happens at camera level before the event is sent to the NVR, so across 10 channels the system filters events consistently and keeps alert notifications tied to actual human or vehicle movement rather than general motion triggers.
- Can I add more cameras to this system later?
Yes. The NVR-216MH-C-16P has 16 PoE ports, and this kit uses 10 of them, leaving 6 ports available for additional cameras. Any HiLook or compatible PoE IP camera can be added up to the 16-channel limit without replacing the recorder. This makes the kit a practical starting point for sites that may expand coverage over time.
- What cable type is needed to connect the cameras to the NVR?
Each camera connects to the NVR using a single Cat5e or Cat6 Ethernet cable. The cable carries both data and PoE power simultaneously, so no separate power cable is required at each camera location. The maximum recommended cable length per run is 100 metres from the NVR to the camera.
- Do the IPC-T262H-MU cameras work in complete darkness?
Yes. Each camera is fitted with built-in EXIR LEDs providing up to 30m of infrared illumination. In complete darkness, the cameras automatically switch to monochrome IR mode, producing usable footage of approaching subjects at distances up to 30 metres. Colour night vision is not a feature of this model, as it uses IR rather than white-light illumination.
- Does the built-in microphone support two-way communication?
No. Each IPC-T262H-MU includes a built-in microphone for audio capture only. This allows ambient sound and voice to be recorded alongside video footage, which can be useful for incident review. There is no built-in speaker in these cameras, so two-way voice communication is not supported.
- Where can I get support for this kit and is a datasheet available?
The HiLook IPC-T262H-MU datasheet is linked in the Additional Information section below. Technical support and product queries for this kit are handled through Security Wholesalers, where the kit is sold as a matched, tested combination. For installation questions including cable planning, storage sizing and NVR configuration, the team can assist prior to purchase.
Cabling Considerations
- Cable Type: Cat5e (minimum) or Cat6 (recommended) Ethernet cable for all camera-to-NVR runs. Cat6 is preferred for longer runs and where future bandwidth headroom may be needed.
- Maximum Cable Run: 100 metres per camera from the NVR PoE port. Runs exceeding this distance will result in unreliable PoE power delivery and potential signal loss.
- PoE Considerations: All 16 PoE ports on the NVR-216MH-C-16P are plug-and-play. No separate PoE switch or power injector is required for any of the 10 cameras included in this kit. If additional cameras beyond this kit are added at a later stage, confirm the NVR’s total PoE power budget against the combined draw of all connected cameras.
- Wiring Tips: Run cables through conduit or wall cavities before securing cameras in final positions. Label each cable at both ends during installation to simplify future troubleshooting across 10 camera runs. For outdoor runs, use outdoor-rated Cat6 with a UV-stable jacket to prevent degradation from sun exposure over time.
