Product Overview

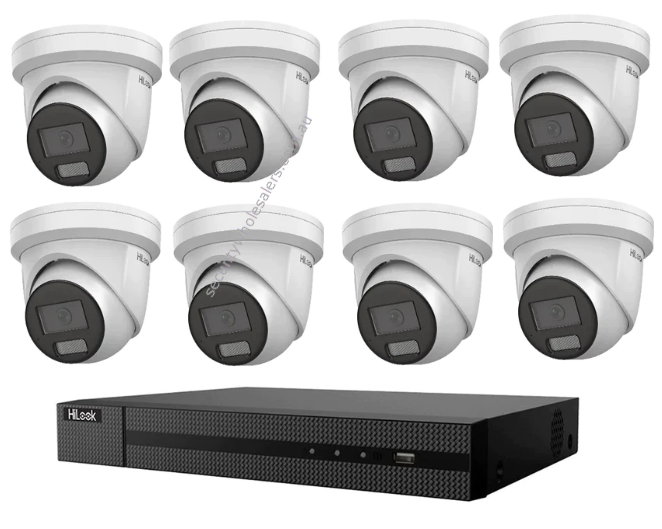

Building a multi-zone surveillance system across a medium to large property becomes significantly more straightforward with a pre-matched kit designed around a single ecosystem. The IPC-T282H-MU 8-camera kit pairs 8 x 8MP AcuSense turret cameras with a HiLook NVR-216MH-C-16P 16-channel PoE NVR, delivering a cohesive system where cameras connect directly to the recorder via a single Cat5e or Cat6 cable per camera. Each IPC-T282H-MU turret camera captures at 3840 x 2160 resolution with a 2.8mm fixed lens covering 113 degrees horizontally, and includes 30m EXIR IR night vision, 120dB WDR, IP67 weatherproofing, and a built-in microphone for on-site audio recording. AcuSense deep-learning classification filters motion alerts down to human and vehicle targets only, reducing unwanted notifications from trees, animals, and passing headlights. The 16-channel NVR supports 160Mbps incoming bandwidth and 4K playback, and has 8 spare channels available for future expansion. No hard drive is included and must be added separately.
Key Capabilities
8MP Resolution Across All 8 Cameras
Every camera in this kit captures at 3840 x 2160, giving each coverage zone enough detail to identify individuals, read number plates at close range, and review incidents with a level of clarity that 4MP or 5MP systems cannot match.
AcuSense Human and Vehicle Classification
AcuSense deep-learning technology on each IPC-T282H-MU filters motion events by target type, triggering alerts only when a human or vehicle is detected. This is particularly useful on properties where wind, foliage, or small animals would otherwise generate constant false triggers.
16-Port PoE NVR with Plug-and-Play Setup
The NVR-216MH-C-16P supplies power and carries video data over a single Cat cable per camera. With 16 PoE ports and 160Mbps incoming bandwidth, there is no separate power cabling required at each camera location, which simplifies both initial installation and any future repositioning.
Built-In Microphone on Every Camera
Each IPC-T282H-MU includes a built-in microphone, capturing ambient audio alongside video at every camera position. This adds useful context to recorded incidents and supports on-site monitoring where audio evidence may be required.
8 Spare Channels for Future Expansion
The 16-channel NVR ships with 8 cameras connected, leaving 8 PoE ports available to add further cameras as monitoring needs grow. This avoids the cost of replacing the recorder when expanding coverage to additional zones or buildings.
H.265+ Compression and 4K NVR Playback
H.265+ encoding reduces the file size of 8MP footage compared to H.264, stretching hard drive storage capacity further across 8 cameras recording continuously. The NVR supports 4K playback output, so recorded footage can be reviewed at full resolution on a compatible monitor.
Best For
- Multi-Zone Residential Properties: Large homes with multiple entry points, driveways, side gates, and outdoor living areas benefit from 8 independent 8MP coverage zones fed into a single 16-channel NVR.
- Small to Medium Commercial Sites: Retail premises, offices, warehouses, and light industrial sites needing IP-grade 8MP monitoring across multiple areas with smart alert filtering via AcuSense.
- Installers Wanting a Matched System: Pre-matched camera and NVR kits eliminate compatibility guesswork, with all 8 cameras and the recorder verified to work together within the HiLook by Hikvision ecosystem.
- Sites Planning Staged Expansion: The 16-channel NVR provides 8 spare PoE ports from day one, meaning additional cameras can be added later without replacing the recorder.
Why Choose the IPC-T282H-MU 8-Camera Kit
The IPC-T282H-MU kit stands apart from lower-resolution alternatives by delivering 8MP imaging on all 8 cameras rather than mixing resolutions across zones. Where a standard 5MP kit might capture a face at 10 metres, the 3840 x 2160 output of each IPC-T282H-MU provides the detail margin needed at greater distances. AcuSense classification on every camera means the NVR only generates alerts when a human or vehicle is detected, not when clouds shift or a cat crosses the frame. The built-in microphone on each camera adds audio capture without requiring separate equipment. The 16-channel NVR-216MH-C-16P brings 160Mbps bandwidth and 4K playback to the system, with 8 spare channels available from the start for future growth. This kit is available through Security Wholesalers with hard drive storage selected separately to match actual recording duration requirements for each site.
Package Inclusions
Buyer Decision Tips
Hard Drive Sizing: The NVR-216MH-C-16P supports 1 internal hard drive and no HDD is included in this kit. With 8 cameras recording at 8MP using H.265+ compression, storage consumption is higher than a standard 4MP system. A 4TB surveillance-grade drive typically provides around 7 to 10 days of continuous recording across 8 cameras at standard frame rates, depending on motion frequency and bitrate settings. Sites needing longer retention should select a 6TB or 8TB drive when ordering.
Lens Suitability for the Location: Every IPC-T282H-MU in this kit is fitted with a 2.8mm fixed lens providing a 113-degree horizontal field of view. This is well suited to wide-area coverage of driveways, carparks, entrances, and open yards. It is not suited to long narrow corridors or applications requiring a tighter field of view to read detail at distances beyond 10 to 12 metres. If a narrower angle is needed for a specific zone, that position will require a separate camera with a longer focal length lens.
Key Features & Technical Specifications
| Camera Model |
HiLook IPC-T282H-MU |
| NVR Model |
HiLook NVR-216MH-C-16P |
| Camera Quantity |
8 cameras included |
| Resolution |
8MP (3840 x 2160) per camera |
| Image Sensor |
1/2.7″ Progressive Scan CMOS |
| Lens |
2.8mm fixed |
| Field of View |
Horizontal 113°, Vertical 62°, Diagonal 134° |
| IR Night Vision Range |
Up to 30m (EXIR 2.0) |
| Minimum Illumination |
0.01 Lux @ F1.6 (AGC on), 0 Lux with IR |
| WDR |
120dB True WDR |
| Video Compression |
H.265+/H.265/H.264+/H.264 |
| Shutter Speed |
1/3s to 1/100,000s |
| AI Detection |
AcuSense human and vehicle classification |
| Audio |
Built-in microphone (per camera) |
| Weather Rating |
IP67 |
| NVR Channels |
16 channels (8 in use, 8 spare) |
| NVR PoE Ports |
16 x PoE ports |
| NVR Incoming Bandwidth |
160Mbps |
| NVR Video Output |
HDMI and VGA |
| NVR Playback Resolution |
Up to 4K |
| Hard Drive |
Not included – 1 x HDD bay supported, selectable separately |
Ideal Use Cases
Large Residential Properties
Properties with multiple entry points, side access, garages, and outdoor areas benefit from 8 independently aimed turret cameras each recording at 8MP, with AcuSense filtering alerts to human and vehicle events only.
Retail Shopfronts and Stockrooms
The 113-degree horizontal field of view on each 2.8mm camera suits shop floor, counter, and stockroom ceiling coverage, with 8MP detail supporting product-level review of incidents at the shelf or counter.
Commercial Carparks and Loading Areas
IP67-rated cameras handle rain, dust, and temperature variation in exposed outdoor carparks and loading docks. AcuSense vehicle detection triggers alerts when vehicles enter monitored zones after hours.
Small Warehouses and Light Industrial Sites
8 cameras cover multiple internal and perimeter zones with 30m IR for low-light conditions inside buildings. The 16-channel NVR accommodates future camera additions without replacing the recorder when coverage needs expand.
Offices and Commercial Premises Needing Audio Records
Each IPC-T282H-MU includes a built-in microphone, so every camera position captures ambient audio alongside 8MP video. This is useful in reception areas, meeting rooms, and entry lobbies where audio context supports incident review.
Choosing the Right Model
- Choose this kit if: You need 8 cameras covering multiple zones at 8MP with AcuSense smart detection, a built-in microphone at each position, IP67 outdoor protection, and a 16-channel NVR that leaves room to add up to 8 more cameras later without replacing the recorder.
- Choose a different kit if: Your site requires cameras with variable focal lengths for long-distance narrow corridor coverage, colour night vision in zero-light conditions, or more than 1 hard drive bay for extended on-site retention. A kit built around varifocal cameras or a multi-bay NVR would be more appropriate for those requirements.
FAQs
- Does this kit include a hard drive?
No. The NVR-216MH-C-16P supports 1 internal surveillance-grade hard drive, which must be selected and added separately. Scroll down to the optional add-ons section on this product page to choose a compatible HDD. For 8 cameras recording continuously at 8MP with H.265+ compression, a minimum of 4TB is recommended, with 6TB or 8TB options providing longer retention windows.
- How many cameras can be connected to the NVR in total?
The NVR-216MH-C-16P has 16 PoE ports and supports up to 16 cameras. This kit ships with 8 cameras connected, leaving 8 ports available for future expansion. Additional HiLook or compatible Hikvision IP cameras can be added to those spare ports without any recorder upgrade.
- What does AcuSense detection do differently from standard motion detection?
Standard motion detection triggers on any pixel change in the frame, including trees moving in wind, passing headlights, or animals. AcuSense uses deep-learning classification on each IPC-T282H-MU to distinguish human and vehicle shapes from other motion types, so alerts are only generated for relevant targets. This substantially reduces the volume of unwanted notifications on a busy outdoor installation.
- Do I need to run separate power cables to each camera?
No. The NVR-216MH-C-16P has 16 built-in PoE ports that supply both power and data to each camera over a single Cat5e or Cat6 cable. There is no separate power supply required at the camera end. The maximum PoE cable run is typically 100 metres per camera from the NVR.
- Can the cameras be mounted on a wall rather than a ceiling?
Yes. The IPC-T282H-MU turret housing supports both ceiling and wall mounting. If mounting on a rendered or brick external wall where you need to conceal cabling behind the surface, a compatible junction box can be added from the optional add-ons section. Wall mount brackets are also listed in the add-ons for installations where the camera needs to be offset from a flat surface.
- Does the built-in microphone support two-way audio?
No. Each IPC-T282H-MU includes a built-in microphone for audio capture and recording only. There is no built-in speaker on the camera, so two-way audio communication is not supported. The microphone records ambient audio at each camera location for playback and review purposes.
- Where can I get support for this kit after purchase?
This kit is part of the Security Wholesalers range and comes with warranty and after-sales support. If you have questions about installation, HDD selection, or system configuration, the team at Security Wholesalers can assist. Details are available through the product listing and the Security Wholesalers website.
