Product SKU: HiLook-Turret-Kit-8MP/8CH-AcuSense-T282
Product Overview
For homes and small businesses wanting a straightforward path from unboxed hardware to a fully operational 8MP IP surveillance system, this HiLook AcuSense kit combines 4 outdoor turret cameras with an 8-channel PoE NVR in a single plug-and-play package. The IPC-T282H-MU cameras mount cleanly on eaves, soffits, and exterior walls, each delivering 8MP video through a 2.8mm fixed lens with a 113-degree horizontal field of view. Featuring 30m infrared night vision, 120dB true WDR for backlit scenes, H.265+ compression, and IP67 weatherproof construction, each camera is built for year-round outdoor use. AcuSense deep-learning classification filters alerts by human and vehicle targets, cutting down on unwanted notifications from trees, animals, and passing headlights. The included NVR-108MH-C-8P provides 8 PoE ports, 4K HDMI output, VGA output, 80Mbps total input bandwidth, and supports up to 8 cameras total, with 4 ports free for future expansion. A surveillance-grade hard drive is not included and must be added separately.
Key Capabilities

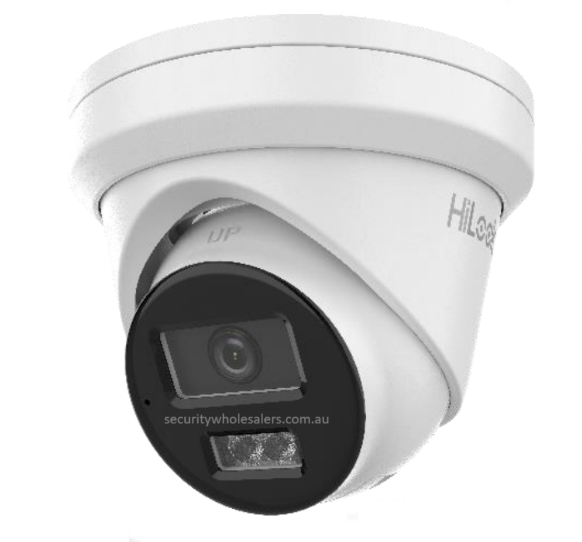

8MP Outdoor Turret Cameras
Each IPC-T282H-MU delivers 8MP resolution through a 2.8mm fixed lens with a 113-degree horizontal field of view. The turret housing is well suited to eave and soffit mounting, offering a low-profile footprint that sits flush against the building without protruding hardware.
AcuSense Human and Vehicle Detection
Deep-learning classification on each camera distinguishes human and vehicle targets from general motion. This means alarm notifications and recording triggers are generated by relevant activity, not by branches, insects, or passing vehicle headlights sweeping across the lens.
30m IR Night Vision
Infrared illumination covers up to 30 metres in complete darkness, keeping driveways, entry points, and side passages visible after dark. The EXIR technology provides even illumination across the frame without the overexposed centre spot common in basic IR cameras.
8-Channel PoE NVR with Plug-and-Play Setup
The NVR-108MH-C-8P powers and connects cameras over a single Cat5e or Cat6 cable per camera using its 8 built-in PoE ports. No separate power supplies or injectors are needed. 4K HDMI and VGA outputs allow connection to a monitor on site, with mobile viewing supported remotely.
120dB True WDR
120dB wide dynamic range handles high-contrast scenes where bright sunlight and deep shadow appear in the same frame. Front doors, garage entrances, and shopfronts with strong backlight or glare remain readable rather than washed out or silhouetted.
H.265+ Compression and IP67 Weather Protection
H.265+ reduces storage and bandwidth consumption compared to older compression formats, stretching the usable recording time on any hard drive fitted to the NVR. Each camera carries an IP67 rating, protecting against dust ingress and sustained water exposure across outdoor installations.
Best For
- Residential Perimeter Coverage: 4 cameras at 8MP cover the front entry, driveway, rear yard, and side access of most single dwellings, with the 2.8mm 113-degree field of view pulling in wide coverage at each position.
- Small Business Premises: Shopfronts, offices, and small warehouses benefit from 8MP detail and AcuSense filtering, which reduces nuisance alerts during quiet hours while keeping relevant events recorded and flagged.
- DIY and Installer PoE Deployments: The 8-port PoE NVR and automatic camera recognition simplify first-time installs. Running a single Cat cable per camera position eliminates the need for a separate power run to each camera.
- Sites Needing Future Expansion Room: With 4 cameras connected and 4 PoE ports remaining, this kit allows additional cameras to be added later without replacing the recorder.
Why Choose the IPC-T282H-MU 8CH AcuSense Kit
This kit is put together around confirmed specifications rather than marketing generics. The IPC-T282H-MU cameras bring 8MP resolution, 120dB true WDR, 30m EXIR night vision, IP67 weatherproofing, a built-in microphone, and AcuSense human and vehicle classification into a turret housing designed for outdoor eave and wall mounting. The NVR-108MH-C-8P complements the cameras with 8 PoE ports, 80Mbps input bandwidth, 4K HDMI output, and a single HDD bay, keeping the system compact without sacrificing performance. Where basic kits rely on pixel count alone, the AcuSense engine on each camera means recording and alert triggers are tied to meaningful activity rather than general movement. The built-in microphone on each camera adds audio capture without additional hardware. Available through Security Wholesalers, this kit is suited to installers and self-installers who want a validated 8MP HiLook system without sourcing cameras and an NVR separately.

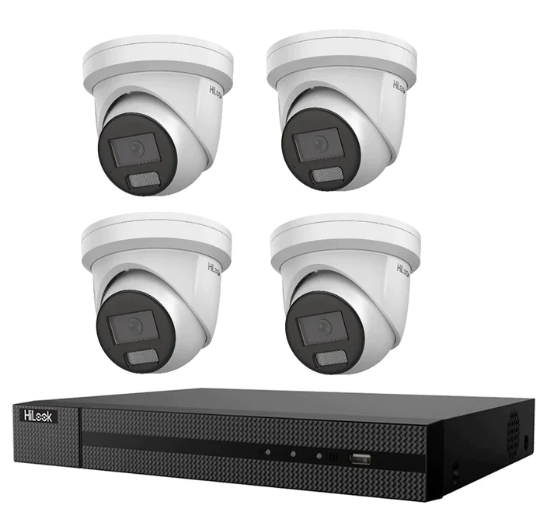

Package Inclusions
- 4 x HiLook IPC-T282H-MU 8MP AcuSense Outdoor Turret Camera – 2.8mm Fixed Lens, 113-degree Horizontal FOV, 30m IR, Built-In Microphone, 120dB True WDR, H.265+, IP67
- 1 x HiLook NVR-108MH-C-8P 8-Channel PoE NVR – 8 PoE Ports, 80Mbps Input, 4K HDMI, VGA, 1 HDD Bay, Without HDD
Buyer Decision Tips
Hard Drive Sizing: The NVR-108MH-C-8P ships without a hard drive fitted. At 8MP with H.265+ compression and continuous recording across 4 cameras, storage consumption is meaningful. A 4TB surveillance-grade drive is a practical starting point for most residential installs, while small businesses running 24-hour recording or planning to expand to more cameras should consider 6TB or 8TB. Surveillance-rated drives (WD Purple or Seagate SkyHawk) are recommended over standard desktop drives due to the write-intensive nature of continuous recording.
Camera Count and Expansion: This kit connects 4 cameras to an 8-port NVR, leaving 4 PoE ports free. If your site has more than 4 entry points or blind spots that need coverage now, plan your cable runs for all positions during the initial install even if cameras are added later. The 2.8mm fixed lens provides a wide view suited to general coverage areas. If you need to cover a long driveway or narrow corridor where a tighter field of view is more appropriate, a different lens focal length would be required, which is not available in this kit configuration.
Key Features & Technical Specifications
| Camera Model |
HiLook IPC-T282H-MU |
| NVR Model |
HiLook NVR-108MH-C-8P |
| Camera Resolution |
8MP |
| Lens Focal Length |
2.8mm fixed |
| Horizontal Field of View |
113 degrees |
| Vertical Field of View |
62 degrees |
| Diagonal Field of View |
134 degrees |
| IR Night Vision Range |
Up to 30m (EXIR) |
| Wide Dynamic Range |
120dB true WDR |
| Video Compression |
H.265+ |
| Smart Detection |
AcuSense human and vehicle classification (deep learning) |
| Built-In Microphone |
Yes |
| Camera Weatherproofing |
IP67 |
| Camera Power |
PoE (Power over Ethernet) |
| NVR Channels |
8 channels |
| NVR PoE Ports |
8 x Plug-and-Play PoE |
| NVR Input Bandwidth |
80Mbps |
| NVR Video Output |
4K HDMI, VGA |
| NVR Storage |
1 x SATA HDD bay (HDD not included) |
| NVR Supported Formats |
H.265+, H.265, H.264+, H.264 |
Ideal Use Cases
Residential Eave and Soffit Mounting
The turret housing of the IPC-T282H-MU sits flush against eave soffits with a tidy profile. The 113-degree horizontal field of view covers wide approach zones at entry points, driveways, and backyard gates without needing to angle a protruding bullet housing.
Shopfront and Small Business Monitoring
AcuSense human detection means after-hours alerts from the car park or shopfront are generated by people, not general movement. 8MP resolution captures usable footage for review and incident documentation at storefronts, reception areas, and loading zones.
Backlit Entry Points and Garage Approaches
The 120dB true WDR on each IPC-T282H-MU handles direct sunlight, reflections, and artificial lighting at entry points and garage doors. Faces and number plates remain visible in scenes where basic cameras would produce a silhouette or washed image.
Staged Installations Needing Growth Room
The NVR-108MH-C-8P accepts up to 8 cameras in total. With 4 cameras connected out of the box, installers can cable all planned positions during the first visit and commission the remaining 4 ports as additional cameras are added over time.
Night-Time Outdoor Coverage
EXIR infrared illumination at 30 metres keeps carparks, rear yards, and unlit side access paths visible in complete darkness. Even illumination across the frame avoids the overexposed centre spot associated with standard IR cameras, giving usable footage across the full field of view.
Choosing the Right Model
- Choose this kit if: You need a complete 4-camera 8MP outdoor IP system with smart human and vehicle detection, plug-and-play PoE cabling, and room to expand to 8 cameras on the same NVR without additional hardware.
- Choose a different configuration if: Your site requires cameras at distances greater than 30 metres from the NVR on a single cable run, or if you need a tighter focal length than 2.8mm for long-range identification at a specific corridor or driveway entry. A varifocal or higher IR range camera would better suit those positions. Similarly, if more than 4 camera positions must be covered immediately and expansion over time is not an option, a larger kit with a higher-channel NVR would be a more practical starting point.
FAQs
- Does this kit include a hard drive?
No. The NVR-108MH-C-8P ships with 1 SATA HDD bay but no drive fitted. A surveillance-rated hard drive such as a WD Purple or Seagate SkyHawk must be added separately. Storage capacity should be chosen based on how many cameras will run continuously and how many days of footage you want to retain before the drive overwrites.
- What does AcuSense actually filter out compared to standard motion detection?
Standard motion detection triggers on any pixel change in the scene, including wind-blown foliage, insects close to the lens, rain, and headlights sweeping across the frame. AcuSense uses deep-learning classification on each IPC-T282H-MU camera to identify whether detected movement is caused by a human or a vehicle, and only generates alerts or smart recording triggers for those targets.
- Can I mount these turret cameras on a wall rather than the ceiling or soffit?
Yes. The IPC-T282H-MU turret housing is compatible with direct surface mounting on walls as well as soffits and ceilings. The ball-and-socket adjustment allows the lens to be aimed at the correct coverage zone regardless of mounting surface. Optional wall-mount brackets are also available separately if a stand-off mount is preferred.
- How far can I run the Cat cable between each camera and the NVR?
PoE over structured Cat5e or Cat6 cabling is generally rated to 100 metres per run from the NVR PoE port to the camera. Keeping cable runs within this limit ensures stable power delivery and data throughput. Runs beyond 100 metres require a mid-span PoE extender, which is not included in this kit.
- Does the built-in microphone on the IPC-T282H-MU support two-way audio?
The IPC-T282H-MU includes a built-in microphone for audio capture at the camera location. The product data confirms a built-in microphone only. Two-way audio requires both a built-in microphone and a built-in speaker to be confirmed on the device, and a speaker is not confirmed on this model.
- Can I view footage from this kit on my phone?
Yes. The NVR-108MH-C-8P supports mobile viewing through the HiLook or Hik-Connect app. Once the NVR is connected to your network and configured, live and recorded footage can be accessed remotely on iOS and Android devices. Network setup including port forwarding or P2P configuration is required.
- How many cameras can I add to this system later?
The NVR-108MH-C-8P supports up to 8 IP cameras across its 8 PoE ports. This kit connects 4 cameras, leaving 4 ports available for future expansion. Additional HiLook or compatible Hikvision cameras can be added to those ports without replacing the recorder. The NVR’s 80Mbps input bandwidth should be factored into any expansion planning. This kit and the individual IPC-T282H-MU cameras are part of the Security Wholesalers range, making it straightforward to source additional cameras for expansion.
Product Video Samples
Additional Information
No additional downloads available for this product.
Cabling Considerations
- Cable Type: Cat5e or Cat6 is recommended for all camera runs. Cat6 is preferred on longer runs or in environments with electrical interference, as it provides better shielding and reduced crosstalk over distance.
- Maximum Cable Run: PoE is rated to a maximum of 100 metres per run from NVR PoE port to camera. Runs approaching or exceeding this distance risk power drop-off and potential camera instability.
- PoE Considerations: The NVR-108MH-C-8P powers all cameras directly through its 8 built-in PoE ports. No separate power supplies or injectors are required for the included 4 cameras. If expanding to 8 cameras, confirm that total power draw across all connected cameras does not exceed the NVR’s PoE power budget.
- Wiring Tips: Plan and cable all intended camera positions during the initial installation, even if only 4 cameras are being commissioned immediately. Pre-running cables to the 4 spare NVR ports avoids the need to re-enter ceiling spaces or re-route cables when additional cameras are added later. Terminate all runs at a central location near the NVR rather than daisy-chaining connections between cameras.
