Product Overview

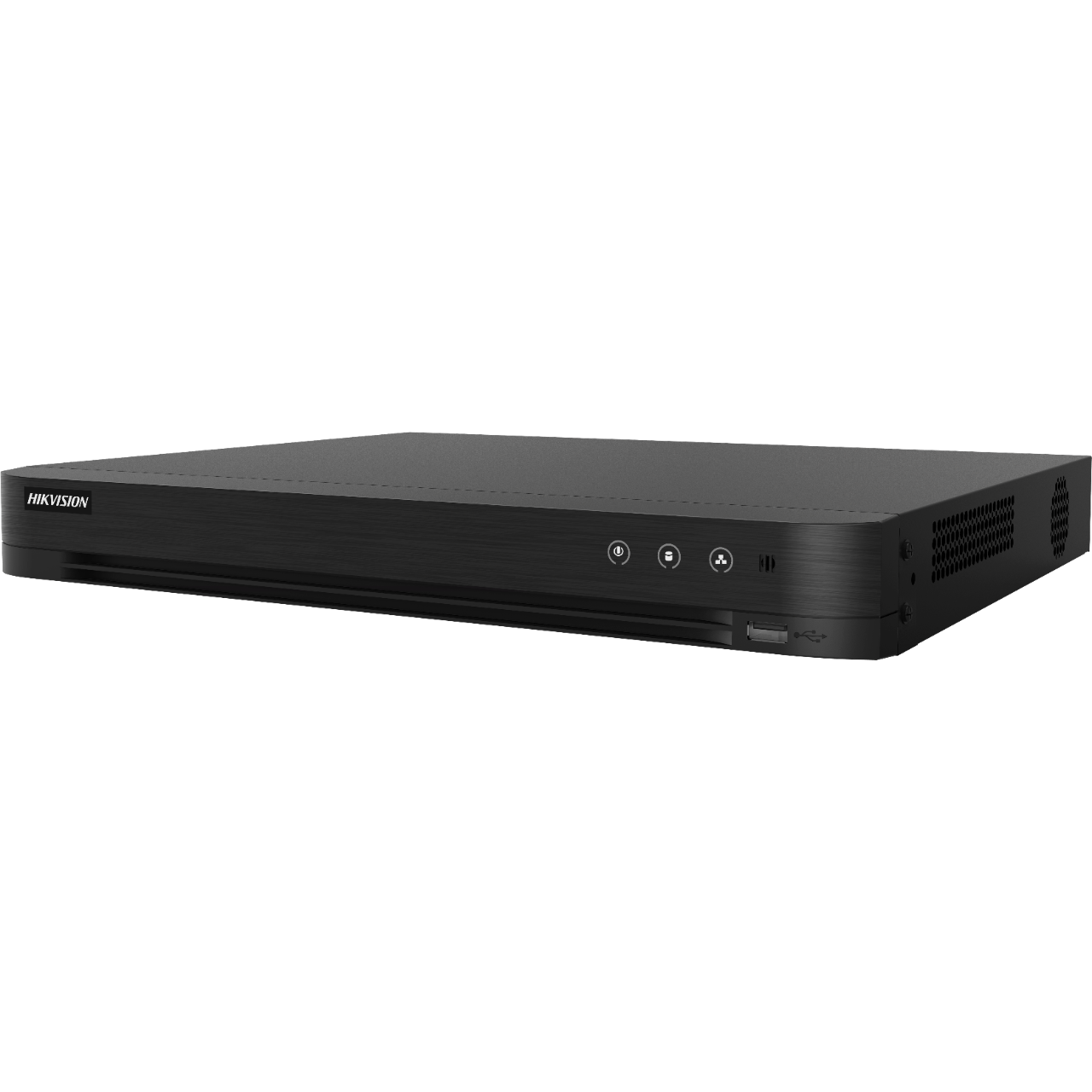

Installers upgrading legacy coaxial infrastructure to AcuSense-capable recording will find the Hikvision iDS-7216HUHI-M2/S a capable 16-channel hybrid DVR suited to sites that need to retain existing cabling while gaining deep learning-based motion analysis. Designed as a 1U rack-mount unit, it accepts signals from HDTVI, AHD, CVI, CVBS, and IP cameras on the same device, making it a practical transition recorder for mixed-technology sites. Featuring H.265 Pro+ compression and encoding up to 8 MP at 8 fps or 5 MP at 12 fps, it can handle modern high-resolution TVI4.0 cameras across all 16 BNC inputs. Built with deep learning-based Motion Detection 2.0 enabled by default on all analog channels, it classifies humans and vehicles to reduce nuisance alerts caused by environmental movement. It also includes perimeter protection on up to 4 channels, 2 SATA bays supporting up to 10TB per drive, and a 4K-capable HDMI output for local monitoring. This model is supplied without a hard drive, allowing installers to size storage to their specific retention requirements.
Key Capabilities
AcuSense Motion Detection 2.0 on All Analog Channels
Deep learning-based Motion Detection 2.0 is enabled by default across all 16 analog channels, classifying targets as human or vehicle. This significantly reduces false triggers from leaves, headlights, and other non-security movement, making event logs and alerts far more actionable for operators.
5-Signal Hybrid Input Compatibility
The iDS-7216HUHI-M2/S automatically detects and adapts to HDTVI, AHD, CVI, CVBS, and IP cameras on the same recorder. Sites transitioning from older analog cameras to newer IP or TVI4.0 models can mix technologies without replacing the recorder, protecting the existing cabling investment.
H.265 Pro+ Compression
H.265 Pro+ encoding reduces file sizes compared to H.264, allowing more days of footage to be stored on the same drives. For 16-channel systems recording continuously, this compression efficiency directly reduces HDD expenditure and extends how far back administrators can review footage.
Flexible IP Channel Expansion
Beyond the 16 analog BNC inputs, the recorder supports up to 24 IP channels in standard mode or up to 32 IP channels in enhanced IP mode. This lets installers scale a site with additional IP cameras over the network without replacing the recorder as the system grows.
4K HDMI Output with Simultaneous VGA
A 4K-capable HDMI output (up to 3840×2160 at 30Hz) supports high-resolution monitoring on a connected display, while simultaneous VGA output allows a second monitor to be connected at the same time. Both outputs can run independently, useful for control room or dual-screen review setups.
Dual SATA Bays, No HDD Included
Two SATA interfaces each support drives up to 10TB, giving a maximum raw capacity of 20TB. Supplied without a hard drive, installers can select drives matched to the site’s required retention period, camera count, and resolution without paying for storage capacity they do not need.
Best For
- Coaxial Infrastructure Upgrades: Sites with existing coaxial cabling that want to add AcuSense AI analytics without rewiring, by pairing this recorder with TVI4.0-compatible cameras over the existing BNC runs.
- Mixed-Technology Sites: Installations where a combination of older CVBS or AHD cameras and newer HDTVI or IP cameras need to share a single recorder during a staged technology rollout.
- 16-Channel Commercial Installs: Small to medium commercial premises such as warehouses, retail stores, or office campuses needing 16 cameras managed from a single 1U rack-mount recorder with local 4K display output.
- Storage-Flexible Deployments: Installers who prefer to specify and source their own SATA drives to match a site’s retention policy, rather than accepting a pre-loaded HDD that may be undersized or oversized for the application.
Why Choose the iDS-7216HUHI-M2/S
The iDS-7216HUHI-M2/S brings AcuSense deep learning analytics to a 16-channel coaxial DVR format, a combination not available on basic TVI recorders without AI processing. Unlike a standard DVR that triggers on any pixel change, this unit classifies detected objects as human or vehicle across all 16 analog channels by default, so operators deal with fewer nuisance notifications. H.265 Pro+ compression across resolutions up to 8 MP reduces storage consumption meaningfully compared to older codecs. The 5-signal adaptive input means existing AHD or CVBS cameras can remain online while TVI4.0 cameras are progressively added. Perimeter protection on up to 4 channels adds a line-crossing and intrusion detection layer that a basic motion-only DVR cannot provide. Available through Security Wholesalers, the iDS-7216HUHI-M2/S is a considered choice for installers who need AI-assisted analytics over coaxial cable without committing to a full IP infrastructure rebuild.
Buyer Decision Tips
Storage Planning: This recorder ships with no HDD installed. With 2 SATA bays accepting up to 10TB each, you have up to 20TB of raw capacity. Before ordering drives, calculate your required retention in days using the camera count, resolution (5 MP or 8 MP), frame rate, and compression codec. H.265 Pro+ will significantly reduce the drive size needed compared to H.264 at equivalent resolution and retention, so spec drives based on actual encoding settings rather than worst-case estimates.
Perimeter Protection Channel Limit: AcuSense perimeter protection (line crossing and intrusion detection) is available on up to 4 analog channels simultaneously on this unit. If your site design requires perimeter protection on more than 4 cameras concurrently, review whether this recorder’s channel allocation meets your zone coverage requirements before specifying it. Motion Detection 2.0 with human/vehicle classification remains active across all 16 analog channels regardless of the perimeter protection channel limit.
Key Features & Technical Specifications
| Analog Video Inputs |
16-ch, BNC interface (1.0 Vp-p, 75 ohm), coaxitron connection supported |
| Supported Analog Formats |
HDTVI, AHD, HDCVI, CVBS (5-in-1 adaptive) |
| HDTVI Input Resolution |
8 MP @ 15 fps, 5 MP @ 20 fps, 4 MP @ 30 fps, 3 MP @ 18 fps, 1080p @ 30 fps, 720p @ 60 fps |
| IP Camera Input |
8-ch standard (up to 24-ch); Enhanced IP mode: 16-ch (up to 32-ch), each up to 4 Mbps, up to 8 MP resolution |
| Video Compression |
H.265 Pro+ / H.265 Pro / H.265 / H.264+ / H.264 |
| Encoding Resolution (Main Stream) |
8 MP @ 8 fps, 5 MP @ 12 fps, 3K @ 12 fps, 4 MP @ 15 fps, 3 MP @ 18 fps, 1080p/720p @ 25/30 fps |
| Video Bitrate |
32 Kbps to 10 Mbps |
| Total Bandwidth |
128 Mbps |
| Synchronous Playback |
16-ch |
| HDMI Output |
1-ch, up to 4K (3840×2160) @ 30Hz; simultaneous HDMI/VGA output supported |
| VGA Output |
1-ch, up to 1920×1080 @ 60Hz; simultaneous HDMI/VGA output supported |
| HDD Bays |
2 x SATA interfaces, up to 10TB per drive (no HDD included) |
| AI Analytics |
Motion Detection 2.0 (human/vehicle classification) on all 16 analog channels; Perimeter protection up to 4-ch; Face detection/search |
| Audio |
1-ch audio input RCA (up to 16-ch via coaxial); 1-ch audio output RCA; G.711u compression at 64 Kbps |
| Network Interface |
1 x RJ45, 10/100/1000 Mbps self-adaptive; up to 128 remote connections |
| USB Interfaces |
Front: 1 x USB 2.0; Rear: 1 x USB 3.0 |
| Serial Interface |
RS-485 (half-duplex) |
| Power Supply |
12 VDC, 5A; consumption ≤19W |
| Dimensions (W x D x H) |
380 x 320 x 48mm; weight ≤2.1 kg |
| Operating Temperature |
-10°C to +55°C |
Ideal Use Cases
Retail Stores and Shopping Centres
16 BNC channels cover customer areas, stockrooms, entry points, and car parks from one unit. Motion Detection 2.0 distinguishes staff and customers from other movement, so only genuine activity events are flagged during after-hours monitoring.
Warehouse and Industrial Facilities
Perimeter protection on up to 4 channels can monitor loading dock gates or fence-line zones for after-hours intrusion. The 8 MP TVI4.0 input support means high-resolution cameras can be used to identify people and vehicles entering key areas via the existing coaxial runs.
Staged Technology Transitions
Sites replacing an older DVR in phases can connect legacy CVBS or AHD cameras alongside new TVI4.0 5 MP or 8 MP cameras on the same recorder. The 5-signal adaptive input handles mixed camera types without requiring a separate recorder for each technology.
School and Education Campuses
Covering classrooms, corridors, entry points, and exterior grounds from 16 channels suits a single-building school. H.265 Pro+ compression reduces the storage overhead for continuous recording across all cameras, keeping drive costs manageable for education budgets.
Multi-Tenancy and Commercial Office Buildings
A 1U rack-mount profile fits neatly into a comms room cabinet. The 4K HDMI output drives a monitoring display for building management, while simultaneous VGA output allows a secondary screen for security staff without splitting or duplicating the signal externally.
Choosing the Right Model
- Choose this model if: Your site has existing coaxial cabling and you need a 16-channel AcuSense DVR with human/vehicle classification across all analog channels, H.265 Pro+ compression, and the flexibility to select your own SATA drives. It suits standard commercial installs where perimeter protection on up to 4 channels meets the zone requirements.
- Choose a different model if: Your site requires perimeter protection across more than 4 channels simultaneously, a higher total system bandwidth than 128 Mbps, or expanded HDD capacity beyond 10TB per drive. Newer variants in the same family offer higher bandwidth, larger supported drive sizes, and expanded AI channel counts for more demanding deployments. Check current availability with your supplier, as this specific variant has been noted as replaced by an updated version.
FAQs
- Does the iDS-7216HUHI-M2/S come with a hard drive installed?
No. This unit is supplied without a hard drive. It has 2 SATA bays, each supporting drives up to 10TB, giving a maximum raw capacity of 20TB. You select and source your own SATA surveillance-grade drives based on the retention period and recording resolution your site requires.
- Which camera types does this DVR support on its BNC inputs?
The recorder automatically detects and adapts to HDTVI, AHD (up to 5 MP), HDCVI (up to 4 MP), and CVBS signals on all 16 BNC inputs. This makes it compatible with a wide range of existing analog cameras as well as new TVI4.0 cameras at up to 8 MP resolution, without any manual switching required.
- What is Motion Detection 2.0 and how does it differ from standard motion detection?
Motion Detection 2.0 uses deep learning to classify detected movement as either a human or vehicle, rather than triggering on any change in pixels. This means events caused by swaying trees, passing headlights, insects, or shadows are filtered out at the recorder level, leaving an event log populated by genuine human and vehicle activity across all 16 analog channels.
- How many channels support perimeter protection on this unit?
Perimeter protection, which includes line crossing detection and intrusion detection, is available on up to 4 analog channels simultaneously. Motion Detection 2.0 with human/vehicle classification continues to operate on all 16 channels regardless of the perimeter protection limit. If your site requires perimeter zone analytics on more than 4 cameras concurrently, confirm this limit suits your layout before specifying this recorder.
- Can IP cameras be connected to this DVR alongside analog cameras?
Yes. In standard mode the recorder supports 8 IP channels, expandable to 24. In enhanced IP mode it supports 16 IP channels, expandable to 32. IP cameras connected via the network support up to 8 MP resolution and H.265+/H.265/H.264+/H.264 encoding. Each IP channel is limited to 4 Mbps and the total recorder bandwidth is 128 Mbps.
- What display outputs are available on the iDS-7216HUHI-M2/S?
The recorder has 1 HDMI output supporting up to 4K (3840×2160) at 30Hz and 1 VGA output up to 1920×1080 at 60Hz. Both outputs operate simultaneously, so a primary monitoring display and a secondary review screen can be connected at the same time without additional hardware.
- Where can I find technical support and purchasing information for this recorder?
The iDS-7216HUHI-M2/S is part of the Security Wholesalers range of Hikvision hybrid DVRs. For stock availability, compatibility queries, or drive sizing advice for your specific site, contact the Security Wholesalers team directly. Note that a newer variant has superseded this model, so confirming current availability before specifying it in a project is recommended.
Additional Information
like leaves and lights;
| Image | Name | Price | Buy |
|---|
| Hikvision DS-2CE78H8T-IT3F TVI4.0 5MP Outdoor Turret Camera 60m IR, 4 in 1, IP67, 12VDC, 2.8mm | $115.00 $122.00 inc GST +3 Year Warranty & Support |
|
| Hikvision DS-2CE78U7T-IT3F HIK-2CE78U7IT3F2 TVI4.0 8MP Outdoor Turret Camera 60m IR, 4 in 1, IP67, 12VDC, 2.8mm | $138.00 $164.00 inc GST +3 Year Warranty & Support |
|

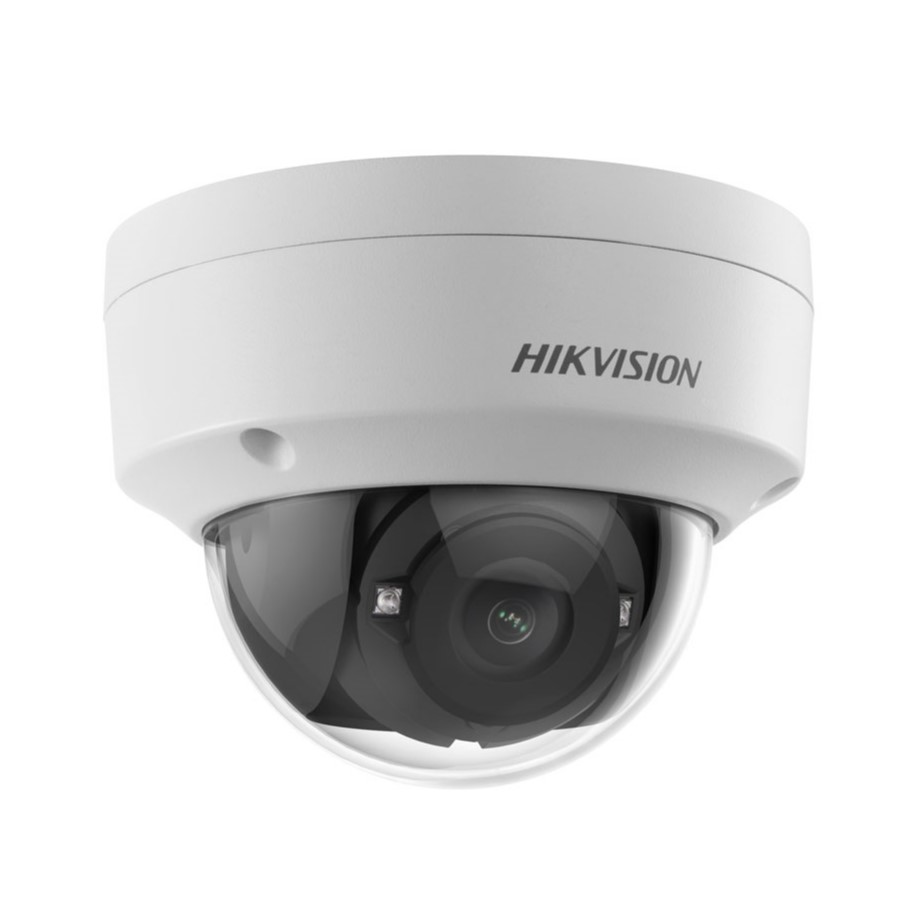

| Hikvision DS-2CE57U7T-VPITF TVI4.0 8MP Outdoor Dome Camera, WDR, 30m IR, 4 in 1, IP67, 12VDC, 2.8mm | $176.00 inc GST +3 Year Warranty & Support |
|
