Product Overview
Built around 4 black turret cameras and an 8-channel PoE NVR, this HiLook IPC-T282H-MU kit gives homes and small businesses a complete, plug-and-play IP surveillance system without requiring a separate power run to each camera. Each IPC-T282H-MU camera captures 8MP video through a 2.8mm fixed lens with a 113-degree horizontal field of view, backed by 30m infrared night vision and 120dB True WDR for scenes with mixed lighting. Featuring AcuSense deep learning, the cameras classify motion events as human or vehicle, which cuts down on irrelevant alerts from passing animals or swaying foliage. Each camera also includes a built-in microphone for on-site audio capture. The included NVR-108MH-C-8P supports all 8 PoE channels with plug-and-play detection, an 80Mbps incoming bandwidth, 4K HDMI output, VGA output, mobile viewing, and a single HDD bay. No hard drive is included, allowing storage capacity to be selected separately based on retention requirements.
Key Capabilities
8MP Resolution with Wide Coverage
Each IPC-T282H-MU camera records at 8 megapixels through a 2.8mm lens, delivering a 113-degree horizontal field of view. This allows each camera to cover a broad area such as a front yard, driveway entrance, or shopfront without needing to zoom in and lose detail.
AcuSense Human and Vehicle Classification
Deep learning algorithms on each camera analyse moving objects and distinguish people and vehicles from other motion sources. Notifications triggered by actual human or vehicle activity are far more actionable than alerts caused by wind, insects, or small animals.
30m Infrared Night Vision
EXIR night vision illuminates up to 30 metres in darkness, maintaining usable image quality at gates, side access paths, and car spaces that are unlit after hours. Combined with 8MP resolution, objects at night retain enough detail for review purposes.
8-Port PoE NVR with Plug-and-Play Setup
The NVR-108MH-C-8P detects HiLook cameras automatically across its 8 PoE ports. A single Cat5e or Cat6 cable to each camera carries both data and power, simplifying the cable run and eliminating the need for separate power adapters at each mounting point.
120dB True WDR
Wide Dynamic Range at 120dB manages scenes where bright outdoor light and shadowed indoor areas appear in the same frame, such as a doorway or shopfront window. Facial and plate detail that would be washed out in standard cameras is retained across the exposure range.
H.265+ Compression and Flexible Storage
H.265+ encoding reduces file sizes significantly compared to older codecs, meaning a given hard drive stores more footage at 8MP than it would with H.264. The NVR supports one HDD up to the drive’s capacity, with the HDD selected and added separately to suit the required retention period.
Best For
- Residential properties with multiple access points: 4 cameras cover front entry, rear yard, driveway, and side gate simultaneously, with each camera handling a wide 113-degree horizontal view via the 2.8mm lens.
- Small businesses wanting smart alert filtering: AcuSense classification means staff and app users receive notifications tied to confirmed human or vehicle activity rather than constant motion triggers from passing cars or environmental movement.
- Installers running structured Cat6 cabling: The NVR-108MH-C-8P’s 8 PoE PnP ports eliminate the need for a separate switch or injectors, with cameras auto-detected on connection, reducing commissioning time on 4-camera residential and small commercial jobs.
- Sites needing night coverage without external lighting: The 30m EXIR illumination on each IPC-T282H-MU provides independent infrared coverage at each mounting point, useful for driveways, car spaces, and rear yards without existing artificial lighting.
Why Choose the HiLook IPC-T282H-MU 8MP AcuSense Turret Kit
The IPC-T282H-MU kit separates itself from entry-level 4-camera systems through a combination of 8MP resolution, AcuSense deep learning, and a PoE NVR with 8 channels available for future expansion. Where a standard 2MP or 4MP system may struggle to resolve faces or number plates across a wide outdoor area, the 8MP sensor on each IPC-T282H-MU retains usable detail across the full 2.8mm field of view. AcuSense human and vehicle classification is built into the camera hardware, not bolted on via software, which means detection accuracy does not depend on cloud processing. The NVR-108MH-C-8P outputs to a 4K HDMI display, supports mobile viewing, and accepts an additional 4 cameras beyond the initial 4, leaving room to extend the system to an 8-camera layout without replacing the recorder. The black camera finish suits installations where a darker housing is preferred against rendered walls or under dark soffits. Available through Security Wholesalers, this kit is supplied without a hard drive, so storage is tailored to each site’s retention requirements.

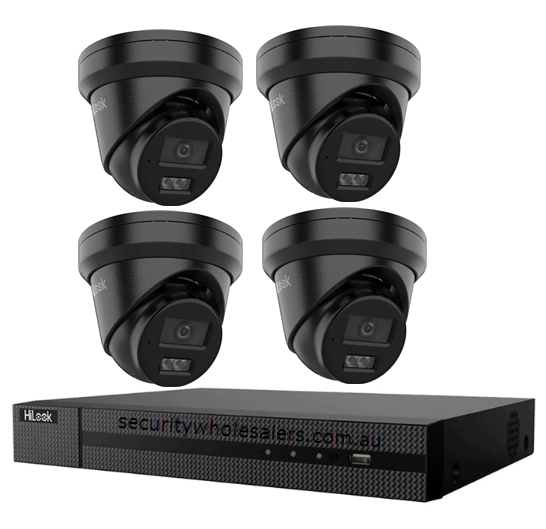

Package Inclusions

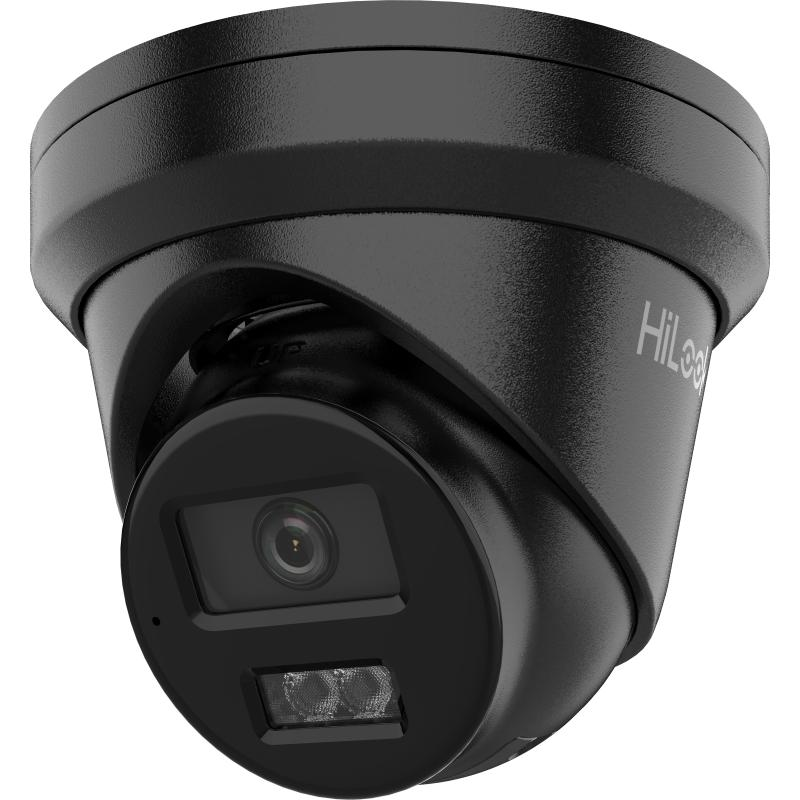

- 4 x HiLook IPC-T282H-MU 8MP AcuSense Outdoor Turret Camera – 8MP, 2.8mm Fixed Lens, 30m IR, Built-In Mic, IP67, Black
- 1 x HiLook NVR-108MH-C-8P 8CH PoE NVR – 8CH, 8 PoE PnP Ports, 80Mbps Input, 4K HDMI, VGA, 1 HDD Bay, Without HDD
Buyer Decision Tips
Hard Drive Selection: No HDD is included with this kit. At 8MP with H.265+ compression across 4 cameras recording continuously, storage consumption is higher than a 2MP or 4MP system. A 4TB surveillance-grade drive typically provides several weeks of footage depending on motion frequency and recording schedule. If you need 30 or more days of continuous retention, consider a 6TB or 8TB option. Surveillance-grade drives (WD Purple or Seagate SkyHawk) are recommended over desktop drives for 24/7 NVR operation and SATA compatibility with the NVR-108MH-C-8P.
Camera Placement and Lens Coverage: The 2.8mm fixed lens on each IPC-T282H-MU provides a wide 113-degree horizontal field of view, which suits broad outdoor areas like driveways, yards, and car parks. For narrow corridors, laneways, or long-distance approaches where detail at range is the priority, a tighter focal length would be more appropriate. The 2.8mm angle cannot be changed after installation, so confirm the mounting position and coverage zone before committing the cable run.
Key Features & Technical Specifications
| Camera Model |
HiLook IPC-T282H-MU (Black, x4) |
| NVR Model |
HiLook NVR-108MH-C-8P |
| Camera Resolution |
8MP |
| Lens |
2.8mm fixed |
| Horizontal Field of View |
113 degrees |
| Vertical Field of View |
62 degrees |
| Diagonal Field of View |
134 degrees |
| Night Vision Range |
30m EXIR infrared |
| Wide Dynamic Range |
120dB True WDR |
| Video Compression |
H.265+ / H.265 / H.264+ / H.264 |
| AI Detection |
AcuSense human and vehicle classification (deep learning) |
| Built-In Microphone |
Yes (each camera) |
| Camera Power |
PoE (Power over Ethernet) |
| Weather Rating |
IP67 |
| NVR Channels |
8 channels |
| NVR PoE Ports |
8 Plug-and-Play PoE ports |
| NVR Incoming Bandwidth |
80Mbps |
| NVR Video Output |
4K HDMI, VGA |
| NVR Storage |
1 x SATA HDD bay (no HDD included) |
| Remote Viewing |
Mobile app supported |
Ideal Use Cases
Residential Perimeter Monitoring
4 cameras cover all main access points of a standard home. The 2.8mm lens and 113-degree horizontal view suit front entry, side gates, rear yard, and driveway positions, while IP67 weatherproofing protects cameras mounted under eaves or on exposed exterior walls.
Small Business Premises
Retail stores, offices, and service businesses benefit from 8MP resolution for identifying individuals near entry points and 120dB WDR for front-facing cameras that deal with bright street light or sunlight against darker interior scenes.
After-Hours Vehicle Monitoring
AcuSense vehicle classification triggers targeted alerts when a vehicle enters a driveway, car park, or loading area after hours, rather than generating alerts from unrelated movement. The 30m IR maintains visibility across typical residential or small commercial parking spaces in total darkness.
New Construction Installations
The PoE architecture suits new builds where Cat6 cabling is planned from the NVR location to each camera point. The NVR-108MH-C-8P auto-detects connected HiLook cameras on power-up, reducing commissioning time during handover.
Staged System Expansion
Starting with 4 cameras leaves 4 unused PoE ports on the NVR-108MH-C-8P. Additional cameras can be added to the existing recorder at any point without replacing hardware, making this a practical starting configuration for sites that may grow their coverage over time.
Choosing the Right Model
- Choose this kit if: You want an 8MP AcuSense PoE system that installs via Cat6 cabling with no additional switches or injectors, and you need a black camera finish with 30m night vision, built-in microphone, and room to expand to 8 cameras on the same NVR.
- Choose a different model if: Your installation requires more than 4 cameras from the outset and needs them all recorded simultaneously from day one, in which case a kit with a higher channel count and matching camera quantity would be more suitable.
- Choose a different model if: Coverage involves long corridors, laneways, or distances where a 2.8mm wide-angle lens would spread detail too thinly. A camera with a 4mm or 6mm lens provides a narrower, longer-reach field of view for those scenarios.
- Choose a different model if: The site requires full-colour night vision without infrared. The IPC-T282H-MU uses infrared illumination in darkness rather than white light, producing greyscale night footage. A different camera variant with a built-in warm light would be needed for colour-at-night requirements.
FAQs
- Does this kit include a hard drive?
No. The NVR-108MH-C-8P has one SATA HDD bay but no drive is supplied. A surveillance-grade hard drive such as a WD Purple or Seagate SkyHawk needs to be added separately. The appropriate capacity depends on how many cameras are recording, at what resolution, and for how many days you want to retain footage before it overwrites.
- How many cameras can I add to this system later?
The NVR-108MH-C-8P has 8 PoE ports. This kit uses 4 of them, leaving 4 ports available for additional cameras. Any compatible HiLook or Hikvision IP cameras added to those ports will be auto-detected by the NVR, so the system can be expanded to 8 cameras without replacing the recorder.
- What does AcuSense actually do on the IPC-T282H-MU cameras?
AcuSense uses deep learning processing built into each camera to analyse motion events and classify them as either human or vehicle. Events that do not match those categories, such as a cat, a branch moving, or a passing insect, are not flagged. This reduces the volume of irrelevant push notifications significantly compared to standard motion detection cameras.
- Do the cameras record audio through the built-in microphone?
Each IPC-T282H-MU has a built-in microphone that captures audio at the camera location. This audio is recorded alongside video on the NVR when audio recording is enabled. Note that audio recording laws in Australia vary by state, so confirm local requirements before enabling audio capture in shared or public-facing areas.
- What cable do I need to run for each camera?
Each camera connects to the NVR via a single Cat5e or Cat6 Ethernet cable. The NVR’s PoE ports supply both power and data through that cable, so no separate power point is needed at the camera location. Cat6 is recommended for runs approaching or exceeding 50 metres to maintain signal integrity.
- Can I view cameras remotely on my phone?
Yes. The NVR-108MH-C-8P supports mobile viewing. Once the NVR is connected to your local network and configured, you can access live and recorded footage from a smartphone or tablet using the HiLook mobile application. An active internet connection at the NVR location is required for remote access.
- Is this kit available with professional installation?
Yes. Installation services for residential and warehouse sites in Sydney and Melbourne are available to add to your order separately. The IPC-T282H-MU kit and installation service are both part of the Security Wholesalers range, so you can bundle the product and labour in a single transaction if you are in one of those cities.
Cabling Considerations
- Cable Type: Cat5e minimum, Cat6 recommended for this 8MP PoE system. Cat6 provides a larger conductor and better crosstalk rejection, which is beneficial when cameras are transmitting high-bitrate 8MP streams.
- Maximum Cable Run: Up to 100 metres per camera from the NVR’s PoE port, following the IEEE 802.3 standard. Runs beyond 80 metres should use Cat6 and quality RJ45 terminations to avoid signal or power drop.
- PoE Considerations: Each PoE port on the NVR-108MH-C-8P supplies power directly to the connected IPC-T282H-MU camera. No separate PoE switch or power injector is required for any of the 8 ports. Total PoE budget across all ports should be observed if running close to the maximum channel count.
- Wiring Tips: Run cable inside conduit or through roof cavities where possible to protect from UV degradation and physical damage. Use a flush-mount junction box behind each camera to conceal excess cable and provide a clean termination point, particularly on rendered or tiled external walls.
