Hikvision DS-2CD2542FWD-IS 4MP Outdoor Mini Dome, H.264+, 10m IR, Mic, 120dB WDR, IP67, PoE, 2.8mm

Availability:

Out of stock

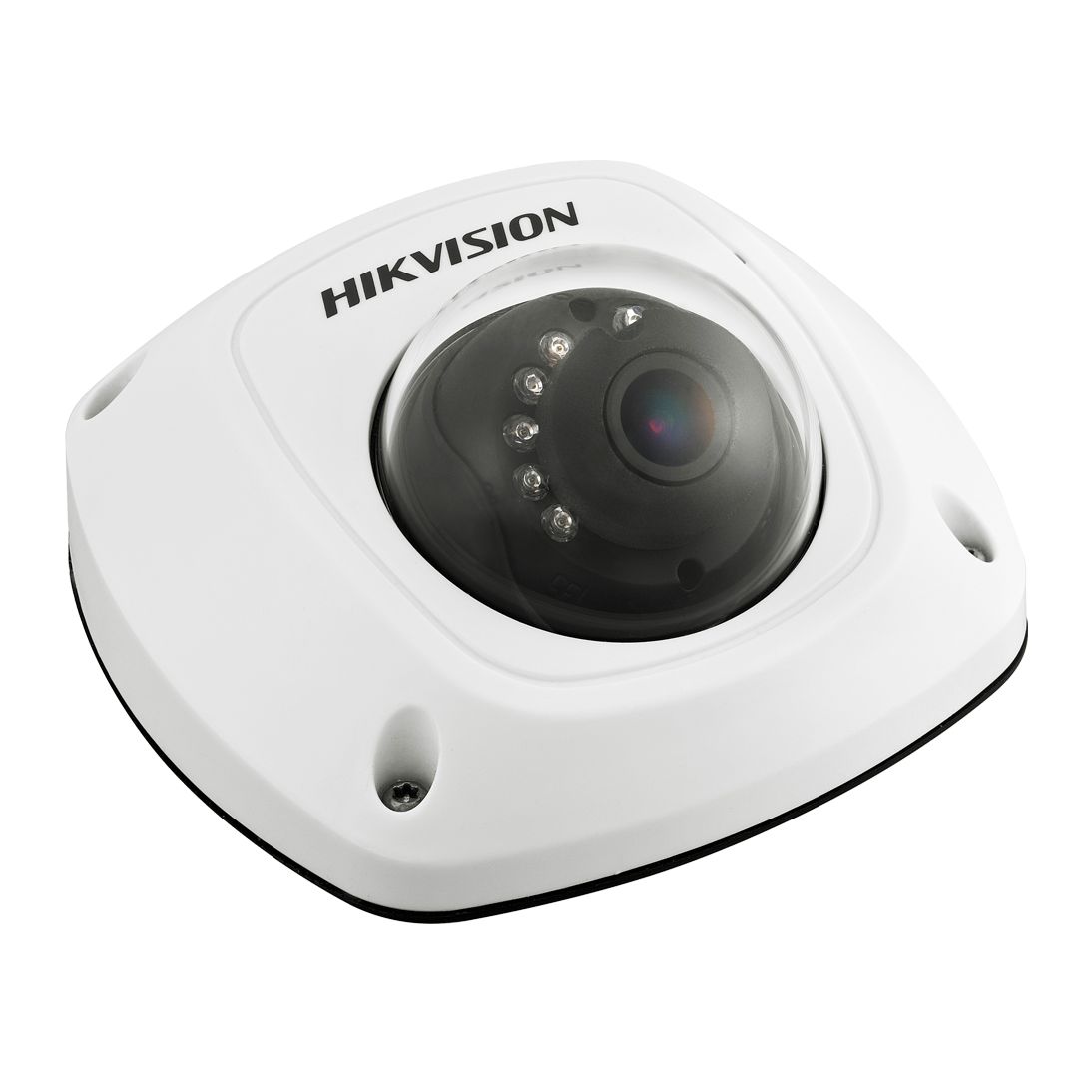

Part of Hikvision’s 2-Line range of cameras, the HIK-2CD2542FWIS2 is a vandal proof mini IR network dome camera with a built-in microphone, that produces an exceptional 4MP high resolution video. Providing an ideal combination of features and affordability, this camera includes 120dB true wide dynamic range and supports H.264+ intelligent compression which allows output of an incredibly well balanced image and reduces bandwidth/storage requirements by up to 50%. With inbuilt IR providing up to 10m visibility at night and with a 2.8mm fixed lens, this camera is great for covering a wide area so you can focus on the detail you really want.

NOTE – this cam has been REPLACED by the one below:

Hikvision DS-2CD2555FWD-IS 6MP Outdoor Mini Dome CCTV Camera Mic H.265+, 10m IR

Rigorously tested, Hikvision’s 2-Line generation cameras have been designed to deliver 24/7 video surveillance with the clarity you expect from a Hikvision network camera.

$334.00 inc GST +3 Year Warranty & Support

Out of stock

Part of Hikvision’s 2-Line range of cameras, the HIK-2CD2542FWIS2 is a vandal proof mini IR network dome camera with a built-in microphone, that produces an exceptional 4MP high resolution video. Providing an ideal combination of features and affordability, this camera includes 120dB true wide dynamic range and supports H.264+ intelligent compression which allows output of an incredibly well balanced image and reduces bandwidth/storage requirements by up to 50%. With inbuilt IR providing up to 10m visibility at night and with a 2.8mm fixed lens, this camera is great for covering a wide area so you can focus on the detail you really want.

Rigorously tested, Hikvision’s 2-Line generation cameras have been designed to deliver 24/7 video surveillance with the clarity you expect from a Hikvision network camera.

Features

  • Up to 4 megapixel resolution
  • Full HD 1080p real-time video
  • 4mm fixed lens
  • 120dB wide dynamic range
  • Back light compensation, 3D digital noise reduction
  • 12VDC and PoE powered
  • Supports H.264 and H.264+ technology
  • Up to 10m IR range
  • 3-axis camera adjustment
  • IP67 and IK08 rating
SKU: HIK-2CD2542FWIS2 Categories: , , Tag:
Image Sensor: 1/3″ Progressive Scan CMOS
Min. Illumination: 0.01Lux @ (F1.2, AGC ON), 0 Lux with IR
Shutter time: 1/3 s to 1/100,000 s
Lens: 2.8mm, 4mm, 6mm @ F2.0, angle of view: 106°(2.8mm), 83°(4mm), 55.4°(6mm)
Lens Mount: M12
Adjustment Range: Pan: -30° ~ 30°, Tilt: 0 ~ 75°, Rotation: 0 ~ 360°
Day& Night: IR cut filter with auto switch
Wide Dynamic Range: 120 dB
Digital noise reduction: 3D DNR
Compression Standard
Video Compression: H.264/MJPEG/H.264+
H.264 code profile: Main Profile
Video bit rate: 32Kbps~16Mbps
Audio Compression: -S: G.711/G.722.1/G.726/MP2L2
Audio bit rate: 64Kbps(G.711) / 16Kbps(G.722.1) / 16Kbps(G.726) / 32-128Kbps(MP2L2)
Dual Stream: Yes
Max. Image Resolution: 2688 × 1520
Frame Rate: 50Hz: 20fps (2688×1520), 25fps(1920×1080), 25fps(1280×720)
60Hz: 20fps (2688×1520), 30fps (1920×1080), 30fps(1280×720)
Image Settings: Rotate Mode, Saturation, Brightness, Contrast, Sharpness adjustable by client software or web browser
BLC: Yes, zone configurable
ROI: Support
Network
Network Storage: NAS (Support NFS,SMB/CIFS), ANR
Alarm Trigger: Face Detection,Line Crossing, Intrusion Detection, Motion detection, Dynamic analysis, Tampering alarm, Network disconnect , IP address conflict, Storage exception
Protocols: TCP/IP, UDP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, Bonjour
General Function: One-key reset, Anti-Flicker, heartbeat, mirror, password protection, privacy
mask, Watermark, IP address filtering
System Compatibility: ONVIF (Profile S, Profile G),ISAPI
Interface
Audio: 1-ch 3.5 mm audio in (Mic in/Line in)/out interface (-S model)
Communication Interface: 1 RJ45 10M / 100M Ethernet interface
Alarm: 1x alarm I/O *only for –S models
On-board storage: Built-in Micro SD/SDHC/SDXC slot, up to 128 GB
Reset Button: Yes
Wi-Fi Specification (-W)
Wireless Standards: IEEE802.11b, 802.11g, 802.11n
Frequency Range: 2.4 GHz ~ 2.4835 GHz
Channel Bandwidth: 20/40MHz Support
Modulation Mode: 802.11b: CCK, QPSK, BPSK
802.11g/n: OFDM
Security: 64/128-bit WEP, WPA/WPA2, WPA-PSK/WPA2-PSK, WPS
Transmission Rate: 11b: 11Mbps
11g: 54Mbps
11n: up to 150Mbps
Wireless Range: 50m(depend on environment)
General
Operating Conditions: -30 °C ~ 60 °C (-22 °F ~ 140 °F)
Humidity 95% or less (non-condensing)
Power Supply: 12 VDC ± 25%, PoE (802.3af Class3)
Power Consumption: Max. 5W
Impact Protection: IK08 Protection Level
Weather Proof: IP67
IR Range: 10 meters
Dimensions: 99.3×96.7×52.8 mm
Weight: 600 g (1.32 lbs)
NOTE:: “-W” series support Wi-Fi (802.11b/g/n) and the modules with Wi-Fi function don’t support
the 802.1X protocol.
