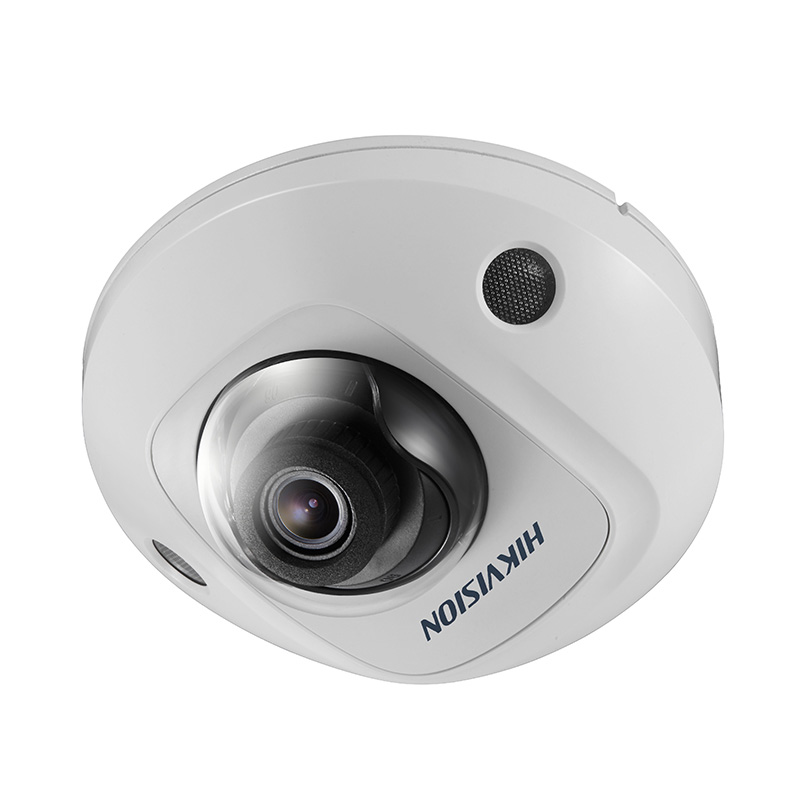

Hikvision DS-2CD2555FWD-IS 6MP Outdoor Mini Dome CCTV Camera Mic H.265+, 10m IR

This model has an INBUILT MIC. Part of Hikvision’s easy IP 3.0 range of cameras, the DS-2CD2555FWD is an outdoor IR mini dome camera that produces an exceptional 6MP high-resolution video. Powered by the latest innovation in image sensor technology and an ultra high definition image processing chipset from Amberella, it supports H.265 and H.265+ intelligent video compression, which reduces bandwidth/storage requirements by up to 50% and 80%, respectively. Providing an ideal combination of smart features and affordability, the camera includes 120dB true wide dynamic range (WDR) and built-in EXIR 2.0 infrared technology providing up to 10m visibility at night. With a 2.8mm lens, this camera provides a horizontal field of view of 97 degrees.

NEW MODEL RELEASED WITH ACUSENSE FALSE ALARM FILTER + 30M INFRARED – CLICK HERE





$324.00 $325.00 inc GST +3 Year Warranty & Support

Please Select Lens Size *

HIK-2CD2555WDISx Datasheet

THIS MODEL DOES NOT HAVE WIFI

Part of Hikvision’s Easy IP 3.0 range of cameras, the DS-2CD2555FWD-IS is an outdoor IR mini dome camera that produces an exceptional 6MP high-resolution video. Powered by the latest innovation in image sensor technology and an ultra high definition image processing chipset from Amberella it supports H.265 and H.265+ intelligent video compression, which reduces bandwidth/storage requirements by up to 50% and 80%, respectively. Providing an ideal combination of smart features and affordability, the camera includes 120dB true wide dynamic range (WDR) and built-in EXIR 2.0 infrared technology providing up to 10m visibility at night. Rigorously tested, Hikvision’s generation cameras have been designed to deliver 24/7 video surveillance with the clarity you expect from a Hikvision network camera.

Features

  • 1/2.9″ progressive scan CMOS
  • 6MP resolution 3072×2048 at 20fps
  • 4mm lens HVOF – 78 degrees
  • H.265, H.265+, H.264+, and H.264
  • Third stream
  • Built-in microphone
  • Alarm IO
  • 120dB wide dynamic range (WDR)
  • Backlight compensation, 3D digital noise reduction
  • Up to 10m infrared
  • IP67, IK8
  • Line crossing, intrusion, object abandoned, object removed and face detection
  • Supports onboard storage, up to 128 GB
  • 802.3af PoE or 12VDC

SKU: DS-2CD2555FWD Categories: , , , , Tag:
Image Sensor: 1/2.9″ Progressive Scan CMOS
Signal System: PAL/NTSC
Min. Illumination: Color: 0.01 Lux @ (F1.2, AGC ON), 0 Lux with IR; Color: 0.028 lux @(F2.0, AGC ON), 0 lux with IR
Shutter time: 1/3 s to 1/100,000 s
Slow shutter: Support
Lens: 2.8 mm: Horizontal field of view: 97°, Vertical field of view: 54°, Diagonal field of view: 113°
4 mm: Horizontal field of view: 78°, Vertical field of view: 42°, Diagonal field of view: 92°
6 mm: Horizontal field of view: 60°, Vertical field of view: 33°, Diagonal field of view: 71°
Lens Mount: M12
Adjustment Range: Pan: -30° to +30°, tilt: 0° to 75°, rotate: 0° to 360°
Day& Night: IR cut filter with auto switch
Wide Dynamic Range: 120 dB
Digital noise reduction: 3D DNR
Compression Standard
Video Compression: H.265+/H.265/H.264+/H.264/MJPEG
Video bit rate: 32Kbps~16Mbps
Audio Compression: G.711/G.722.1/G.726/MP2L2/PCM
Audio bit rate: 64Kbps(G.711)/16Kbps(G.722.1)/16Kbps(G.726)/32-192Kbps(MP2L2)
Triple Streams: Yes
Max. Image Resolution: 3072 x 2048
Sub Stream: 50Hz: 25fps (640 × 480, 640 × 360, 320 × 240)
60Hz: 30fps (640 × 480, 640 × 360, 320 × 240)
Frame Rate: 50Hz: 20 fps (3072 × 2048,3072 x 1728,2944 x 1656),
25 fps (2560 × 1440, 1920 × 1080, 1280 × 720)
60Hz: 20 fps (3072 × 2048,3072 x 1728,2944 x 1656),
25fps (2560 × 1440, 1920 × 1080, 1280 × 720)
Third Stream: 50Hz: 25fps (1920 × 1080, 1280 × 720, 640 × 360, 352 × 288)
60Hz: 30fps (1920 × 1080, 1280 × 720, 640 × 360, 352 × 240)
Image Enhancement: BLC/3D DNR
Image Settings: Rotate Mode, Saturation, Brightness, Contrast, Sharpness adjustable by client software or web browser
ROI: Support 1 fixed region for main stream and sub-stream separately
Day/Night Switch: Auto/Scheduled
Network
Protocols: TCP/IP, UDP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6
General Function: One-key reset, Anti-Flicker, heartbeat, mirror, password protection, privacy
mask, Watermark, IP address filtering
System Compatibility: ONVIF (Profile S, Profile G), PSIA, CGI, ISAPI
Interface
Communication Interface: 1 RJ45 10M / 100M Ethernet interface
On-board storage: Built-in Micro SD/SDHC/SDXC slot, up to 128 GB
Smart Feature-set
Behavior Analysis: Line crossing detection, Intrusion detection, Unattended baggage detection, Object removal detection
Line Crossing Detection: Cross a pre-defined virtual line
Intrusion Detection: Enter and loiter in a pre-defined virtual region
Unattended Baggage: Objects left over in the pre-defined region such as the baggage, purse, dangerous materials
Object Removal: Objects removed from the pre-defined region, such as the exhibits on display.
Recognition: Face Detection
Wi-Fi Specification (-W)
Wireless Standards: IEEE802.11b, 802.11g, 802.11n
Channel Bandwidth: 20/40MHz Support
Transmission Rate: 11b: 11Mbps
11g: 54Mbps
11n: up to 150Mbps
Wireless Range: 50m(depend on environment)
Protocols: 802.11b: DQPSK, DBPSK, CCK
802.11g/n: OFDM /64-QAM,16-QAM, QPSK, BPSK
General
Operating Conditions: -30 °C ~ 60 °C (-22 °F ~ 140 °F)
Humidity 95% or less (non-condensing)
Power Supply: 12 VDC ± 25%, PoE (802.3af Class3)
Power Consumption: 12 VDC, 0.625A, max. 7.5W
PoE (802.3af, 36V to 57V), 0.26 A to 0.17 A, max. 9.5W
Impact Protection: IK08 Protection Level
Weather Proof: IP66
IR Range: Up to 10m
Dimensions: Φ110 mm × 56.4 mm (Φ4.33″ × 2.22″)
Weight: Camera: Approx. 400 g (0.88 lb.)
