Name: Hikvision Gen2 DS-KD8003-IME1(B) Video Intercom Module Door Station
Brand: Hikvision
SKU: DS-KD8003-IME1
Price: 226.00 AUD
Availability: InStock

Hikvision DS-KD8003-IME1Modular Video Intercom module door station can realize functions such as video intercom, resident-to-resident video call to provide a complete smart community video intercom solution. The video intercom module door station is mainly applied to situations such as community, villa, and official buildings.

Commonly ordered products:

1 x Hikvision 2nd Gen. Intercom, Door Station Housing, Surface Mount, Supports 1 Module
1 x Hikvision 2nd Gen. Intercom Door Station Housing Flush Mount, Supports 1 module
1 x Hikvision 2nd Gen IP Intercom, 7″ Touch Screen Room Station, 1024 x 600, 12VDC/POE (Hikvision DS-KH6320-TE1 )

Features Include

2MP HD video intercom function
Access control function
Fisheye camera with IR supplement light
Tampering alarm and door magnetic alarm supported
Supports sub-modules’ access (max.8)
Noise suppression and echo cancellation
Easy to extend

Connects with an additional Door Station and Room Stations via a standard PoE Switch (48V)

Name	Price	Buy
Hikvision DS-3E1105P-EI 4 Port Smart POE Switch	$80.00 inc GST +3 Year Warranty & Support	Hikvision DS-3E1105P-EI 4 Port Smart POE Switch quantity
Hikvision DS-KH6320-WTE1 Gen2 Video Intercom 7-Inch Touch Screen Indoor Room Station with Wifi	$220.00 ~~$266.00~~ inc GST +3 Year Warranty & Support	Hikvision DS-KH6320-WTE1 Gen2 Video Intercom 7-Inch Touch Screen Indoor Room Station with Wifi quantity

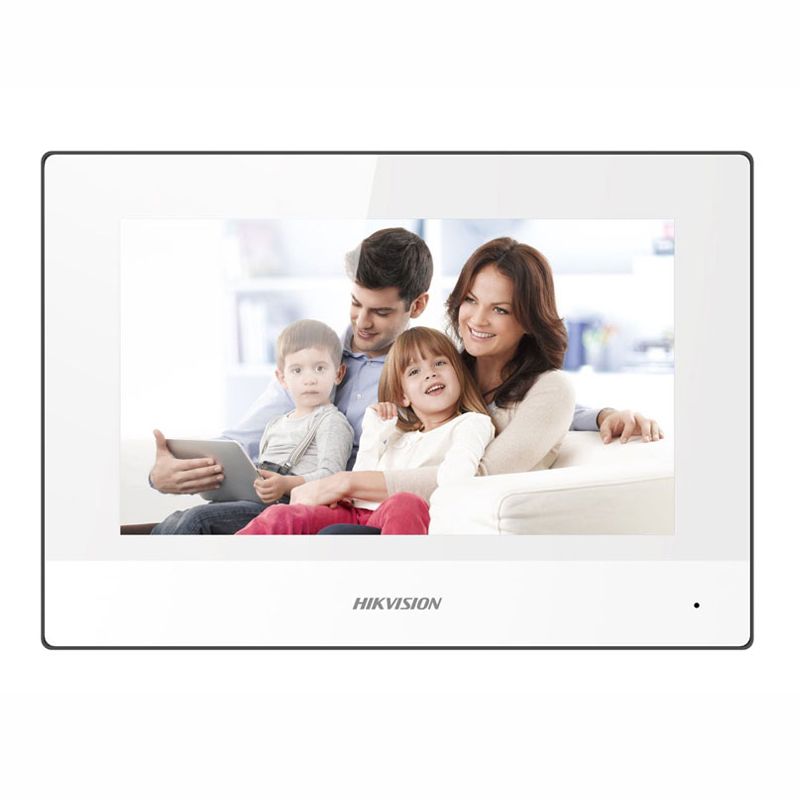

Hikvision DS-KH6320-WTE1 Gen2 Video Intercom 7-Inch Touch Screen Indoor Room Station with Wifi (WHITE)	$266.00 inc GST +3 Year Warranty & Support	Hikvision DS-KH6320-WTE1 Gen2 Video Intercom 7-Inch Touch Screen Indoor Room Station with Wifi (WHITE) quantity
Hikvision Gen2 DS-KD-ACW1 Video Intercom Surface Mount Housing - 1 Module	$82.00 inc GST +3 Year Warranty & Support	Hikvision Gen2 DS-KD-ACW1 Video Intercom Surface Mount Housing - 1 Module quantity

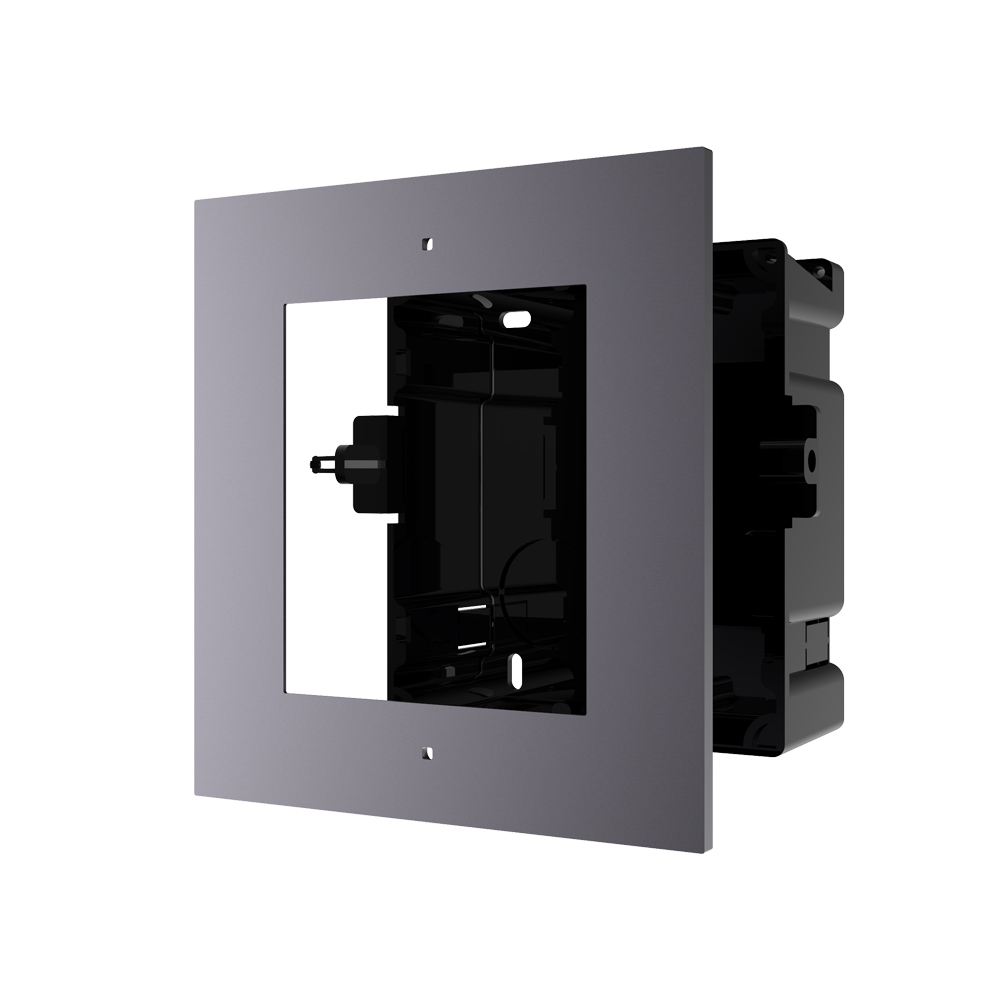

Hikvision Gen2 DS-KD-ACF1 Video Intercom Flush Mount Housing - 1 Module	$55.00 inc GST +3 Year Warranty & Support	Hikvision Gen2 DS-KD-ACF1 Video Intercom Flush Mount Housing - 1 Module quantity
Hikvision DS-KABD8003-RS1 2nd Gen Door Shroud to suit DS-KD-ACW1	$37.00 inc GST +3 Year Warranty & Support	Hikvision DS-KABD8003-RS1 2nd Gen Door Shroud to suit DS-KD-ACW1 quantity

System Parameters
Operation System:	Embedded Linux Operation System
Operation method:	Physical Button
Processor:	Embedded MCU Processor

Camera Parameters
Field of view:	180° (Horizontal), 96°(Vertical)

Audio Parameters
Audio Input:	Built-in Omnidirectional Microphone
Audio Output:	Built-in Loudspeaker(More than 85dB within 20 cm)
Audio Compression Standard:	G.711 U
Audio Compression Rate:	64 Kbps
Audio Quality:	Noise Suppression and Echo Cancellation

Video Parameters
WDR:	Supported
DNR:	Supported
BLC:	Supported
Camera:	Low Illumination 2 MP HD IR Camera
Video Compression Standard:	H.264
Resolution:	Main Stream: 1920 × 1080 Sub Stream：720 × 480
Anti-flicker frequency:	50 Hz, 60 Hz

Network Parameters
Network Protocol:	TCP/IP, RTSP
Ethernet:	10/100 Mbps Self-Adaptive Ethernet

Light Supplement
Light Supplement Mode:	IR Supplement

Alarm Parameters
Tampering alarm:	1

Device Interfaces
Debug:	1
Module-connecting:	1
Relay Output:	2(30V, 1A)
I/O Input:	4

General
Installation:		Flush Mounting, Surface Mounting
Power Supply:		IEEE802.3af standard PoE, 12 VDC/1A
Power Consumption:		≤10 W
Physical button:		1
Working Humidity:		10% to 95%
Working Temperature:		-40° C to +60° C (-40° F to 140° F)
IP Protection Level:		IP65
Dimensions(L × W × H):		98mm × 99.8mm × 43.9mm(3.86″× 3.93″ ×1.73″)

User Manual

DS-KD8003-IME1_Module-Door-Staion_Datasheet_V1.0.0_20190819
