Product Overview

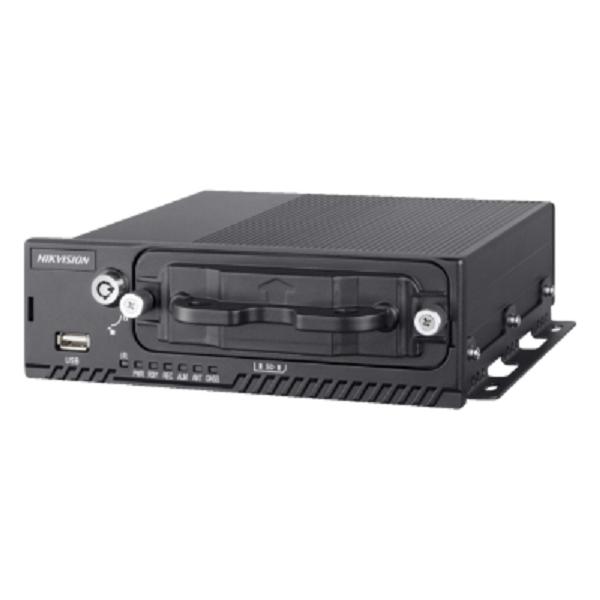

Built specifically for vehicle-based surveillance, the Hikvision DS-MP5604 is a 4-channel mobile TVI DVR that records HD 1080P footage from up to 4 TVI cameras mounted on a bus, truck, patrol vehicle, or fleet asset. Its integrated GPS module logs vehicle position alongside video, giving fleet operators and security managers a combined record of footage and route data in a single unit. The DS-MP5604 supports VGA and CVBS video outputs, allowing direct connection to an onboard monitor for live viewing while the vehicle is in operation. Designed to handle the vibration, temperature fluctuations, and power variations typical of vehicle environments, it accepts TVI camera inputs via 4-pin aviation connectors. This makes it a practical choice for public transport operators, logistics fleets, school bus monitoring, and any application where vehicle-mounted recording with position tracking is a requirement.
Key Capabilities
4-Channel TVI Recording
Supports up to 4 HD-TVI cameras simultaneously, enabling full coverage of vehicle cabin interiors, doorways, driver positions, and external approach angles from a single recorder unit installed in the vehicle.
HD 1080P Recording Resolution
Records at HD 1080P across all connected TVI channels, capturing sufficient detail to identify passengers, read signage, or document incidents on board or around the vehicle.
Integrated GPS Module
The built-in GPS records vehicle location data alongside video footage, allowing operators to correlate incidents with precise geographic positions and route history without needing a separate GPS logger.
VGA and CVBS Video Output
Dual video outputs (VGA and CVBS) allow the DVR to connect directly to an in-vehicle monitor, enabling live view for drivers, conductors, or security personnel while recording continues in the background.
Mobile-Grade Hardware Design
Engineered for vehicle installation, the DS-MP5604 is built to tolerate road vibration, temperature variation, and the irregular power supply characteristics common in automotive electrical systems.
Best For
- Public Transport Vehicles: The 4-channel input allows coverage of multiple cabin zones on buses or coaches, with GPS tracking confirming route and stop data alongside any recorded incidents.
- Logistics and Fleet Operations: Fleet managers can review both footage and vehicle location history from a single system, useful for delivery verification, driver behaviour monitoring, or incident investigation.
- School Bus Monitoring: HD 1080P recording across 4 cameras provides clear footage of student boarding, onboard conduct, and driver position, with GPS confirming the vehicle route at any given time.
- Patrol and Security Vehicles: The onboard VGA/CVBS output supports a live-view monitor for in-vehicle security personnel, while all channels record simultaneously for post-incident review.
Why Choose the DS-MP5604
The DS-MP5604 addresses a specific gap that standard fixed-site DVRs cannot fill: reliable, multi-channel HD recording in a moving vehicle with integrated GPS. A fixed-location recorder provides no position data and is not built to handle vehicle power or vibration conditions. The DS-MP5604 combines 4 TVI camera inputs, HD 1080P recording, and a built-in GPS module in a single compact unit rated for vehicle installation, which removes the need to source and integrate a separate GPS logging device. The VGA and CVBS outputs mean an onboard monitor can be connected directly without additional hardware. For operators running fleets of buses, security vehicles, or commercial trucks, this is a purpose-built solution rather than an adapted office recorder. The DS-MP5604 is available at Security Wholesalers alongside compatible Hikvision mobile TVI cameras and 4-pin aviation extension cables.
Buyer Decision Tips

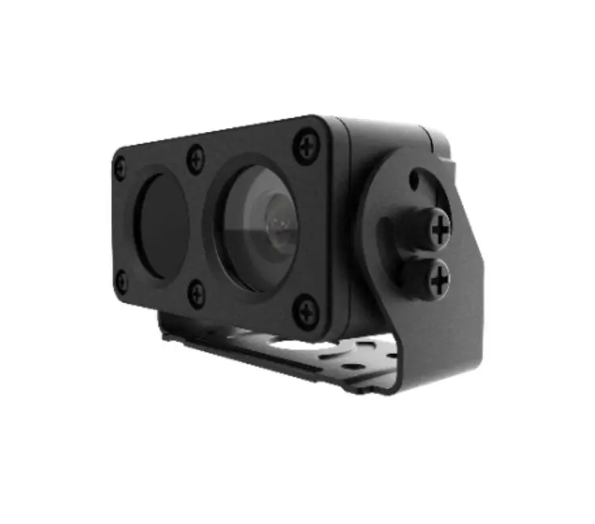

Camera Compatibility: The DS-MP5604 accepts HD-TVI camera inputs via 4-pin aviation connectors. Ensure that any cameras selected for the installation use the TVI signal standard and the correct aviation connector type. Hikvision’s mobile TVI camera range (including square and conch-style models) is designed to work directly with this DVR. Check the cable run length between each camera mounting position and the DVR location in the vehicle, as 4-pin aviation extension cables are available in 4m, 10m, and 16m lengths to suit different vehicle types.
Storage Planning: The DS-MP5604 uses an internal HDD for local storage. Plan storage capacity based on the number of channels in use, recording resolution, and the vehicle’s daily operating hours. Longer routes or 24-hour vehicle operations will require higher capacity drives. Confirm HDD compatibility and maximum supported capacity against the datasheet before purchasing a drive separately.
Key Features & Technical Specifications
| Model |
DS-MP5604 |
| Video Input Channels |
4 |
| Camera Input Standard |
HD-TVI |
| Recording Resolution |
HD 1080P |
| GPS |
Built-in GPS module |
| Video Output |
VGA, CVBS |
| Camera Connector Type |
4-pin aviation connector |
| Application Type |
Mobile / vehicle-mounted |
| Storage |
Internal HDD (capacity subject to compatible HDD) |
| Brand |
Hikvision |
Ideal Use Cases
Bus and Coach Fleets
4-channel TVI input allows camera coverage across the driver cab, front door, rear door, and cabin interior simultaneously, with GPS logging the full route for each service.
Commercial Truck Monitoring
HD 1080P recording captures driver behaviour and cargo area activity. GPS data supports fleet management reporting and confirms delivery routes or vehicle location during any incident.
School Bus Safety
Multiple camera positions across the bus interior are recorded at HD resolution, with integrated GPS confirming route compliance. Footage can be reviewed following any reported incident involving students or the driver.
Patrol and Security Vehicles
The CVBS and VGA outputs support an in-vehicle monitor for live viewing, while all 4 channels continue recording. GPS tracking provides a patrol log aligned to any camera footage timestamp.
Ride-Share and Taxi Operators
Smaller vehicle deployments can use fewer than all 4 channels, covering driver-facing and passenger-facing angles, with GPS providing a verifiable journey record for dispute resolution.
Choosing the Right Model
- Choose this model if: You need a purpose-built mobile DVR that records from up to 4 HD-TVI cameras in a vehicle, with built-in GPS for position tracking and VGA/CVBS output for connecting an onboard monitor.
- Choose a different model if: Your vehicle installation requires more than 4 camera channels, or if you need IP camera inputs rather than HD-TVI. A higher-channel mobile NVR with IP camera support would be more appropriate for those requirements.
- Choose a different model if: This unit is intended for a fixed-site installation such as a warehouse or car park. A standard fixed-location DVR or NVR designed for building installation will be better suited to those environments and is not subject to the same vehicle power and vibration constraints.
FAQs
- What type of cameras does the DS-MP5604 accept?

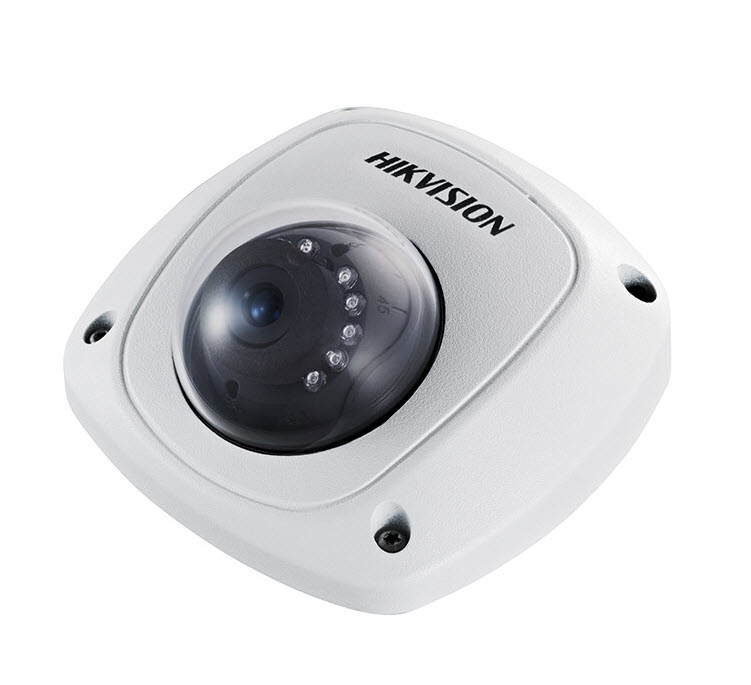

The DS-MP5604 accepts HD-TVI cameras via 4-pin aviation connectors. It is designed to work with Hikvision’s mobile TVI camera range, including square and conch-style infrared models built for vehicle mounting. Standard IP cameras or analogue cameras using BNC connectors are not compatible with this unit.
- Does the DS-MP5604 have built-in GPS, or does GPS require an external module?
GPS is built into the DS-MP5604. There is no need to add a separate GPS logger or tracker. The unit records vehicle position data alongside video footage from all connected channels, allowing location to be correlated with any recorded event.
- Can the DS-MP5604 be used in a fixed building installation instead of a vehicle?
The DS-MP5604 is specifically engineered for vehicle installation. Its power input, vibration tolerance, and design are optimised for mobile environments. For fixed building surveillance, a standard Hikvision DVR designed for mains-powered, stationary installation would be the appropriate choice.
- What video output options does the DS-MP5604 provide for connecting an onboard monitor?
The unit provides both VGA and CVBS video outputs. VGA is suitable for connecting to a higher-resolution in-vehicle display, while CVBS supports standard composite monitors. Either output can be used to show live camera feeds to a driver, conductor, or onboard security officer.
- What recording resolution does the DS-MP5604 support?
The DS-MP5604 records at HD 1080P across its TVI channels. This resolution is sufficient to capture readable detail of faces, clothing, and activity on board or around the vehicle, which is important when footage is used as evidence following an incident.
- How are cameras connected to the DS-MP5604 in a vehicle installation?
Cameras connect via 4-pin aviation cables. The length of cable required depends on where each camera is mounted relative to the DVR position in the vehicle. Extension cables in 4m, 10m, and 16m lengths are available through Security Wholesalers to suit different vehicle configurations. Planning cable runs before installation helps avoid short cable lengths or excessive cable bundling in confined spaces.
