Product SKU: Hikvision DS-KD7003EY-S2
Product Overview

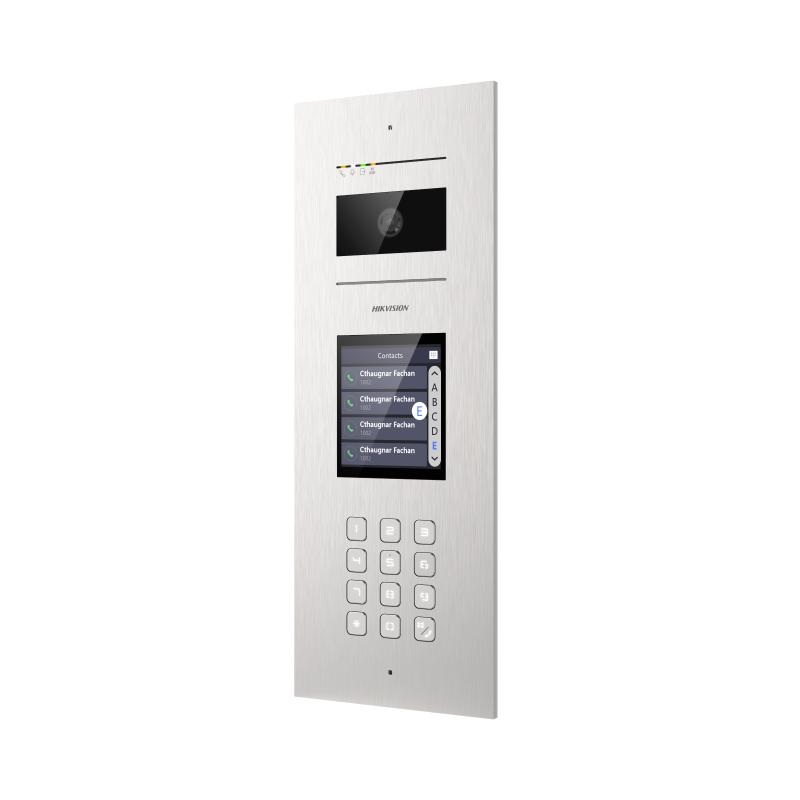

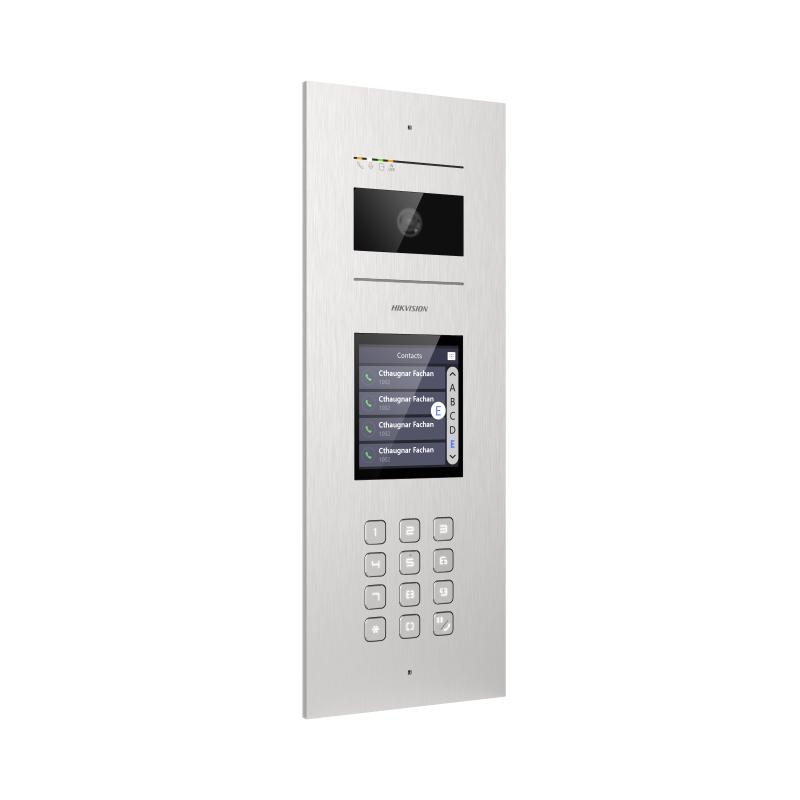

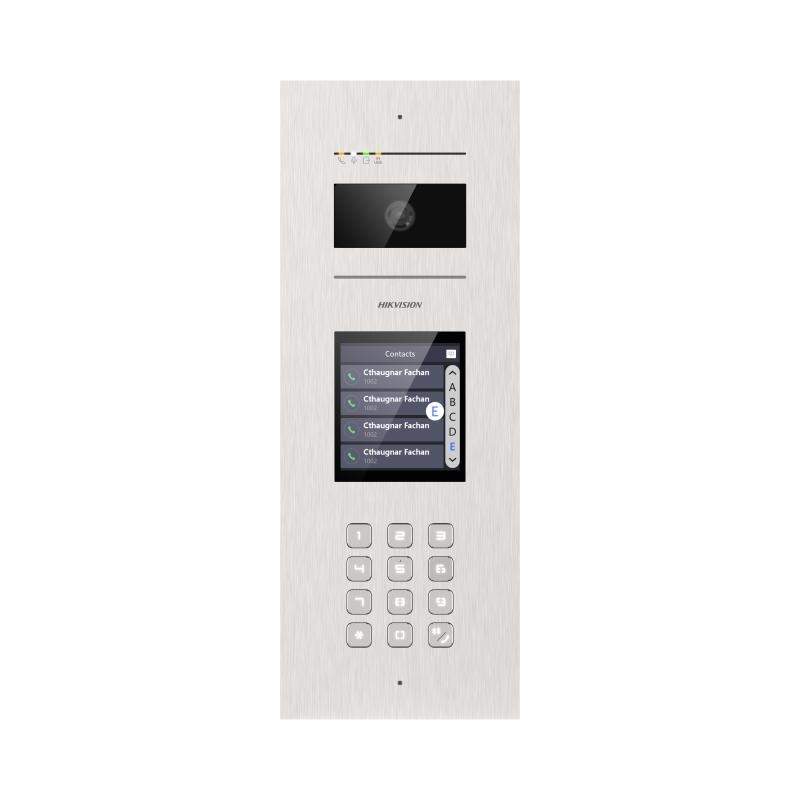

The Hikvision DS-KD7003EY-S2 2-Wire HD Door Station is an all-in-one video intercom entry panel designed for compatible Hikvision 2-wire HD systems. It combines a stainless steel 316L panel, 2MP wide-angle camera, 4-inch IPS capacitive touch display, mechanical keypad, WDR, IR supplement lights, built-in microphone, built-in loudspeaker and IK08 protection in one durable outdoor-ready door station. With support for up to 2,000 users, up to 400 linked indoor stations, 16 sub door stations, two-lock control and AP mode configuration, it is well suited to apartments, villas, offices, gated entries and commercial access points requiring a strong, professional intercom entry solution.
Key Capabilities
316L Stainless Steel Entry Panel
The DS-KD7003EY-S2 uses an all-in-one stainless steel 316L panel, making it suitable for professional outdoor entry installations where durability and a premium finish are important.
2MP Wide-Angle Video with WDR
The 2MP camera provides a 133° horizontal and 82° vertical field of view, with WDR support to help improve visitor visibility in challenging entry lighting.
4-Inch Touch Display
The built-in 4-inch IPS capacitive touch screen provides a clear interface for visitor interaction, with 480 × 480 resolution for practical entry station operation.
Mechanical Keypad Support
The 12 physical buttons support calling functions and PIN code workflows, making the station practical for apartments, offices and multi-user entry points.
Two-Lock Control
Two-lock control gives installers flexibility for door and gate release designs, including relay and DC pulse lock control options in compatible system layouts.
Best For
- Apartment Building Entries: Suitable for multi-resident video intercom systems requiring keypad calling, PIN support and linked indoor stations.
- Villa and Gated Entry Points: Practical for front gates and pedestrian entrances where wide-angle video, audio and lock release are required.
- Commercial Access Points: Useful for offices, reception entries, staff doors and controlled visitor access locations.
- Outdoor Intercom Installations: IP65 and IK08 protection make it suitable for exposed entry environments when installed correctly.
- 2-Wire HD System Projects: Best used where Hikvision 2-wire HD distributors and compatible indoor stations are part of the system design.
Why Choose the DS-KD7003EY-S2
The DS-KD7003EY-S2 is a strong choice when a site needs a more robust all-in-one 2-wire HD door station rather than a smaller modular entry unit. Its stainless steel 316L panel, IK08 protection and IP65 outdoor rating make it suitable for visible building entrances, while the 4-inch touch display and mechanical keypad support practical daily use for visitors and residents. The 2MP wide-angle camera, WDR, IR supplement lights and two-way audio help improve visitor communication in real entry conditions. For intercom projects supplied through Security Wholesalers, this model should be selected after confirming the distributor, indoor station capacity, lock wiring and mounting method.
Buyer Decision Tips
Buyer Tip: Choose the DS-KD7003EY-S2 when the project needs an all-in-one stainless steel 2-wire HD door station with touchscreen, keypad, 2MP camera, WDR, IR supplement light and two-lock support. If the project needs a modular panel with separate modules, confirm whether a KD7003EY modular unit is more suitable.
Installation Tip: Confirm the 2-wire HD distributor, power supply method, indoor station count, lock type, relay requirements, flush mounting accessories, cable distance, AP mode configuration and outdoor sealing before installation.
Key Features & Technical Specifications
| Model |
DS-KD7003EY-S2 |
| Product Type |
2-Wire HD all-in-one video intercom door station |
| Panel Material |
Stainless steel 316L |
| System Architecture |
Hikvision 2-wire HD video intercom system |
| Display |
4-inch IPS capacitive touch screen |
| Display Resolution |
480 × 480 |
| Camera Resolution |
2MP |
| Maximum Stream Resolution |
1920 × 1080 |
| Field of View |
Horizontal 133°, vertical 82° |
| WDR |
Supported |
| Supplement Light |
Low illumination support with IR supplement lights |
| Video Compression |
H.264 |
| Audio Input |
Built-in omnidirectional microphone |
| Audio Output |
Built-in loudspeaker |
| Audio Compression |
G.711 U and G.711 A |
| Audio Quality |
Noise suppression and echo cancellation, adjustable volume |
| User Capacity |
Up to 2,000 users |
| Linked Indoor Station Capacity |
Up to 400 linked indoor stations |
| Sub Door Station Capacity |
Up to 16 sub door stations |
| Buttons |
12 physical buttons for calling and PIN code workflows |
| Indicators |
Opening door, calling, intercom and in-use indicators |
| Interfaces |
2 alarm inputs, 1 exit button, 2 RS-485 module interfaces, 1 door contact input and 1 two-wire interface |
| Lock Control |
2 lock controls: 1 relay up to 30VDC, 2A and 1 DC pulse output |
| Configuration |
AP mode configuration supported |
| Power Supply |
48V powered by DS-KAD7060EY distributor or 12VDC |
| Power Consumption |
≤6W |
| Protection Level |
IP65, IK08 |
| Installation |
Flush mounting |
| Working Temperature |
-20°C to 55°C |
| Working Humidity |
10% to 90%, non-condensing |
| Dimensions |
Approx. 359 × 134 × 34mm |
| Net Weight |
Approx. 2.58kg |
| Best Use |
Apartment entries, villas, gated entrances, commercial door stations, outdoor video intercom systems and 2-wire HD retrofit projects |
Ideal Use Cases
Apartment Building Entrances
Use the DS-KD7003EY-S2 where residents and visitors need touchscreen interaction, keypad calling and two-way video intercom communication.
Villa and Gated Entries
Suitable for pedestrian gates, villa entrances and private residential entry points where robust outdoor intercom hardware is preferred.
Outdoor Commercial Doors
Practical for business entries, reception doors and shared commercial access points where an IK08-rated panel is useful.
Retrofit 2-Wire Intercom Projects
A good option where Hikvision 2-wire HD architecture is selected to simplify cabling compared with full IP rewiring.
Multi-User Entry Systems
Supports larger layouts with user capacity, linked indoor station capacity and sub door station support for structured residential or commercial intercom systems.
Choosing the Right Model
- Choose this model if: You need an all-in-one Hikvision 2-wire HD door station with stainless steel 316L build, touch display, mechanical keypad, 2MP wide-angle camera, WDR, IR supplement light, IP65 and IK08 protection.
- Choose a different model if: Your system requires IP-only wiring, surface mounting, separate modular sub-modules, a smaller villa door station or a different intercom architecture.
- Check before ordering: Confirm the DS-KAD7060EY distributor, indoor station model, power method, flush mounting cavity, lock wiring, contact inputs, cable distance and user capacity requirements.
FAQs
- What is the Hikvision DS-KD7003EY-S2 used for?
The DS-KD7003EY-S2 is used as an all-in-one 2-wire HD video intercom door station for compatible Hikvision intercom systems. It allows visitors to call indoor stations, communicate using video and audio, and trigger supported door release functions when correctly wired.
- What is the panel made from?
The DS-KD7003EY-S2 uses a stainless steel 316L panel. This makes it a strong option for outdoor-facing entries and high-use installations where a more durable, premium intercom panel is preferred.
- Does the DS-KD7003EY-S2 have a touchscreen?
Yes. The door station includes a 4-inch IPS capacitive touch screen with 480 × 480 resolution. It also includes 12 physical buttons for mechanical keypad functions, calling workflows and PIN code use.
- What camera does the DS-KD7003EY-S2 use?
The DS-KD7003EY-S2 includes a 2MP camera with 133° horizontal and 82° vertical field of view. It also supports WDR and IR supplement lights, helping improve visitor visibility in low-light and difficult lighting conditions.
- Can this door station control locks?
Yes. The DS-KD7003EY-S2 supports two-lock control, including relay and DC pulse lock control options. The installer should confirm the lock type, power requirements, fail-safe or fail-secure behaviour and wiring before installation.
- Is the DS-KD7003EY-S2 suitable for outdoor use?
Yes. The door station has IP65 and IK08 protection and is intended for outdoor application when installed correctly. For projects supplied through Security Wholesalers, the mounting surface, flush box, cable sealing and weather exposure should be checked before installation.
- How is the DS-KD7003EY-S2 powered?
The DS-KD7003EY-S2 can be powered by a DS-KAD7060EY distributor using 48V, or by 12VDC depending on the system design. The final power method should match the Hikvision 2-wire HD topology and connected device requirements.
- What should be checked before installation?
Before installation, confirm the 2-wire HD distributor, indoor stations, user count, linked station requirements, sub door station plan, lock wiring, door contact input, exit button input, flush mounting dimensions, power method, AP mode configuration and cable distance.
Additional Information
DS-KD7003EY-S2_Datasheet_20251119
