Hikvision DS-K1T502DBWX-C Access Control Terminal Keypad with Camera & Intercom Monitor Bundle
Hikvision DS-K1T502DBWX-C Access Control Terminal Keypad with Camera & Intercom Monitor Bundle - Image 2
Hikvision DS-K1T502DBWX-C Access Control Terminal Keypad with Camera & Intercom Monitor Bundle - Image 3
, , , , ,

Hikvision DS-K1T502DBWX-C Access Control Terminal Keypad with Camera & Intercom Monitor Bundle

Manage access control and intercom functions in one device

1 x DOOR STATION – DS-K1T502DBWX-C

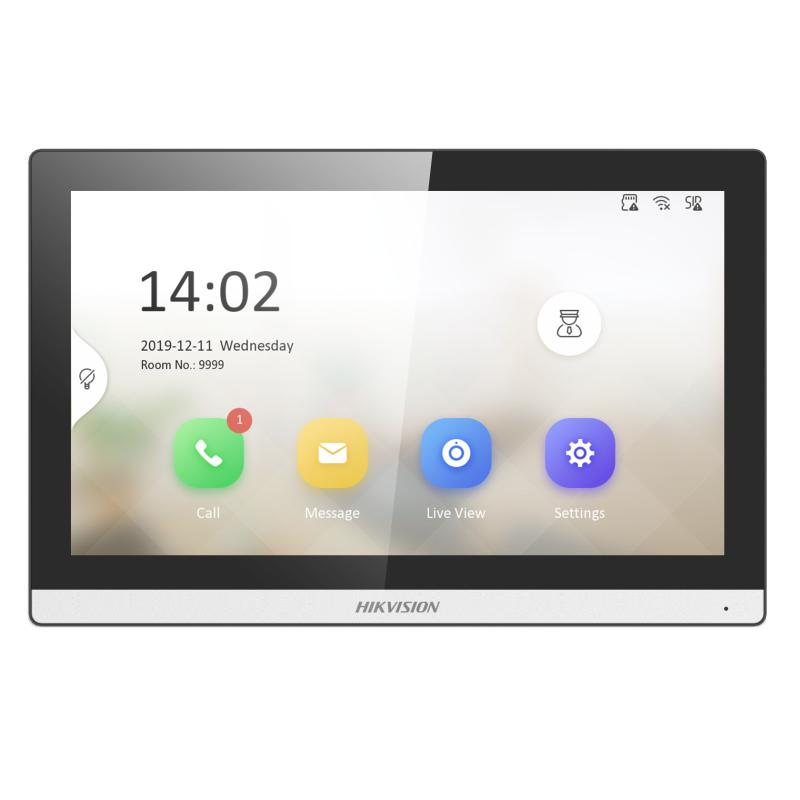

1 x INDOOR MONITOR  – Hikvision DS-KH6350-WTE1 Gen2 IP-Based 7 inch Indoor Intercom Station Wifi

IP65 & IK09 protections, as well as increased stability with zinc alloy materials
Supports multiple authentication methods (card, PIN, etc.)
Remote control via the Hik-Connect mobile app
Connects to external access controller via Wiegand protocol
Video intercom via SIP protocol. Supported SIP server: Brekeke, miniSipServer,FreePBX, Asterisk, 3CX, ELASTIX, and PBX ware
RS-485 communication for connecting external card reader and calling elevator
Supports AP mode
Press calling button to call one of the following objects: management center, indoor station, specified indoor station, or Hik-Connect App
Supports up to 256 GB SD card memory
Supports PIN settings under platform mode and local mode
Setting the priority of wired network and wireless network is available

Datasheet

User Guide

$616.00 $662.00 inc GST +3 Year Warranty & Support

WIRING REQUIREMENTS;
> ethernet cable from Door Station to Poe Switch
> low power cable from Door Station to 12v power supply
> ethernet cable from the Monitor to Poe Switch
> ethernet cable Poe Switch to the modem (if you wish to set up remote communication)

If you need to open/ control 1-2 door / gate strikes, run 4 core cabling from the door station to the respective strikes. These strikes need to be powered separately, ie. the door station will not be able to power these strikes.

ImageNamePriceBuy
Hikvision DS-3E1105P-EI 4 Port Smart POE Switch
Hikvision DS-3E1105P-EI 4 Port Smart POE Switch$80.00 inc GST +3 Year Warranty & Support
Hikvision DS-KH6350-WTE1 Gen2 IP-Based 7 inch Indoor Intercom Station Wifi
Hikvision DS-KH6350-WTE1 Gen2 IP-Based 7 inch Indoor Intercom Station Wifi$266.00 inc GST +3 Year Warranty & Support

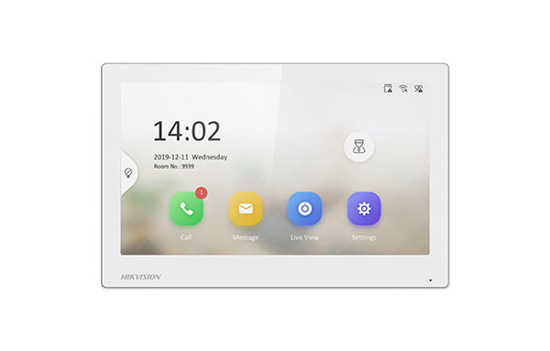

Hikvision DS-KH6350-WTE1 Gen2 IP-Based 7 inch Indoor Intercom Station Wifi WHITE
Hikvision DS-KH6350-WTE1 Gen2 IP-Based 7 inch Indoor Intercom Station Wifi WHITE$266.00 inc GST +3 Year Warranty & Support

System

  • Operating System Linux

Video

  • Lens1
  • Video Compression StandardH.264 and H.265
  • Resolution2 MP
  • FOVHFOV = 110°; VFOV = 81°; DFOV = 122°
  • Video StandardPAL (Default) and NTSC

Network

  • Wired Network10 M/100 M self-adaptive
  • Wi-FiSupport

Interface

  • Network Interface1
  • Lock Control1
  • Exit Button1
  • Door Contact Input1
  • Alarm Input1
  • Alarm Output1
  • TAMPER1
  • RS-4851
  • Wiegand1 (output)
  • SD Card Slot1

Capacity

  • Card Capacity 100,000
  • Event Capacity 300,000

Authentication

  • Card TypeM1 card;DESfire card
  • Card Reading Distance0 ~ 3 cm

General

  • Power Supply1 A (12 VDC to 24 VDC)
  • Power Consumption≤12 W
  • Working Temperature-40 ℃ ~ +70 ℃ (-40 °F ~ +158 °F)
  • Protective LevelIK09, IP65
  • LanguageArabic, English, French, Indonesian, Italian, Portuguese (Brazil), Russian, Spanish (Europe), Thai, Ukrainian, Vietnamese, German, Polish, Hungarian, Czech, Romanian, Bulgarian, Croatian, Serbian, Greek, Slovak, Portuguese, Dutch, and Turkish

Function

  • Two-Way AudioSupport
  • Video IntercomSupport
  • Hik-Connect Support
SKU: K1T502DBWX-C + DS-KH6350-WTE1 Bundle Categories: , , , , ,

Spec Sheet
