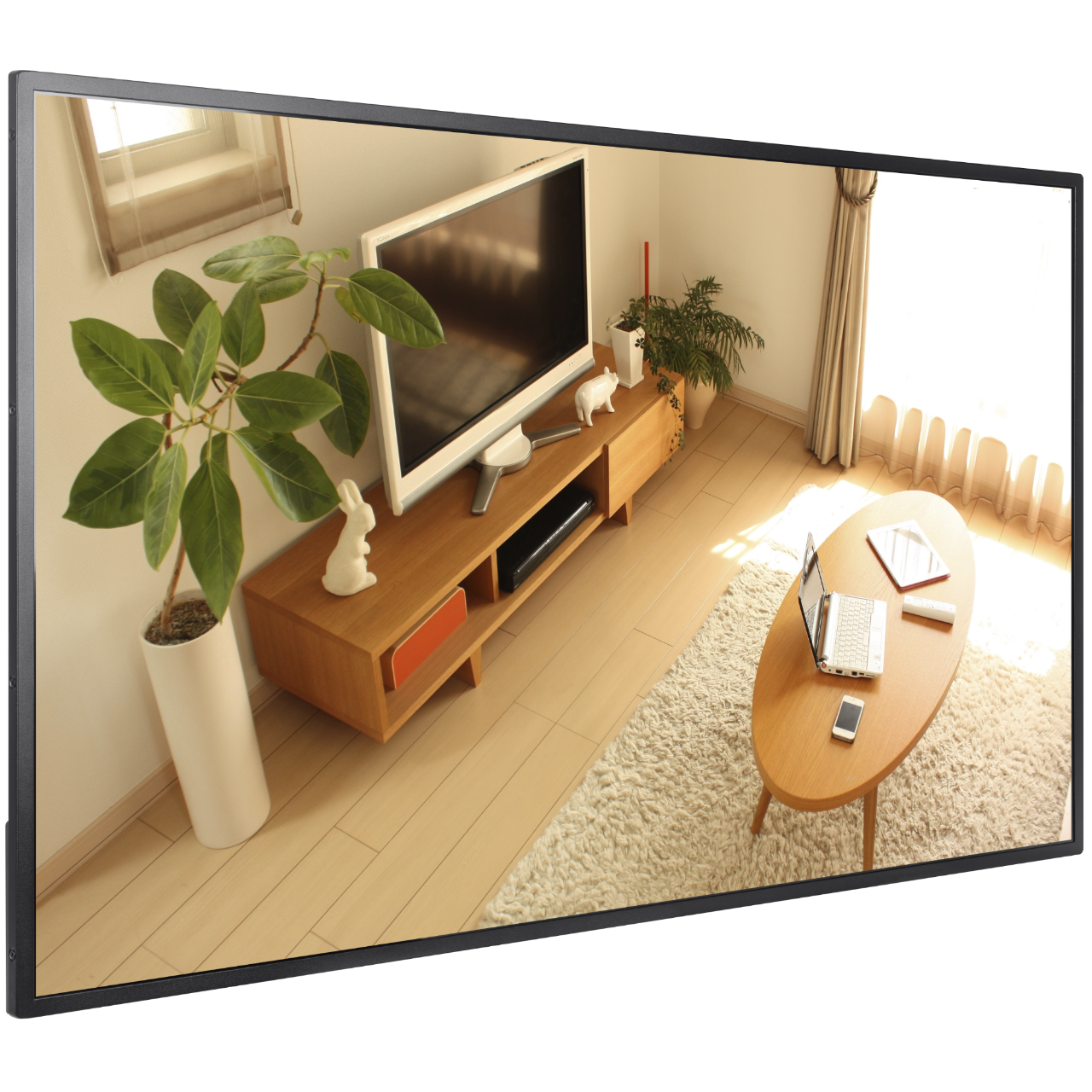

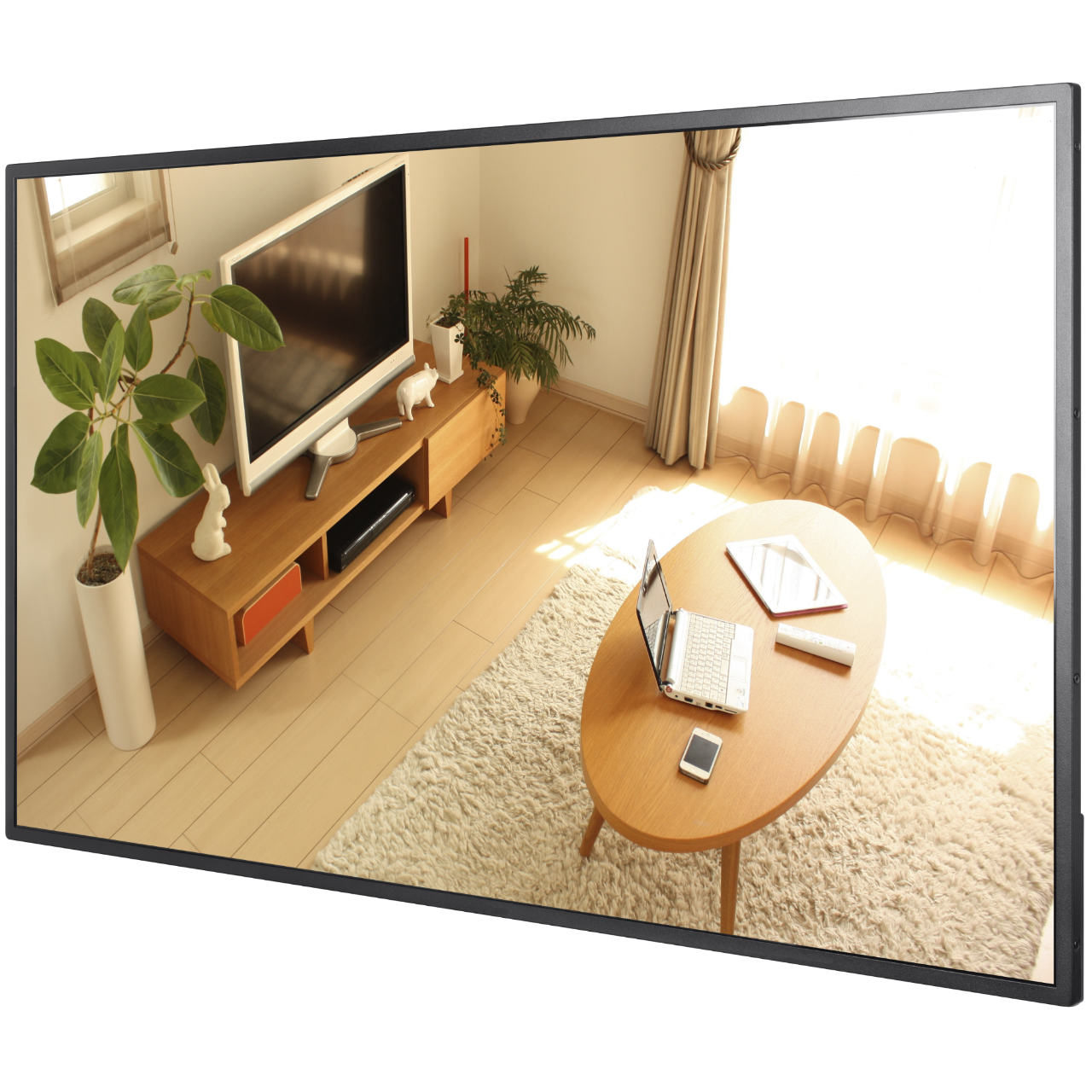

Hikvision DS-D6055UN-B 55-inch Narrow Bezel Width Wall-mounted Digital Signage

$1,689.00

FREE DELIVERYWARRANTY GUARANTEED

✔ Dedicated 5★ Customer Care Team ✔ Fast & Responsive Tech Support

Hikvision DS-D6055UN-B | 55-Inch Narrow Bezel | Wall-Mounted Digital Signage Display

The Hikvision DS-D6055UN-B delivers a 55-inch narrow bezel digital signage solution designed for indoor wall-mounted installations in commercial and public environments. Featuring an industrial A+ panel with an auto-colouring and image-enhancing engine, it produces sharp and consistent visuals across a wide range of content types. Equipped with support for static and dynamic materials including pictures, audio, video, scrolling subtitles, PDFs, webpages, live video, and pop-up content, it offers flexible content scheduling by day, week, loop, or custom configuration. Centralised management tools allow remote control of one or multiple screens, including timed startup and shutdown, brightness and volume adjustment, screenshot preview, and remote program release.

Key Features

Industrial A+ Panel: Auto-colouring and image-enhancing engine delivers consistent, high-quality visuals.
Flexible Content Scheduling: Supports play by day, week, loop, or custom modes with district play of multiple materials.
Variable Content Support: Handles pictures, audio, video, scrolling subtitles, PDFs, webpages, live video, and pop-up content.
Centralised Remote Management: Control and manage multiple screens remotely including startup, shutdown, brightness, and volume adjustments.
5-Level Organisation Permissions: Supports custom user creation, permission allocation by user level, and permission templates for materials, programs, terminals, and users.
Multi-Level Security Safeguards: 3-level content check, encrypted data storage and transmission, and no default password to ensure system integrity.

Additional Information

Datasheet – DS-D6055UN-B Indoor Wall-Mounted Digital Signage
Quick Start Guide – Digital Signage
6-8 weeks lead time

$1,689.00 inc GST +3 Year Warranty & Support

Description

Product Overview

For venues needing large-format indoor digital signage with built-in content management, the Hikvision DS-D6055UN-B delivers a 55-inch wall-mounted display built for continuous 7x24h operation. Featuring a 4K UHD panel at 3840×2160 resolution, 500 cd/m² brightness, and a 4000:1 contrast ratio, it produces sharp, vivid visuals suited to reception areas, retail floors, corporate lobbies, healthcare waiting rooms, and hospitality venues. Built with a narrow bezel and slim all-in-one construction, the DS-D6055UN-B mounts horizontally or vertically and integrates neatly into professional interior environments. Equipped with Android 8.1 and a quad-core processor, it supports local and remote content scheduling across a wide range of media formats. It also integrates LAN and Wi-Fi connectivity for centralised multi-screen management, with 5-level organisation permissions and a 3-level content approval workflow providing structured control over who can publish what. Note that this product carries a 6-8 week lead time.

Key Capabilities

4K UHD Industrial Panel

The 3840×2160 industrial A+ panel delivers 500 cd/m² brightness and a 4000:1 contrast ratio with 178-degree viewing angles in both directions, keeping content legible from wide-angle positions across large indoor spaces such as lobbies, concourses, and retail floors.

7x24h Continuous Operation

Rated for 24-hour, 7-day-a-week operation, the DS-D6055UN-B suits high-demand environments where the display runs through business hours and beyond without scheduled downtime. Standby power consumption of 0.5W or less keeps energy use low during off-peak periods.

Built-In Android Content Engine

Running Android 8.1 on a quad-core Cortex-A17 processor with 2 GB RAM and 16 GB EMMC storage, the unit handles local content playback without an external media player. A broad range of formats is supported including MP4, MKV, JPG, PNG, PDF, and web pages.

Flexible Scheduling and Playback Modes

Content can be scheduled by day, by week, on a loop, or via custom configurations. Static and dynamic materials including videos, scrolling subtitles, live video feeds, pop-up images, and web pages can be combined into a single program, allowing location-appropriate messaging at different times.

Remote Centralised Management

Via LAN or Wi-Fi, operators can remotely push content updates, trigger timed startup and shutdown, adjust brightness and volume on a schedule, capture screenshot previews, and manage multiple screens from a single location, reducing the need for on-site intervention.

Best For

Reception and Lobby Displays: The narrow bezel and slim 83mm depth (without backboard) allow wall-mounted installation that suits polished interior environments without protruding significantly from the wall surface.
Multi-Screen Commercial Networks: The 5-level organisation permission structure and remote management capability allow IT teams or marketing teams to control multiple screens across a site or across multiple locations from a central platform.
Retail and Hospitality Content Delivery: Flexible scheduling by day or week allows menus, promotions, or announcements to change automatically without manual intervention at the screen, useful for cafes, restaurants, and retail venues with regular content updates.
Corporate and Education Environments: The 3-level content approval workflow and no-default-password security architecture suit organisations where content accuracy and data integrity are compliance requirements before material goes live on-screen.

Why Choose the DS-D6055UN-B

The DS-D6055UN-B stands apart from basic commercial displays through its combination of an industrial-grade A+ panel rated for 7x24h continuous use, 4K UHD output, and a self-contained Android-based content management system that eliminates the need for a separate media player. Where lower-specification signage displays rely on external hardware for scheduling and remote management, the DS-D6055UN-B handles both locally and over the network via LAN or Wi-Fi. The 5-level permission model and 3-level content approval workflow are rarely found in entry-level signage products, making this unit appropriate for multi-department or multi-site deployments where content governance matters. At 10-bit colour depth with auto-coloring and image-enhancing processing, the panel maintains colour accuracy across the full display area at viewing angles up to 178 degrees. Available through Security Wholesalers, the DS-D6055UN-B is a considered option for projects requiring a reliable, self-contained 55-inch signage solution with structured content control.

Buyer Decision Tips

Lead Time Planning: The DS-D6055UN-B carries a 6-8 week lead time. If your project has a fixed commissioning date, factor this into procurement planning well in advance. Ordering late in a project timeline risks delaying installation, particularly for fit-outs where the display is built into cabinetry or wall recesses.

Orientation and Mounting: The DS-D6055UN-B supports both horizontal landscape and vertical portrait wall mounting. Confirm your intended orientation before installation, as internal content layouts and scheduling may need to be configured differently for portrait versus landscape use. The wall-mounted backboard is included in the package.

Key Features & Technical Specifications

Screen Size	55 inch
Resolution	3840 x 2160 (4K UHD)
Active Display Area	1209.6 mm (H) x 680.4 mm (V)
Brightness	500 cd/m²
Contrast Ratio	4000:1
Viewing Angle	178° (H) / 178° (V)
Colour Depth	10-bit, 1.07B colours
Refresh Rate	60 Hz
Response Time	8 ms
Colour Gamut	72% NTSC
Backlight Type	D-LED
Reliability Rating	7 x 24 h continuous operation
Operating System	Android 8.1
Processor	Cortex-A17, quad-core, 1.6 GHz
RAM / Storage	2 GB RAM / 16 GB EMMC
Video and Audio Input	HDMI x2, VGA x1, AUDIO IN x1
Audio Output	AUDIO OUT x1, built-in speakers 8 ohm 5W x2
Network Connectivity	LAN x1, Wi-Fi x1
Data Interfaces	USB 2.0 x2, TF Card x1, Bluetooth 4.0 x1
Power Consumption	200W max, standby 0.5W or less
Input Voltage	100 to 240 VAC, 50/60 Hz
Working Temperature	0°C to 40°C
Mounting Type	Wall mounting – horizontal or vertical
Product Dimensions (W x H x D)	1237.2 mm x 708 mm x 83.44 mm (without backboard) / 1237.2 mm x 708 mm x 102.44 mm (with backboard)
Net Weight	19.2 kg

Ideal Use Cases

Hotel and Hospitality Lobbies

The narrow bezel design and slim 83mm depth suit wall-mounted installations in polished lobby environments. Timed scheduling allows check-in information, event listings, and promotional content to rotate automatically throughout the day without staff involvement.

Retail Promotional Displays

Weekly or daily scheduling allows promotional content to change automatically in line with trading periods or campaign calendars. The built-in Android system removes the need for a separate media player at each screen location, simplifying installation in shop environments.

Corporate Reception and Meeting Rooms

Portrait or landscape orientation mounting suits both wide reception walls and narrow corridor positions. The 5-level permission system allows communications teams to publish content while IT retains administrative control, which is appropriate for structured corporate environments.

Healthcare Waiting Areas

The 7x24h operation rating and remote management via Wi-Fi or LAN allow facility managers to push updated patient information, health messaging, or wayfinding content without visiting each display, which is practical across multi-floor or multi-building healthcare sites.

Education and Campus Wayfinding

The 3-level content check workflow ensures that only approved materials are published to screens, which suits universities and schools managing content across departments. USB and TF card inputs also allow local program updates without network dependency for isolated campus locations.

Choosing the Right Model

Choose this model if: You need a self-contained 55-inch 4K indoor signage display with built-in scheduling, remote management, and structured content approval, rated for 7x24h continuous operation and capable of mounting in landscape or portrait orientation.
Choose a different model if: Your installation is in an outdoor or semi-exposed environment, as this unit is rated for indoor use between 0°C and 40°C only and is not weatherproofed for external conditions. If a smaller or larger screen size is needed, or if higher brightness is required for a window-facing position, a display with a higher nit rating would be more appropriate.
Consider lead time carefully: With a 6-8 week lead time, this product is not suited to urgent project timelines. If your installation date is fixed and imminent, confirm stock availability before committing to this model in your project schedule.

FAQs

Does the DS-D6055UN-B require a separate media player to operate?
No. The unit has a built-in Android 8.1 system with a quad-core Cortex-A17 processor, 2 GB of RAM, and 16 GB of EMMC storage. It can store and play content locally without any external media player, though it can also accept input via HDMI or VGA if an external source is preferred.
Can the display be mounted vertically as well as horizontally?
Yes. The DS-D6055UN-B supports both horizontal landscape and vertical portrait wall mounting. The included wall-mounted backboard accommodates both orientations. Content layout and scheduling should be configured to match the chosen orientation before deployment.
What network connection options does the display support?
The DS-D6055UN-B includes both a wired LAN port and built-in Wi-Fi. Either connection allows remote content management, timed startup and shutdown scheduling, brightness and volume adjustments, and screenshot previews from a central management interface without requiring physical access to the screen.
What types of content can the DS-D6055UN-B display?
The unit supports a wide range of material types including video formats such as MP4, MKV, AVI, and MOV, image formats including JPG, PNG, BMP, and GIF, audio playback, PDF documents, web pages, live video feeds, scrolling subtitles, and pop-up images. Content can be mixed within a single program schedule.
How does the content approval process work?
The DS-D6055UN-B uses a 3-level check system that reviews materials, programs, and schedules separately before anything is published to the screen. This workflow reduces the risk of incorrect content going live, which is particularly useful in regulated or customer-facing environments where message accuracy matters.
Is the DS-D6055UN-B suitable for outdoor use?
No. The operating temperature range is 0°C to 40°C and the unit is not weatherproofed. It is designed exclusively for indoor wall-mounted installation in climate-controlled environments. Outdoor or semi-exposed deployments require a different product category with appropriate weatherproofing and higher brightness output.
Where can I obtain this display and what is the lead time?
The DS-D6055UN-B is available through Security Wholesalers and carries a 6-8 week lead time from order. This lead time applies to standard orders and should be factored into project planning, particularly for fit-outs with fixed completion dates. Check current availability directly when placing an order to confirm the most up-to-date timeframe.
