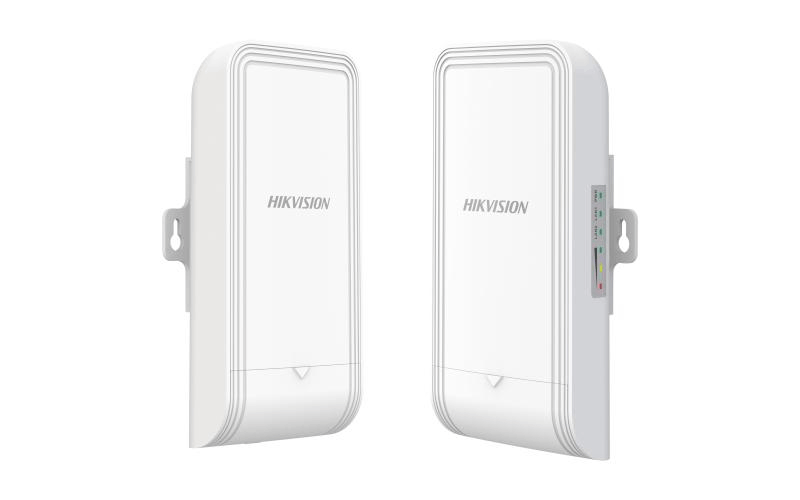

Hikvision DS-3WF02-5AC/D 5GHz 867Mbps 5km Outdoor Wireless Bridge Kit

The Hikvision DS-3WF02-5AC/D is a professional outdoor wireless bridge kit designed to create a reliable point-to-point wireless network link between two locations. It is ideal for CCTV installations where a camera or remote network device needs to be connected back to an NVR or main network, but trenching, conduit, fibre or long Ethernet cable runs are not practical.

Operating on the 5GHz wireless band and supporting 802.11ac transmission, the DS-3WF02-5AC/D provides wireless throughput of up to 867Mbps. Under ideal clear line-of-sight conditions, the bridge can support transmission distances of up to 5km, making it suitable for larger properties, farms, industrial yards, car parks, gates, detached buildings and remote camera positions.

Each bridge unit includes a built-in 12dBi 2×2 MIMO directional antenna, helping provide focused wireless transmission between the two bridge points. This makes it a cleaner and more purpose-built option than relying on standard Wi-Fi extenders, particularly for CCTV systems where stable video transmission is important.

The kit supports standard PoE input and output, helping simplify power and cabling at each end of the link. For many CCTV applications, this allows the bridge to be powered via PoE while also helping connect a network device such as an IP camera, depending on the site design and power requirements. Hikvision lists the package as supplied in pairs, including two wireless bridge units, two PoE power supplies, AC cords, quick start guide, compliance/safety information and mounting binding tapes.

The DS-3WF02-5AC/D also supports plug-and-play deployment and visualised topology management, making it easier for installers to set up, align and manage the wireless link compared with generic wireless equipment. It is suitable for wireless video security, wireless data transmission, network extension and outdoor wireless coverage applications.

For CCTV installations, this bridge is commonly used where a camera needs to be installed on a remote shed, gate, pole, car park, farm building or separate structure, and a physical network cable back to the NVR is too expensive or difficult. A clear line of sight between both bridge units is strongly recommended for best performance.

Key Features

• Hikvision outdoor wireless bridge kit
• 5GHz wireless transmission
• Up to 867Mbps 802.11ac wireless performance
• Up to 5km transmission distance in ideal line-of-sight conditions
• Built-in 12dBi 2×2 MIMO antenna
• Suitable for CCTV and network extension applications
• Standard PoE input and output
• Plug-and-play setup
• Visualised topology management
• Supplied as a pair of wireless bridge units
• Ideal for remote cameras, sheds, gates, farms, warehouses and car parks

Ideal Applications

• Connecting an IP camera where cable cannot be run
• Linking a remote building back to the main network
• Farm CCTV camera links
• Gate camera or intercom network links
• Car park CCTV
• Warehouse or industrial yard camera links
• Temporary CCTV deployments
• Long-distance point-to-point wireless network bridging

Important Installation Notes

For best results, the two wireless bridge units should have clear line of sight between them. Trees, walls, metal structures, hills, vehicles and other obstructions can reduce range and performance. The quoted 5km distance is based on ideal conditions, so real-world performance will depend on site conditions, interference, mounting height, alignment and network load.

This product is designed as a wireless bridge, not a general indoor Wi-Fi router. It is best used for point-to-point network extension between two fixed locations.

Package Includes

• 2 × Hikvision wireless bridge units
• 2 × PoE power supplies
• 2 × AC cords
• 1 × Quick start guide
• 1 × Regulatory compliance and safety information
• 4 × Binding tapes

FAQ

What is the Hikvision DS-3WF02-5AC/D used for?

It is used to create a wireless network link between two locations. In CCTV installations, it is commonly used to connect a remote IP camera, shed, gate, pole or detached building back to the main network or NVR without running a long data cable.

Does this replace a network cable?

In many situations, yes. It can act as a wireless bridge where running Ethernet cable is difficult, expensive or impractical. However, it still requires power and correct installation at both ends.

What distance can the DS-3WF02-5AC/D transmit?

Hikvision specifies up to 5km wireless transmission distance under ideal conditions. Real-world range depends heavily on clear line of sight, antenna alignment, interference, mounting height and obstructions.

Is this suitable for CCTV cameras?

Yes. Hikvision lists wireless video security as one of the intended applications, and the long-distance wireless transmission is designed to support multi-channel HD video transmission.

Does it come as a pair?

Yes. Hikvision lists the DS-3WF02-5AC/D as packed in pairs, with two wireless bridge units included in the kit.

Does it support PoE?

Yes. The DS-3WF02-5AC/D supports standard PoE input and output, helping simplify installation and power arrangements.

Do I need clear line of sight?

Yes, clear line of sight is strongly recommended. Wireless bridges perform best when both units can directly “see” each other without major obstructions.

Can I use this for a farm or remote shed?

Yes. This is one of the common use cases. It can be used to link a remote shed, gate, barn, outbuilding or camera pole back to the main network, provided the wireless path is suitable.

Is this the same as a Wi-Fi extender?

No. A wireless bridge is designed to create a fixed point-to-point network link. It is generally more suitable for CCTV and long-distance outdoor links than a standard Wi-Fi extender.

Can this connect directly to a Hikvision NVR?

Yes, it can be used as part of a network path between a remote IP camera and a Hikvision NVR. The exact wiring will depend on whether the camera is connected through the NVR PoE ports, a PoE switch, or the site network.
