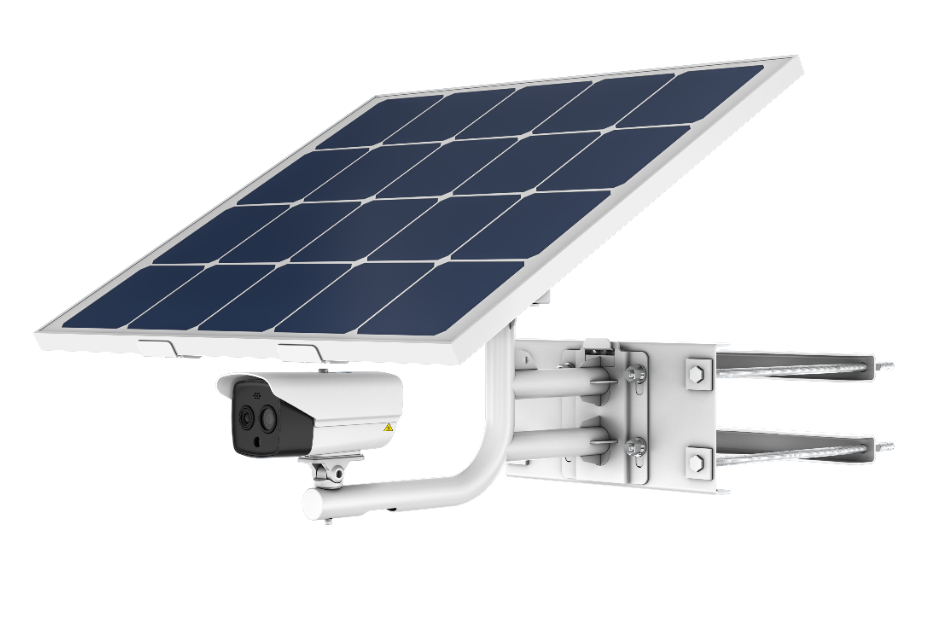

Hikvision DS-2TXS2628-3P/QA/GLT/CH30S80-KIT Solar-powered Thermal Camera Kit (30AH vBattery)
- 256 × 192 resolution, 12 μm, VOx UFPA, NETD < 40 mK (25°C, F1.0)
- Video content analysis: vehicle/human classification
- 80 W photovoltaic panel, 30 Ah chargeable lithium battery
- Temperature exception alarm for fire prevention, -20°C to 150°C (-4°F to 302°F), ± 8°C (± 14.4°F)
- LTE-TDD/LTE-FDD/WCDMA 4G wireless network transmission, support Micro SIM card
- Water and dust resistant (IP67)
- Embedded audible alert and strobe light
DS-2TXS2628-3P_QA_GLT_CH30S80 Spec sheet
8-10 Week Lead time
$3,800.00 $3,881.96 inc GST +3 Year Warranty & Support
Solar-powered Thermal Camera Kit
- 256 × 192 resolution, 12 μm, VOx UFPA, NETD < 40 mK (25°C, F1.0)
- Video content analysis: vehicle/human classification
- 80 W photovoltaic panel, 30 Ah chargeable lithium battery(The battery should be ordered separately.)
- Temperature exception alarm for fire prevention, -20°C to 150°C (-4°F to 302°F), ± 8°C (± 14.4°F)
- LTE-TDD/LTE-FDD/WCDMA 4G wireless network transmission, support Micro SIM card
- Water and dust resistant (IP67)
- Embedded audible alert and strobe light
- Thermal Module
- Image Sensor Vanadium Oxide Uncooled Focal Plane Arrays
- Resolution256 x 192
- Pixel Pitch12 μm
- Spectral Range8 μm to 14 μm
- NETD≤ 40 mK (@25° C,F# = 1.0)
- Focal Length 3.6 mm
- IFOV3.33 mrad
- ApertureF1.0
- Field Of View 50.0° × 37.3° (H × V)
- Min. Focusing Distance 0.5 m
- Digital Zoom×2, ×4
- Optical Module
- Image Sensor 1/2.7″ Progressive Scan CMOS
- Resolution 2688 × 1520
- Min. Illumination 0.0089Lux @(F1.6,AGC ON) ,0 Lux with IR
- Field Of View 84.0° ×43.1° (H × V)
- Focal Length 4.3 mm
- Aperture F 1.6
- Shutter Speed1 s to 1/100,000 s
- White BalanceMWB/AWB1/Locked WB/Fluorescent Lamp/Incandescent Lamp/Warm Light Lamp/Natural Light
- Day & Night ModeIR Cut Filter with Auto Switch
- WDR120 dB
- Image Effect
- Bi-Spectrum Image FusionDisplay the details of optical channel on thermal channel
- Target ColorationYes. Supported in white hot and black hot mode
- Illuminator
- IR Distance Up to 30 m
- IR Intensity And AngleAutomatically adjusted
- Audible And Visual Alarm
- White Light RangeUp to 30 m
- Visual Alarm
Yes. White light alarm with adjustable flashing frequencies
- Audio Alarm
Yes, for three types of audible alarm (VCA and Temperature Exception)
3 preset voice alerts (one for each)
6 importable user-defined voice alerts (6 options shared in the two types)
- Smart Function
- VCA4 VCA rule types (line crossing, intrusion, region entrance, and region exiting), up to 8 VCA rules in total.
- Temperature Measurement3 temperature measurement rule types, 21 rules in total (10 points, 10 areas, and 1 line)
- Temperature Range-20°C to 150°C (-4°F to 302°F)
- Temperature Accuracy± 8°C (± 14.4°F)
- Video And Audio
- Main Stream
Thermal:
25 fps (1280 × 720, 704 × 576, 640 × 512, 320 × 240)
Optical:
50 Hz: 25 fps (2688 × 1520, 1920 × 1080, 1280 × 720)
60Hz: 30 fps (2688 × 1520, 1920 × 1080, 1280 × 720)
- Sub-Stream
Thermal:
25 fps (704 × 576, 640 × 512, 320 × 240)
Optical:
50 Hz: 25 fps (704 × 576, 352 × 288)
60 Hz: 30 fps (704 × 480, 352 × 240)
- Video Compression
Main Stream: H.265/H.264
Sub-Stream: H.265/H.264/MJPEG
- Audio CompressionG.722.1/G.711ulaw/G.711alaw/MP2L2/G.726/PCM
- Network
- ProtocolsIPv4/IPv6,HTTP,HTTPS,802.1x,Qos,FTP,SMTP,UPnP,SNMP,DNS,DDNS,NTP,RTSP,RTCP,RTP,TCP,UDP,IGMP,ICMP,DHCP,PPPoE,Bonjour,SFTP,SRTP
- Network StorageMicroSD/SDHC/SDXC card (32G inside) (up to 256 G) local storage, NAS (NFS, SMB/CIFS), Auto Network Replenishment (ANR)
- APIISAPI, HIKVISION SDK, and third-party management platform, Open Network Video Interface (Profile S, Profile G)
- Simultaneous Live ViewUp to 20 channels
- User/Host LevelUp to 32 users, 3 levels: Administrator, Operator, User
- SecurityUser authentication (ID and Password), MAC address binding, HTTPS encryption, IEEE 802.1x(EAP-MD5, EAP-TLS), access control, IP address filtering
- ClientiVMS-4200, Hik-Connect
- Interface
- Alarm Input2, alarm input (0-5 VDC)
- Alarm Output2, alarm output (alarm response actions configurable)
- Alarm ActionLinkage Method Trigger recording: memory card, network storage, pre-record and post-record Trigger captured pictures uploading: FTP, SFTP, HTTP, NAS, Email Trigger notification: HTTP, ISAPI, alarm output, Email
- Audio Input
1, 3.5 mm Mic in/Line in interface
Line input: 2 to 2.4 V [p-p], output impedance: 1 KΩ ± 10%
- Audio Output Linear level, impedance: 600 Ω
- Communication Interface
1, RJ45 10 M/100 M Self-adaptive Ethernet interface.
1, RS-485 interface (half duplex)
- General
- Menu Language32 languages English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil)
- Power Supply
12 VDC ± 25%, φ 5.5 mm coaxial power plug
PoE (802.3af, class 3)
- Power Consumption
Thermal only mode power consumption: 2.73W
The average power consumption of 24 hours: 2.97W
The max. power consumption: 7.1W (IR light on)
- Working Temperature/Humidity
Temperature: -40°C to 65°C (-40°F to 149°F)
Humidity: 95% or less
- Protection Level
IP67 Standard ,IK10-rated housing
TVS 4000V lightning protection, surge protection, voltage transient protection
- Dimensions208.9 mm × 106 mm × 105.2 mm (8.22″ × 4.17″ × 4.14″)
- Adjustment Range
Bullet camera: Tilt: -10 ° to +45°, Pan: -180 ° to +180°
Photovoltaic panel: Tilt: 10 ° or 30°
- 26.6kg(58.64lb)
- MountPole Mount
- With Package Weight27.79kg(61.26lb)
- Storage Conditions
Temperature: -40°C to 65°C (-40°F to 149°F)
Humidity: 95% or less
- Startup And Operating Conditions
Temperature: -40°C to 65°C (-40°F to 149°F)
Humidity: 95% or less
- Mobile Communication
- SIM Card TypeMicroSIM
- Frequency
LTE FDD: B 1/3/5/7/8/20/28
LTE TDD: B 38/40/41
WCDMA: B 1/5/8
- StandardLTE FDD/LTE TDD/WCDMA
- Battery
- Battery Type
Lithium
*The battery should be ordered separately.
- Battery Voltage10.8 V
- Battery Capacity 30 Ah
- Operating Temperature
Charging: -20 °C to 45 °C (-4 °F to 113 °F)
Discharging: -20 °C to 60 °C (-4 °F to 140 °F)
- Battery Life More than 500 cycles
- Battery WeightApprox. 3.3 kg (7.3 lb.)
- Extended Dimension236 × 154 × 80 mm (9.3 ” × 6.1 ” × 3.2 “)
- Max. Output Voltage12.6 V
- Approval
- EMC
CE-EMC：EN 55032:2015+A11:2020；EN 50130-4:2011+A1:2014；EN IEC 61000-3-2:2019+A1:2021；EN 61000-3-3:2013+A1:2019
FCC SDOC：47 CFR Part 15，Subpart B
- RFCE-RED : EN 301 489-1 V2.2.3; EN 301 489-19 V2.2.0; EN 301 489-52 V1.2.1; EN 301 511 V12.5.1; EN 301 908-1 V13.1.1; EN 301 908-2 V13.1.1; EN 301 908-13 V13.1.1; EN 303 413 V1.1.1; EN 62311:2008
- Safety
CB : IEC 62368-1: 2014
CE-LVD： IEC 62368-1: 2014
- Environment
CE-RoHS (2011/65/EU);
WEEE (2012/19/EU);
Reach (Regulation (EC) No 1907/2006)
- Protection
Camera: IP67 (IEC 60529-2013),IK10-rated housing
TVS 4000V lightning protection, surge protection, voltage transient protection
Wind resistance 12 level
