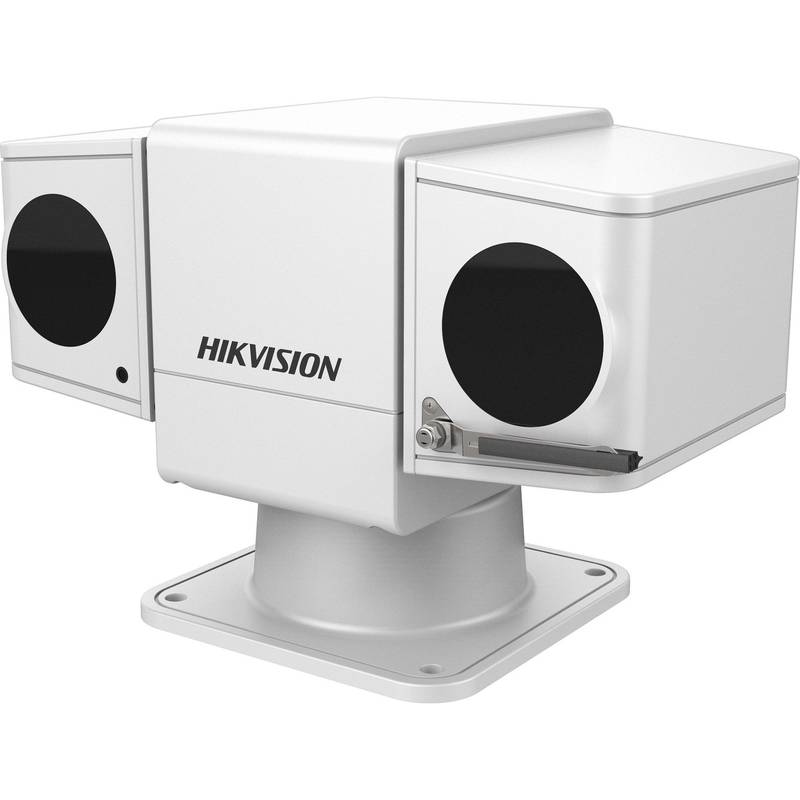

Hikvision DS-2DY5223IW-DM 5-inch 2 MP 23X DarkFighter IR Network Positioning System

  • High quality imaging with 2 MP resolution
  • Excellent low-light performance via DarkFighter technology
  • Covering a vertical area with tilt angle from -90° to 90°
  • 23x optical zoom provides close up views over expansive areas
  • Mobile vehicles are supported with anti-vibration design
  • 4-6 weeks lead time

Quick-Start-Guide-of-Network-Positioning-System

User-Manual-of-Network-Positioning-System

DS-2DY5223IW-DM

$3,278.00 inc GST +3 Year Warranty & Support

Lens

  • Working Distance10 mm to 1500 mm (wide-tele)
  • Aperture RangeF1.5 to F3.4
  • Focal Length5.9-135.7mm, 23X
  • Field Of View59.8°-3.0°(Wide-Tele)


  • Sub-Stream50Hz: 25fps (704 × 576, 640 × 480, 352 × 288), 60Hz: 30fps (704 × 480, 640 × 480, 352 × 240)
  • Max. Resolution1920 × 1080
  • Main Stream50Hz: 25fps (1920 × 1080, 1280 × 720),60Hz: 30fps (1920 × 1080, 1280 × 720)
  • SVCYes

Network

  • ProtocolsIPv4/IPv6,HTTP,HTTPS,802.1x,Qos,FTP,SMTP,UPnP,SNMP,DNS,DDNS,NTP,RTSP,RTP,TCP,UDP,IGMP,ICMP,DHCP,PPPoE
  • APIONVIF, PSIA, CGI, Genetec
  • Simultaneous Live ViewUp to 20 channels
  • User/HostUp to 32 users. 3 levels: Administrator, Operator and User
  • Alarm7-ch alarm input/2-ch alarm output

Interface

  • Network Interface1 RJ45 10 M/100 M Ethernet Interface
  • RS-485Half duplex, HIKVISION, Pelco-P, Pelco-D, self-AI2daptive
  • CVBS1.0V[p-p] / 75Ω, NTSC (or PAL) composite, BNC

Compression Standard

  • H.264+ Yes
  • H.265+ Yes
  • Video Compression H.265+/H.265/H.264+/H.264/MJPEG
  • Audio Compression G.711alaw/G.711ulaw/G.722.1/G.726/MP2L2/PCM

IR

  • IR Distance 150 m
  • Smart IR Yes
  • IR IntensityAutomatically adjusted, depending on the zoom ratio

Smart Feature

  • Event Detection Face detection, Intrusion detection, Line crossing detection, Audio exception detection, Region entrance detection, Region exiting detection
  • ROI Support 12 areas with adjustable levels

Camera Module

  • 3D DNR Yes
  • Image Sensor 1/1.9’’ Progressive Scan CMOS
  • Min. Illumination Color：0.002Lux @ (F1.5, AGC ON),B/W：0.0002Lux @(F1.5, AGC ON)
  • White Balance Auto/Manual/ATW (Auto-tracking White Balance)/Indoor/Outdoor/Fluorescent Lamp/Sodium Lamp
  • GainAuto/Manual
  • Shutter Time 1/1 s to 1/10,000 s
  • Day & Night ICR
  • Digital Zoom 16×
  • Privacy MaskYes
  • Focus ModeAuto/Semi-automatic/Manual
  • WDRtrue WDR
  • BLC Yes
  • Defog Yes

PTZ

  • Movement Range (Pan) 360° endless
  • Pan Speed 0.1°/s to 80°/s
  • Movement Range (Tilt)From -90° to 90°
  • Tilt Speed 0.1°/s to 40°/s
  • Proportional ZoomYes
  • Presets 300
  • Patrol Scan8 patrols, up to 32 presets for each patrol
  • Pattern Scan4 pattern scans, record time over 10 minutes for each scan
  • Power-Off Memorysupport
  • Park Actionsupport
  • 3D Positioning Yes
  • PTZ Status Display Yes
  • Preset Freezing Yes

General

  • Dimensions 306 mm×167 mm×212 mm
  • Approx. 7.8 kg
  • Protection Level IP66 Standard, 4000V Lightning Protection, Surge Protection and Voltage Transient Protection
  • Power DC12V, Max. 40W
  • Working Environment– 40°C to 65°C (-22°F to 149°F), Humidity: ≤ 90%
SKU: DS-2DY5223IW-DM Categories: , , Tag:
Camera
Image Sensor: 1/2.8″ Progressive Scan CMOS
Effective Pixels: 1920(H)x1080(V)
Signal System: PAL/NTSC
Minimum Illumination: Color: 0.005 Lux @(F1.6, AGC ON)
B/W: 0.001Lux @(F1.6, AGC ON)
0 Lux with IR
White Balance: Auto/Manual/ATW (Auto-Tracking White Balance)/Indoor/Outdoor/Fluorescent Lamp/Sodium Lamp
AGC: Auto/Manual
BLC: ON/OFF
HLC: Support
Smart defog: Support
WDR: 120dB
Shutter Time: 50Hz: 1/1 s to 1/30,000 s
60Hz: 1/1 s to 1/30,000 s
Day& Night: ICR
Digital Zoom: 16X
Privacy Mask: 24 programmable privacy masks
Auto Focus: Auto / Semi-automatic / Manual
Lens
Focal Length: 4.8 mm to 120 mm, 25× optical zoom
Zoom Speed: Approx. 3.6 s (optical lens, wide-tele)
Field of View: Horizontal field of view: 57.6° to 2.5° (Wide-Tele)
Vertical field of view: 34.4° to 1.4° (Wide-Tele)
Diagonal field of view: 64.5° to 2.9° (Wide-Tele)
Minimum Working Distance: 10 mm to 1500 mm (wide-tele)
Aperture Range: F1.6 to F3.5
Pan & Tilt
Pan Range: 360°endless
Pan Speed: Configurable, from 0.1°/s to 80°/s,
Preset speed: 80°/s
Tilt Range: -15°-90° (Auto Flip )
Tilt Speed: Configurable, from 0.1°/s to 80°/s,
Preset speed: 80°/s
Number of Preset: 300
Patrol: 8 patrols, up to 32 presets per patrol
Pattern: 4 pattern scans, record time over 10 minutes for each scan
Power-off Memory: Support
Park Action: Preset/Pattern Scan/Patrol Scan/Auto Scan/Tilt Scan/Random Scan/Frame Scan/Panorama Scan
PTZ Position Display: ON/OFF
Infrared
IR Distance: 100m
IR irradiation angle: Adjustable by zoom
Input & Output
Audio Input: 1-ch audio input
Audio Output: 1-ch audio output
Network
Ethernet: 1 RJ45 self-adaptive 10 M/100 M Ethernet Interface
Max.Image Resolution: 1920×1080
Main Stream: 50Hz:25fps (1920×1080,1280×960,1280×720), 50fps (1280×960,1280×720) ;
60Hz:30fps(1920×1080,1280×960,1280×720), 60fps (1280×960,1280×720)
Sub Stream: 50Hz: 25fps(704×576, 640×480,352×288); 60Hz: 30fps(704×480, 640×480,352×240)
Third Stream: 50Hz: 25fps(1920×1080, 1280×960, 1280×720, 704×576, 640×480,352×288)
60Hz: 30fps(1920×1080, 1280×960, 1280×720, 704×576, 640×480,352×288)
Video Compression: Main Stream: H.265+/H.265/H.264+/H.264
Sub-Stream: H.265/H.264/MJPEG
Third Stream: H.265/H.264/MJPEG
ROI encoding: Main stream, sub-stream, and third stream respectively support four fixed areas.
Audio Compression: G.711alaw/G.711ulaw/G.722.1/G.726/MP2L2/PCM
Protocols: IPv4/IPv6, HTTP, HTTPS, 802.1x, Qos, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTCP, RTP, TCP, UDP, IGMP, ICMP, DHCP, PPPoE, Bonjour
Simultaneous Live View: Up to 20 channels
Three-Stream: Support
Storage: Built-in memory card slot, support Micro SD/SDHC/SDXC, up to 256 GB; NAS (NFS, SMB/ CIFS), ANR
User/Host: Up to 32 users, 3 levels: Administrator, Operator and User
Security Measures: User Authentication (User ID and Password), Host Authentication (MAC address), HTTPS Encryption, IEEE 802.1x Port-Based Network Access control, IP address Filtering
Client GUI
Client: iVMS-4200, iVMS-4500, iVMS-5200, Hik-Connect
Web Browser: IE 8 to 11,Chrome 31.0+, Firefox 30.0+, Edge 16.16299+
General
Language: 32 languages. English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil)
Power Consumption: 12 VDC, 2.0 A and PoE (802.3at), 42.5 to 57 VDC, 0.6A, Class4
Max.18 W, including max.7W for IR
Working Temperature/Humidity: -30°C to 65°C (-22°F to 149°F)
90% or less
Protection Level: IP66 standard (outdoor dome)
TVS 4,000V lightning protection, surge protection and voltage transient protection
Material: ADC 12, PC, PC+10%GF
Dimensions: Φ 164.5 mm × 290 mm (Φ 6.48″ × 11.42″)
Weight (approx.): Approx. 2 kg (4.41 lb)
