Product Overview
Wide-area coverage across a large car park, warehouse floor or open commercial entrance from a single mounting point is what the DS-2CD2367G2P-LSU/SL is built to deliver. This 6MP ColorVu Gen2 panoramic turret uses dual fixed 2.8mm lenses and Image Fusion Technology to produce a 180° horizontal field of view, helping reduce camera count and cabling complexity in wide-open sites. Featuring 24/7 full-colour imaging with an F1.0 super aperture, AcuSense human and vehicle classification, Live-Guard strobe and customisable audio alarm, plus a built-in microphone and speaker, it is designed for sites where broad visibility and active deterrence must work together. The IP67-rated housing suits exposed outdoor positions such as loading docks, factory frontages and large building entries. A DORI detection range of 45m ensures moving subjects are captured across the panoramic view, while the 130dB WDR handles challenging mixed-lighting conditions common in large commercial spaces.
Key Capabilities

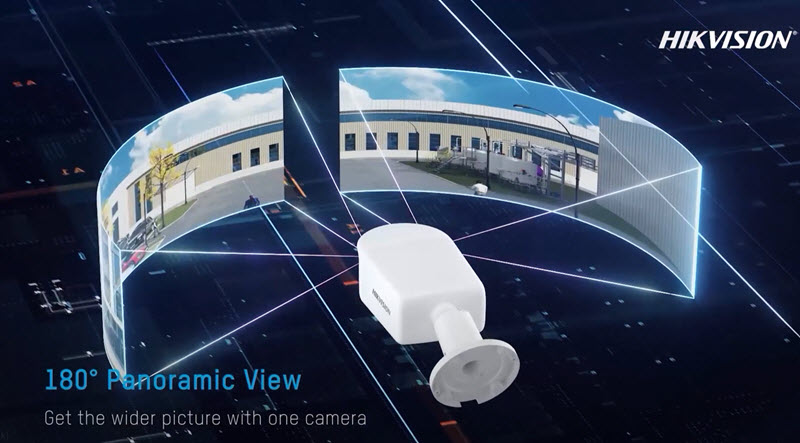

180° Panoramic Field of View
The dual 2.8mm fixed lens design delivers a 180° horizontal and 60° vertical field of view from one mounting point. This is directly useful in wide open spaces such as warehouse bays, car parks and large commercial entries where a single standard-lens camera cannot cover the full scene.
Image Fusion Technology
Rather than displaying two separate lens views, Image Fusion Technology blends the dual-sensor output into a more natural panoramic image. This reduces the visual gap that can affect usability when reviewing wide-entrance footage or monitoring open indoor areas from a single camera position.
ColorVu 24/7 Colour Imaging
An F1.0 super aperture and warm white light illumination keep the scene in full colour throughout the night. At a minimum illumination of 0.0005 Lux, this is useful at sites where clothing colour, vehicle colour and broader scene context need to be usable during after-hours incident review.
Live-Guard Active Deterrence
The built-in strobe light and customisable audio alarm give the camera a visible and audible deterrence response when triggered. This is particularly suited to commercial sites, loading zones and car parks where discouraging unauthorised entry is as important as recording it.
AcuSense Human and Vehicle Classification
AcuSense deep learning filters alerts by distinguishing people and vehicles from background movement such as wind, rain, shadows or animals. This is especially valuable across a wide 180° scene, where general motion detection would otherwise generate frequent false alert events.
Two-Way Audio
With a built-in microphone and speaker both confirmed, this camera supports two-way audio communication when connected to compatible equipment. This allows live verbal warnings or interaction at entrances, loading bays or reception areas and adds audio context to recorded incidents.
Best For
- Warehouses and Industrial Bays: The 180° panoramic view suits long open storage areas and loading zones where a single standard camera leaves significant blind spots.
- Commercial Car Parks: Broad horizontal coverage allows vehicle lanes and pedestrian approaches to be monitored across a wide footprint from fewer mounting positions.
- Shopping Centre Entries and Open Walkways: Full-colour night imaging and AcuSense person detection are well matched to high-traffic shared spaces where evidence quality and alert accuracy both matter.
- Factory Floors and Production Areas: Wide visibility across machinery zones and work areas is supported without requiring multiple fixed-lens cameras and separate cable runs.
- Large Building Frontages and Loading Docks: Live-Guard strobe and audio alarm combined with panoramic colour coverage make this suited to exposed outdoor positions where deterrence and broad situational awareness are both needed.
Why Choose the DS-2CD2367G2P-LSU/SL
Where a standard turret camera covers a door or driveway, the DS-2CD2367G2P-LSU/SL is designed for spaces where that coverage is simply not wide enough. The dual-sensor 180° panoramic design addresses the practical problem of wide-open commercial and industrial sites that would otherwise need multiple cameras, multiple cable runs and additional VMS licences to achieve the same scene coverage. On top of that broad coverage, the camera brings together ColorVu colour night imaging, AcuSense human and vehicle classification, Live-Guard active deterrence and confirmed two-way audio in one IP67-rated housing. These are features that a basic wide-angle camera does not include. Available at Security Wholesalers, this model suits buyers planning sites where installation efficiency and genuine situational awareness both influence the final camera selection.
Buyer Decision Tips
Buyer Tip: The DS-2CD2367G2P-LSU/SL prioritises width of coverage over long-range identification. With a DORI identification distance of 4.5m and recognition at 9m, it is best positioned where broad situational awareness across a large open scene is the primary requirement. For gates, driveways or distant entry points where facial or number plate identification is the goal, a narrower lens or varifocal camera is the more appropriate choice.
Buyer Tip: Some sample video footage referenced alongside this product was captured using an 8MP variant of the panoramic platform. This model is the 6MP version. Treat those clips as useful examples of the ColorVu and Image Fusion technology rather than an exact representation of the recorded resolution from the DS-2CD2367G2P-LSU/SL specifically.
Key Features & Technical Specifications
| Resolution |
6MP panoramic output, 3840 x 1080 at 25fps. |
| Camera Type |
ColorVu Gen2 panoramic turret camera with dual fixed lenses. |
| Image Sensor |
Dual 1/2.7″ progressive scan CMOS. |
| Lens |
Dual 2.8mm fixed lens. |
| Aperture |
F1.0 super aperture for low-light colour performance. |
| Field of View |
180° horizontal, 60° vertical. |
| DORI Distance |
Detect 45m, Recognise 9m, Identify 4.5m. |
| White Light Range |
Up to 30m with built-in warm light illumination. |
| Minimum Illumination |
0.0005 Lux at F1.0 AGC on; 0 Lux with white light active. |
| Image Fusion |
Image Fusion Technology for seamless panoramic stitching of dual-lens output. |
| AI Detection |
AcuSense human and vehicle classification to reduce false motion alerts. |
| Active Deterrence |
Live-Guard strobe light and customisable audio alarm. |
| Audio |
Built-in microphone and speaker supporting two-way audio. |
| WDR |
130dB Wide Dynamic Range. |
| Compression |
H.265+ and H.264. |
| Shutter Speed |
1/3s to 1/100,000s. |
| Weather Rating |
IP67 rated for outdoor installation. |
Ideal Use Cases
Warehouse Bays and Storage Areas
The 180° panoramic view from a single mounting point covers open warehouse bays and wide internal movement zones, reducing the number of cameras and cable runs needed to achieve broad coverage across large floor plans.
Car Parks and Vehicle Approaches
AcuSense vehicle classification and the wide panoramic field of view work together to monitor multiple vehicle lanes or open parking areas from one position, keeping relevant alerts focused and reducing general motion noise.
Loading Docks and Delivery Zones
Position above loading areas to capture wide vehicle and pedestrian movement. The Live-Guard strobe and audio alarm allow a deterrence response to be triggered across the full panoramic scene when unauthorised access is detected.
Factory Floors and Production Zones
Wide horizontal coverage across machinery areas and production lines is well matched to the 180° field of view. ColorVu night imaging retains colour detail in low-light shift environments where standard IR cameras would produce monochrome footage.
Large Commercial Entrances
Shopping centre entries, building foyers and open walkways benefit from the broad horizontal coverage and AcuSense person detection. Full-colour footage at night adds useful context for incident review at high-traffic entry points.
Exposed Building Frontages
The IP67-rated housing allows outdoor mounting on exposed building walls or soffits. The combination of wide colour coverage, Live-Guard deterrence and two-way audio makes it suited to large frontages where both monitoring and interaction may be required.
Choosing the Right Model
- Choose this model if: You need panoramic 180° coverage across a wide open commercial or industrial space, and want ColorVu colour night imaging, AcuSense classification, Live-Guard deterrence and two-way audio combined in one IP67 turret camera.
- Choose this model if: Reducing camera count, installation points and VMS licence requirements across a large open site is a practical factor in your camera selection.
- Choose a standard fixed-lens turret if: You are covering a narrower scene such as a single doorway, driveway or corridor where the full 180° panoramic width is unnecessary.
- Choose a PTZ camera if: Remote pan, tilt and optical zoom control are required to track subjects or shift focus across the scene in real time.
- Consider your identification distance: With a DORI identification range of 4.5m, this camera is best suited to broad situational awareness. If identification of individuals or number plates at longer distances is the primary goal, a narrower lens or varifocal camera is more appropriate.
FAQs

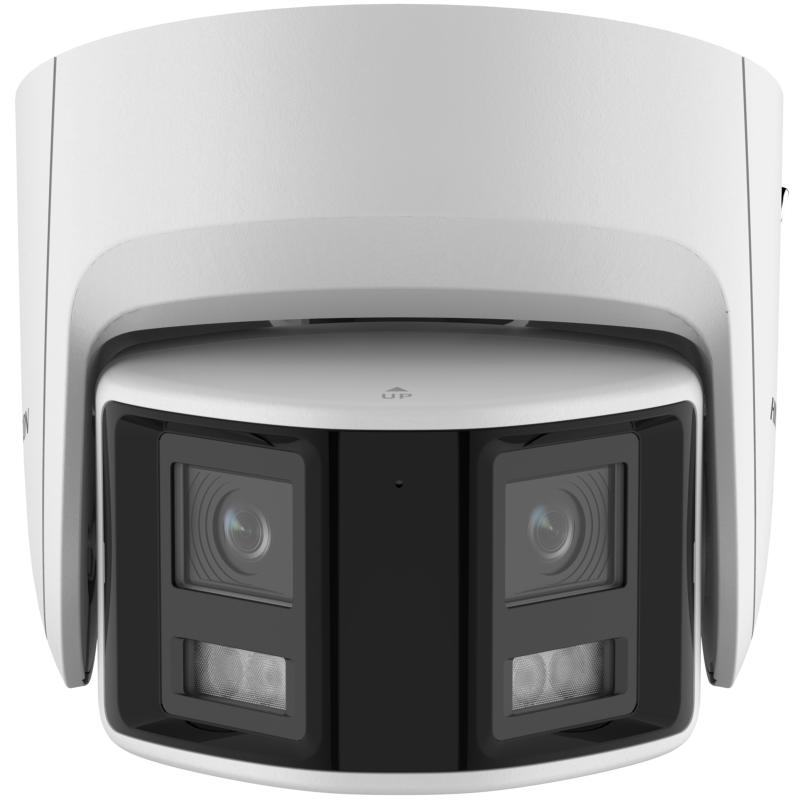

- What does the dual-head design mean on the DS-2CD2367G2P-LSU/SL?
The DS-2CD2367G2P-LSU/SL uses 2 separate 2.8mm fixed lenses within a single turret housing. These 2 lenses capture overlapping angles that are combined using Image Fusion Technology into one wide panoramic image. The result is a 180° horizontal field of view from a single cable drop and mounting point, which is the core advantage of the dual-head design over standard single-lens turrets.
- What resolution does this panoramic camera record at?
This model records at 6MP with an output resolution of 3840 x 1080 at 25fps. This panoramic resolution is wider than it is tall, reflecting the horizontal emphasis of the dual-sensor design. It is the 6MP version of this platform; some sample footage referenced elsewhere was captured on an 8MP variant, so those clips should be viewed as technology examples rather than resolution-matched samples from this specific model.
- Does the DS-2CD2367G2P-LSU/SL record in colour at night?
Yes. The camera uses ColorVu technology with an F1.0 super aperture and warm white light illumination to maintain full-colour output in low-light conditions, down to a minimum illumination of 0.0005 Lux. The white light reaches up to 30m, which keeps the scene in colour at night without switching to monochrome. This is useful in situations where clothing colour, vehicle colour or broader scene detail matter during playback.
- How does the Live-Guard deterrence work on this camera?
Live-Guard uses the built-in strobe light and customisable audio alarm to generate a visible and audible warning when the camera is triggered. Rather than only recording an event passively, the camera can create an active response. This is configured through compatible Hikvision equipment and is suited to commercial entrances, loading areas and car parks where the goal includes discouraging rather than only documenting activity.
- Is two-way audio confirmed on this model?
Yes. The DS-2CD2367G2P-LSU/SL has both a built-in microphone and a built-in speaker confirmed, which means two-way audio communication is supported when connected to compatible recording or management equipment. This allows live verbal warnings or interaction at building entries and loading areas, and adds audio context to recorded footage during incident review.
- How does AcuSense help across a wide panoramic scene?
A 180° panoramic view captures a large amount of movement, which makes basic motion detection prone to frequent false alerts from background noise such as rain, shadows, animals or vehicles passing outside the zone of interest. AcuSense classifies motion as human or vehicle, helping focus alerts on more relevant activity. This makes notifications and search-and-review during playback more manageable on wide commercial sites.
- Is the DS-2CD2367G2P-LSU/SL suitable for outdoor mounting?
Yes. The IP67 rating means the camera is sealed against dust ingress and water jets, making it suitable for exposed outdoor positions including building frontages, loading dock overhangs, car park structures and warehouse exteriors. For best results, position the camera so the full 180° horizontal coverage is used effectively without critical scene elements sitting too far from the lens for the DORI distances to be useful.
- Can this camera reduce how many cameras are needed on a large site?
In wide-open spaces such as warehouse bays, car parks or large commercial entrances, yes. Because the DS-2CD2367G2P-LSU/SL covers a 180° scene from a single mounting point, it can replace what would otherwise require 2 or more standard fixed-lens cameras in some installations. This can also reduce cable runs and VMS licence requirements. Security Wholesalers recommends confirming the DORI distances and scene dimensions during planning to confirm the panoramic coverage meets the site’s identification requirements before finalising camera positions.
